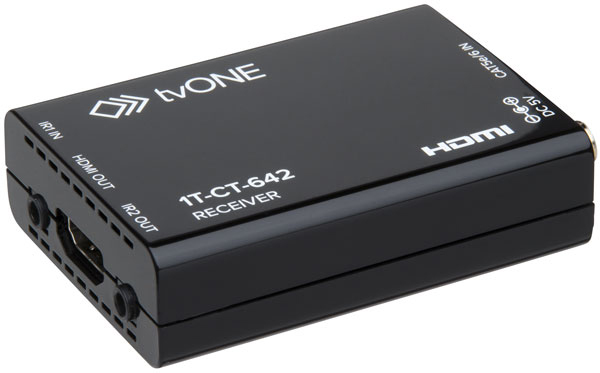

tvONE 1T-CT-642
1:1 HDBaseT-Lite HDMI over twisted pair receiver
Max. 60m @ 1920×1080, 3D, 2k and 4k compatible
Availability: 3-5 days
tvONE 1T-CT-642
The tvOne 1T-CT-641/1T-CT-642 HDMI over Single Cat.5e/Cat.6 system consists of a 1T-CT-641 Transmitter coupled with a 1T-CT-642 Receiver (each purchased separately) which employs HDMI v1.4 capability and the HDBaseT-Lite technology to allow transmission of uncompressed, 1080p high definition television signals over a single Cat.5e or Cat.6 cable. (This is the type cable typically employed for Ethernet computer networks). HDMI v1.4 signals - including 3D and 4k UHD formats - are supported and the system will also allow DVI signal transmission with appropriate DVI to HDMI Cable adapters. In addition, embedded LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio capability is standard. The 1T-CT-641/1T-CT-642 system can achieve signal distribution distances of up to 60 meters (197 feet) for uncompressed HDMI signals without signal degradation. A screw on power adapter cable prevents inadvertent disconnection of power.
tvONE 1T-CT-642 Key Features
- HDMI w/3D, 4k(24hz/30Hz),HDCP 1.1 & DVI 1.0
- Uncompressed HDMI signal distribution to 60m/197ft
- Class B (HDBaseT-Lite)technology
- Supports Embedded HDMI Lossless Digital Audio
- Full HD resolution support(1080p@60Hz/36bit)
- UHD support (4k@30Hz)
- HD 3D formats & PC resolutions up to WUXGA
- Supports HDCP Repeater and CEC bypass
- Single Cat.5e/Cat.6 Ethernet cable via RJ45
- Bi-directional infrared remote control extensions
- Supports DVI when using Optional HDMI to DVI Adaptors
tvONE 1T-CT-642 Specifications
I/O |
|

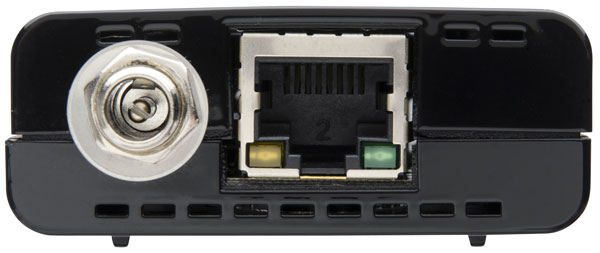

| Cat.5e/Cat.6 | 1x via RJ45 Connector |

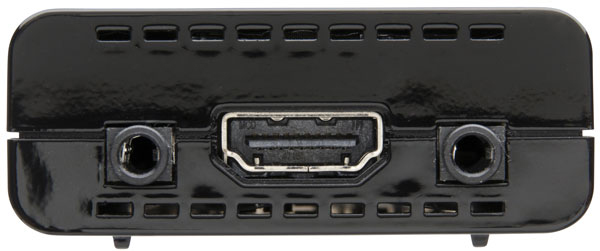

| Output | 1x via HDMI Connector |
| Additional I/O | 2x 3.5mm mini-jack (Infrared) |
| Supported Signals & Protocols | HDMI v1.4 (3D, 4k), HDCP, DVI 1.0, |
| Infrared | |
Video Performance |
|
| Maximum Resolution | HD up to 1080p@60Hz/36bit, UHD to 4k@30Hz, PC to WUXGA |
| Audio Formats | LPCM 7.1CH, Dolby TrueHD, Dolby |
| Digital Plus & DTS-HD Master | |
| HDBaseT-Lite Class B | Maximum Bandwidth Uncompressed Video/Audio to 10.2Gbps/300MHz |
| Maximum Range | 60m (197 ft.) at 1080p@60Hz |
| 40m (131 ft.) at 4k@30Hz | |
Environmental |
|
| Op. Temperature | 0° to +40° C (+32° to +104° F) |
| Op. Humidity | 20% to 90%, Non-condensing |
| Storage Temp. | -20° to +60° C (-4° to +140° F) |
| Storage Hum. | 20% to 90%, Non-condensing |
Warranty |
|
| Limited Warranty | 3 Years Parts and Labor |
Regulatory Approvals |
|
| Encoder/Decoder Unit | FCC, CE, RoHS |
| Power Supply | UL, CUL, CE, PSE, GS, RoHS |
| Cable Requirements | Ethernet Cable Highest Quality Single Cat.5e or Cat.6 cable (UTP or STP) |
Mechanical |
|
| Dimensions (H-W-D) | 22.5x55x76.5mm (0.87x2.17x3.01") |
| Weight | 56g (0.12 lbs.) |
Power Requirement |
|
| External Power Supply | 5VDC@2.6A Locking Connector |
| Accessories Included | 1x Power Adapter UK |
| 1x User Manual | |
| 1x IR Transmitter or Receiver Extender | |
