Roland V-1HD

4:1 HDMI Switcher with T-Fader
4 x HDMI inputs; 1 x HDMI + Preview output; P-in-P, P-and-P

Roland V-1HD 4:1 HDMI Switcher with T-Fader product image

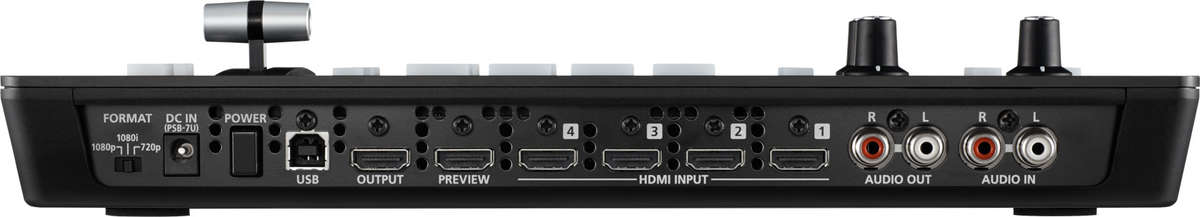

Roland V-1HD 4:1 HDMI Switcher with T-Fader connectivity (terminals) product image Roland V-1HD 4:1 HDMI Switcher with T-Fader connectivity (terminals) product image Roland V-1HD 4:1 HDMI Switcher with T-Fader connectivity (terminals) product image Roland V-1HD 4:1 HDMI Switcher with T-Fader product image Roland V-1HD 4:1 HDMI Switcher with T-Fader product image Roland V-1HD 4:1 HDMI Switcher with T-Fader product image
£830 (£996.00 inc. VAT)
Availability: In stock

Roland V-1HD Description

The Roland V-1HD makes it easy to connect and switch video cameras, smart phones, computers, tablets, Blu-ray players and other HDMI video sources with a simple push of a button or slide of the T-Fader.
  • 4 HDMI inputs
  • Supports up to Full HD 1080p
  • Easy to Use Interface
  • Full 12 Channel Audio Mixer Included
  • Easy to Operate with Hardware Controls
  • Two HDMI Outputs
  • Support for video cameras, action cameras, smart phones, tablet computers and other HDMI devices.
  • Picture-in-picture and split functions.
  • Two EFFECTS knobs deliver genuine visual performance.
  • Remote Control via USB or MIDI Connection.
  • Software Control using V-1HD RCS Application for Mac, PC and iPad.
  • Large back-lit buttons for intuitive video switching even in low light conditions.
  • Broadcast style Preview/Program switching for professional results.
  • There are three buttons for applying transition effects, CUT, MIX (4 types) and WIPE (30 types).
  • Four-way multi-view preview screen shows every input source (non-drop frame).
HDMI
Audio


Roland V-1HD Specifications

Video

Video Processing 4:2:2(Y/Pb/Pr), 8-bit
Input Connectors HDMI INPUT 1-4: Type A(19pins)x 4 *HDCP Supported
Output Connectors HDMI OUTPUT: Type A(19pins) / HDMI PREVIEW: Type A(19pins) *HDCP Supported
Input Formats HDMI: 720/59.94p, 720/50p(FORMAT switch = 720p), HDMI: 1080/59.94i, 1080/50i, 1080/59.94p, , 1080/50p(FORMAT switch = 1080i or 1080p)
*The input interlaced video signal is converted to progressive video signal by internal processing.
*The video signal frame rate is selected by SETUP parameters (59.94 or 50).
Output Formats HDMI: 720/59.94p, 720/50p(FORMAT switch = 720p), HDMI: 1080/59.94i, 1080/50i(FORMAT switch = 1080i), HDMI: 1080/59.94p, 1080/50p(FORMAT switch = 1080p)
*The video signal frame rate is selected by SETUP parameters (59.94 or 50).
Video Effects Transition: CUT, MIX (DISSOLVE/FAM/NAM/MOSAIC), WIPE (30 types), , TRANSFORMER(11 types), EFFECTS: NEGATIVE, EMBOSS, COLORIZE, COLORPASS, POSTERIZE, SILHOUETTE, , MONOCOLOR, FINDEDGE, FLIP, WH-LUMIKEY@, BK-LUMIKEY@, , GR-CHROMAKEY@, BL-CHROMAKEY@, PinP(1/4)@, PinP(1/3)@, PinP(1/2)@, , SPLIT(H-STRETCH)@. SPLIT(H-CENTER)@, SPLIT(V-STRETCH)@, , SPLIT(V-CENTER)@
*@ marked Effects are effected common to A-BUS and B-BUS.

Audio

Audio Processing Sampling rate: 24bit/48kHz
Input Connectors Digital: HDMI INPUT 1–4 (19 pins) x 4, Analog: AUDIO IN (RCA pin type), MIC (Stereo mini type, plug-in power supported)
Output Connectors Digital: HDMI OUTPUT (HDMI Type A 19 pins), HDMI PREVIEW (HDMI Type A 19 pins), Analog: AUDIO OUT (RCA pin type), PHONES (Stereo mini type)
Input Level AUDIO IN: -10 dBu (Maximum : +8 dBu), MIC: -41 – -13dBu (Maximum : -1 dBu)
Input Impedance AUDIO IN: 15 k Ω, MIC:10 k Ω
Output Level AUDIO OUT: -10 dBu (Maximum : +8 dBu), PHONES: 72mW + 72mW (32 Ω)
Output Impedance AUDIO OUT: 1k Ω, PHONES: 10 Ω
Audio Effects EQ, Delay, Compressor, HPF, Gate, Reverb, Mastering effect

General

Other Connectors USB: B Type (for remote control from PC), MIDI: IN, OUT/THRU
Other Functions MEMORY (8 types), FREEZE (input video captured), , BPM SYNC (auto transition synchronized to tempo), OUTPUT FADE (WHITE/BLACK/AUDIO)
Power Supply AC adaptor
Current Draw 1.5A
Power Consumption 18W
Dimensions 313w x 102d x 59h mm / 12-1/3w x 4d x 2-1/3h inches
Weight 1.2 kg (excluding AC adaptor) 2 lbs 10-2/5 oz
Accessories Owner’s Manual, AC Adaptor, Power Cord, Cord Hook
Roland V-1HD pdf brochure
Roland V-1HD
Brochure
