Lightware MMX6x2-HT220

6x2 HDMI and HDBaseT Matrix Switcher
4xHDMI, 2xHDBaseT inputs; 2xHDMI, 2 x HDBaseT mirrored outputs; Max. 170m @ 1080p

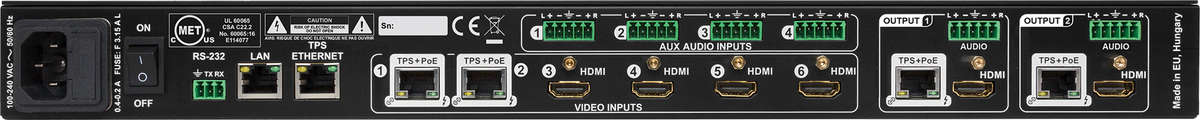

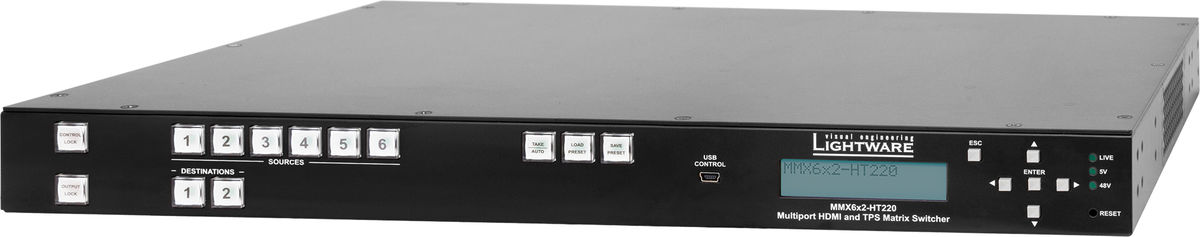

Lightware MMX6x2-HT220 6x2 HDMI and HDBaseT Matrix Switcher product image
Lightware MMX6x2-HT220 6x2 HDMI and HDBaseT Matrix Switcher product image
£3260 (£3912.00 inc. VAT)
Availability: In stock

Lightware MMX6x2-HT220 Description

The Lightware MMX6x2-HT220 responds to a need for a practical standalone matrix switcher specifically designed for meeting room and classroom environments. The compact MMX6x2-HT220 has six video inputs (four HDMI 1.4 and two TPS) and two video outputs (two independent HDMI outputs which both have mirrored TPS outputs). 4K@30Hz, 3D capabilities and HDCP are fully supported. The device also has four audio connectors for audio insertion and two audio outputs for de-embedding purposes. These features make this standalone matrix unique on the market.

PoE 48V remote powering is available on every TPS ports for cost-effective installations. MMX6x2-HT220 receives and transmits digital video, audio and control to a distance of up to 170m over a single CATx cable. Using factory, custom or transparent EDID emulation the user can fix and lock EDID data on each input connector. Advanced EDID Management forces the required resolution from any video source and fixes the output format to conform to the system requirements.

The unit offers IR and RS-232 command injection capabilities, providing the ability to send any IR or RS-232 control command directly from the LAN connection to remote end points. The MMX6x2-HT220 is also compatible with both HDBaseT extenders and HDBaseT compliant displays.

Event Manager


The Event Manager can perform any user-defined action when a change in the device status occurs. To mention a few case examples among the many, in case of a status change of a signal appearing on the input, or a change in resolution, the responsive action can be defined by the user to be a crosspoint switch, sending IR or RS-232 commands or changing the volume.

This built-in feature ensures that no additional control is required in simple systems and makes the MMX6x2-HT family the perfect solution in a wide range of applications.

Configuration Cloning Capability



Using the supplied Lightware Device Controller application it is possible to clone configuration settings in a few easy steps and restore them in an unlimited number of other MMX6x2-HT200 devices.

Lightware MMX6x2-HT220 Key Features

  • 6x2 multiport matrix with HDMI and TPS ports
  • 4K@30Hz and 3D capabilities
  • 4x HDMI 1.4 input
  • 2x TPS input
  • 2x independent AV output
  • Two ports per output: mirrored HDMI + TPS
  • Easy to clone device configuration settings between matrices in large installations
  • Firmware upgrade capability of connected extenders through TPS link
  • Up to 170m video transmission distance over TPS
  • Fully HDCP compliant
  • Advanced EDID Management
  • Zero frame delay
  • Autoselect mode
  • Balanced Analogue audio inputs and outputs
  • Audio insertion and de-embedding capabilities
  • Assignable AUX audio inputs: any audio input can be combined with any video input or video output
  • Analogue audio inputs are converted to digital signal
  • Embedded 7.1 HBR audio support
  • Volume and Gain control options
  • Audio de-embedding from uncompressed HDMI audio formats
  • Integrated power injector on every TPS input and output port
  • Bi-directional RS-232, IR, transmission over TPS
  • 10/100 Ethernet extension
  • RS-232, USB, and IP control options
  • Insert RS-232 and IR commands from LAN
  • Intuitive Control Software
  • Event Manager
HDMI
Audio
HDBaseT
RS-232 Control
Ethernet Control
4K 4096*2160 and 3840*2160 Resolution


Lightware MMX6x2-HT220 Specifications

Connectors

Digital Video Inputs 4x HDMI connector
Digital Video Outputs 2x HDMI connector
TPS Inputs 2x RJ45 connector
TPS Outputs 2x RJ45 connector
Analogue Audio Inputs: 4x 5-pole PHOENIX
Analogue Audio Outputs: 2x 5-pole PHOENIX
Control Lan RJ45
Tps Ethernet RJ45
Serial Port 3-pole PHOENIX
USB mini-USB B
Power IEC 230V

Specification

Crosspoint: 6x2 video - any input(s) to any output(s)
Resolution: Up to 4K UHD 3840×2160@30Hz, 1600x1200@60Hz, FullHD 1920x1080@60Hz
Digital Audio Formats: Supports up to 8 channel PCM, Dolby TrueHD and DTS-HD Master Audio 7.1 formats
Input Cable Equalization: Automatic max 20 m
EDID Emulation: Yes, Advanced EDID Management
EDID Memory: 119 factory preset, 12 user programmable
HDCP Compliant: Yes
Front Panel Buttons: Yes
Front Panel Lcd: Yes, 2x16 characters
RS-232 Control: Selectable (9600, 19200, 38400, 57600, 115200) Baud Rx, Tx (default: 57600)
Local Power: 100 - 240 V AC
Power Consumption: 70 W (max.), 36 W (typ.)
Heat Dissipation: 92 BTU/h (max.), 65 BTU/h (typ.)
Enclosure: 1 mm metal
Dimensions With Rack Mounting Ears: 482 W x 43, 9 H x 300 D mm
Dimensions Without Rack Mounting Ears: 442 W x 43, 9 H x 300 D mm
Rack Height: 1U
Net Weights: 4, 8 kg
Compliance: CE
Temperature: 0°C to +50°C operational -40°C to +70°C storage
Humidity: 10 to 90% non-condensing
Rohs Compliance: Yes
Warranty: 3 years

Supported Audio Formats

Embedded Audio Balanced Analogue Out
Multichannel PCM Stereo PCM (up to 96 kHz, max 8 Channel, Up To 192 Khz)
Dolby Digital 2.1
Dolby Digital 5.1
Dolby Digital 7.1
Dts 2.1
Dts 5.1
Dts 7.1
Dolby TrueHD (hbr)
Dts-HD (hbr)
Dts-HD Master Audio (hbr)
All Other HDMI Specified Standards

Analogue Audio Input

Gain: 0.21 dB
Volume: -95..0 dB
Maximum Differencial Input Level +4 dBu @ 0 dB Gain

Analogue Audio Output

Gain: 0.3 dB
Volume: -57..0 dB
Nominal Differential Input Level +4 dBu @ 0 dB Gain
Maximum Differential Output Level +7 dBu @ 3 dB Gain
Supplied Accessory 2x rack ear

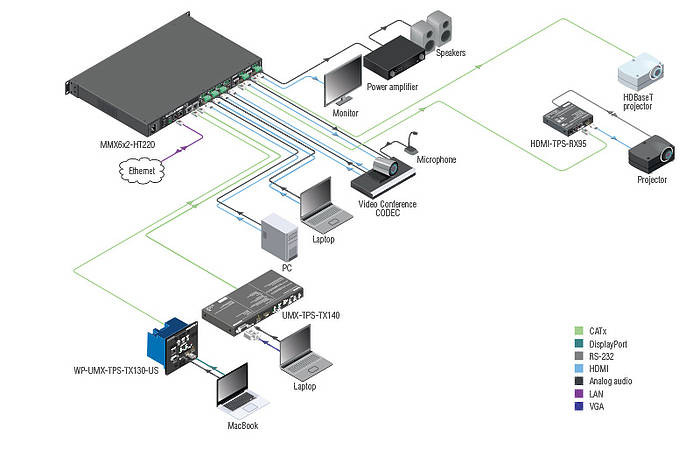

Lightware MMX6x2-HT220 Usage Diagram



Lightware MMX6x2-HT220 Usage Diagram



Lightware MMX6x2 Matrix Switch Distance Table

Max cable lengths with the available firmware versions
Resolution Pixel clock rate Cable: CAT5e AWG24 Cable: CAT7 AWG26 Cable: CAT7 AWG23
1024x768@60Hz 65 MHz 100m / 130m* 90m / 120m* 120m / 170m*
1280x720p@60Hz 73,84 MHz 100m / 130m* 90m / 120m* 120m / 170m*
1920x1080p@60Hz/24bpp 148.5 MHz 100m / 130m* 90m / 120m* 120m / 170m*
1920x1200@60Hz 152.9 MHz 100m / NA 90m / NA 120m / NA
1600x1200@60Hz 162 MHz 100m / NA 90m / NA 120m / NA
1920x1080@60Hz/36bpp 223.6 MHz 70m / NA 70m / NA 100m / NA
3840x2160@30Hz UHD 297 MHz 70m / NA 70m / NA 100m / NA
4096x2160@30Hz 4K 297 MHz 70m / NA 70m / NA 100m / NA
