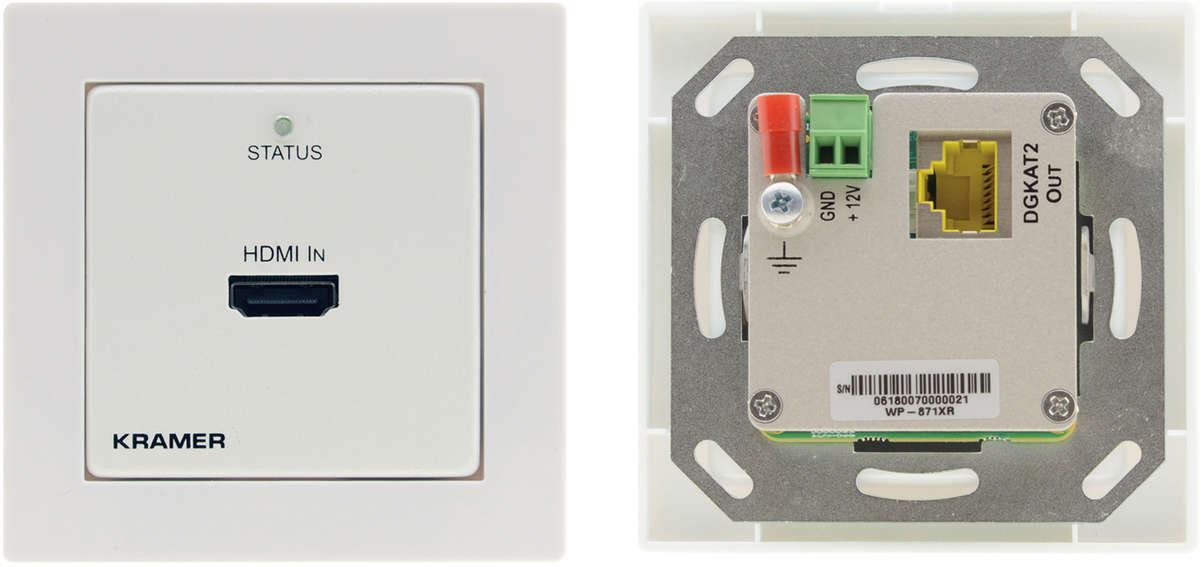

Kramer WP-871xr

4K HDR HDMI Transmitter DGKat 2.0 Wall-Plate finished in white

PoC, HDMI 2.0, HDCP 2.2; Max. 60M over Kramer STP

£150 (£180.00 inc. VAT)
Availability: In stock

Kramer WP-871xr (50-805160590)

The Kramer WP-871xr is a high performance, long-reach DGKat™ 2.0 wall-plate transmitter for 4K@60Hz (4:4:4) HDR HDMI and HDCP 2.2 signals and power over twisted pair. It converts the HDMI input signal into a DGKat™ 2.0 signal and transmits it to a compatible receiver. WP-871xr extends the signal to up to 60m (200ft) at 4K@60Hz (4:4:4) resolution and up to 70m (230ft) at 4K@30Hz (4:4:4) 24bpp resolution over Kramer shielded cables. This wall-plate is powered through PoC (Power over Copper) over the twisted pair cable.

Kramer WP-871xr Key Features

  • High Performance Transmitter — Professional DGKat™ 2.0 transmitter for providing long-reach signals over twisted pair copper infrastructures. WP-871xr transmitter employs high-level video compression technology that delivers visually lossless performance for 4K@60Hz (4:4:4) HDR signals with near-zero latency. It converts the HDMI input signal into a DGKat™ 2.0 signal and transmits it to a compatible receiver.
  • HDMI Signal Extension — HDR, HDCP 2.2 compliant. Supports deep colour, x.v.colour™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0.
  • EDID Pass-through — Pass-through algorithm ensures Plug and Play operation for HDMI source and display systems.
  • Multi-channel Audio Extension — Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound.
  • Cost-Effective Maintenance — Power and connectivity status LED indicator facilitates easy local maintenance and troubleshooting.
  • Easy Installation — Compactly fits into standard US, EU and UK 1-gang in-wall box size, supporting decorative integration with room deployed user interfaces such as electrical switches. Wall-plate installation is fast and cost-effective via a single twisted pair cable, providing both video signal and power (PoC) connections.
  • 7 year warranty (Click Here for details)
  • Order Code: 50-805160590

Kramer WP-871xr Downloads

4K 4096*2160 and 3840*2160 Resolution
HDMI 2.0
HDR (High Dynamic Range)
2K 2048*1080 Resolution
HDCP Compliant

Kramer WP-871xr Specifications

Connectivity

Inputs 1 × HDMI On an HDMI female connector
Outputs 1 × DGKat On an RJ-45 female connector

Video Specifications

Max Data Rate 18Gbps (6Gbps per graphic channel)
Max Resolution 3840×2160@60Hz (4:4:4) 24bpp
Standards Compliance HDR10, HDCP 2.2
HDMI Support Deep colour, x.v.colour™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0
High Compression Reach Extension Using Shielded UNIKAT Cables Up to 60m (200ft) at 4K@60Hz (4:4:4), Up to 70m (230ft) at 4K@30Hz (4 4 4) or full HD (1080p @60Hz 36bpp)
Extension Line Signal Compression High compression level applied to >1080p signals
Compliance DGKat 2.0

User Interface

Indicator Power/connection
Controls Dip-switches to define compression setup

Mechanical

Power Source 12V DC, 2A
Consumption 600mA
Enclosure Size: 1-gang
Type: Aluminium
Cooling: Convection ventilation
Accessories Included Power adapter with cord, bracket set
Standards Compliance Safety CE, UL
Environmental RoHs, WEEE
Product Dimension UK: 8.60×3.10×8.60cm (3.39×1.22×3.39") W×D×H
Product Weight UK: 0.1kg (0.1lbs) approx.
Shipping Dimension UK: 23.20×13.60×10.00cm (9.13×5.35×3.94") W×D×H
Shipping Weight UK: 0.6kg (1.3lbs) approx.

Environmental

Operating Temp. 0° to +40°C (32° to 104°F)
Storage Temp. -40° to +70°C (-40° to 158°F)
Humidity 10% to 90%, RHL non-condensing

Replacement Power Supplies

ProductDescriptionPriceInc. VAT
Kramer PS-1202 12V DC/2A Desktop Power Supply with power cord £35 £42.00
Kramer PS-1202-O 12V DC/2A Open Head Power Supply £33 £39.60
Kramer PS-1205 12V DC/5A Desktop Power Supply with power cord £52 £62.40
Kramer VA-102P12 10-Output 12v DC/10A Power Supply (Max 1 Amp per channel) £353 £423.60
