Kramer VM-4HDT

1:4 4K UltraHD HDMI to HDBaseT-Lite Distribution Amplifier

1 × HDMI input; 4 × HDBaseT outputs; 4K UHD; Max. 70m, Max bandwidth 10.2Gbps

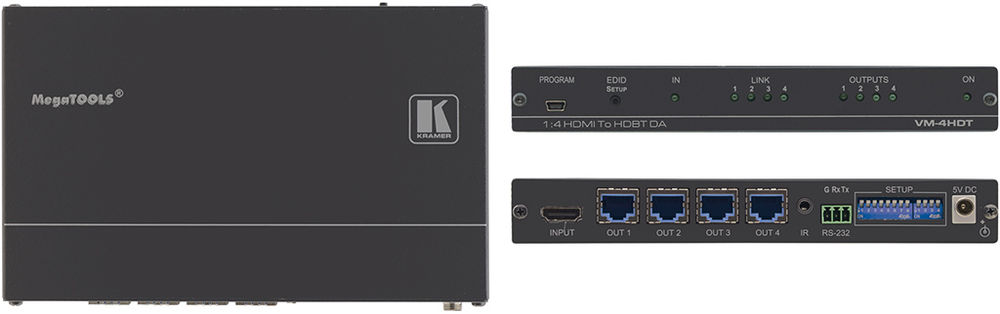

Kramer VM-4HDT 1:4 4K UltraHD HDMI to HDBaseT-Lite Distribution Amplifier product image. Click to enlarge.
£651 (£781.20 inc. VAT)
Availability: In stock

Kramer VM-4HDT (10-80359090)

The Kramer VM−4HDT is a high−quality, long−reach 4K@60Hz (4:2:0) HDBaseT extender distributor that takes one HDMI input, with IR and RS−232 control signals, converts them to HDBaseT extension line signal and distributes it to four HDBaseT outputs that connect to compatible HDBaseT receivers.


See also: Kramer TP-580R.

Kramer VM-4HDT Key Features

  • High Performance Distribution — Distributes one HDMI signal to four long-reach HDBaseT extension outputs with up to 4K video resolution.
  • Extension-line Distribution — Distributes a 4K@60Hz (4:2:0) 24bpp (maximum) video signal over HDBaseT extension line to a distance of up to 40m (130ft) long-reach, and even further for lower video resolutions.
  • Standard Compatibility — Connects to any HDBaseT compliant extension product on the market.
  • HDMI Signal Transmission — HDCP 1.4 compliant signal, supporting Deep colour, x.v.colour™, Lip Sync, 7.1 PCM, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID and CEC (OUT 1 only) signals are passed through from the source to the display.
  • I-EDIDPro™ Kramer Intelligent EDID Processing™ — An intelligent EDID handling, processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems.
  • Kramer Equalization & re-Klocking™ Technology — Rebuilds the digital signal integrity to travel longer distances.
  • EDID Pass-through — Pass-through algorithm ensures Plug and Play operation for HDMI source and display systems.
  • LED Indicators — Status indicators for HDMI and HDBaseT input/output connected signals and power for ease of maintenance and troubleshooting.
  • Easy Installation — Twisted-pair cables for HDBaseT signals wiring. Compact Mega TOOLS™ fan-less enclosure for over-ceiling mounting, or side-by-side rack mounting.
  • 7 year warranty (Click Here for details)
  • Order Code: 10-80359090

Kramer VM-4HDT Downloads

Play Kramer VM-4HDT Video VM-4HDT Product Video
Splitter
Repeater

Kramer VM-4HDT Specifications

Connectivity

Inputs 1 × HDMI
Outputs 4 × HDBaseT
Other I/o 1 × IR On a 3.5mm mini jack for IR link extension
1 × RS-232 On a 3-pin terminal block for serial link extension

Video Specifications

Max. Data Rate 10.2Gbps (3.4Gbps per graphic channel)
Max. Resolution 4K@60Hz (4:2:0) 24bpp
Standards Compliance Supports HDCP 1.4 and HDBaseT 1.0
HDMI Support Deep colour, x.v.colour™, Lip Sync, 7.1 PCM, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0
Extension Range Up To 40m (130ft) at 4K@60Hz (4:2:0)
Up To 70m (230ft) at full HD (1080p @60Hz 36bpp)
When using Kramer HDBaseT cables

Mechanical

Controls EDID setup button, 12 setup DIP switches
Indicator Leds OUTPUTS 1-4, LINK 1-4, active input, power on
1 RS-232 On a Mini-USB female connector for firmware upgrade
Size MegaTool
Type Aluminium
Cooling Fan ventilation
Product Dimensions 18.75×11.50×2.54cm (7.38×4.53×1.00") W×D×H
Product Weight 0.5kg (1.2lbs) approx.
Shipping Dimensions 34.50×16.50×5.20cm (13.58×6.50×2.05") W×D×H
Shipping Weight 1.3kg (2.8lbs) approx.
Accessories Included Power supply
Power Source 5.2V DC, 4A
Consumption 5V DC, 800mA

Environmental Conditions

Operating Temp. 0° to +40°C (32° to 104°F)
Storage Temp. -40° to +70°C (-40° to 158°F)
Humidity 10% to 90%, RHL non-condensing

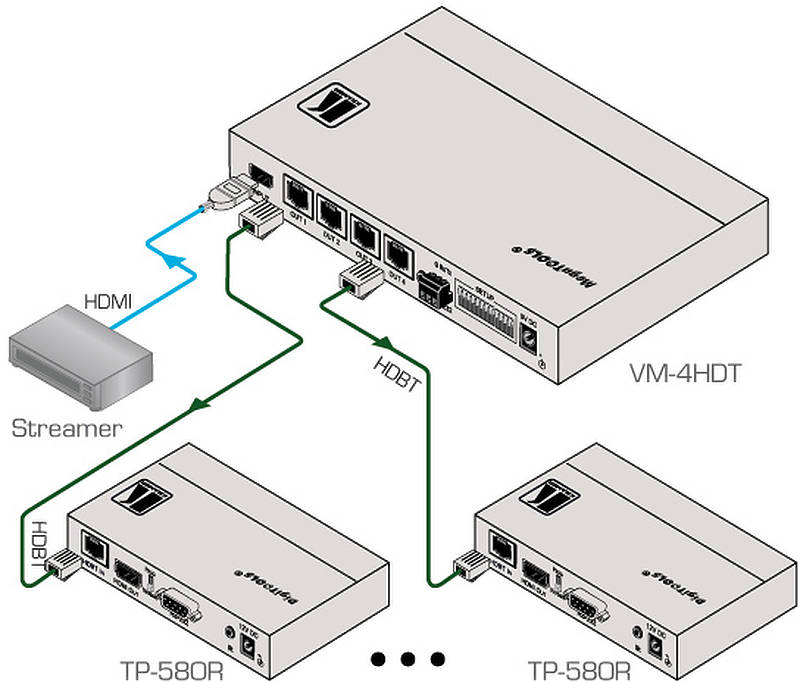

Kramer VM-4HDT Usage Diagram



Kramer VM-4HDT Usage Diagram

Replacement Power Supplies

ProductDescriptionPriceInc. VAT
Kramer VA-102P5 10-Output 5v DC/18A Power Supply (Max 1.8 Amp per channel) £353 £423.60

Kramer VM-4HDT Compatible Products

Product CodeDescriptionPriceInc. VAT
Kramer RK-T2B-B Rack Adapter for 2 × Kramer Large Tools range £69 £82.80

Kramer VM-4HDT Optional Cables

DescriptionLengthPriceInc. VAT
Kramer C-HM/DM-0.5 HDMI TO DVI-D Single Link Cable (M-M) 0.1m £10 £12.00
Kramer C-MHM/MHM(W)-1 HDMI High Speed with Ethernet M-M - White (Max. 18Gbps 4K/60Hz 4:4:4) 0.3m £10 £12.00
Kramer C-HM/HM/PICO/BK-1 Black Ultra-slim HDMI High Speed with Ethernet M-M (Max. 18Gbps 4K/60Hz 4:4:4) 0.3m £9 £10.80
Kramer C-MHM/MHM-1 HDMI High Speed with Ethernet M-M (Max. 18Gbps 4K/60Hz 4:4:4) 0.3m £10 £12.00
Kramer C-HM/HM/PICO/BK-2 Black Ultra-slim HDMI High Speed with Ethernet M-M (Max. 18Gbps 4K/60Hz 4:4:4) 0.6m £10 £12.00
Kramer C-MHM/MHM-2 HDMI High Speed with Ethernet M-M (Max. 18Gbps 4K/60Hz 4:4:4) 0.6m £8 £9.60
Kramer C-UNIKat-2 UNIKat cable for DGKAT/HDBaseT/LAN (Pre-terminated) 0.6m £6 £7.20
Kramer C-MHM/MHM(W)-2 HDMI High Speed with Ethernet M-M - White (Max. 18Gbps 4K/60Hz 4:4:4) 0.6m £10 £12.00
More Cables for the Kramer VM-4HDT

Kramer VM-4HDT Possible Alternatives

Product CodeDescriptionPriceInc. VAT
Kramer VM-4DT 1:4 4K 60Hz HDBaseT Distribution Amplifier 1 × HDBaseT input; 4 × HDBaseT outputs, Max bandwidth 10.2Gbps £706 £847.20
CYP PUV-1H4HPL-AVLC 1:5 HDBaseT-Lite HDMI 2.0 / IR / PoH to twisted pair transmitter and splitter with AVLC 1 × HDMI input; 4 × HDBaseT, 1 × HDMI output; Max. 60m at 1080P or 4K £996 £1195.20
