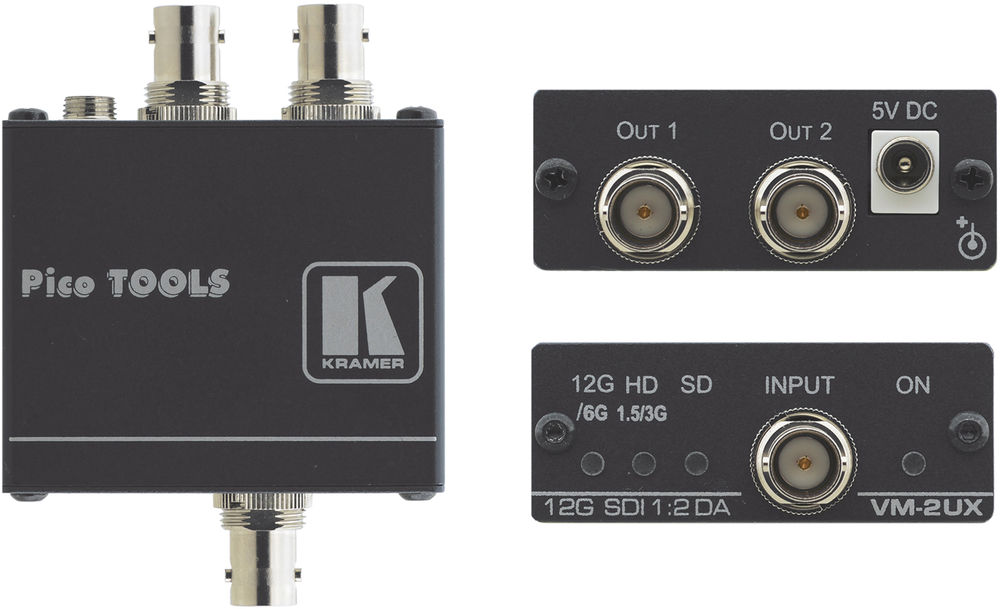

Kramer VM-2UX
1:2 4K 12G SDI Distribution amplifer
Max bandwidth 12Gbps
£392 (£470.40 inc. VAT)
Availability: In stock
Availability: In stock
Kramer VM-2UX (10-80440090)
The Kramer VM-2UX is a compact and high performance 1:2 4K distributor for standard broadcast-grade SDI signals of up to 12G transmitted data rate. It auto-adapts to data rate of one SDI input signal, equalizes and re-clocks the signal to improve transmitted signal reach, and distributes the signal to two identical SDI outputs.
Kramer VM-2UX Key Features
- Reliable Wire Connectivity — Coaxial broadcast-grade cables are reliably connected via lockable BNC connectors, preventing unintentional wire disconnections, to gain fast and highly professional uncompressed SDI signals distribution deployments.
- Extended-reach Input Extension — Input signal equalization and output signal reclocking to gain extended-reach signal extension. Using Kramer high-quality coaxial SDI cables, supports extension of up to 80m (260ft) for 12G 4K signals.Note: Reach depends on signal resolution, and quality of copper cable used. Reach extension performance may vary while using non-Kramer coaxial cables.
- Transmitted Data Rate — From 270Mbps to 12Gbps data rates.
- Max. Resolution — 4K@60Hz (4:2:2) 30bpp.
- SDI Signal Transmission — Auto-adapts to SDI, HD-SDI, 3G HD-SDI, 6G and 12G SDI compliant signals, supporting pass-through of standard embedded audio channels with ancillary ID and metadata information.
- Easy Installation & Maintenance — Compact Pico TOOLS fan-less enclosure for small footprint spaces and over-ceiling mounting, or side-by-side rack mounting. Status indicators for transmitted SDI data rate of input and output connected signals, and power indicator, for ease of maintenance and troubleshooting.
- 7 year warranty (Click Here for details)
- Order Code: 10-80440090
Kramer VM-2UX Downloads
Kramer VM-2UX Specifications
Connectivity |
|
| Input | 1 × SMPTE 259M (SD-SDI), 292M (HD-SDI), 344M (ED-SDI), 424M (3G HD-SDI), ST-2081 (6G-SDI) and ST-2082 (12G-SDI) compliant serial video input on a 75Ω BNC connector |
| Outputs | 2 × equalized and reclocked SMPTE 259M (SD-SDI), 292M (HD-SDI), 344M (ED-SDI), 424M (3G HD-SDI), ST-2081 (6G-SDI) and ST-2082 (12G-SDI) outputs on 75Ω BNC connectors |
Video Specifications |
|
| Video | Up to 4K@60Hz (4:2:2) 30bpp resolution, 270Mbps up to12Gbps data rate |
| Standards Compliance | SMPTE 259M (SD-SDI), 292M (HD-SDI), 344M (ED-SDI), 424M (3G HD-SDI), ST-2081 (6G-SDI), ST-2082 (12G-SDI) |
| Cable Equalization Reach | 12Gbps: Up to 80m (260ft) using Kramer cables, 3Gbps and 6Gbps: Up to 100m (330ft) |
| 1.5Gbps: Up to 200m (660ft), SD: Up to 300m (980ft) | |
| Maximum Output Level | 800mVpp/75Ω |
| Coupling | AC |
Mechanical |
|
| Power Supply | 5.2V/4A |
| Consumption | 5V DC, 250mA |
| In The Box | VM-2UX, Power supply, mounting bracket |
| Product Dimension | 6.22×5.18×2.44cm (2.45×2.04×0.96") W×D×H |
| Product Weight | 0.5kg (1.1lbs) approx. |
| Shipping Dimension | 15.70×12.00×8.70cm (6.18×4.72×3.43") W×D×H |
| Shipping Weight | 0.9kg (2.1lbs) approx. |
Environmental |
|
| Operating Temp. | 0° to +40°C (32° to 104°F) |
| Storage Temp. | -40° to +70°C (-40° to 158°F) |
| Humidity | 10% to 90%, RHL non-condensing |
Kramer VM-2UX Usage Diagram
Replacement Power Supplies
| Product | Description | Price | Inc. VAT |
| Kramer VA-102P5 | 10-Output 5v DC/18A Power Supply (Max 1.8 Amp per channel) | £353 | £423.60 |
Kramer VM-2UX Compatible Products
| Product Code | Description | Price | Inc. VAT |
| Kramer RK-4PT-B | Rack Adapter 4 × PicoTools new shape and black colour | £58 | £69.60 |
Kramer VM-2UX Optional Cables
| Description | Length | Price | Inc. VAT | |
| Kramer C-BM/BM-1.5 1.5ft SDI/HD-SDI COAX with BNC connectors | 0.5m | £6 | £7.20 | |
| Kramer C-BM/BM-3 3.0ft SDI/HD-SDI COAX with BNC connectors | 0.9m | £9 | £10.80 | |
| Kramer C-BM/BM-6 6.0ft SDI/HD-SDI COAX with BNC connectors | 1.8m | £10 | £12.00 | |
| Kramer C-BM/BM-10 10ft SDI/HD-SDI COAX with BNC connectors | 3.0m | £12 | £14.40 | |
| Kramer C-BM/BM-15 15ft SDI/HD-SDI COAX with BNC connectors | 4.6m | £14 | £16.80 | |
| Kramer C-BM/BM-25 25ft SDI/HD-SDI COAX with BNC connectors | 7.6m | £13 | £15.60 | |
| Kramer C-BM/BM-35 35ft SDI/HD-SDI COAX with BNC connectors | 10.6m | £18 | £21.60 | |
| Kramer C-BM/BM-50 50ft SDI/HD-SDI COAX with BNC connectors | 15.2m | £24 | £28.80 |
