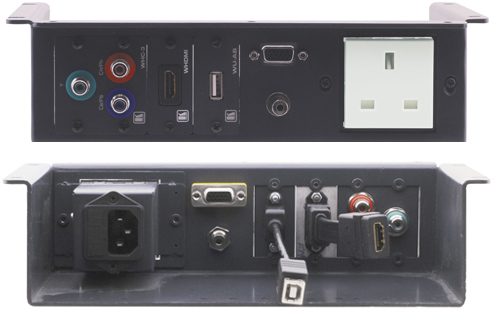

Kramer UTBUS-1xl

Under-the-Table Modular Multi-Connection Solution Enclosure
Modules not included

£77 (£92.40 inc. VAT)
Availability: In stock

Kramer UTBUS-1xl (80-004599)

The Kramer UTBUS-1xl is the enclosure of a new modular system. A complete UTBUS system requires the enclosure, a power socket, inserts and a power cord.

NOTE: The UTBUS enclosure, power socket, power cord & inserts are purchased separately.

  • Power Sockets — 8 different "TS" single power socket options are available to accommodate the power requirements worldwide.
  • Power Cord — 8 different "C-AC" single power cords for each power socket.
  • Insert Slots — 6.
  • Installation Requirement — Requires 29.0cm x 13.7cm (11.4in x 5.4in) of free space beneath the table.
  • Weight — 0.6kg (1.32lbs) approx.
  • 7 year warranty (Click Here for details)


Kramer UTBUS-1xl Specifications

Mechanical

Power (AC Power Limits) Universal: 100-240V AC, 50/60Hz, 5A
USA: 100-240V AC, 50/60Hz, 5A
UK: 100-240V AC, 50/60Hz, 5A
Germany and EU: 100-240V AC, 50/60Hz, 5A
Belgium and France: 100-240V AC, 50/60Hz, 5A
South Africa: 100-240V AC, 50/60Hz, 5A
Australia: 100-240V AC, 50/60Hz, 5A
Fuse Rating T 6.3A 250V
In The Box UTBUS-1xl, Self locking ties, wood screws
Options Passive wall plate inserts and interfaces, power cord
Product Dimension 27.50×10.20×6.50cm (10.83×4.02×2.56") W×D×H
Product Weight 2.0kg (4.4lbs) approx.
Shipping Dimension 34.00×24.80×9.70cm (13.39×9.76×3.82") W×D×H
Shipping Weight 2.0kg (4.4lbs) approx.


Kramer UTBUS-1xl Table/Surface Access mount modules

ProductDescriptionPriceInc. VAT
Kramer KWC-1 Wireless Charging spot table insert £108 £129.60
Kramer RC-10TB 1-Button Contact Closure Switch module for wall plate or TBUS £35 £42.00
Kramer RC-20TB 2-Button Contact Closure Switch £36 £43.20
Kramer T3F-1S 1 Single Power Socket Slot, 1 Fixed 15-pin HD, 1 Fixed USB-A, 1 Fixed RJ-45 Ethernet, 1 Fixed 3.5mm Audio £47 £56.40
Kramer T4F-2S 2 Single Power Sockets Slots, 2 Fixed 15-pin HD PC, 2 Fixed USB-A, 2 Fixed RJ-45 Ethernet, 2 Fixed 3.5mm Audio £86 £103.20
Kramer TS-1GB Single UK Power socket for TBUS £36 £43.20
Kramer TS-201GB Single GB Power socket for TBUS-201xl & TBUS-202xl £36 £43.20
Kramer TS-2GB Dual UK Power socket for TBUS £44 £52.80
Kramer W-2Blank Double Blank Plate for TBUS and Wall Plates £8 £9.60
Kramer W-2UC Dual USB Charger for TBUS and Wall Plates
(Total 4A output; Includes power supply)
£79 £94.80
Kramer W-3H2 1:1 4K HDR HDMI Dual Insert Extender
(Max 45m @ 1080p, 20m @4K)
£78 £93.60
Kramer W-Blank Blank plate for TBUS and wall plates £8 £9.60
Kramer W-DP DisplayPort wall plate and architectural solution module £23 £27.60
Kramer W-DVI DVI-I Adaptor module £23 £27.60
Kramer W-H HDMI Adaptor £23 £27.60
Kramer W4545 Double RJ-45 Pass through £23 £27.60
Kramer WA-1PN Wall Plate Insert − 3.5mm Stereo Audio £18 £21.60
Kramer WA-1XLF XLR adaptor module £16 £19.20
Kramer WA-45 3.5mm and RJ-45 Pass Through module insert £15 £18.00
Kramer WCP Cable pass through 10mm diameter £18 £21.60
Kramer WCP-2 Dual Cable Pass Through up to 12.5mm Diameter £18 £21.60
Kramer WCP-21 Dual Cable Pass Through up to 12.5mm and 9mm in Diameter £18 £21.60
Kramer WU-2AA 2 x USB 2.0 Type A pass through module for TBUS and Wall Plates £23 £27.60
Kramer WU-AA USB-A femaleTO USB-A female adaptor module £23 £27.60
Kramer WU-AB USB-A female to USB-B cable female adapter £27 £32.40
Kramer WU-BA USB-B female to USB-A cable female adapter
(Available in Black, grey or white)
£27 £32.40
Kramer WU-CA USB-C 3.1 Wall Plate and TBus Insert £36 £43.20
Kramer WU3-AA 1 x USB 3.0 Type A pass through module for TBUS and Wall Plates £23 £27.60
Kramer WX-1N HD-15 VGA/UXGA to 6+2 terminal block adaptor £20 £24.00
Kramer WX-2F Female VGA to Female VGA Adaptor module £15 £18.00
Kramer WXA-2 15-pin HD & 3.5mm Stereo Audio -> terminal block adaptor module £27 £32.40
Kramer WXA-2P 1:1 Passive wall plate insert - 15-pin dsub and 3.5mm audio
(Available in Black, grey or white)
£27 £32.40
