Kramer TP-580Txr

1:1 HDBaseT HDMI/RS-232/IR over extended range Twisted Pair Transmitter
Max. 130m Normal Mode or 180m Ultra mode at 1080p/60Hz/24bpp

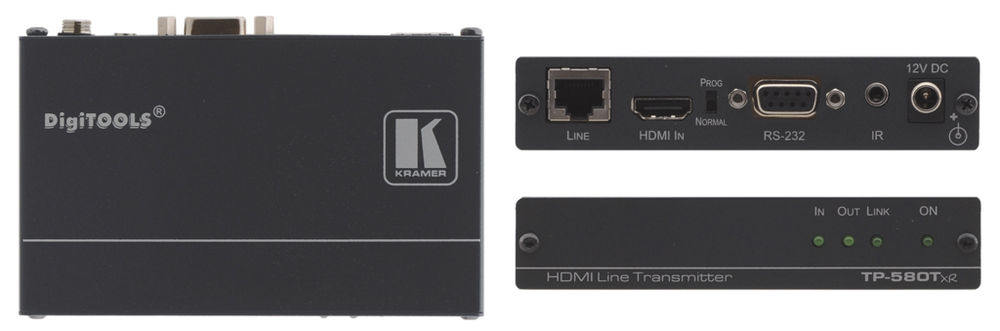

Kramer TP-580Txr 1:1 HDBaseT HDMI/RS-232/IR over extended range Twisted Pair Transmitter product image
£194 (£232.80 inc. VAT)
Availability: In stock

Kramer TP-580Txr (50-80021190)

TP-580Txr is a high performance, extended-reach HDBaseT transmitter for 4K60Hz (4:2:0) HDMI, RS-232 and IR signals over twisted pair. The TP-580Txr converts all input signals into the transmitted HDBaseT signal. It extends video signals to up to 100m (330ft) over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.


See also: Kramer TP-580RXR.
  • High Performance Standard Extender — Professional HDBaseT extender for providing extended-reach signals over twisted-pair copper infrastructures. TP-580Txr is a standard extender that can be connected to any market-available HDBaseT-compliant extension product. For optimum extension reach and performance, use recommended Kramer cables.
  • HDMI Signal Extension — HDCP 2.2 compliant signal. Supports deep colour, x.v.colour™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID and CEC signals are passed through from the source to the display.
  • I-EDIDPro™ Kramer Intelligent EDID Processing™ — Intelligent EDID handling, processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems.
  • Multi-channel Audio Extension — Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound.
  • Bidirectional RS-232 Extension — Serial interface data flows in both directions, allowing data transmission and device control.
  • Bidirectional Infrared Extension — IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.
  • Cost-effective Maintenance — Status LED indicators for HDMI and HDBaseT ports facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS-232 connection and the K-Upload tool ensures lasting, field-proven deployment.
  • Easy Installation — Compact DigiTOOLS® fan-less enclosure for dropped-ceiling mounting, or side-by-side mounting of 3 units in a 1U rack space with the orecommended rack adapter.
  • 7 year warranty (Click Here for details)
Kramer TP-580Txr Instruction manual
Instruction Manual
Play Kramer TP-580Txr Video TP-580Txr Product Video
HDBaseT Full
HDMI Transmitter
IR Pass Through
RS-232 Pass Through
130 Metre Range


Kramer TP-580Txr Specifications

Connectivity

Inputs 1 × HDMI on an HDMI connector
Outputs 1 × HDBaseT on an RJ-45 female connector
Ports 1 × IR on a 3.5mm mini jack for IR link extension,
1 × RS-232 on a 9-pin D-sub connector for serial link extension and device firmware upgrade

HDBaseT Specifications

Extension Line HDBaseT 1.0 compliant
Up to 100m (330ft) at 4K @60Hz (4:2:0)
Up to 130m (430ft) at full HD (1080p @60Hz 36bpp)
Up to 180m (590ft) at HDBaseT ultra mode and full HD (1080p @60Hz 24bpp)
Note: When using Kramer HDBaseT cables
Video Up to 10.2Gbps bandwidth (3.4Gbps per graphic channel)
Up to 4K UHD @60Hz (4:2:0) 24bpp resolution
HDCP 2.2 signal compliance
Supports deep colour, x.v.colour™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0
Extended RS-232 300 × to 115200 baud rate
Control RS-232 115200 × baud rate

Mechanical

Power Supply 12V DC, 2A
Consumption 12V DC, 295mA
Enclosure DigiTools size, Aluminium type
Cooling Convection ventilation
Convection ventilation
Operating Temp. 0° to 40°C (32° to 104°F)
Storage Temp. -40° to +70°C (-40° to 158°F)
Humidity 10% to 90%, RHL non-condensing
In The Box TP-580TXR, Power supply
Product Dimension 12.00cm×7.15cm×2.44cm (4.72"×2.81"×0.96") W×D×H
Product Weight 0.2kg (0.4lbs) approx.
Shipping Dimension 15.70cm×12.00cm×8.70cm (6.18"×4.72"×3.43") W×D×H
Shipping Weight 0.7kg (1.6lbs) approx.

Kramer TP-580Txr Usage Diagram



Kramer TP-580Txr Usage Diagram


Replacement Power Supplies

ProductDescriptionPriceInc. VAT
Kramer PS-1202 12V/5A Desktop Power Supply with 75cm power cord £31 £37.20
Kramer PS-1205 Desktop Power Supply 12V/5A £49 £58.80
Kramer VA-102P12 10-Output 12v DC Power Supply MAX 10A - 1 Amp per channel £311 £373.20



Kramer TP-580 Range of HDBaseT Extenders

ProductDescriptionPriceInc. VAT
Kramer PT-580T 1:1 HDBaseT-Lite HDMI over Twisted Pair Transmitter
(Max. 40m @ 4K, 70m @ 1080p, no Ethernet, 4K and 3D Compatible)		 £147 £176.40
Kramer PT-580T/TP-580R 1:1 HDBaseT-Lite HDMI over Twisted Pair Extender Kit
(Max. 40m @ 4K, 70m at 1080p/2k)		 £302 £362.40
Kramer TP-580R 1:1 HDBaseT-Lite HDMI/IR/RS-232 Twisted Pair Receiver
(Max. 70m at 1080P or 4K)		 £149 £178.80
Kramer TP-580RA 1:1 4K60 4:2:0 HDMI Receiver with RS-232, IR & Stereo Audio Extraction over Long-Reach HDBaseT
(Max. 70m at 1080p, 40m at 4k)		 £264 £316.80
Kramer TP-580RD 1:1 4K60 4:2:0 DVI HDCP 2.2 Receiver with RS-232 & IR over Long-Reach HDBaseT
(Max. 70m at 1080p, 40m at 4K)		 £178 £213.60
Kramer TP-580Rxr 1:1 HDBaseT HDMI/RS-232/IR over extended range Twisted Pair Receiver
(Max. 130m Normal Mode or 180m Ultra mode at 1080p/60Hz/24bpp)		 £194 £232.80
Kramer TP-580T 1:1 HDBaseT-Lite HDMI/IR/RS-232 Twisted Pair Transmitter
(Max. 70m at 1080P or 4K)		 £155 £186.00
Kramer TP-580TD 1:1 4K60 4:2:0 DVI HDCP 2.2 Transmitter with RS-232 & IR over Long-Reach HDBaseT
(Max. 70m at 1080p, 40m at 4K)		 £178 £213.60
Kramer TP-580TXR/RXR 1:1 HDBaseT HDMI/RS-232/IR over extended range Twisted Pair Extender Kit
(Max.100m at 4K UHD; Max. 130m Normal Mode or 180m Ultra mode at 1080p/60Hz/24bpp)		 £388 £465.60
Kramer TP-582R 1:2 HDBaseT HDMI/Ethernet/RS-232/IR over Twisted Pair Receiver
(1 x HDBaseT input; 2 x HDMI outputs; Max. 130m at 1080p)		 £272 £326.40
Kramer TP-582T 2:1 HDBaseT HDMI/Ethernet/RS-232/IR over Twisted Pair Transmitter/Switcher
(2 x HDMI inputs; 1 x HDBaseT output; Max. 130m @ 1080p)		 £311 £373.20
Kramer TP-583R 1:1 4K HDR HDMI 2.0 over HDBaseT Receiver with RS-232 and IR support
(Max. 70m at 4K30Hz HDR using Kramer TP cable)		 £223 £267.60
Kramer TP-583Rxr 1:1 4K HDR HDMI 2.0 over HDBaseT Receiver with RS-232 and IR support
(Max. 180m at 4K30Hz HDR using Kramer TP cable)		 £271 £325.20
Kramer TP-583T 1:1 4K HDR HDMI 2.0 over HDBaseT Transmitter with RS-232 and IR support
(Max. 70m at 4K30Hz HDR using Kramer TP cable)		 £223 £267.60
Kramer TP-583Txr 1:1 4K HDR HDMI 2.0 over HDBaseT Transmitter with RS-232 and IR support
(Max. 180m at 4K30Hz HDR using Kramer TP cable)		 £271 £325.20
Kramer TP-588D 1:2 HDMI/DVI, Audio & RS-232 over HDBaseT Twisted Pair Receiver
(1 × HDBaseT input; 1 × HDMI, 1 × DVI-I output)		 £506 £607.20
Kramer WP-580R 1:1 HDBaseT-Lite HDMI/IR/RS-232 Twisted Pair Receiver wall plate
(Max. 70m at 1080P or 4K)		 £171 £205.20
Kramer WP-580T 1:1 HDBaseT-Lite HDMI/IR/RS-232 Twisted Pair Transmitter wall plate
(Max. 70m at 1080P or 4K)		 £171 £205.20
Kramer WP-580TXR 1:1 HDBaseT HDMI over extended range Twisted Pair Transmitter wall plate
(Max. 130m Normal Mode or 180m Ultra mode at 1080p/60Hz/24bpp)		 £233 £279.60



Kramer TP-580Txr Optional Cables

DescriptionLengthPriceInc. VAT
Kramer C-HM/DM-0.5 HDMI TO DVI-D Single Link Cable (M-M) 0.1m £10 £12.00
Kramer C-MHM/MHM(W)-1 HDMI High Speed with Ethernet M-M - White (Max. 18Gbps 4K/60Hz 4:4:4) 0.3m £12 £14.40
Kramer C-HM/HM/PICO/BK-1 Black Ultra-slim HDMI High Speed with Ethernet M-M (Max. 18Gbps 4K/60Hz 4:4:4) 0.3m £7 £8.40
Kramer C-MHM/MHM-1 HDMI High Speed with Ethernet M-M (Max. 18Gbps 4K/60Hz 4:4:4) 0.3m £12 £14.40
Kramer C-HM/HM/PICO/BK-2 Black Ultra-slim HDMI High Speed with Ethernet M-M (Max. 18Gbps 4K/60Hz 4:4:4) 0.6m £8 £9.60
Kramer C-MHM/MHM-2 HDMI High Speed with Ethernet M-M (Max. 18Gbps 4K/60Hz 4:4:4) 0.6m £11 £13.20
Kramer C-UNIKat-2 UNIKat cable for DGKAT/HDBaseT/LAN (Pre-terminated) 0.6m £10 £12.00
Kramer C-MHM/MHM(W)-2 HDMI High Speed with Ethernet M-M - White (Max. 18Gbps 4K/60Hz 4:4:4) 0.6m £13 £15.60
