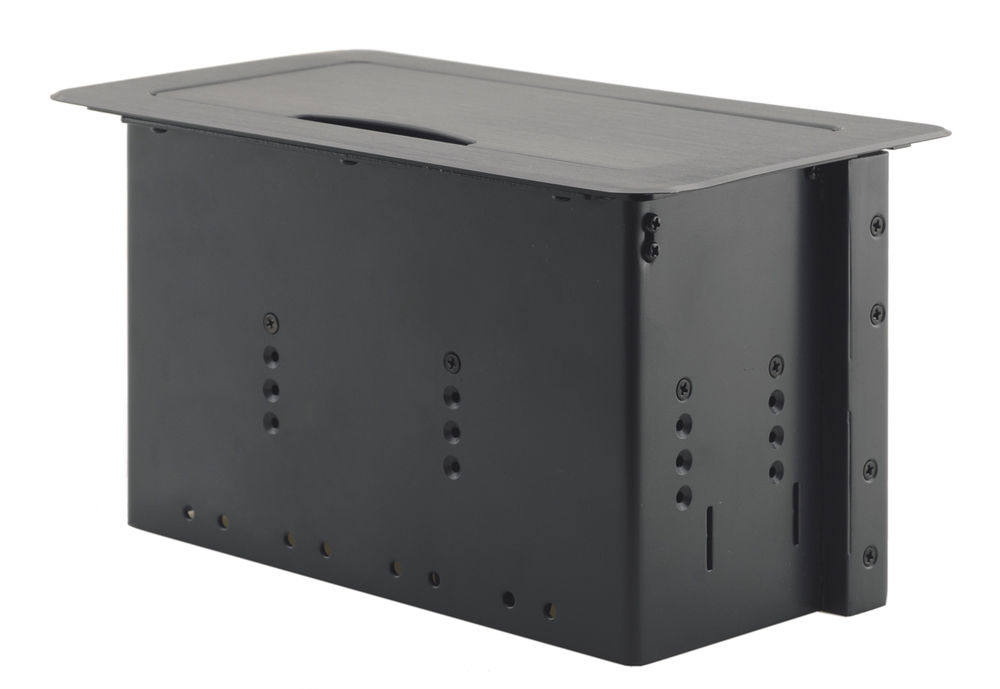

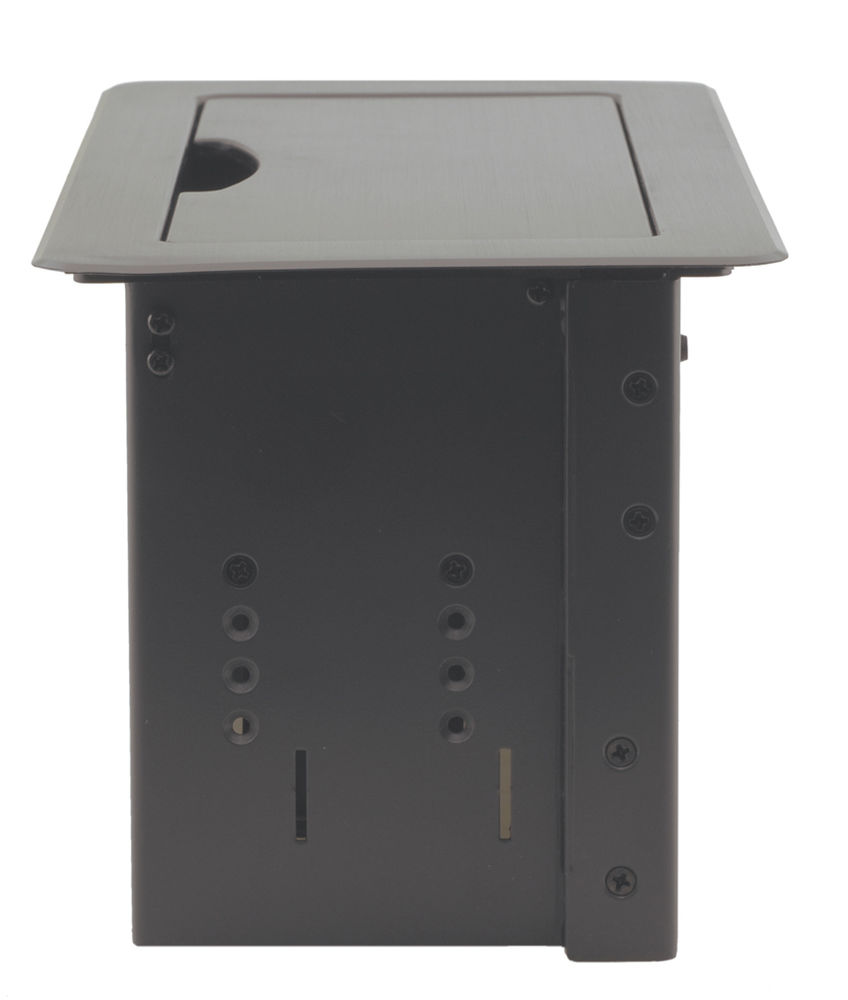

Kramer TBUS-6xl

Table Mount Modular Multi-Connection Solution - Manually Retracting Lid, 225x123mm cutout
Unpopulated

£163 (£195.60 inc. VAT)
Availability: In stock

Kramer TBUS-6xl Description

The Kramer TBUS-6xl is the enclosure of a new modular system with a tilt-up lid. A complete TBUS system requires the enclosure, an inner frame, a power socket, inserts and a power cord. NOTE: The TBUS enclosure, power socket, power cord & inserts are purchased separately.

Kramer TBUS-6xl Key Features

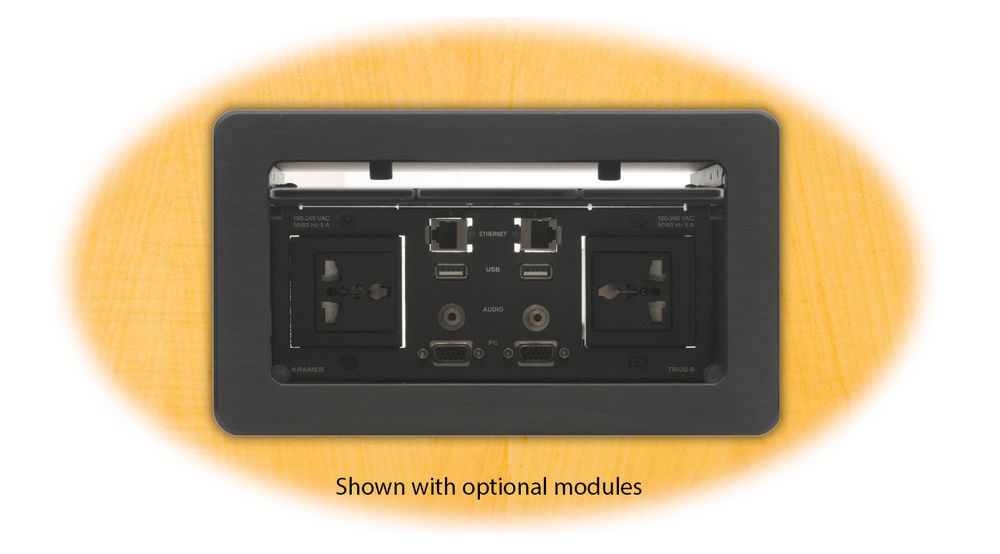

  • Inner Frame - 3 different "T3F" inner frame options are available that can accommodate a combination of up to 4 power sockets, 6 cable pass-through or connector inserts, 1 long insert and up to 3 Kramer TOOLS.
  • Power Sockets - 8 different "TS" single power socket options are available to accommodate the power requirements worldwide.
  • Power Cord - 8 different "C-AC" single power cords (and 3 "Y" power cords) for each power socket.
  • Optional Accessories - TBUS Brackets, K-Able Box Cable Reels, Step-In Modules and Controllers are available.

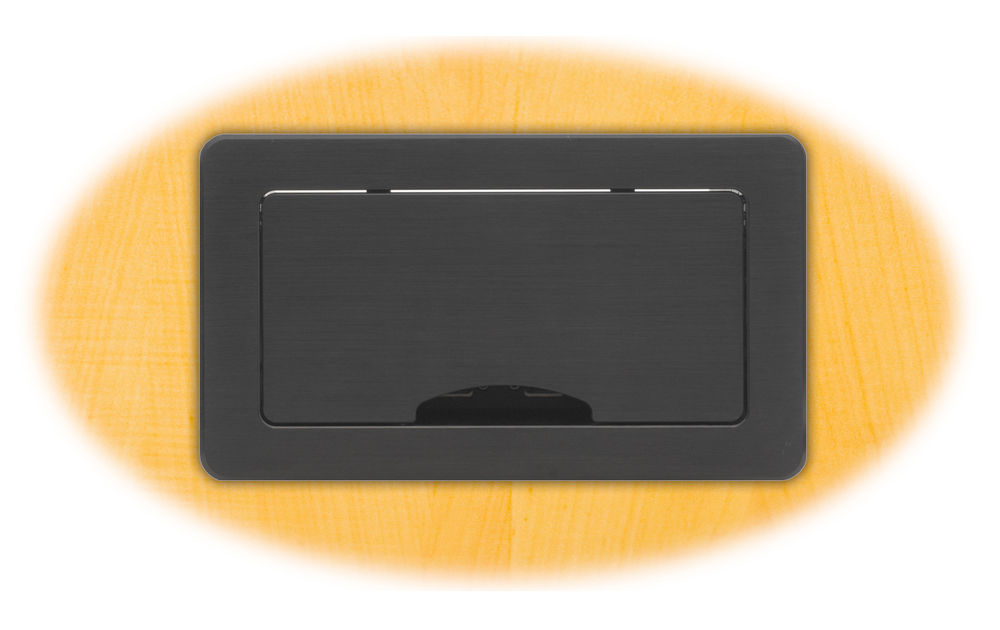

  • Retractable Lid - Manually slides into unit.
  • Connector Depth - Adjustable.
  • Installation Requirement - Table cutout of 225mm x 123mm (8.87" x 4.85").
  • Dimensions - Top plate: 24.3cm x 14.0cm (9.6" x 5.5") W, D; Enclosure: 22.1cm x 10.2cm x 13.0cm (8.7" x 4.0" x 5.1") W, D, H.
  • Weight - 1.35 kg (2.8 lbs) approx.; table clamps: 0.25 kg (0.6 lbs) approx.
  • 7 year warranty (Click Here for details)

Kramer TBUS-6xl Specifications

In The Box TBUS-6xl, Power cord, table clamps, self locking ties, template, template screws
Options Insert kit


Kramer TBUS-6xl Compatible Products

Product CodeDescriptionPriceInc. VAT
Kramer DIP-20 3:1 HDMI & Computer Graphics with Ethernet, Bidirectional RS-232, IR & Stereo Audio over HDBaseT Transmitter & Step-In Commander £537 £644.40
Kramer DIP-22 3:1 4K60 4:2:0 DisplayPort++, HDMI & VGA Auto Automatic/Manual Switcher with Bidirectional PoE over HDBaseT and Maestro Room Automation £674 £808.80
Kramer DIP-31 3:1 4K UHD HDMI & Computer Graphics Automatic Video Switcher
(2 x HDMI, 1 x VGA inputs; 1 x HDMI output)
£389 £466.80
