Kramer TBUS-1Axl

Table Mount Modular Multi-Connection Solution with tilt-up lid, 191×152mm cutout

Unpopulated

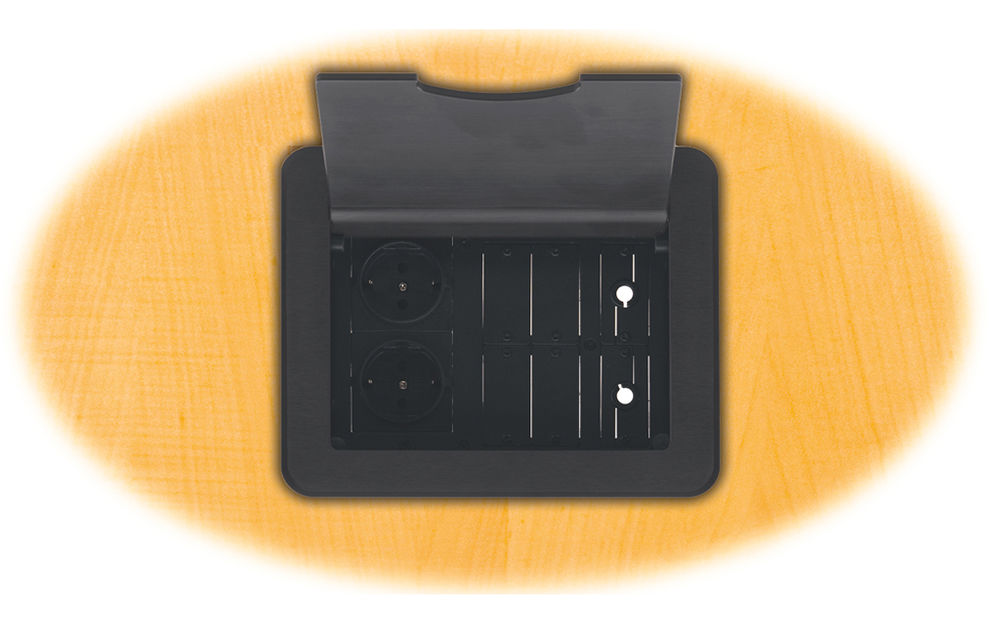

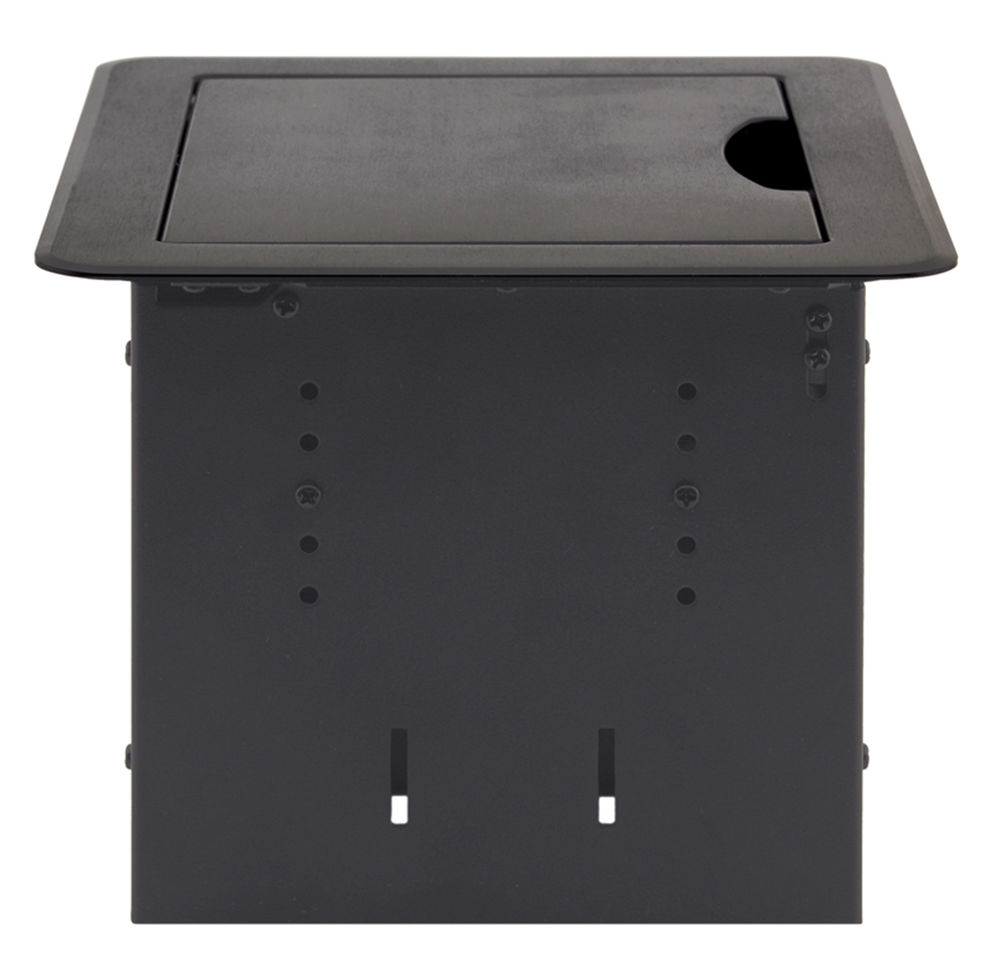

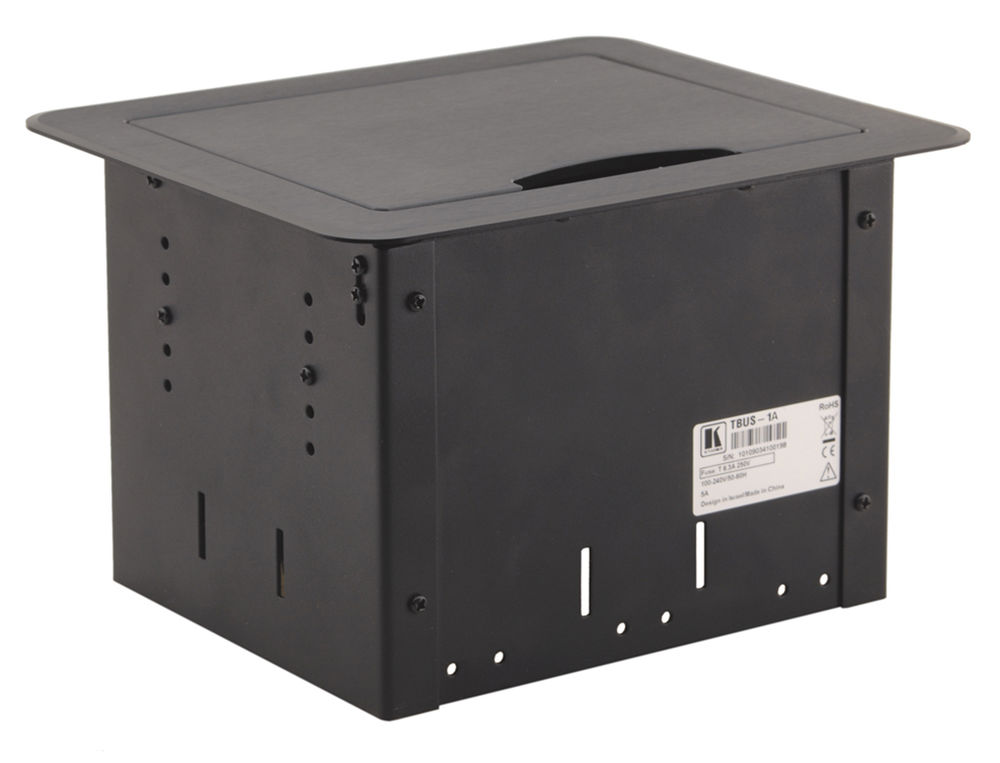

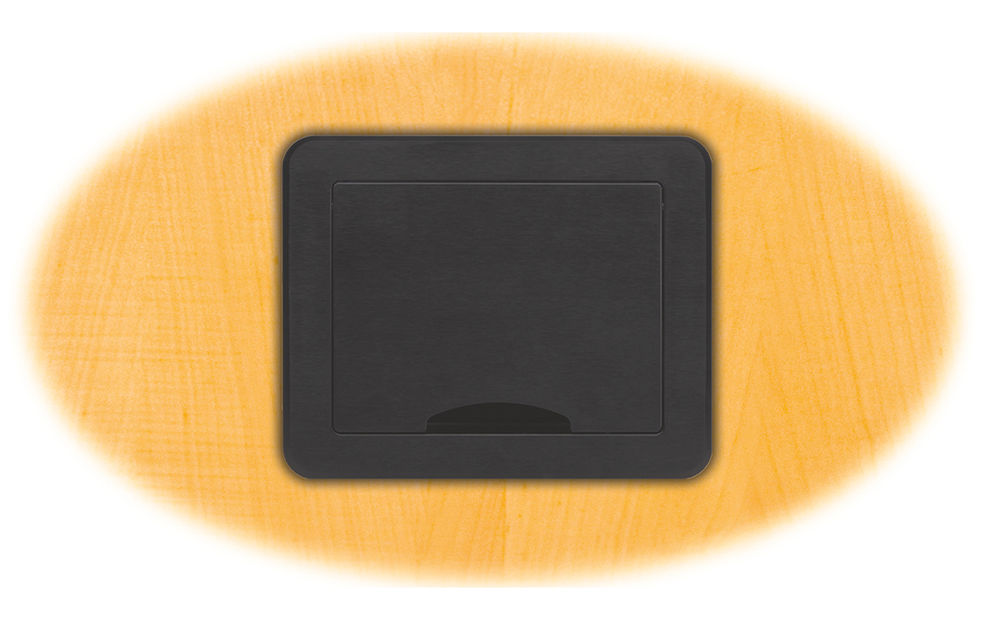

Kramer TBUS-1Axl Table Mount Modular Multi-Connection Solution with tilt-up lid, 191×152mm cutout product image. Click to enlarge.
Kramer TBUS-1Axl Table Mount Modular Multi-Connection Solution with tilt-up lid, 191×152mm cutout product image Kramer TBUS-1Axl Table Mount Modular Multi-Connection Solution with tilt-up lid, 191×152mm cutout product image Kramer TBUS-1Axl Table Mount Modular Multi-Connection Solution with tilt-up lid, 191×152mm cutout product image
£124 (£148.80 inc. VAT)
Availability: In stock

Kramer TBUS-1Axl (80-000099)

The Kramer TBUS-1Axl is the enclosure of a new modular system with a tilt-up lid. A complete TBUS system requires the enclosure, an inner frame, a power socket, inserts and a power cord.

NOTE: The TBUS enclosure, power socket, power cord & inserts are purchased separately.

Kramer TBUS-1Axl Key Features

  • Cover — Manually opens & closes.
  • Inner Frame — 6 different "TIAF" inner frame options are available that can accommodate a combination of up to 4 power sockets, 6 cable pass-through or connector inserts, 1 long insert and up to 3 Kramer TOOLS.
  • Power Sockets — 8 different "TS" single and 8 dual power socket options are available to accommodate the power requirements worldwide.
  • Power Cord — 8 different "C-AC" single power cords (and 3 "Y" power cords) for each power socket.
  • Optional Accessories — TBUS Brackets, K-Able Box Cable Reels, Step-In Modules and Controllers are available.
  • UL and CE Qualified.
  • Connector Depth — Adjustable.
  • Installation Requirement — Table cutout of 19.1cm x 15.2cm (7.51in x 5.98in).Weight | TBUS-1Axl: 1.5kg (3.3lbs) approx.; table clamps: 0.26kg (0.57lbs); metal template: 0.125kg (0.28lbs).
  • 7 year warranty (Click Here for details)
  • Order Code: 80-000099

Kramer TBUS-1Axl Specifications

Mechanical

Dimensions 20.5×17×13.2cm
(8.07×6.69×5.20") W×D×H
Weight TBUS-1A: 1.5kg (3.3lbs) approx., table clamps: 0.26kg (0.57lbs), metal template: 0.125kg (0.28lbs)
In The Box TBUS-1Axl, Six self-locking ties
Options Inner frames, power sockets

Environmental

Operating Temp. Range +5° to +45°C
Operating Humidity Range 10 × to 90% RHL, non-condensing
Storage Temp. Range -20° to +70°C
Storage Humidity Range 5 × to 95% RHL, non-condensing

Table/Surface Access mount modules

ProductDescriptionPriceInc. VAT
Kramer KWC-1 Wireless Charging spot table insert £130 £156.00
Kramer T-4INSERT Bracket to Install 4 Inserts in a Dual Power Socket Opening £30 £36.00
Kramer TS-1GB Single UK Power socket for TBUS £35 £42.00
Kramer TS-1U Single Universal Power socket £35 £42.00
Kramer TS-201GB Single GB Power socket for TBUS-201xl & TBUS-202xl £35 £42.00
Kramer TS-201U Single Universal Power socket for TBUS-201xl £35 £42.00
Kramer TS-21GB Single GB Power socket £58 £69.60
Kramer TS-2GB Dual UK Power socket for TBUS £45 £54.00
Kramer TS-2U Dual Universal Power socket £45 £54.00
Kramer TS-PEU Universal Socket Power Extension for Modular TBUS £289 £346.80
Kramer TS-UC TBUS power socket module with 2 USB charging ports £130 £156.00
Kramer W-2Blank Double Blank Plate for TBUS and Wall Plates £4 £4.80
Kramer W-2UC Dual USB Charger for TBUS and Wall Plates (Total 4A output; Includes power supply) £78 £93.60
Kramer W-45 Wall Plate Insert - RJ-45 £20 £24.00
Kramer W-Blank Blank plate for TBUS and wall plates £3 £3.60
Kramer W-DP DisplayPort wall plate and architectural solution module £20 £24.00
Kramer W-DVI DVI-I Adaptor module £27 £32.40
Kramer W-H HDMI Adaptor £21 £25.20
Kramer W4545 Double RJ-45 Pass through £26 £31.20
Kramer WA-1PN Wall Plate Insert − 3.5mm Stereo Audio £20 £24.00
Kramer WA-1XLF XLR adaptor module £29 £34.80
Kramer WA-45 3.5mm and RJ-45 Pass Through module insert £29 £34.80
Kramer WCP Cable pass through 10mm diameter £14 £16.80
Kramer WCP-2 Dual Cable Pass Through up to 12.5mm Diameter £14 £16.80
Kramer WCP-21 Dual Cable Pass Through up to 12.5mm and 9mm in Diameter £14 £16.80
Kramer WU-2AA 2 × USB 2.0 Type A pass through module for TBUS and Wall Plates £32 £38.40
Kramer WU-AA USB-A 2.0 female to USB-A 2.0 female adaptor module £17 £20.40
Kramer WU-AB USB-A female to USB-B cable female adapter £17 £20.40
Kramer WU-BA USB-B female to USB-A cable female adapter (Available in Black, grey or white) £17 £20.40
Kramer WU-CA USB-C 3.1 Wall Plate and TBus Insert £38 £45.60
Kramer WU3-AA 1 × USB 3.0 Type A pass through module for TBUS and Wall Plates £32 £38.40
Kramer WX-2F Female VGA to Female VGA Adaptor module £23 £27.60


Kramer TBUS-1Axl Inner Frames

Product CodeDescriptionPriceInc. VAT
Kramer T1AF-16 TBUS-1Axl Inner Frame 1 × Single Power Socket Slot, 6 × Insert Slots; Includes 4 × Blank & 2 × Cable Pass-Through Inserts £48 £57.60
Kramer T1AF-24T TBUS-1Axl Inner Frame 1 × Double Power Socket Slot, 1 × Kramer Tool Slot, 6 × Insert Slots; Includes 4 × Blank & 2 × Cable Pass-Through Inserts £96 £115.20
Kramer T1AF-26 TBUS-1Axl Inner Frame 1 × Double Power Socket Slot, 6 × Insert Slots; Includes 4 × Blank & 2 × Cable Pass-Through Inserts £48 £57.60
Kramer T1AF-44 TBUS-1Axl Inner Frame 2 × Double Power Sockets Slots, 4 × Insert Slots; Includes 2 × Blank & 2 × Cable Pass-through Inserts £48 £57.60
