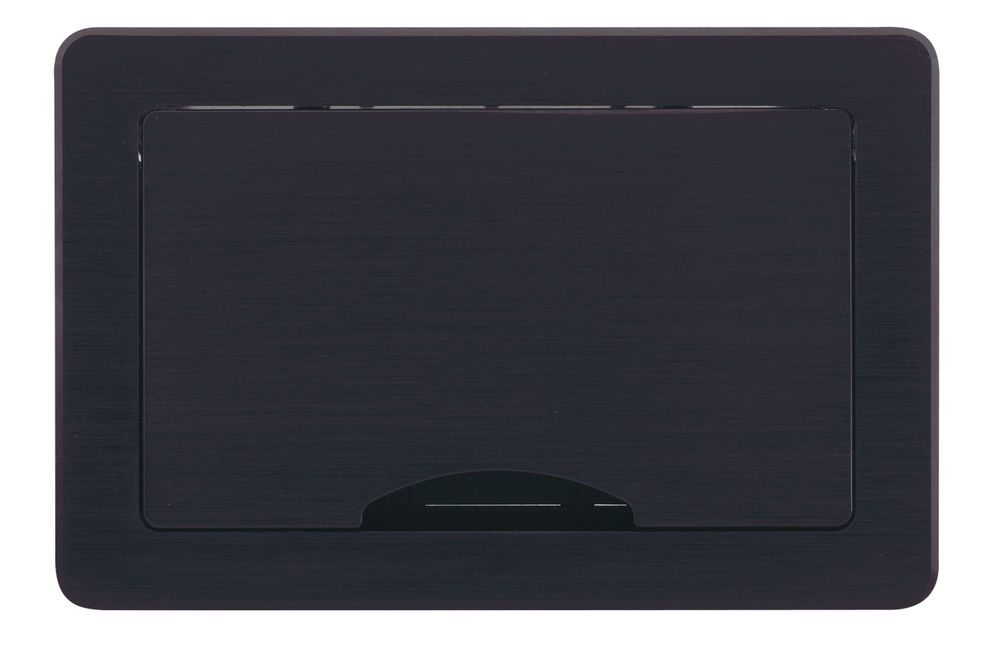

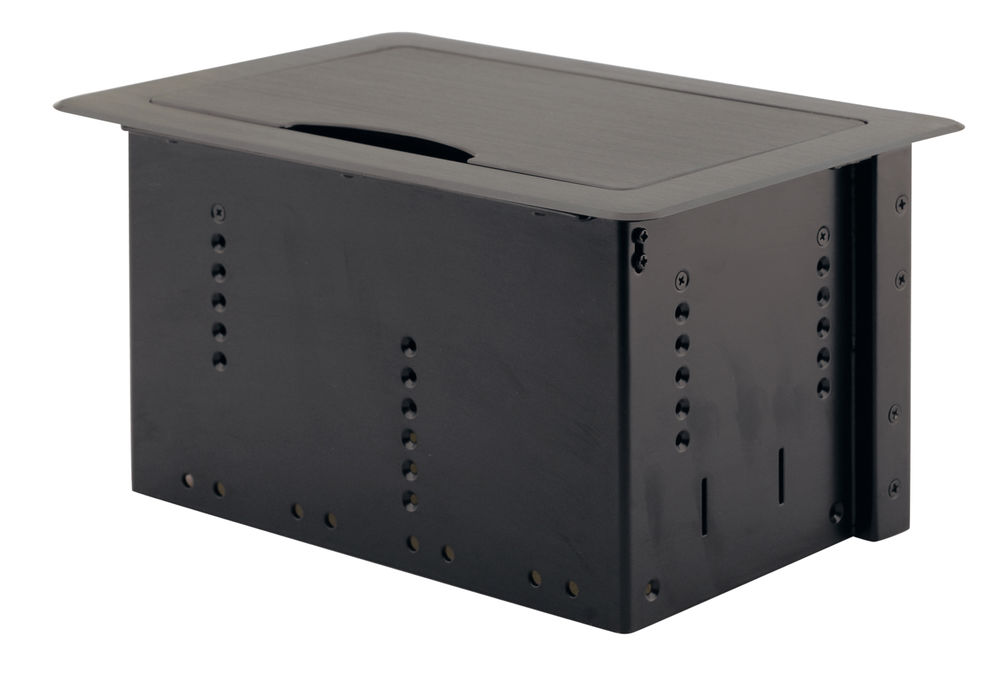

Kramer TBUS-10xl

Architectural Table-Mount Interface - Tilt-Up Lid, 245x154mm cutout
Unpopulated

£178 (£213.60 inc. VAT)
Availability: In stock

Kramer TBUS-10xl Description

The Kramer TBUS-10xl is the enclosure of a new modular system with a manually retracting lid. A complete TBUS system requires the enclosure, an inner frame, a power socket, inserts and a power cord.


NOTE: The TBUS enclosure, inner frame, power socket(s), power cord & inserts are purchased separately.

Kramer TBUS-10xl Key Features

  • Cover — Manually opens & closes.

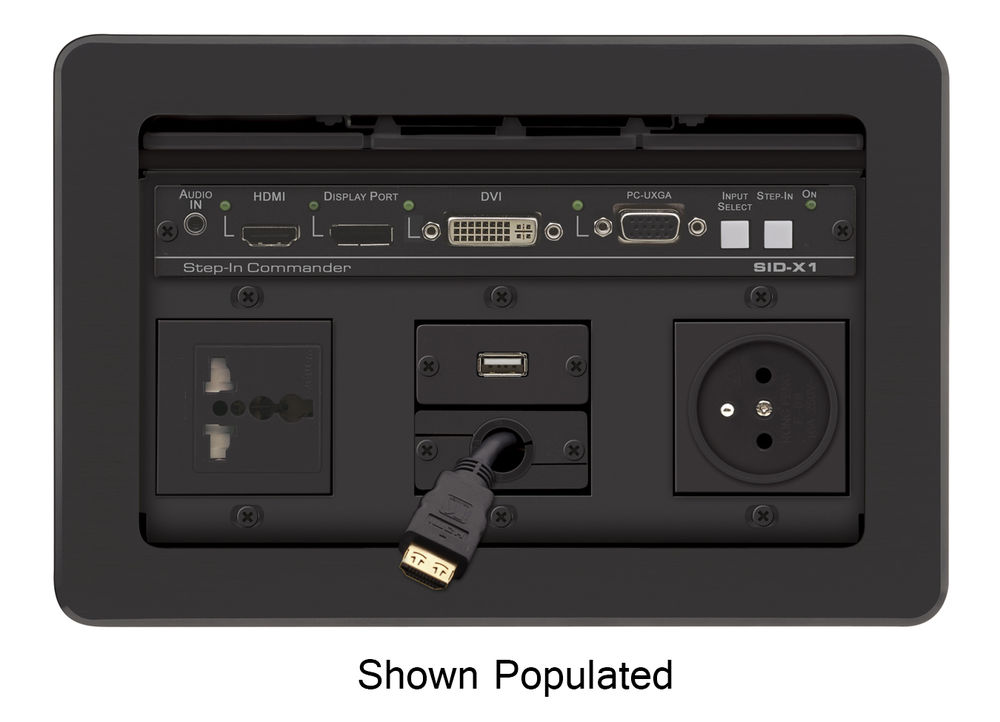

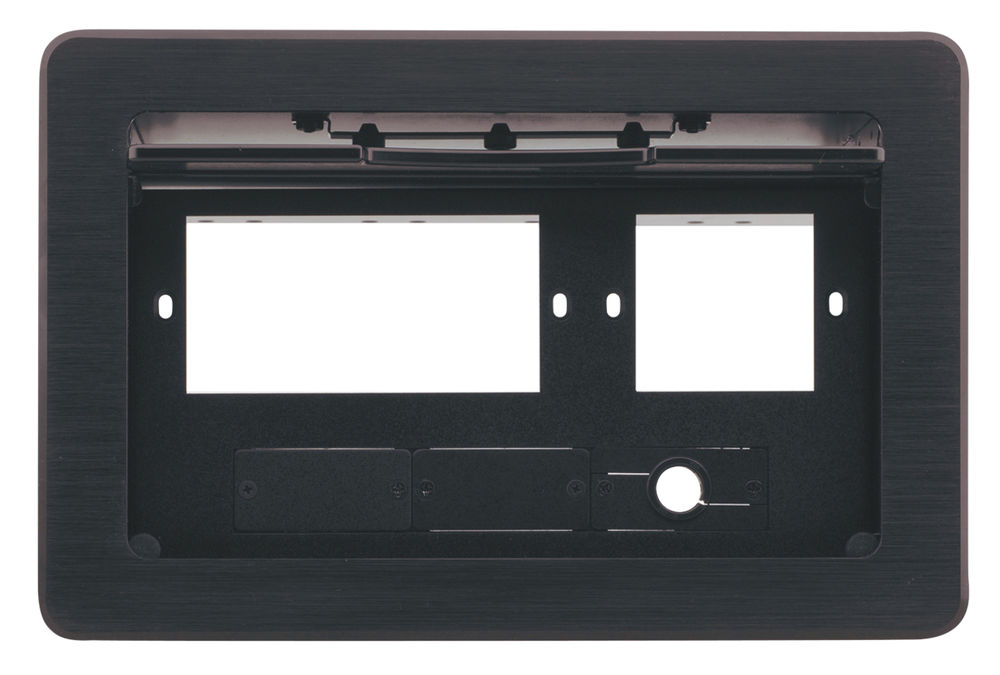

  • Inner Frames — T10F-22M can accommodate a combination of up to 2 power sockets, 2 inserts, 1 opening for a Kramer MegaTOOL SID-X1N; T10F-33 contains 3 power sockets and 3 inserts.
  • Power Sockets — 11 different "TS" single and 10 dual power socket options are available to accommodate the power requirements worldwide.
  • Power Cord — 8 different "C-AC" single power cords (and 3 "Y" power cords) for each power socket. UL and CE qualified.
  • Connector Depth — Adjustable.
  • Installation Requirement — Table cutout of 245mm x 154mm (9.65" x 6.07").Weight | TBUS-10xl: 1.35kg (2.8lbs) approx.; table clamps: 0.25kg (0.6lbs) approx.
  • Accessories — TBUS clamps (part of the TBUS enclosure), cut-out template, template screws, self-locking ties.
  • Options — Inner frames, passive wall plates and interfaces, power socket kits, power cord, T-2INSERT kit, T-RC-8IR kit, T-RC-76 kit, T-RC-78 kit, Kramer K-Able Box (furniture-mounted cable extension).
  • 7 year warranty ( Click Here for details)

Kramer TBUS-10xl Specifications

Physical Cutout Size 110mm diameter
Accessories Included TBUS clamps (part of the TBUS enclosure), cut-out template, template screws, self-locking ties
Optional Inner frames, passive wall plates and interfaces, power socket kits, power cord, inserts
Product Dimension 26.00cmx17.20cmx15.13cm (10.24"x6.77"x5.96") WxDxH
Product Weight 2.0kg (4.4lbs) approx.
Shipping Dimension 36.10cmx28.20cmx26.10cm (14.21"x11.10"x10.28") WxDxH
Shipping Weight 3.3kg (7.3lbs) approx.

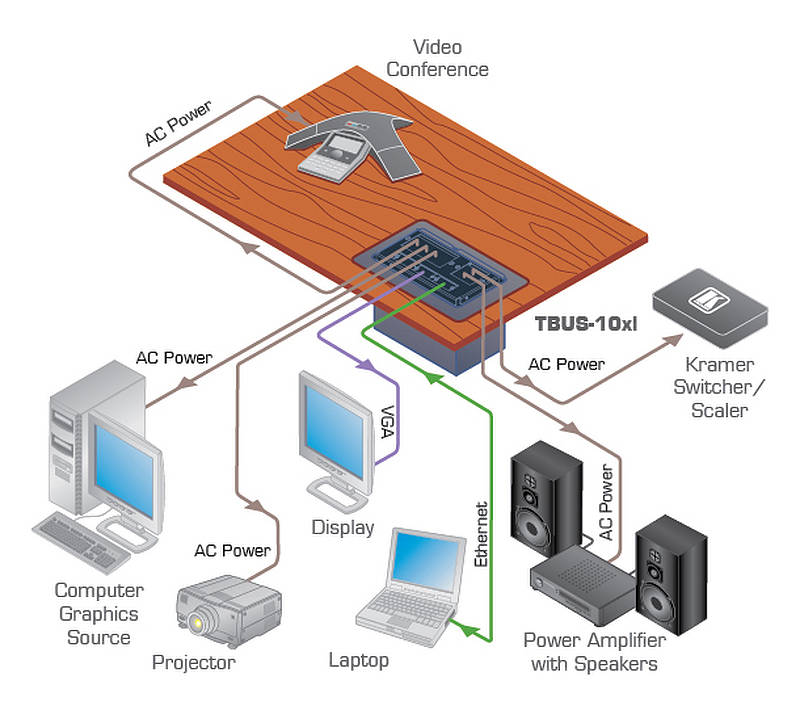

Kramer TBUS-10xl Usage Diagram



Kramer TBUS-10xl Usage Diagram
