Kramer MV-6
6 Input 3G HD-SDI Multiviewer/Multi-window processor
6×3G/HD/SD SDI inputs; 1 × 3G/HD/SD SDI, 1 × HDMI, 1 × CV outputs
£3911 (£4693.20 inc. VAT)
Availability: 3-5 days
Availability: 3-5 days
Kramer MV-6 (60-71002040)
The Kramer MV-6 is a versatile, high performance multiviewer for 3G HD-SDI video signals. The device can display up to six inputs in any combination and output the image in SDI, HDMI and CV formats. Both pre-programmed and customizable screen divisions are supported. The Kramer MV-6-MD is certified for medical applications.
Kramer MV-6 Key Features
- Max. Data Rate — 3Gbps.
- HDTV Compatible.
- Standards Compliance — Certified for medical applications according to IEC 60601-1-2 (Electromagnetic Compatibility).
- Kramer re-Klocking™ & Equalization Technology — Rebuilds the digital signal to travel longer distances.
- Multi-Standard Operation — SDI (SMPTE 259M), HD-SDI (SMPTE 292M) and 3G HD-SDI (SMPTE 424M).
- Re-Clocking Looping Inputs.
- Multi-Video Output Formats — 3G HD-SDI (SMPTE 424M), HDMI and composite, scaling, refresh rate and video standard conversion.
- Front Panel Preview Screen — 16:9 4.3in colour LCD displaying the output of the unit.
- Text Overlay — A text label/icon can be added inside each window. Each label has text/background colour, alignment, size, etc settings.
- Screen Handling Buttons — Freeze, size, position, and 4 pre-programmed and 2 user-definable layouts.
- Multiple Control Options — Front panel with 2-row LCD, OSD, Ethernet & RS-232 (supplied with PC control software).
- Universal Power Supply — 100-240V AC.
- Medically Certified Version — Contact your local Kramer representative for details.
- 7 year warranty (Click Here for details)
- Order Code: 60-71002040
Kramer MV-6 Downloads
Kramer MV-6 Specifications
Connectivity |
|
| Inputs | 6 × SD/HD/3G HD-SDI with loop on BNC connectors |
| Outputs | 1 × HDMI, 1 CV on a BNC connector (for 720p @50Hz and 1920p @50Hz the output is PAL, |
| For 720p @59.94/60Hz and 1920p @59.94/60Hz the output is NTSC), 1 HD/3G HD-SDI on a BNC connector | |
Video Specifications |
|
| Max. Input Level | 800mVpp/75Ω |
| Max. Output Level | 800mVpp/75Ω |
| Max. Data Rate | Up to 2.97Gbps |
Mechanical |
|
| Controls | Front-panel, RS-232, Ethernet |
| Front Panel Display | 4.3" TFT colour LCD panel |
| Power | Universal, 100-240V AC, 50/60Hz, 35VA |
| In The Box | MV-6, Power cord, rack "ears" |
| Product Dimension | 19×7.24 × 2U (43.6×18.40×8.80cm) W×D×H |
| Product Weight | 3.1kg (6.8lbs) approx. |
| Shipping Dimension | 55.00×29.40×16.10cm (21.65×11.57×6.34") W×D×H |
| Shipping Weight | 4.2kg (9.3lbs) approx. |
Environment |
|
| Operating Temp. | 0° to +40°C (32° to 104°F) |
| Storage Temp. | -40° to +70°C (-40° to 158°F) |
| Humidity | 10% to 90%, RHL non-condensing |

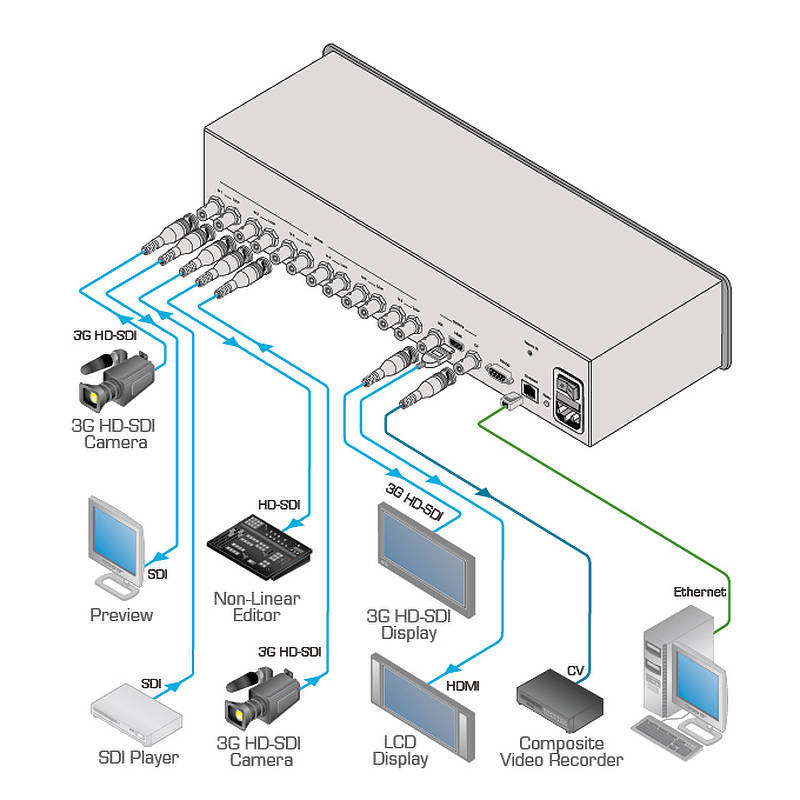

Kramer MV-6 Usage Diagram
Kramer MV-6 Optional Cables
| Description | Length | Price | Inc. VAT | |
| Kramer C-BM/BM-1.5 1.5ft SDI/HD-SDI COAX with BNC connectors | 0.5m | £7 | £8.40 | |
| Kramer C-BM/BM-3 3.0ft SDI/HD-SDI COAX with BNC connectors | 0.9m | £10 | £12.00 | |
| Kramer C-BM/BM-6 6.0ft SDI/HD-SDI COAX with BNC connectors | 1.8m | £12 | £14.40 | |
| Kramer C-BM/BM-10 10ft SDI/HD-SDI COAX with BNC connectors | 3.0m | £14 | £16.80 | |
| Kramer C-BM/BM-15 15ft SDI/HD-SDI COAX with BNC connectors | 4.6m | £18 | £21.60 | |
| Kramer C-BM/BM-25 25ft SDI/HD-SDI COAX with BNC connectors | 7.6m | £15 | £18.00 | |
| Kramer C-BM/BM-35 35ft SDI/HD-SDI COAX with BNC connectors | 10.6m | £21 | £25.20 | |
| Kramer C-BM/BM-50 50ft SDI/HD-SDI COAX with BNC connectors | 15.2m | £28 | £33.60 |
