Kramer KDock-5

USB-C Hub with HDMI, DisplayPort, USB 3.0, USB-C, Ethernet and 100W power delivery

£151 (£181.20 inc. VAT)
Availability: In stock

Kramer KDock-5 (91-00017599)

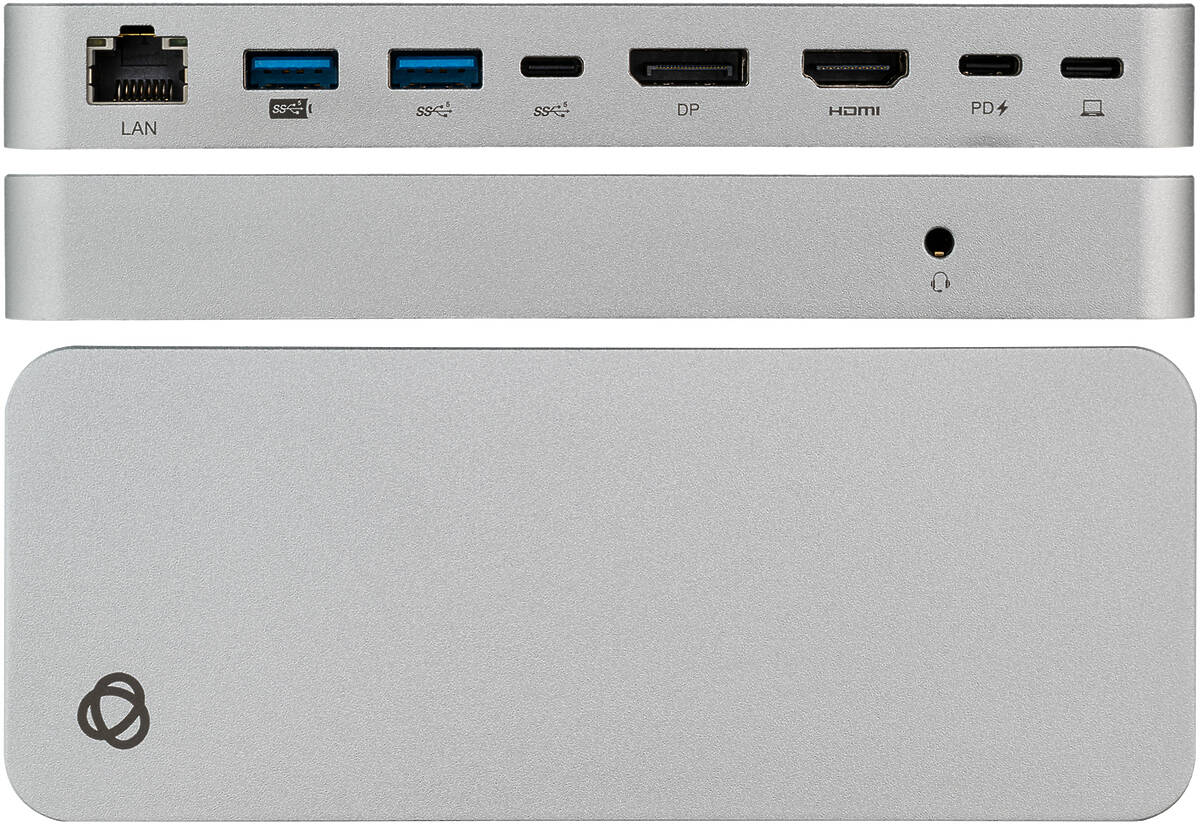

The Kramer KDock-5 is a USB-C hub multiport adapter. KDock-5 can connect your USB-C device to HDMI™, DisplayPort video outputs, 3 USB 3.0 ports, an Ethernet port, an audio and microphone port, and USB-C charging pass-through port (1:8).

KDock-5 is ideal as a personal work station at the office/or at home, and for small meeting rooms or huddle spaces.

  • Supports USB 5G speed connection between host and docking station.
  • 4K@60 HDMI output
  • 4K@60 DisplayPort output
  • USB 3.0 data and charging ports
  • 1Gbps Ethernet port
  • USB-C charging pass–through
  • Headset+mic port
  • 7 year warranty (Click Here for details)

Kramer KDock-5 Specifications

Inputs

1 USB-c On a USB Type-C female connector

Outputs

1 HDMI On a female HDMI connector
1 Displayport On a female DisplayPort connector

Ports

1 USB 3.0 On a female USB type-A connector (5V/1.5A)
1 USB 3.0 On a female USB type-A connector (5V/0.9A)
1 USB 3.0 On female USB type-C connectors (5V/0.9A)
1 Ethernet On an RJ45 connector (10/100/1000)
1 3.5 Mm Headset Jack For audio and Microphone
1 USB On a female USB type-C connector for charging (100W max)
1 USB On a female USB type-C connector for host connection

Video

Windows Mst Mode Max. Resolution 3840×2160P@60Hz, when a single display is attached to the device
Windows Mst Mode Max. Resolution 3840×2160P@30Hz, when two displays are attached to the device
Mac Os Sst Mode Max Resolution 3840×2160P@60Hz, when a single or dual display is attached to the device

Extended Ethernet

Max Data Rate 1000M (Gigabit)/100M/10M
Includes Wake-on-LAN (WoL), single Mac address, PXE boot

General

USB 3.0 Data Transmission Speed Up to 5.0Gbps
Product Dimensions 16.4cm × 6.4cm × 1.9cm (6.5" × 2.5" × 0.7") W×D×H
Product Weight 174g (0.38lbs) approx
Shipping Dimensions 18cm × 10cm × 2.8cm (7.1" × 3.9" × 1.1") W×D×H
Shipping Weight 220g (0.49lbs) approx

Power

Delivery 100W
USB Charging BC1.2 (5V 1.5A)
USB Limited Current When Connected To Power Via Female USB-c Port 1.9A
USB Limited Current When Not Connected To Power Via Female USB-c Port 1A

Environmental Conditions

Operating Temperature 0° to +70°C (32° to 158°F)
Storage Temperature -10° to +55°C (14° to 131°F)
Humidity 10% to 90%, RHL non-condensing

Enclosure

Type Aluminium

Regulatory Compliance

Safety CE
Environmental RoHs, FCC

Kramer KDock-5 Usage Diagram



Kramer KDock-5 Usage Diagram

Kramer KDock-5 Optional Cables

DescriptionLengthPriceInc. VAT
Kramer CA-HM-98 Active Copper High Speed HDMI Cable with Ethernet (Max. 10.2 Gpbs 1080p/60Hz) 30.0m £210 £252.00
Kramer CA-HM-82 Active Copper High Speed HDMI Cable with Ethernet (Max. 10.2 Gpbs 4K/60Hz 4:2:0) 25.0m £193 £231.60
Kramer CA-HM-15 Active Copper High Speed HDMI Cable with Ethernet (Max. 18 Gpbs 4K/60Hz 4:4:4) 4.6m £54 £64.80
Kramer CA-HM-25 Active Copper High Speed HDMI Cable with Ethernet (Max. 18 Gpbs 4K/60Hz 4:4:4) 7.6m £74 £88.80
Kramer CA-HM-35 Active Copper High Speed HDMI Cable with Ethernet (Max. 18 Gpbs 4K/60Hz 4:4:4) 10.6m £91 £109.20
Kramer CA-HM-50 Active Copper High Speed HDMI Cable with Ethernet (Max. 18 Gpbs 4K/60Hz 4:4:4) 15.2m £122 £146.40
Kramer CA-HM-66 Active Copper High Speed HDMI Cable with Ethernet (Max. 18 Gpbs 4K/60Hz 4:4:4) 20.0m £153 £183.60
Kramer C-HM/HM/PICO/BK-10 Black Ultra-slim HDMI High Speed with Ethernet M-M (Max. 10.2Gbps 4K/60Hz 4:2:0) 3.0m £15 £18.00
More Cables for the Kramer KDock-5

Kramer KDock-5 Possible Alternatives

Product CodeDescriptionPriceInc. VAT
Kramer KDock-6 Laptop stand / USB-C Hub with HDMI, DisplayPort, USB 3.0, USB-C, Ethernet and 100W power delivery £155 £186.00
