Kramer KDS-8F
Zero Latency 4K HDR SDVoE Video Streaming Transceiver over Fiber Optic
£2564 (£3076.80 inc. VAT)
Availability: In stock
Availability: In stock

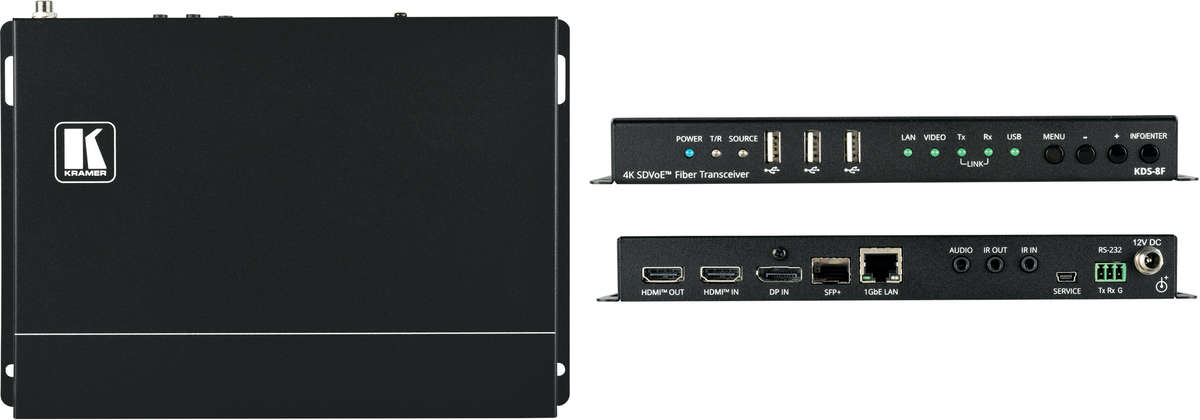

Kramer KDS-8F (59-001990)
The Kramer KDS-8F is a high performance, zero latency, 4K@60Hz (4:4:4) video streaming transceiver for streaming via Ethernet over single-mode and multi-mode optical fiber. KDS-8F can be set as either an encoder or decoder. As an encoder, it encodes and streams the HDMI or DisplayPort input along with IR, RS-232, Analogue audio and USB, over an IP network. As a decoder, it receives the encoded signal and decodes it for output.
Kramer KDS-8F Key Features
- high performance Video Streaming Transceiver — Streams up to 4K@60Hz (4:4:4) resolution signals over a 10G network interface, providing lossless compression.
- Maximum Compatibility — Fully standard and compliant SDVoE™ codec, enables compatibility with other software and hardware streaming platforms.
- HDCP 2.2 Compliant, HDR Support, Genlock and Fastswitch Modes Support.
- High-Speed 10G Network Switch — Managed switch provides multicast, jumbo frames, IGMP snooping and fast leave.
- Analogue Audio Embedding — Provides an unbalanced Analogue audio port for embedding audio into the streaming signal.
- Bi-directional USB over IP.
- Bi-directional IR and RS-232 over IP — Control an IR or serial device located on the decoder side from the encoder and vice versa.
- Video Wall Support.
- Multiview Support.
- Easy, Cost-Effective Maintenance — LED indicators for main power, Tx/Rx mode setting, HDMI/ DisplayPort video source detection, USB connection and Tx and Rx transmission enable easy local maintenance and troubleshooting.
- Simple System Management — Remote system management support to enable quick and efficient remote system and device life-cycle management.
- 7 year warranty (Click Here for details)
- Order Code: 59-001990
Kramer KDS-8F Specifications
Connectivity |
|
| Inputs | 1 × HDMI On a female HDMI connector |
| 1 × DisplayPort On a female DisplayPort connector | |
| 1 × IR On a 3.5mm mini jack | |
| Outputs | 1 × HDMI On a female HDMI connector |
| 1 × IR On a 3.5mm mini jack | |
| Ports | 1 × SFP+ Fibre On LC connector(s) for 10GbE Ethernet (MM SFP+ transceiver module included) |
| 1 × Unbalanced Stereo Audio On a 3.5mm mini jack | |
| 1 × 1GbE Ethernet On an R-J45 connector | |
| 1 × RS-232 On a 3-pin terminal block connector | |
| 3 × USB On female USB type-A connectors | |
| 1 × USB On a USB mini connector | |
Audio / Video Specifications |
|
| Video | Standards Compliance 10/12-bit HDR (Point-to-Point and Genlock mode only), HDCP 2.2 &1.4, DVI 1.0, |
| Extension Line | Signal Compression Ultra-light compression, lossless for most content |
| Maximum Range in Point-To-Point Mode Using OM3 multi-mode Fibre - 300m (980ft) / Using OM4 multi-mode Fibre - 550m (1800ft) / Using single-mode Fibre - 30km (18.6 miles) | |
| Audio | Standards Compliance Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream from HDMI sources |
Mechanical |
|
| Power | Source 12V DC |
| Consumption 1A | |
| Accessories | Included Power adapter, multimode SFP+ transceiver module, rubber feet |
| Optional Single-mode SFP+ transceiver module | |
| Product Dimension | 20.00×23.10×2.50cm (7.87×9.09×0.98") W×D×H |
| Product Weight | 1.9kg (4.2lbs) approx. |
| Shipping Dimension | 38.20×20.00×7.00cm (15.04×7.87×2.76") W×D×H |
| Shipping Weight | 1.6kg (3.4lbs) approx. |
Environmental |
|
| Operating Temp. | 0 to + 45°C (32 to + 113 °F), 10% to 90%, non-condensing |
| Storage Temp. | -20 to +70°C (-4 to + 158 °F), 10% to 90%, non-condensing |
| Humidity | 10% to 90%, non-condensing |

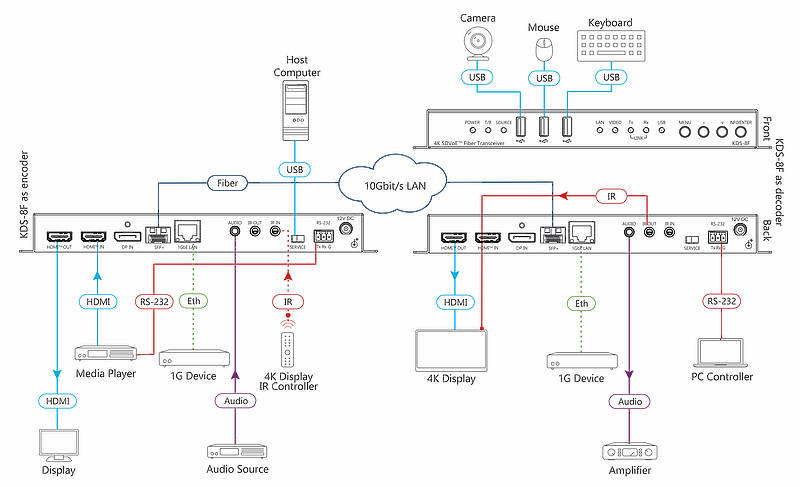

Kramer KDS-8F Usage Diagram
