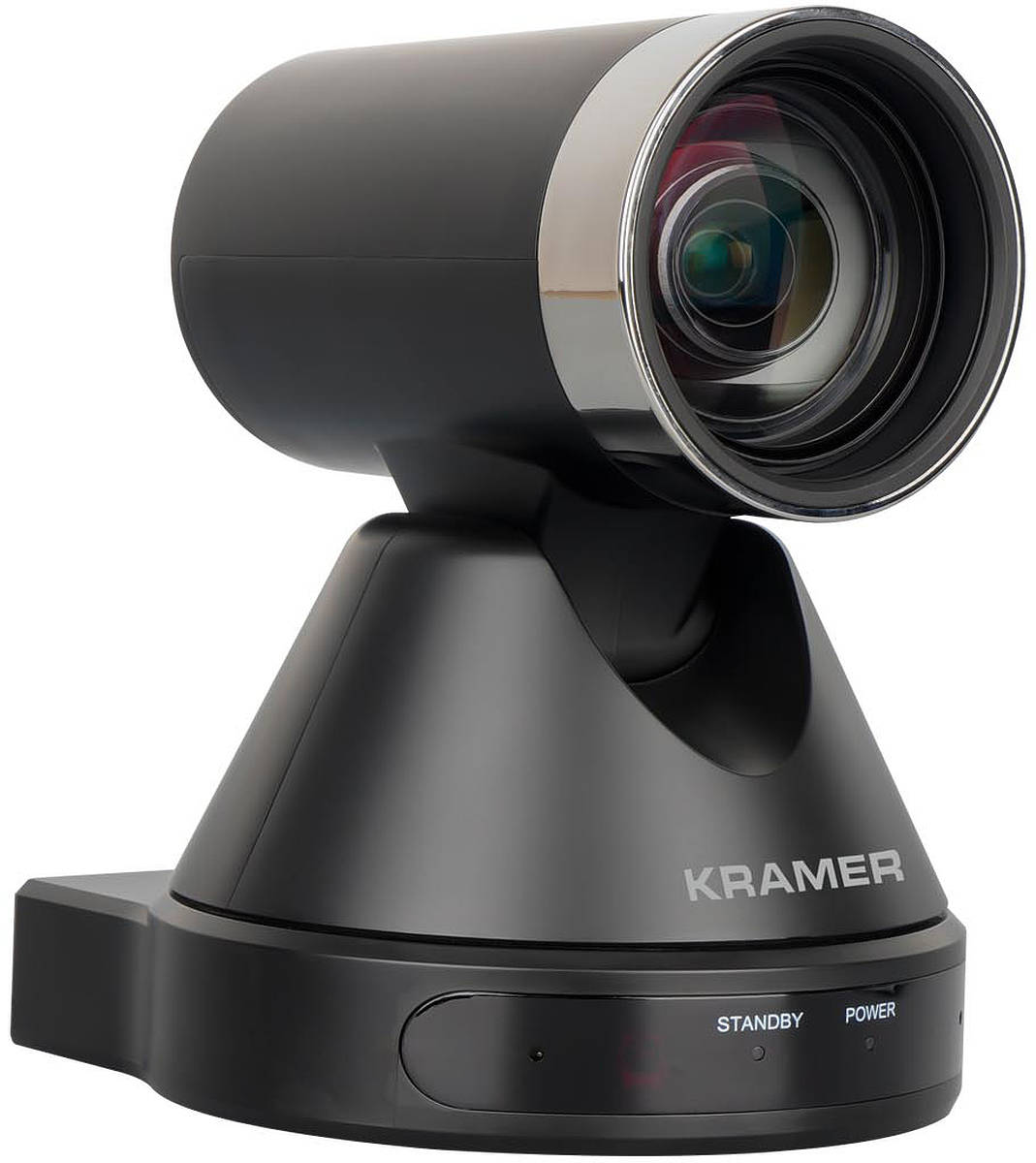

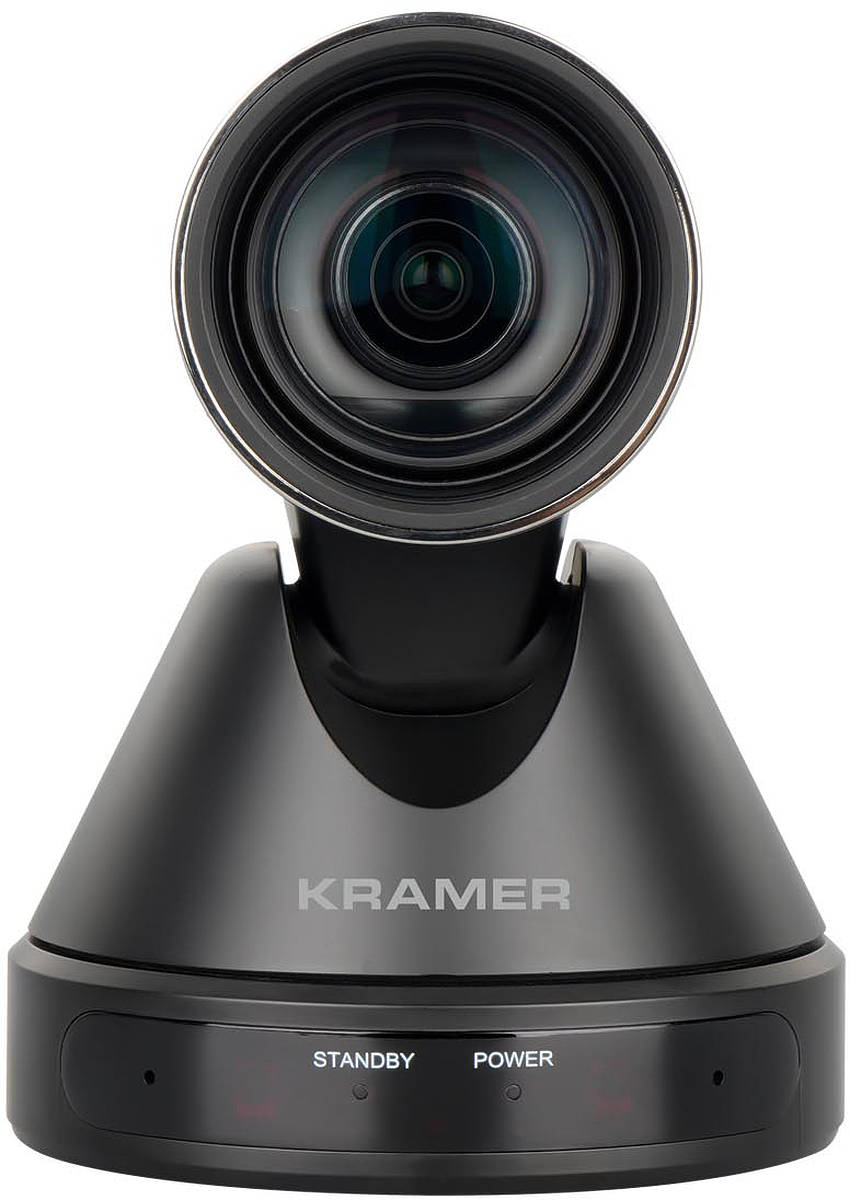

Kramer K-CAMHD
HD PTZ Professional HD camera for versatile video capture
12× Optical Zoom and 71° wide angle lens
£643 (£771.60 inc. VAT)
Availability: In stock
Availability: In stock
Kramer K-CAMHD (87-80011190)
Get a clear view of all meeting attendees, with special attention wherever it's needed. This 1080p PTZ camera is equipped with high-power optical and digital zooms, ideal for zooming-in on specific participants in mid-sized and large video conferencing spaces. Silent PTZ movement and simple control let you capture only what you want, when you want it.
Kramer K-CAMHD Key Features
- Versatile, high–quality video
- Wide–angle image capture with advanced PTZ control provides complete coverage of medium and large spaces, such as boardrooms, classrooms and auditoriums
- Outstanding image detail, with 1080p resolution, 12x optical zoom plus 16x digital zoom, and intelligent Colour optimization
- Clear image quality even in low light, with 2D and 3D digital noise reduction (DNR) and wide dynamic reduction (WDR)
- Easy, instant jumping between whiteboards and speakers, with a choice of 255 pre–set views
- Simple deployment and operation
- Plug and play connection with a USB cable
- All operation, including pan, tile and zoom, are easily controlled from any Kramer control interface
- Works with other meeting devices via IR and RS232 communication, enabling continued use of existing AV infrastructure
- Up to 7 year warranty (Click Here for details)
- Order Code: 87-80011190
Kramer K-CAMHD Downloads

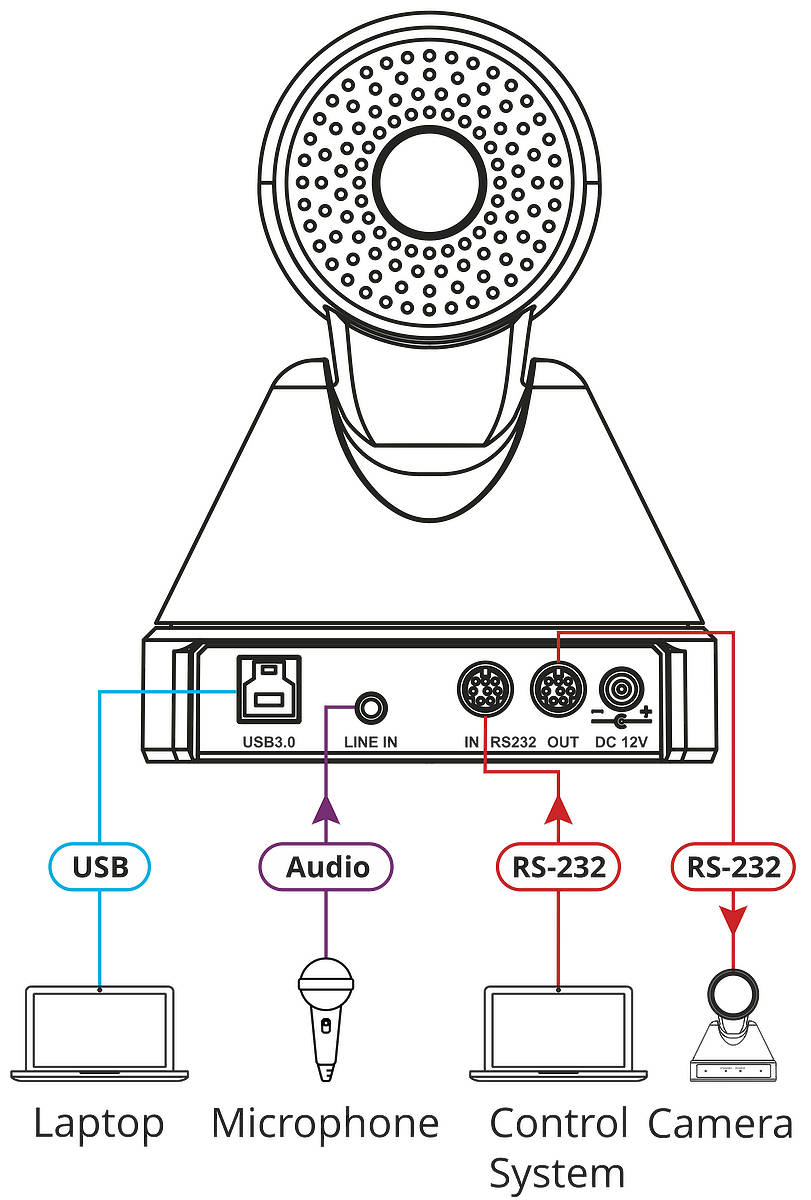

Kramer K-CAMHD Specifications

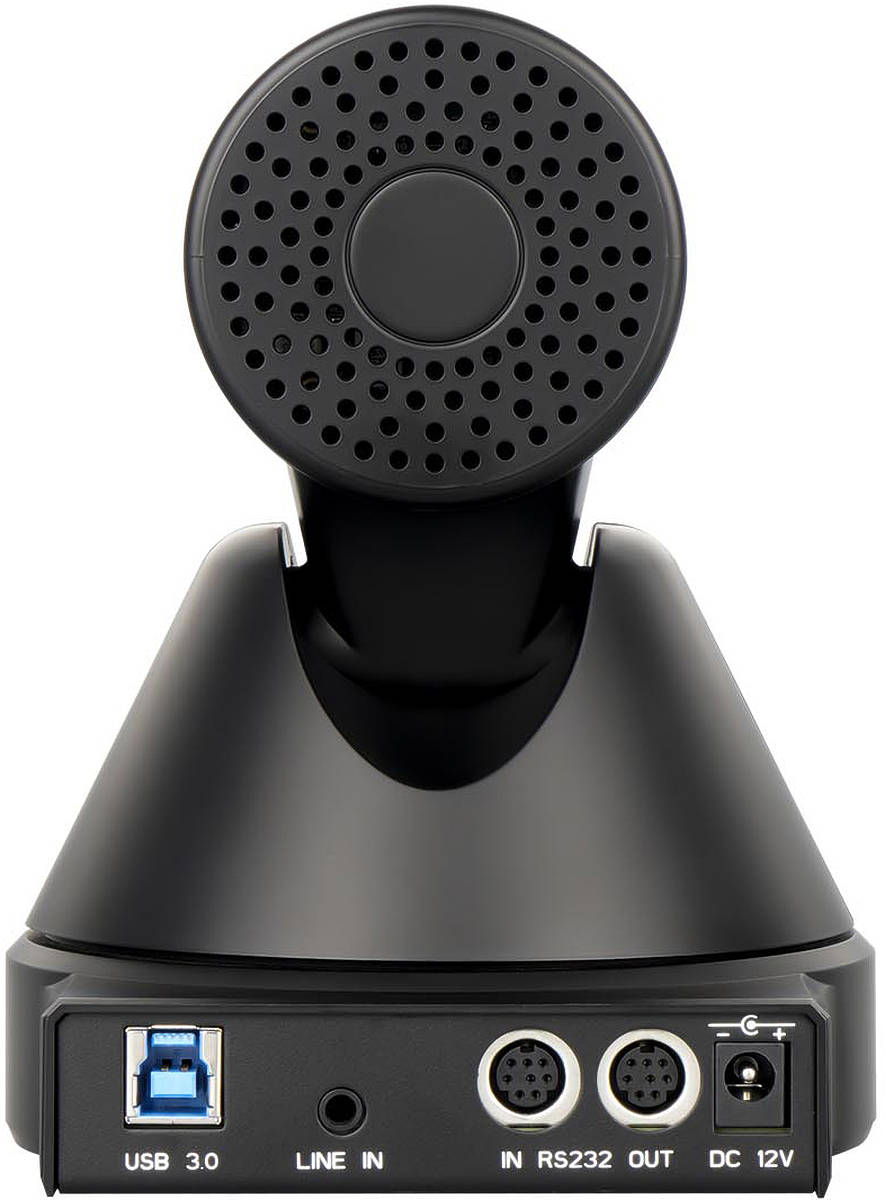

Connectivity |
|
| USB 3.0 | On a USB type B connector |
| RS-232 In | On a VISCA connector |
| RS-232 Out | On a VISCA connector |
Camera |
|
| Pixel | 207M |
| Video System | 1080P, 720P, 540P, 480P, 360P, 240P etc |
| Sensor | 1/2.7inch, CMOS |
| Scanning Mode | Progressive |
| Lens | 12x, f3.5mm~42.3mm, F1.8 ~ F2.8 |
| Digital Zoom | 16x |
| Minimal Illumination | 0.5 Lux @ (F1.8, AGC ON) |
| Shutter | 1/30s~1/10000s° |
| White Balance | Auto, Indoor, Outdoor, One Push, Manual, VAR(2500K~8000K) |
| Backlight Compensation | Support |
| Digital Noise Reduction | 2D&3D Digital Noise Reduction |
| Video S/n | ≥55dB |
| Horizontal Angle Of View | 72.5°~ 6.9° |
| Vertical Angle Of View | 44.8°~ 3.9° |
| Horizontal Rotation Range | ±170 |
| Vertical Angle Of View | 44.8°~ 3.9° |
| Horizontal Rotation Range | ±170 |
| Vertical Rotation Range | -30°~ +30 |
| Pan Speed Range | 1.7°~ 100°/s |
| Tilt Speed Range | 0.7°~ 28°/s |
| H & V Flip | Support |
| Image Freeze | Support |
| Number Of Presets | 255 |
| Preset Accuracy | 0.1° |
Video Format |
|
| YUY2 (bulk) | Up to 1080P@30fps |
| YUY2 (ISOC) | Up to 1080P@30fps |
| H.264 AVC | Up to 1080P@30fps |
| H.264 SVC | Up to 1080P@15fps |
| MJPeg | Up to 1080P@28fps |
USB Features |
|
| Operating System | Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android |
| Colour System / Compression | YUV 4:2:2 / H.264 / MJPEG |
Controls |
|
| IR Remote Control Transmitter | OSD |
| PC | Embedded web pages |
Mechanical |
|
| Power Source | 12V DC, 2A max |
| Consumption | 12V DC, 800mA max |
| Enclosure Type | Aluminium |
| Net Dimensions (W×D×H) | 14.5cm × 9.8cm × 15cm (5.8" × 3.8" × 5.9") |
| Shipping Dimensions (W×D×H) | 23cm × 23cm × 25cm (9" × 9" × 9.8") |
| Net Weight | 0.94kg (2.1lbs) approx |
| Shipping Weight | 2.61kg (5.7lbs) approx |
| In The Box | Power adapter and cord, 1 USB-C cable, remote controller, wall bracket, screws set, lens cover |
| Product Dimensions | 14.50cm × 9.80cm × 15.00cm (5.71" × 3.86" × 5.91" ) W×D×H |
| Product Weight | 0.9kg (2.1lbs) approx. |
| Shipping Dimensions | 23.00cm × 23.00cm × 25.00cm (9.06" × 9.06" × 9.84" ) W×D×H |
| Shipping Weight | 2.6kg (5.8lbs) approx. |
Environmental Conditions |
|
| Operating Temperature | 0° to +40°C (32° to 104°F) |
| Storage Temperature | -20° to +60°C (-4° to 140°F) |
| Humidity | 10% to 90%, RHL non-condensing |
| Altitude | Below 5000 meters |
Regulatory Compliance |
|
| Safety | CE, FCC |
| Environmental | RoHs, WEEE |
