Kramer Galil 8-CO
2 × 8" 64W RMS 8Ohm/100V Passive 2-Way Open-Back Ceiling Speakers
£188 (£225.60 inc. VAT)
Availability: In stock
Availability: In stock
Kramer Galil 8-CO (60-000056)

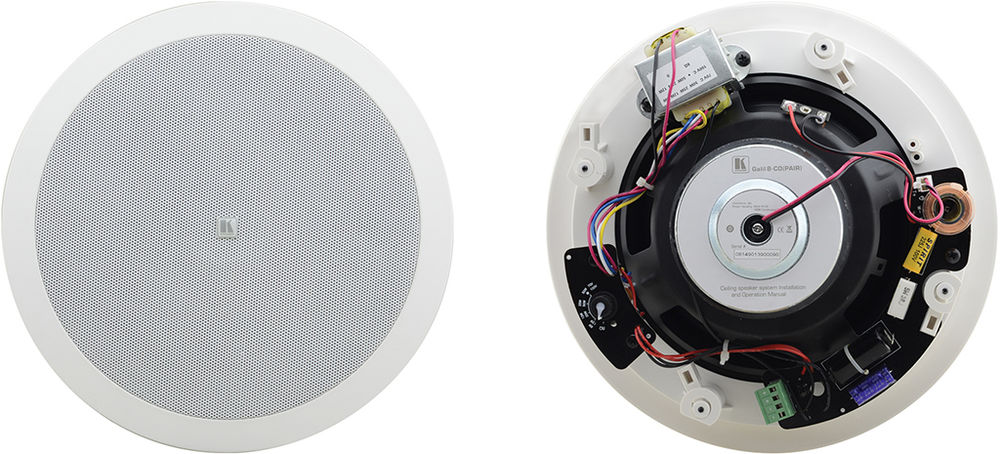

The Kramer Galil 8-CO is a pair of two-way, open-back, 8Ω speakers designed for mounting in the ceiling. The speakers feature a multi-tap power transformer for selecting 8Ω or 70V/100V power settings suitable for array installation.
Kramer Galil 8-CO Key Features
- Type — 2-way coaxial speaker.
- Woofer — 8" polypropylene cone.
- Tweeter — 1" silk dome.
- Frequency Response — 60Hz to 20kHz @ ±3dB.
- Impedance — 8Ω.
- Power Handling — 50W RMS, 140W continuous program.
- Transformer Taps — 70V: 50W/25W/12W/6W/Off (Lo-Z); 100V: 50W/25W/12W/Off (Lo-Z).
- Package Includes — 2 speakers (1 pair), cutout template and user manual.
- Mounting Bracket (Optional) — SKIC-8.
- Up to 7 year warranty (Click Here for details)
- Order Code: 60-000056
Kramer Galil 8-CO Downloads
Kramer Galil 8-CO Specifications
| Description | 2-way open-back ceiling speakers |
| Frequency Response | 47Hz to 20kHz @-10dB, 60Hz to 20kHz ±3dB |
| Woofer | 8" (200mm) polypropylene with rubber surround |
| Tweeter | 1" (25.4mm) silk dome |
| Impedance | 8Ω (transformer tap in off position) |
| Transformer Taps | 70V: 50W/25W/12W/6W/Off (Lo-Z) |
| 100V: 50W/25W/12W/Off (Lo-Z) | |
| Sensitivity | 88.5dB SPL, 1W@1m |
| Max Spl | Continuous: 106dB, peak: 109dB |
| Power Handling | 50W RMS, 140W continuous program |
| Crossover Frequency | 3.15kHz |
| Coverage Angle | 104° |
| Directivity Factor (q) | 8 x averaged 1kHz to 10kHz |
| Directivity Index (di) | 9dB averaged 1kHz to 10kHz |
| Input Connector | Terminal block |
| Materials | ABS bezel, aluminum grill |
| Operating Temp. | 0° to +40°C (32° to 104°F) |
| Storage Temp. | -40° to +70°C (-40° to 158°F) |
| Humidity | 10% to 90%, RHL non-condensing |
| Weight Per Single Speaker | 2.55kg (5.62lbs) approx |
| Shipping Weight (for Pair) | 7.1kg (15.7lbs) approx |
| Installation Clearance | Mounting depth: 8.8cm (3.5") |
| Cutout Diameter | 23.7cm (9.33") |
| In The Box | Galil 8-CO, Safety cord attached to grill, ceiling mounting kit |
| Optional | SKIC-8 installation bracket |
| colours | Available in white |
