Kramer FC-102Net
1:1 2-Channel Dante Encoder & PoE Acceptor
£405 (£486.00 inc. VAT)
Availability: In stock
Availability: In stock
Kramer FC-102Net (13-80534090)
The Kramer FC-102Net is a compact 2-channel Dante™ encoder with 2 balanced mono audio inputs that enables connecting non-Dante sources, such as microphones, laptops and players to a Dante network. It supports line level and microphone level sources and can provide 48V phantom power per input. FC-102Net is powered over Ethernet from any standard PoE providing network switch.
Kramer FC-102Net Key Features
- Dante Network Interface.
- PoE Acceptor.
- Inputs — 2 balanced mono audio on a 3-pin terminal blocks.
- Output — 2 Dante channels on an RJ-45 connector.
- Output Volume Control.
- Versatile Control — Via the Dante IP control matrix and Kramer Protocol 3000 via RS-232 connection.
- Professional, Studio Grade Signal Conversion Technology — Includes the latest generation 32-bit advanced Digital Analogue Converter architecture to achieve excellent dynamic performance and improved tolerance to clock jitter. Maintains the quality of the original audio signal with selectable sampling rates up to 96 kHz.
- Easy Installation — Single twisted-pair cable for signal and power wiring. Compact PicoTOOLS® fan-less enclosure for device-back mounting, or side-by-side mounting of 4 units in a 1U rack space with the recommended rack adapter.
- 7 year warranty (Click Here for details)
- Order Code: 13-80534090
Kramer FC-102Net Specifications
Connectivity |
|
| Inputs | 2 × Balanced Mono Mic / Line Level Source On 3-pin terminal blocks |
| Ports | 1 × Dante On an RJ-45 connector |
| 1 × RS-232 On a 3-pin terminal block | |
User Interface |
|
| Control | Dante IP control matrix, Kramer Protocol 3000 via RS-232, audio input configuration DIP-switches, reset button |
| Inicators | Power, Dante network, input selection and digital operation LEDs |
Mechanical |
|
| Power Source | 48V DC (PoE) |
| Consumption 100mA | |
| Enclosure | Size: PicoTOOLS |
| Type: Aluminium | |
| Cooling | Convection ventilation |
| Standards Compliance | Safety CE |
| Environmental RoHs, WEEE | |
| Product Dimension | 6.22cm × 5.18cm × 2.44cm |
| (2.45" × 2.04" × 0.96") W × D × H | |
| Product Weight | 0.1kg (0.3lbs) approx. |
| Shipping Dimension | 15.70cm × 12.00cm × 8.70cm |
| (6.18" × 4.72" × 3.43") W × D × H | |
| Shipping Weight | 0.2kg (0.5lbs) approx. |
Environmental |
|
| Operating Temp. | 0° to +40°C (32° to 104°F) |
| Storage Temp. | -40° to +70°C (-40° to 158°F) |
| Humidity | 10% to 90%, RHL non-condensing |

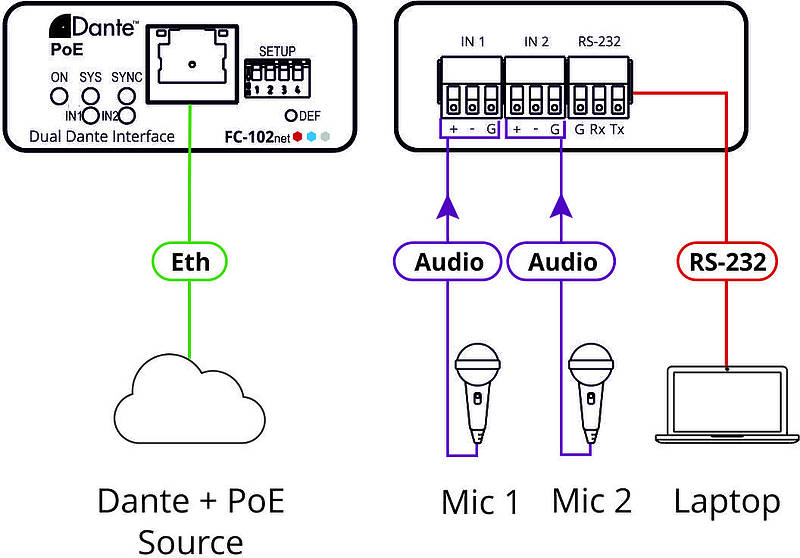

Kramer FC-102Net Usage Diagram
Kramer FC-102Net Compatible Products
| Product Code | Description | Price | Inc. VAT |
| Kramer RK-4PT-B | Rack Adapter 4 × PicoTools new shape and black colour | £72 | £86.40 |
Kramer FC-102Net Possible Alternatives
| Product Code | Description | Price | Inc. VAT |
| Kramer FC-101Net | 1:1 2-Channel Dante Decoder & PoE Acceptor | £350 | £420.00 |
| Blustream CAT100AU | 1:1 Audio over CAT cable extender, max 300 metres | £103 | £123.60 |
| Blustream DA11ABL-WP-EU | 1:1 Dante Analogue Audio/ Bluetooth Encoder wallplate | £342 | £410.40 |
| Blustream DA11ADE | 1:1 Dante Analogue Audio Decoder | £162 | £194.40 |
| Blustream DA11AEN | 1:1 Dante Analogue Audio Encoder | £162 | £194.40 |
