Kramer DGKat-OUT2-F16
2 Output HDMI & RS-232 over DGKat Matrix Frame Card
£555 (£666.00 inc. VAT)
Availability: In stock
Availability: In stock

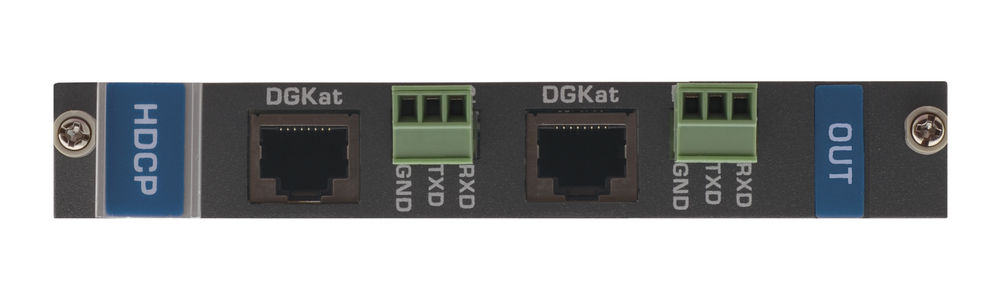

Kramer DGKat-OUT2-F16 (20-70002898)
The Kramer DGKat-OUT2-F16 is a two-channel HDMI and RS-232 over DGKat twisted pair output card for the VS-1616 Series Modular Multi-Format Digital Matrix Switchers. The Kramer DGKat-OUT2-F16 outputs two HDMI and RS-232 signals from the chassis.
Kramer DGKat-OUT2-F16 Key Features
- Max. Data Rate — 4.95Gbps.
- System Range — Up to 90m (295ft) at 1080i @60hz or up to 70m (230ft) at 1080p @ 60hz when using Kramer DGKat cables.
- Note: Transmission range depends on the signal resolution, graphics card and display used. If using third-party shielded CAT cables, both ends of the shield must be soldered to the connectors for the products to function properly.
- HDMI and HDCP Compliant.
- DGKat™ Signal Integration.
- 3D Pass-Through.
- Bidirectional Local RS-232 Port.
- Kramer Equalization & re-Klocking Technology.
- Power Connect System — For supplying power to compatible TP receivers.
- 7 year warranty (Click Here for details)
- Order Code: 20-70002898
Kramer DGKat-OUT2-F16 Specifications
| Ports | 2 x TP ports on RJ-45 connectors, 2 serial ports on 3-pin terminal blocks |
| Bandwidth Per Channel | Video: 1.65Gbps |
| serial data: 19200 | |
| Total Bandwidth | Video: 4.95Gbps |
| serial data: 19200 | |
| Maximum Range | 90m (300ft) - 1080i@60Hz |
| 3d Pass Through | Supported |
| Power | 10W |
| Operating Temp. | 0° to +40°C (32° to 104°F) |
| Storage Temp. | -40° to +70°C (-40° to 158°F) |
| Humidity | 10% to 90%, RHL non-condensing |
| Standard Compliance | HDCP 1.4, HDMI 1.3a |
| Safety Regulatory Compliance | CE, FCC |
| Environmental Regulatory Compliance | Complies with appropriate requirements of RoHs and WEEE |
| In The Box | DGKat-OUT2-F16, Screwdriver |
| Product Dimension | 19.00cmx13.00cmx2.00cm (7.48"x5.12"x0.79") WxDxH |
| Product Weight | 0.2kg (0.5lbs) approx. |
| Shipping Dimension | 34.50cmx16.50cmx5.20cm (13.58"x6.50"x2.05") WxDxH |
| Shipping Weight | 0.4kg (0.8lbs) approx. |
