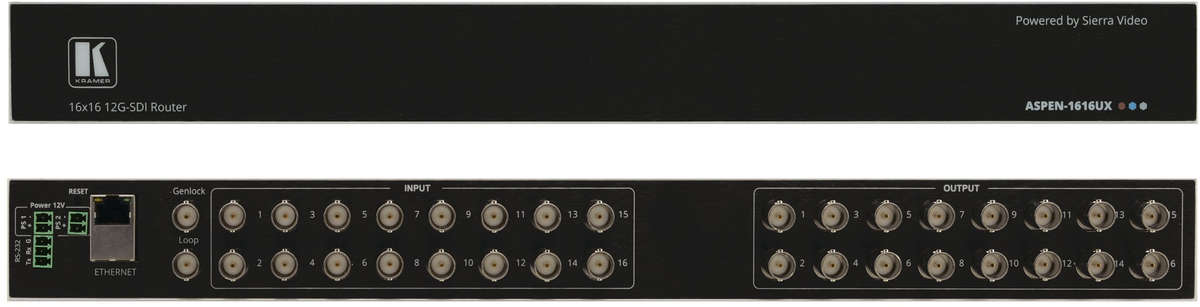

Kramer ASPEN-1616UX

16x16 12G SDI Matrix Switcher
16 x BNC inputs; 16 x BNC outputs; Accepts SDI, HD–SDI, 3G HD–SDI, 6G and 12G SDI

£3327 (£3992.40 inc. VAT)
Availability: In stock

Kramer ASPEN-1616UX Description

The Kramer ASPEN-1616UX is a 16x16 matrix switcher for SDI signals of up to 12G. It equalizes the input signal and reclocks the output signal to gain extended-reach signal extension. ASPEN-1616UX is easy to operate and control through the network using the intuitive web pages and through RS-232 using a serial controller.

Kramer ASPEN-1616UX Key Features

  • high performance Matrix Switcher - Switches 16 12G SDI inputs to 16 12G SDI outputs with a maximum resolution of 4K@60Hz (4:2:2). Features Kramer Equalization & re-Klocking™ Technology that rebuilds the digital signal to travel longer distances.
  • HDTV Compatible.
  • SDI Multi Rate Signals - Auto-adapts from 270Mbps to 12Gbps data rates, accepts SDI, HD-SDI, 3G HD-SDI, 6G and 12G SDI compliant input signals with video resolution of up to 4K@60Hz (4:2:2) 30bpp. Complying with SMPTE 259M (SD-SDI), 292M (HD-SDI), 344M (ED-SDI), 424M (3G HD-SDI), ST-2081 (6G-SDI) and ST-2082 (12G-SDI) standards, it supports pass-through of standard embedded audio channels with ancillary ID and metadata information.
  • Extended-Reach Input Extension - Input signal equalization and output signals reclocking to gain extended-reach signal extension. Using high-quality coaxial SDI cables, supports extension of up to 300m (984ft) for SD signals; 200m (656ft) for 1.5G HD signals; 100m (328ft) for 3G and 6G HD signals; 80m (260ft) for 12G 4K signals. Note: Reach depends on signal resolution, and quality of copper cable used. Reach extension performance may vary while using coaxial cables that are not high-quality.
  • Genlock Clean Switching and Versatility - Clean switching when the sources are genlocked to the selected genlock input with a difference of no more than two lines of video. Versatile Genlocking using an analogue signal.
  • Convenient and Comprehensive Control - Control the unit using intuitive embedded web pages via the Ethernet or Protocol 3000 API commands via RS-232 serial communication transmitted by a PC, touch screen system or other serial controller. Stores 8 multiple switches as presets to be recalled and executed when needed. Upgrade firmware via the embedded webpages.
  • Compact and Easy to Install - 19" wide and only 4" deep enclosure for rack mounting a unit in a 1U rack space with included rack ears.
  • 7 year warranty (Click Here for details)


Kramer ASPEN-1616UX Specifications

Inputs 16 12G SDI/HD-SDI/SDI Video 75Ω on BNC connectors
1 Genlock Looping on a BNC connector
Outputs 16 12G SDI/HD-SDI/SDI Video 75Ω on BNC connectors
1 Genlock Loop Passive loop output on a BNC connector
Video Standards 12G-SDI - SMPTE ST-2082-1, 3G HD-SDI - SMPTE 424M, HD-SDI - SMPTE 292M, SDI-SMPTE 259M/344M
Max Resolution 4K@60Hz (4 2 2)
Max Bandwidth 12Gbps
Extension Line SD Signals Up to 300m
1.5G HD Signals Up to 200m
3G Signals Up to 100m
6G Signals Up to 100m
12G Signals Up to 80m
Coupling DC
User Interface Controls Remote RS-232, Ethernet, web pages
Power Consumption 12V DC, 1.35A
Source 12V DC, 5A
Environmental Conditions Operating Temp. 0° to +40°C (32° to 104°F)
Storage Temp. -40° to +70°C (-40° to 158°F)
Humidity 10% to 90%, RHL non-condensing
Standards Compliance Safety CE
Environmental RoHs, WEEE
Enclosure Size 19", 1U
Type Aluminum
Cooling Fan Ventilation
Accessories Included Power adapter
Cables (Recommended) Belden 4794R and 4855R 12G SDI coax cables
Product Dimension 43.64cmx10.00cmx4.36cm (17.18"x3.94"x1.72") WxDxH
Product Weight 1.0kg (2.1lbs) approx.
Shipping Dimension 55.00cmx27.60cmx10.70cm (21.65"x10.87"x4.21") WxDxH
Shipping Weight 1.9kg (4.1lbs) approx.

Kramer ASPEN-1616UX Usage Diagram



Kramer ASPEN-1616UX Usage Diagram


Kramer ASPEN-1616UX Optional Cables

DescriptionLengthPriceInc. VAT
Kramer C-BM/BM-1.5 1.5ft SDI/HD-SDI COAX with BNC connectors 0.5m £4 £4.80
Kramer C-BM/BM-3 3.0ft SDI/HD-SDI COAX with BNC connectors 0.9m £5 £6.00
Kramer C-BM/BM-6 6.0ft SDI/HD-SDI COAX with BNC connectors 1.8m £6 £7.20
Kramer C-BM/BM-10 10ft SDI/HD-SDI COAX with BNC connectors 3.0m £7 £8.40
Kramer C-BM/BM-15 15ft SDI/HD-SDI COAX with BNC connectors 4.6m £9 £10.80
Kramer C-BM/BM-25 25ft SDI/HD-SDI COAX with BNC connectors 7.6m £10 £12.00
Kramer C-BM/BM-35 35ft SDI/HD-SDI COAX with BNC connectors 10.6m £15 £18.00
Kramer C-BM/BM-50 50ft SDI/HD-SDI COAX with BNC connectors 15.2m £21 £25.20
More Cables for the Kramer ASPEN-1616UX



Kramer ASPEN-1616UX Possible Alternatives

Product CodeDescriptionPriceInc. VAT
Barco MatrixPro-II 3G 16x16 SDI 16x16 High-speed 3G/HD/SD-SDI router £4937 £5924.40
