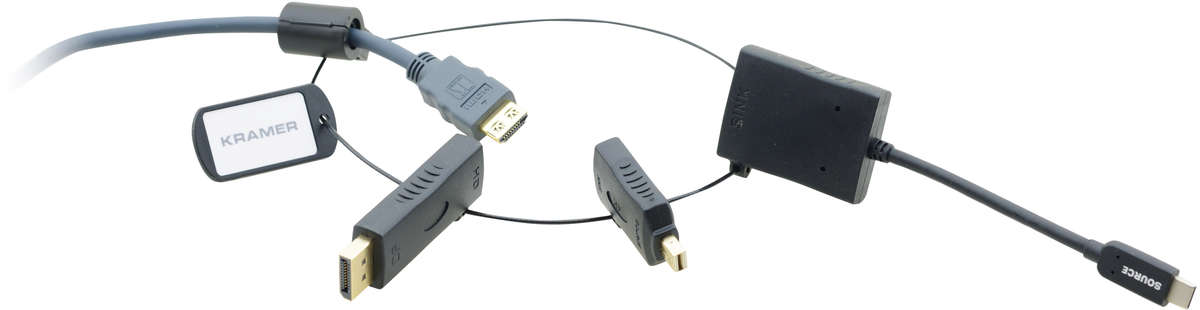

Kramer AD-RING-7

Adapter Ring Includes:DisplayPort [M] to HDMI [F] adapter, Mini DisplayPort [M] to HDMI [F], USB Type C [M] to HDMI [F] adaptor cable.

£130 (£156.00 inc. VAT)
Availability: In stock

Kramer AD-RING-7 Description

Kramer AD-RING is a stainless steel ring of HDMI adapters that attaches to your display cable so you can plug different presentation sources into the HDMI cable. Laptops, tablets, smart phones, digital cameras, and net books have a variety of connectors for displaying their content. AD−RING provides the presenter easy access to the appropriate adapter for connection to the HDMI infrastructure. This simple and effective solution supports mobile device content and keeps the adapters secure and in place for the next presenter.

Kramer AD-RING-7 Key Features

  • Secure your adapters with the cable clamp and security loop.
  • Supported Resolutions - AD–RING–1, AD–RING–2, AD–RING–3 | Up to 1080p and 1920x1200. AD–RING–4, AD–RING–5 | Up to 4K@60Hz (4:2:0), AD_RING–6 | Up to 4K@60Hz (4:2:0), AD–RING–7 | USB–C: Up to 4K@60Hz (4:2:0), MDP: Up to 4K@60Hz (4:4:4), DP: Up to 1080p, AD–RING–8 | USB–C: Up to 4K@60Hz (4:2:0), MDP: Up to 1080p/1920x1200.
  • Fits HDMI cables from 3mm to 9mm in diameter.
  • Included Accessories - 1 ABS cable clamp, 2 sets of foam rubber inserts, 4 sets of Torx T10 screws and nuts.
  • 7 year warranty (Click Here for details)

Kramer AD-RING-7 Specifications

Inputs

DisplayPort Male Complies with DisplayPort 1.1 up to 2.7 Gbps
Mini DisplayPort Male Complies with DisplayPort 1.1 up to 2.7 Gbps
Mini HDMI Type-C Male Complies with HDMI up to 2.25 Gbps
Micro HDMI Type-D Male Complies with HDMI up to 2.25 Gbps

Outputs

HDMI type-A Female Complies with HDMI up to 2.25 Gbps

Video

Max. Resolution USB–C Up to 4K60 (4:2:0)
MDP Up to 4K60 (4:4:4)
DP Up to 1080p

CONSTRUCTION

Security Cable Material Steel with black polyethylene sheath
Security Cable Length 450 mm (17.72 in)
Cable Clamp Dimensions (closed) 17mm x 24mm x 26.5mm (0.67in x 0.94in x 1.04in)
Cable Clamp Inner Diameter 9mm (0.35in)
Cable Clamp Material Black ABS plastic
Medium Size Insert Diameter 6mm (0.24in)
Small Insert Diameter 4mm (0.16in)
Insert Material Foam rubber

Accessories

Included 1–ABS cable clamp, 2–sets of foam rubber inserts, 4 — sets of Torx T10 screws and nuts
