Kramer 907
2 Channel Stereo Amplifier
2 × 40W RMS @ 8 Ohms
£301 (£361.20 inc. VAT)
Availability: In stock
Availability: In stock
Kramer 907 (11-70817090)

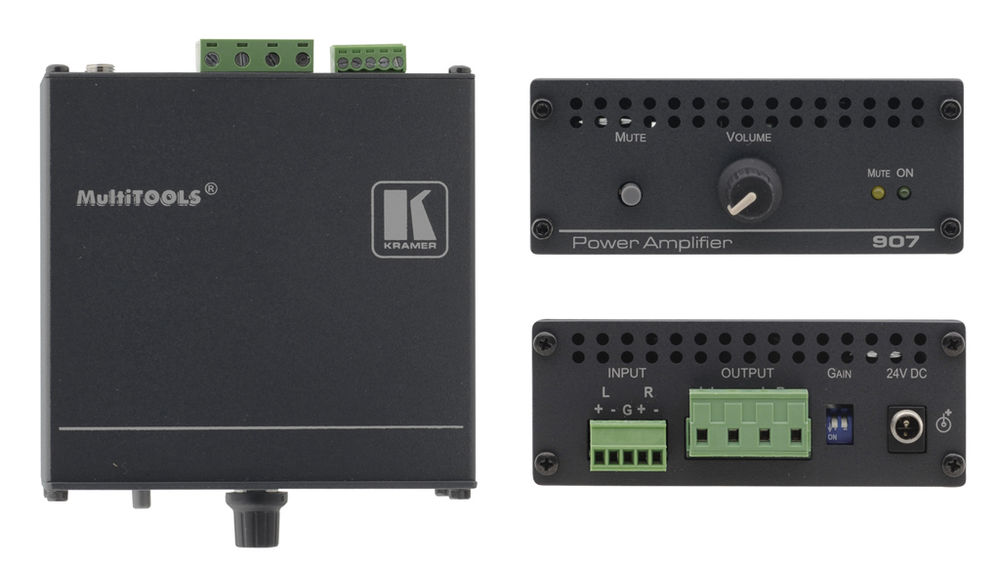

The Kramer 907 is a high performance power amplifier for line-level stereo audio signals. It accepts a balanced stereo audio signal on a terminal block connector and delivers 40 watts per channel into an 8Ω load.
Kramer 907 Key Features
- High Efficiency — Class D operation.
- Controls — Volume control knob & mute button.
- Gain Control DIP-Switch.
- Mute and On Indicator LEDs.
- Compact MultiTOOLS® — Up to 4 units can be rack mounted side-by-side in a 1U rack space with the recommended rack adapter.
- 7 year warranty (Click Here for details)
- Order Code: 11-70817090
Kramer 907 Downloads
Kramer 907 Specifications
Connectivity |
|
| Input | 1 x balanced stereo audio on a terminal block connector |
| Output | 1 x balanced stereo audio (speakers) on a terminal block connector |
Audio Specifications |
|
| Output Power | 40 x watts per channel into 8Ω |
| Output Music Power | 150W per channel into 8Ω |
| Input Sensitivity | 1.2Vrms |
| Amplifier Type | Class D |
| Voltage Gain | 20dB (x10) |
| Bandwidth (-3db) | 20kHz |
| S/n Ratio | 60.2dB |
| Coupling | DC |
| Audio THD + Noise | 1.9% |
| Audio 2nd Harmonic | 0.3% |
Mechanical |
|
| Power | 24V DC, 5A |
| In The Box | 907, Power supply |
| Options | RK-1 19" rack adapter |
| Product Dimension | 10.68cmx10.35cmx4.36cm (4.20"x4.07"x1.72") WxDxH |
| Product Weight | 0.3kg (0.7lbs) approx. |
| Shipping Dimension | 35.10cmx21.20cmx7.20cm (13.82"x8.35"x2.83") WxDxH |
| Shipping Weight | 1.3kg (2.8lbs) approx. |

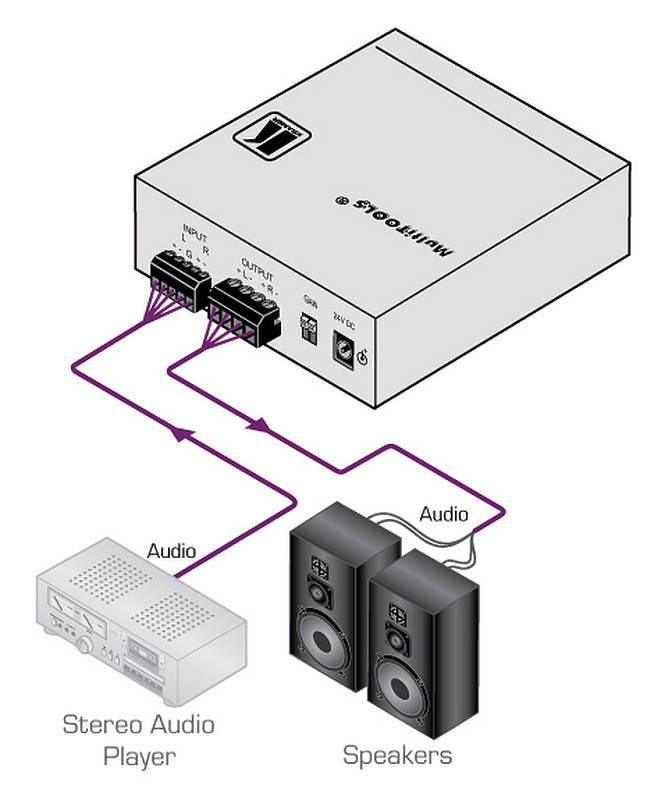

Kramer 907 Usage Diagram
Passive Speaker Options
| Product | Description | Price | Inc. VAT |
| Kramer Galil 2-C | 1 × 2.5" 10W RMS 8Ohm/100V Passive 2-Way Closed-Back Ceiling Speakers | £38 | £45.60 |
| Kramer Galil 4-C | 2 × 4" 30W RMS 8Ohm/100V Passive 2-Way Closed-Back Ceiling Speakers | £188 | £225.60 |
| Kramer Galil 4-CO | 2 × 4" 30W RMS 8Ohm/100V Passive 2-Way Open-Back Ceiling Speakers | £119 | £142.80 |
| Kramer Galil 4-O | 2 × 4" 20W RMS 8Ohm/100V Passive Wall-mounted Speakers | £98 | £117.60 |
| Kramer Galil 5-O | 2 × 5.25" 30W 8Ohm/100V RMS Passive Wall-mounted Speakers | £188 | £225.60 |
| Kramer Galil 6-AW | 2 × 6.5" 40W RMS 8Ohm/100V Passive Wall-mounted Outdoor Speakers | £246 | £295.20 |
| Kramer Galil 6-C | 2 × 6.5" 30W RMS 8Ohm/100V Passive 2-Way Closed-Back Ceiling Mount Speakers | £228 | £273.60 |
| Kramer Galil 6-CO | 2 × 6.5" 30W RMS 8Ohm/100V Passive 2-Way Open-Back Ceiling Speakers | £139 | £166.80 |
| Kramer Galil 6-I | 2 × 6.5" 80W 8Ohm Two-Way Open-Back Rectangular In-Wall Passive Speakers | £162 | £194.40 |
| Kramer Galil 6-O(B) | 2 × 6.5" 40W RMS 8Ohm/100V Passive 2-Way On-Wall Speakers finished in black | £263 | £315.60 |
| Kramer Galil 6-O(W) | 2 × 6.5" 40W RMS 8Ohm/100V Passive 2-Way On-Wall Speakers finished in white | £263 | £315.60 |
| Kramer Galil 8-C | 2 × 8" 64W RMS 8Ohm/100V Passive 2-Way Closed-Back Ceiling Speakers | £379 | £454.80 |
| Kramer Galil 8-CO | 2 × 8" 64W RMS 8Ohm/100V Passive 2-Way Open-Back Ceiling Speakers | £223 | £267.60 |
| Kramer Yarden 6-O | 2×6.5" 30W RMS 8Ohm/100V Passive 2-Way Wall mounted Speakers | £347 | £416.40 |
| Kramer Yarden 8-T | 1×8" 40W RMS 8Ohm/100V High Performance Passive Ceiling Tile Speaker both 595 and 600mm | £347 | £416.40 |
| Kramer Yarden VT-2 | 10W Vibrating Transducer 8Ohm/100V Speaker with Line Transformer | £67 | £80.40 |
Kramer 907 Optional Cables
| Description | Length | Price | Inc. VAT | |
| Kramer BC-2T-300M 2 x Shielded Twisted Pair 20AWG Cable for mic/line level audio | 300.0m | £338 | £405.60 |
