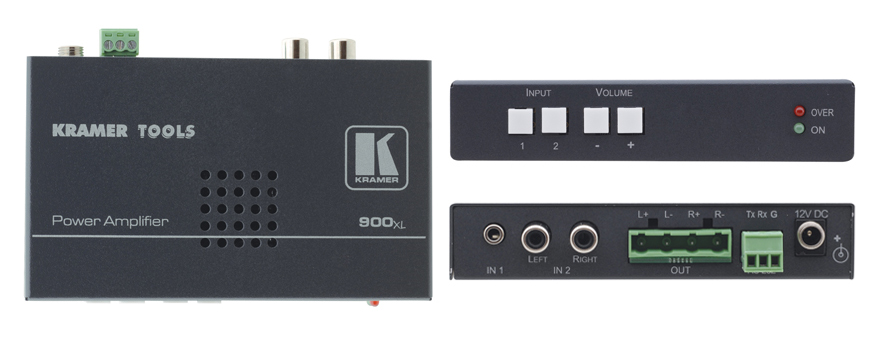

Kramer 900xl

2 Channel Stereo audio amplifier with RS-232 control

2 × 10W @ 4 Ohms

£162 (£194.40 inc. VAT)
Availability: In stock

Kramer 900xl (90-7622090)

The 900xl is a high performance power amplifier for line level stereo audio signals. The unit accepts unbalanced audio signals on either of two RCA or 3.5mm connectors and delivers a speaker output of 10 watts RMS per channel into a 4Ω load.

Kramer 900xl Key Features

High Efficiency — Class D operation.
S/N Ratio — 60dB.
Control — Volume & input selection from front panel & RS-232.
Compact Kramer TOOLS™ — 3 units can be rack mounted side-by-side in a 1U rack space with the recommended rack adapter.
7 year warranty (Click Here for details)
Order Code: 90-7622090

Kramer 900xl Downloads

Instruction Manual

Kramer 900xl Specifications

Connectivity
Inputs	1 × unbalanced stereo audio on a 3.5mm mini jack connector, 1 unbalanced stereo audio on RCA connectors
Output	1 × stereo differential speaker output
Audio Specifications
Output Power	2 × 10W (4Ω)
Input Sensitivity	460mV
Output Music Power	2 × 40W (4Ω)
Bandwidth (-3db)	25kHz
S/n Ratio	85dB @1kHz, 0dBu output
	- 21 to +20dB at low-gain
Coupling	Input: AC
	output: DC
Audio THD + Noise	0.6% @0dBu output
Audio 2nd Harmonic	0.35% @0dBu output
User Interface
Controls	Gain range: - 14 to +32dB at high-gain
Mechanical
Power	12V DC, 2.0A
Operating Temp.	0° to +40°C (32° to 104°F)
Storage Temp.	-45° to +72°C (-49° to 162°F)
Humidity	10% to 90%, RHL non-condensing
In The Box	900XL, Power supply
Product Dimension	12.00×7.15×2.44cm (4.72×2.81×0.96") W×D×H
Shipping Dimension	15.70×12.00×8.70cm (6.18×4.72×3.43") W×D×H
Shipping Weight	0.6kg (1.4lbs) approx.
Product Weight	0.2kg (0.4lbs) approx.

Kramer 900xl Usage Diagram
