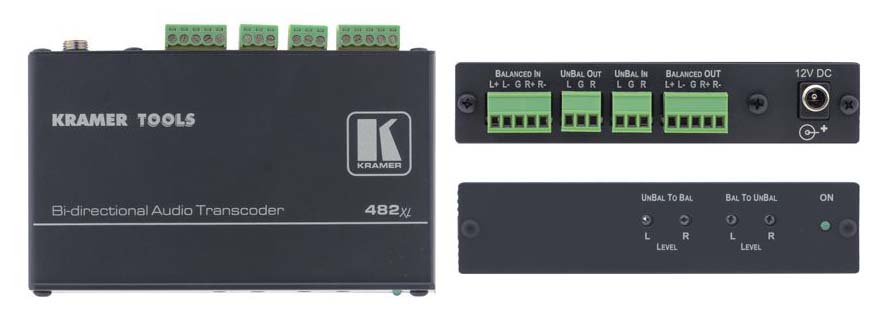

Kramer 482xl
Balanced/Unbalanced Stereo Audio Transcoder
£161 (£193.20 inc. VAT)
Availability: In stock
Availability: In stock
Kramer 482xl (90-715990)
The Kramer 482xl is a high performance audio transcoder for balanced and unbalanced stereo audio signals. It simultaneously converts balanced stereo signals to unbalanced stereo audio and unbalanced stereo audio signals to balanced stereo audio.
Kramer 482xl Key Features
- Bidirectional Format Conversion — Balanced stereo audio to unbalanced stereo audio and unbalanced stereo audio to balanced stereo audio simultaneously.
- Connectors — Terminal blocks (balanced & unbalanced).
- Level (Gain) Control — Independent L & R adjustment while transcoding for both balanced to unbalanced conversion and unbalanced to balanced conversion.
- S/N Ratio — 95dB balanced to unbalanced, 87dB unbalanced to balanced, unweighted.
- Compact Kramer TOOLS™ — 3 units can be rack mounted side-by-side in a 1U rack space with the recommended rack adapter.
- 7 year warranty (Click Here for details)
- Order Code: 90-715990
Kramer 482xl Downloads
Kramer 482xl Specifications
Connectivity |
|
| Inputs | 1 × unbalanced audio stereo on a 3-pin terminal block connector, 1 balanced audio stereo on a 5-pin terminal block |
| Outputs | 1 × balanced audio stereo on a 5-pin terminal block connector, 1 unbalanced audio stereo on a 3-pin terminal block connector |
Audio Specifications |
|
| Max. Output Level | Balanced: 21dBu |
| unbalanced: 21dBu @max gain | |
| Bandwidth (-3db) | >100kHz |
| Coupling | Balanced to unbalanced: in=AC, out=DC |
| Unbalanced to balanced: in=AC, out=DC | |
| THD+noise | 0.049% |
| 2nd Harmonic | 0.005% |
| S/n Ratio | 95dB/87dB balanced to unbalanced/unbalanced to balanced, unweighted |
User Interface |
|
| Controls | -57dB to +6dB (balanced to unbalanced level) |
| - 16dB to +19dB (unbalanced to balanced level) | |
Mechanical |
|
| Power | 12V DC, 280mA (fully loaded) |
| In The Box | 482xl, Power supply, mounting bracket |
| Product Dimension | 12.00×7.15×2.44cm (4.72×2.81×0.96") W×D×H |
| Shipping Dimension | 15.70×12.00×8.70cm (6.18×4.72×3.43") W×D×H |
| Shipping Weight | 0.5kg (1.1lbs) approx. |
| Product Weight | 0.2kg (0.4lbs) approx. |

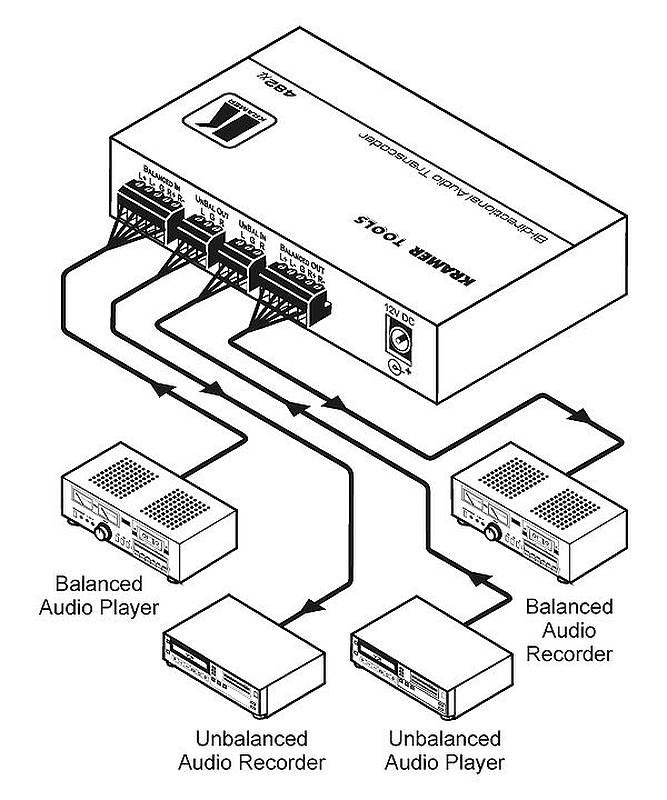

Kramer 482xl Usage Diagram
Replacement Power Supplies
| Product | Description | Price | Inc. VAT |
| Kramer PS-1202 | 12V DC/2A Desktop Power Supply with power cord | £42 | £50.40 |
| Kramer PS-1202-O | 12V DC/2A Open Head Power Supply | £33 | £39.60 |
| Kramer PS-1205 | 12V DC/5A Desktop Power Supply with power cord | £65 | £78.00 |
| Kramer VA-102P12 | 10-Output 12v DC/10A Power Supply (Max 1 Amp per channel) | POA |
