CYP PUV-1610RX

1:1 HDBaseT 4K HDMI / HDCP2.2 / PoH / LAN / IR / RS-232 Receiver
Max 100m @ 4K using CAT6a/7 cable, Max bandwidth 10.2Gbps

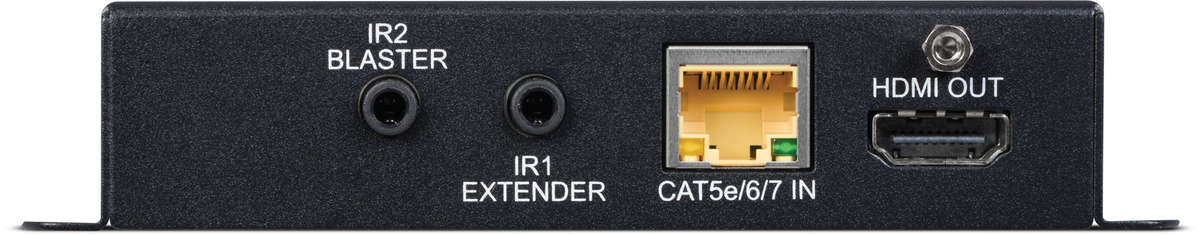

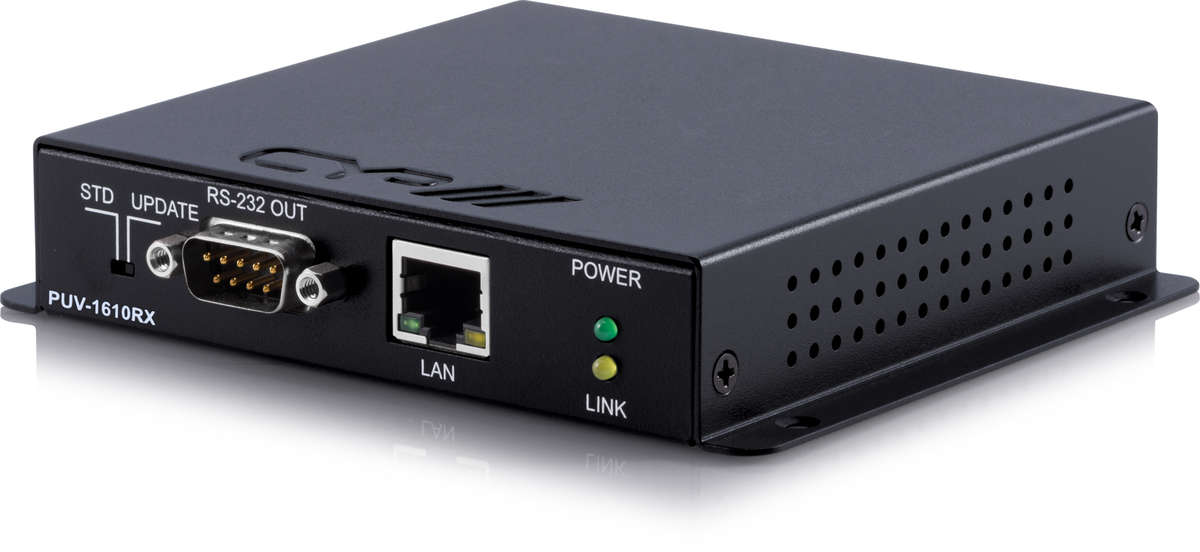

CYP PUV-1610RX 1:1 HDBaseT 4K HDMI / HDCP2.2 / PoH / LAN / IR / RS-232 Receiver product image
CYP PUV-1610RX 1:1 HDBaseT 4K HDMI / HDCP2.2 / PoH / LAN / IR / RS-232 Receiver product image CYP PUV-1610RX 1:1 HDBaseT 4K HDMI / HDCP2.2 / PoH / LAN / IR / RS-232 Receiver product image
£210 (£252.00 inc. VAT)
Availability: In stock

CYP PUV-1610RX

The PUV-1610RX Receiver will accept transmitted video resolutions up to 4K UHD, along with HD audio, 2-Way IR, RS-232, PoH (Power over HDBaseT), and LAN signals up to 100m. This solution provides advanced signal management ensuring reliable results in the most demanding installation environments. All audio, video, control, and power are received simultaneously over a single CAT6a/7 cable up to 100m.

A key feature of the PUV-1600 series is that the power is sent to the TX from the mains powered RX. This offers additional flexibility when integrating and designing meeting room solutions.


See also: CYP PUV-1610TX.
  • Supports uncompressed video/audio up to 10.2Gbps
  • Supports resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display's EDID settings
  • HDCP2.2 Compliant
  • Supports HDCP repeating and CEC functions
  • 4K/2K & 4K UHD signals can be received from up to 70m via CAT5e/6 and 100m via CAT6a/7
  • 1080p signals can be received from up to 100m via CAT5e/6/6a/7
  • Audio support up to 7.1CH & Dolby TrueHD, DTS-HD
  • 5-Play convergence: HDMI, LAN, PoH & Control (IR & RS232)
  • Supports 3D signals
  • PoC power to transmitter
CYP PUV-1610RX Instruction manual
Instruction Manual
HDBaseT Full
HDMI Receiver
100 Metre Range
PoH (Power over HDBaseT)
Ethernet Pass Through
IR Pass Through
RS-232 Pass Through
4K 4096*2160 and 3840*2160 Resolution
HDBaseT 5Play


CYP PUV-1610RX Specifications

Inputs 1x RJ45 [1x HDBaseT HDMI & Propriety Data]
1 x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
Outputs 1x HDMI [1x HDMI Uncompressed AV and Data]
1 x 9pin Dsub [1x RS-232 Data]
1 x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
PSU 48V/0.83A
Dimensions 116mm [W] x 106mm [D] x 27mm [H]
Net Weight 357g
Gross Weight 540g


CYP PUV-1610RX CYP PUV-1600 HDBaseT Transmitter and Receiver range

ProductDescriptionPriceInc. VAT
CYP PUV-1602TXWP 2:1 HDMI 2.0 / VGA / LAN / IR / RS-232 / PoH over HDBaseT Transmitter
(1 x HDMI, 1 x VGA inputs; 1 x HDBaseT output; Max. 100m at 1080p or 4K, Max bandwidth 10.2Gbps)		 £407 £488.40
CYP PUV-1610TX 1:1 HDBaseT 4K HDMI / HDCP2.2 / PoH / LAN / IR / RS-232 Transmitter
(Max 100m @ 4K using CAT6a/7 cable, Max bandwidth 10.2Gbps)		 £171 £205.20
CYP PUV-1620S-TX 1:1 HDBaseT 4K HDMI / HDCP2.2 / PoH / LAN / IR / RS-232 Transmitter Scaler
(Max 100m @ 4K using CAT6a/7 cable)		 £499 £598.80
CYP PUV-1630TTX 3:1 HDMI 2.0 / VGA / LAN / PoH over HDBaseT Surface Mounted Transmitter
(2 x HDMI, 1 x VGA inputs; 1 x HDBaseT output; MAx bandwidth 10.2Gbps)		 £643 £771.60
CYP PUV-1630TXWP 3:1 HDBaseT 4K HDMI 2.0 / VGA / PoH / LAN Wallplate Transmitter
(2 × HDMI, 1 × VGA, 1 × RJ-45 LAN Inputs; 1 × HDBaseT output; Max. 10mm @ 4K)		 £428 £513.60
CYP PUV-1650RX 1:1 HDBaseT 4K HDMI / PoH / LAN / IR / RS-232 Receiver and Scaler
(Max 70m@ 4K using CAT6a/7 cable, Max bandwidth 10.2Gbps)		 £664 £796.80
CYP PUV-1650TX 3:1 HDMI / DisplayPort / VGA / Ethernet / PoH / IR /RS-232 over HDBaseT Transmitter
(1xHDMI, 1xDisplayPort, 1xVGA inputs; 1xHDMI, 1xHDBaseT output)		 £579 £694.80
