CYP IP-A750RX
1:1 Analogue or Digital Audio over IP networks Receiver with POE
1 × RJ45, 1 × 3-pin Phoenix inputs; 1 × TosLink, 1 × 3-pin Phoenix Analogue Stereo Output
£208 (£249.60 inc. VAT)
Availability: In stock
Availability: In stock
CYP IP-A750RX
The IP-A750RX (& TX) takes advantage of Audio over IP's flexibility for all installation environments, ideal for audio-only zones within a larger AV over IP system. These products feature Analogue (Line out) and Digital output (S/PDIF and TOSLINK®) for added flexibility and, with the use of our intuitive IP-CS7 controller, allow the user to easily extend the connection between an audio source and an audio playback device via a 1Gb Local Area Network.
The advantage of Audio over IP is that it can flexibly route the audio and use cost effective CAT cable. This greatly reduces the cost of wiring and improves the user experience.
These Audio-over-IP products fully integrate into CYP's full 1Gb AV over IP system.
See also: CYP IP-A750TX
CYP IP-A750RX Key Features
- Extend Analogue and digital audio over an IP network with 100m (330ft) of CAT 5/6 cable between TX/RX and network switch
- Compatible with IP-CS7 Controller to allow creation of video matrix switch using multiple Video-Over-IP Extender products. In order to achieve this, require commands to integrate with IP-CS7 hardware controller
- Features a analogue stereo, optical digital (Toslink) and microphone input
- Features physical multi-use volume control knob
- LED confirmation of power, link and input status
- Field updatable firmware
CYP IP-A750RX Downloads
CYP IP-A750RX Specifications

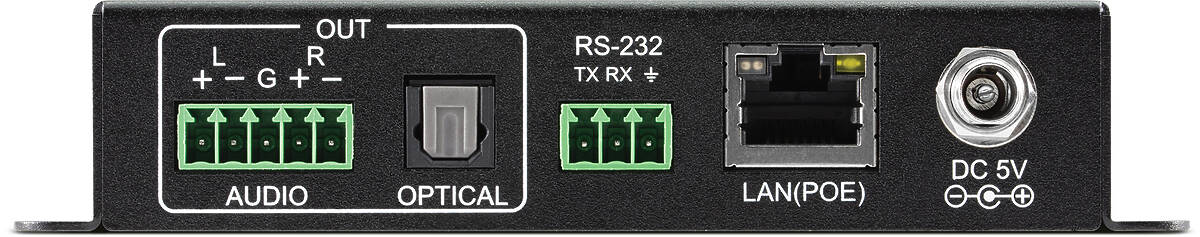

Connectivity |
|
| Inputs | 1 × RJ45 Digital Audio Propriety Data |
| 1 × Phoenix (3 pin) RS-232 | |
| Outputs | 1× Toslink 2 Channel LPCM |
| 1 × Phoenix (3 pin) Analogue Stereo (L/R) Audio Output | |
Mechanical |
|
| Power Supply | 5V/1.2A DC (US/EU standards, CE/FCC/UL certified) |
| or PoE (802.3af ) | |
| ESD Protection (HBM) | ±8kV (Air Discharge) |
| ±4kV (Contact Discharge) | |
| Dimensions (W×H×D) | 108mm×25mm×108mm [Case Only] |
| 108mm×25mm×116mm [All Inclusive] | |
| Weight | 367g |
| Chassis Material | Metal (Aluminium) |
| Chassis Colour | Black |
| Operating Temperature | 0˚C – 40˚C/32˚F – 104˚F |
| Storage Temperature | -20˚C – 60˚C/-4˚F – 140˚F |
| Relative Humidity | 20 – 90% RH (Non-condensing) |
| Power Consumption | 2.1W |
| In The Box | 1 × Audio over IP Receiver |
| 1 × 5V/1.2A DC Power Adapter | |
| 1 × 3-pin Terminal Block | |
| 1 × 5-pin Terminal Block | |
| 1 × Operation Manual | |
CYP IP-A750RX Usage Diagram
CYP IP-A750RX Possible Alternatives
| Product Code | Description | Price | Inc. VAT |
| CYP IP-A750TX | 1:1 Analogue or Digital Audio over IP networks Transmitter with POE 1 × TosLink, 1 × 3.5mm Stereo, 1 × 3.5mm Mic, 1 × RS-232 3-pin Phoenix inputs; 1 × RJ45 Output | £277 | £332.40 |
