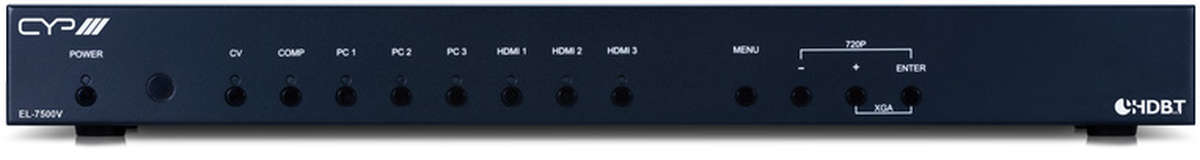

CYP EL-7500V
7:1×3 HDMI / VGA / Display Port Presentation Switcher & Scaler with HDMI & HDBaseT Outputs
3 × HDMI, 1 × Composite, 3 × RGBHV inputs; 1 × HDMI, 1 × RGBHV, 1 × HDBaseT outputs
£713 (£855.60 inc. VAT)
Availability: In stock
Availability: In stock
CYP EL-7500V
The CYP EL-7500V is an advanced rack-mountable HDMI, VGA, Composite and Component presentation switcher. This devicecan scale and switch input sources to its HDMI, VGA and HDBaseT outputs, with their associated audio signals to the native resolutions supported by the connected display. Control is via the IR remote, RS-232, IP, WebGUI or via manual selection buttons with OSD (On Screen Display). Both digital and analogue stereo audio is supported via a built-in DAC (Digital to Analogue Converter) and ADC (Analogue to Digital Converter).
CYP EL-7500V Key Features
- HDMI 1.3 and DVI 1.0 compatible
- HDCP 1.1 compliant
- Multiple video and audio inputs: 3 HDMI, 3 VGA, 1 Component Video, 1 Composite Video, and 8 Stereo audio
- Supports switching and scaling of multiple AV inputs for display over mirrored HDMI, HDBaseT and VGA outputs
- Supports input and output resolutions up to 1080p/WUXGA (RGB)
- Supports pass-through of LPCM 2.0 audio
- Supports 3D de-interlace, noise reduction, and 3D comb filtering for composite video sources
- Frame rate conversion support
- Supports analogue to digital (ADC) and digital to analogue (DAC) audio conversion, Em-Bedding & De-Embedding
- Quick output resolution switching via hot keys
- HDBaseT feature support: HD Video and Audio, Ethernet, 48V PoH, and Control (bidirectional IR/RS-232 pass-through)
- HDBaseT output provides 48V PoH to compatible HDBaseT Receivers
- Supports EDID and HDCP management
- Remote control provides discrete input source selection
CYP EL-7500V Downloads
CYP EL-7500V Specifications
Connectivity |
|
| Inputs | 3 × HDMI HDMI Uncompressed AV and Data |
| 3 × 15pin D-sub VGA RGBHV | |
| 3 × RCA YUV YPbPr Component / YCbCr Component | |
| 1 × RCA Composite | |
| 4 × RCA Analogue Stereo (L/R) | |
| 6 × 3.5mm Stereo mini-jack Analogue Stereo(L/R) | |
| 1 × 3.5mm Stereo mini-jack Infra Red Receiver | |
| 1 × RJ45 LAN Serving | |
| 1 × USB Type A Service Port Propriety Data | |
| 2 × 9pin D-sub RS-232 Data | |
| 1 × 15pin D-sub VGA RGBHV | |
| Outputs | 1x HDMI HDMI Uncompressed AV and Data |
| 1 × RJ45 HDBaseT HDMI & Propriety Data | |
| 1 × 3.5mm Stereo mini-jack Analogue Stereo(L/R) | |
| 1 × RCA Coaxial 2 Channel LPCM | |
| 1 × 15pin D-sub VGA RGBHV | |
| 1 × 3.5mm Stereo mini-jack Infra Red Emitter | |
Mechanical |
|
| PSU | 24V/6.25A |
| Dimensions | 432mm × 183mm × 44mm |
| Net Weight | 2200g |
| Gross Weight | 3100g |
