Blustream RX70CS

1:1 HDBaseT HDMI 2.0 /ARC / IR / RS-232 / PoC CSC Receiver

1 × HDBaseT input; 1 × HDMI output; Max 40m @ 4K, 70m @ 1080p

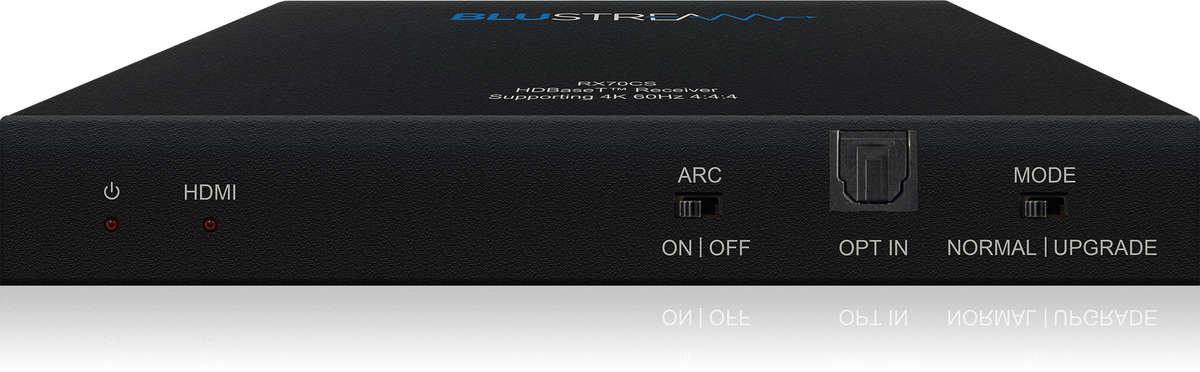

Blustream RX70CS 1:1 HDBaseT HDMI 2.0 /ARC / IR / RS-232 / PoC CSC Receiver product image. Click to enlarge.

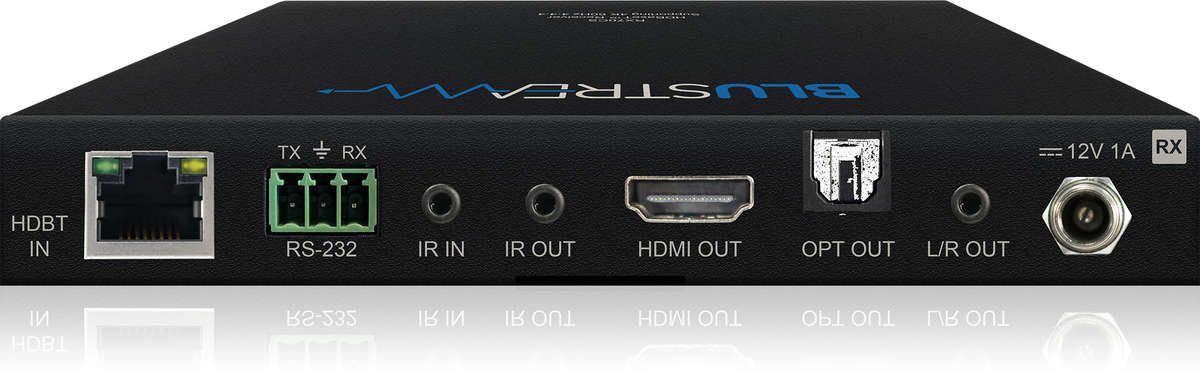

Blustream RX70CS 1:1 HDBaseT HDMI 2.0 /ARC / IR / RS-232 / PoC CSC Receiver connectivity (terminals) product image
£186 (£223.20 inc. VAT)
Availability: In stock

Blustream RX70CS

The Bluestream RX70CS HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 HDBaseT™ ARC Receiver offers market leading features and outstanding value utilising CSC technology.

The product extends HDMI, Bi-directional IR & RS-232 and is powered by the matrix up to lengths of 70m at 1080p (4K 18Gbps to 40m).

The Receiver features ARC support when used with compatible Blustream hardware and simultaneous analogue stereo and Optical Toslink audio breakout.

Blustream RX70CS Key Features

  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
  • Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR *
  • Extends HDMI 1080p up to a distance of 70m over a single CAT cable
  • Supports 4K 60Hz 4:4:4 UHD video up to 40m
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Automatic downscaling of up to 4K 60Hz 4:4:4 video input to 1080p
  • Supports ARC (Audio Return Channel) from connected display via HDMI or Optical digital inputs (when used with compatible Blustream transmitter / matrix)*
  • Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
  • Bi-directional RS-232 pass-through
  • Supports bi-directional IR pass-through to compatible HDBaseT™ device
  • Supports bi-directional PoC to power RX70CS from compatible Blustream HDBaseT™ transmitter / matrix products or provide power to HDBaseT™ transmitter when RX70CS is powered with local power supply
  • HDCP 2.2 support
  • Recommended receiver for the Blustream AMF42AU, C6CS, C88CS, HMXL66ARC and HMXL88ARC matrix products
HDBaseT Lite
HDMI Receiver
70 Metre Range
Proprietary PoC (Power over Cable)
IR Pass Through
RS-232 Pass Through

Blustream RX70CS Specifications

Connectivity

Video Input Connectors 1 × HDBaseT™ RJ45 connector,
Video Output Connectors 1 × HDMI Type A, 19-pin, female
Audio Input Connectors 1 × Toslink (S/PDIF) - for Optical Audio Return only
Audio Output Connectors 1 × Toslink (S/PDIF), 1 × 3.5mm L/R Analogue audio - for audio breakout of HDBaseT™ input signal only
RS-232 Serial Port 1 × 3-pin Phoenix connector
IR Input Ports 1 × 3.5mm stereo jack
IR Output Ports 1 × 3.5mm mono jack

Mechanical

Mounting Kit Included
Casing Dimensions 140mm × 84mm × 18mm (W × D × H)
without Connections
Casing Dimensions 140mm × 98mm × 18mm
with Connections
Shipping Weight 0.5kg
Operating Temperature 32°F to 104°F (-5°C to +55°C)
Storage Temperature -4°F to 140°F (-25°C to +70°C)
Power Supply 1 × 12V/1A DC, screw connector
In The Box 1 × RX70CS
1 × Mounting Kit
1 × Quick Reference Guide

Blustream RX70CS Optional Cables
