Extron AVEdge 100 (70-1128-02)

Edge Mount Enclosure for AV Connectivity, Data, and Power

Black, AC Module Not Included

Extron AVEdge 100 70-1128-02 product image

For pricing and configuration options please call or email us.

Please contact us for custom configurations, no modules included

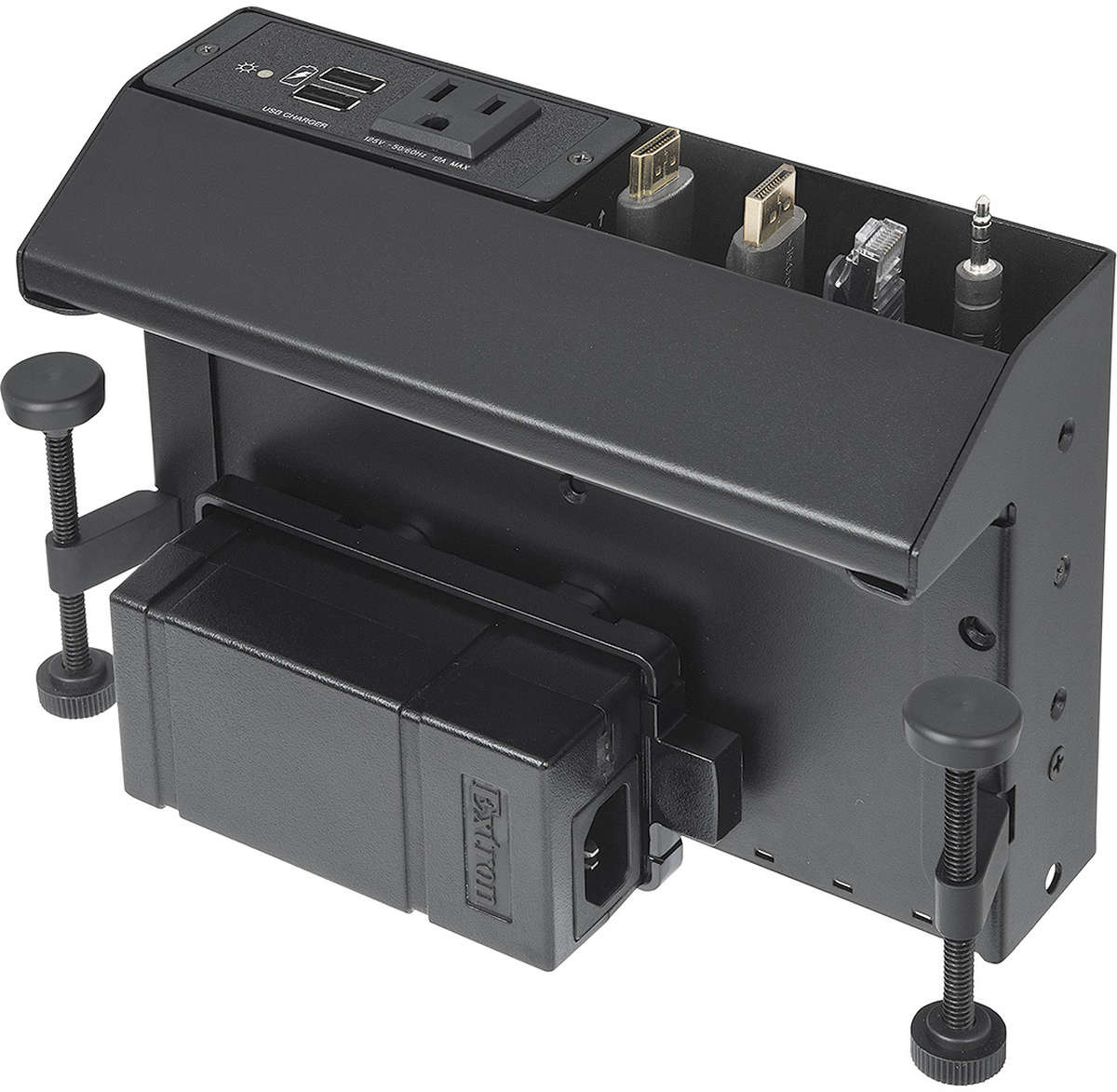

The Extron AVEdge™ 100 is a cable access enclosure designed to mount onto the edge of a tabletop surface where cutting the surface is not desirable. An integrated clamp system secures the enclosure to the tabletop surface without the need for tools or additional parts. The AVEdge 100 accommodates two double-space AV connectivity modules - AAP™ AV Connectivity Modules, Cable Pass‑Through Brackets for up to eight AV cables, or three Retractor cable retraction modules. AAP power modules are available to provide USB and/or AC power for mobile devices and laptops. The optional CableCover minimizes cable tangles and accidental disconnects. The Extron ZipClip 100 and ZipClip 200 are also available to mount products such as the PS Series Desktop Power Supply directly to the enclosure. The AVEdge 100 is available in a black finish.

Extron AVEdge 100 Key Features

Attaches to the tabletop surface without cutting
Ideal for configurable rooms that require semi-permanent AC power and AV connectivity

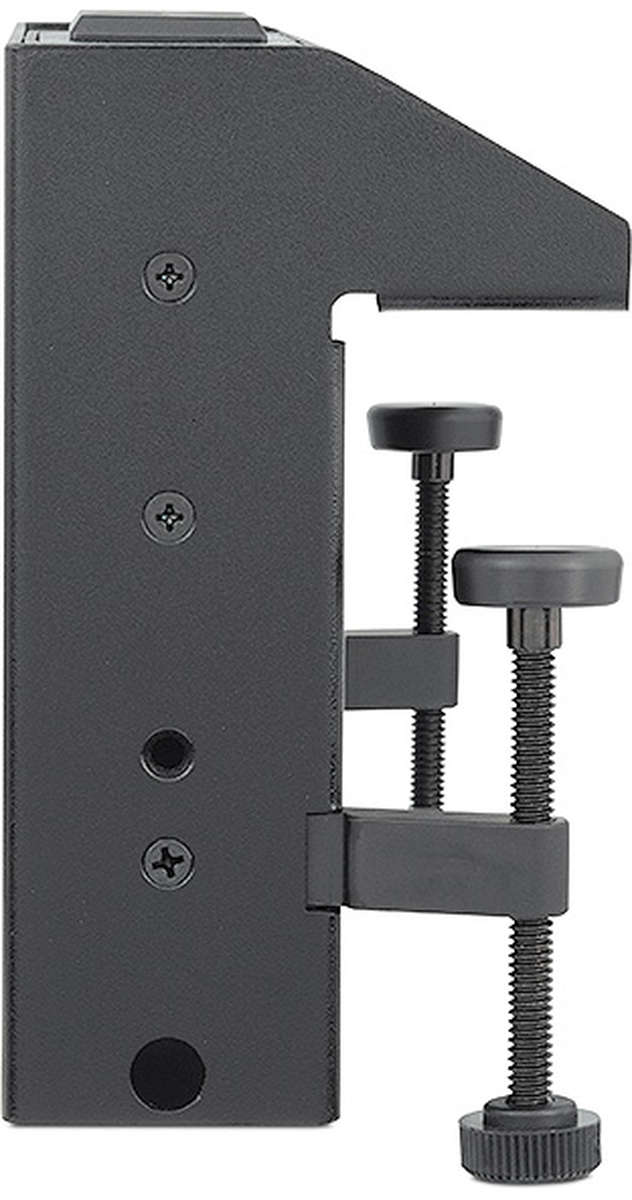

Integrated tool-less clamp system
Accommodates two double-space AAP™ AV Connectivity Modules, Cable Pass-Through Brackets for up to eight AV cables, or three Retractor cable retraction modules
Unique, split-ring Cable Pass-Through bracket design allows up to four cables; each
AVEdge enclosure is UL/c-UL listed
Compatible with TeamWork® Show Me® Cables - Show Me cables provide convenient connectivity and user input selection and control for TeamWork Collaboration Systems. Visit the TeamWork System Builder to create a customized system for your collaboration environment.
Optional USB PowerPlate Series AAP modules provide AC, USB Type‑C and/or USB Type‑A power for laptops, tablets, and other devices that draw a high current - AAP modules are sold separately.
Optional CableCover improves under-table cable management and aesthetics, minimizing cable tangles, and preventing accidental disconnections
Optional CCB 30 three-button remote provides control for remotely mounted Extron switchers and control products with contact closure control ports
Optional ZipClip 100 and ZipClip 200 products secures Extron eighth- and quarter-rack width product such as PS Series Power Supplies easily to AVEdge 100
Available in a black powder coat finish
Connectivity Builder is available at www.extron.com/connectivitybuilder - Intuitive online tool for pricing and cable plus connectivity selection.
