Extron AAP 424 (70-1070-03)

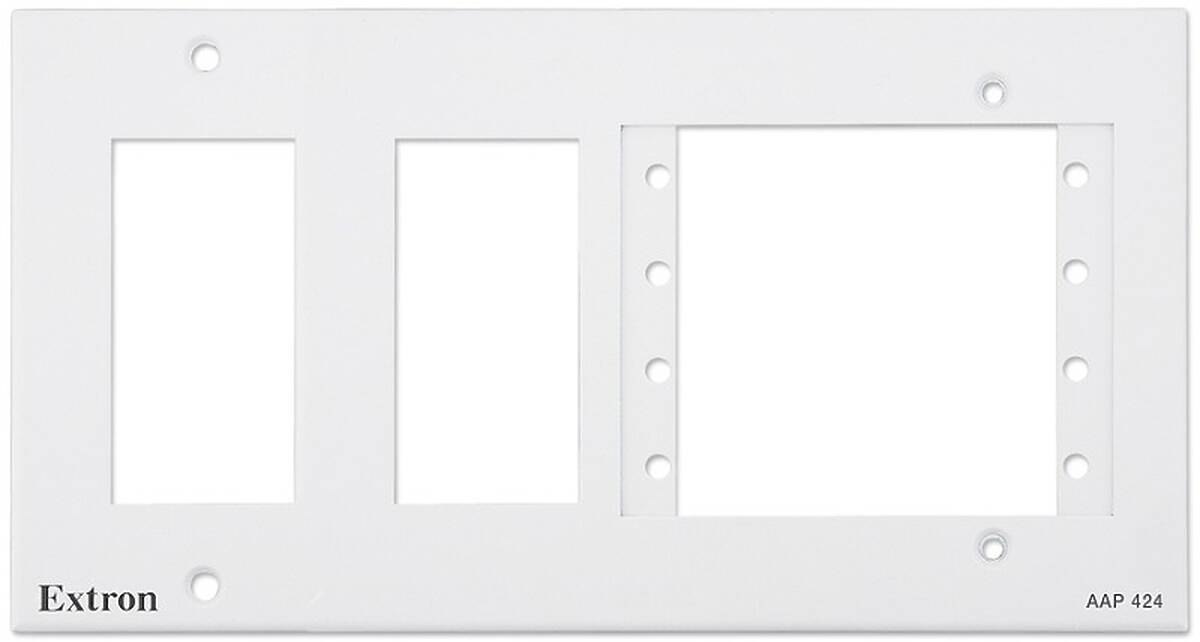

4-Gang Mounting Frame for Decorator-Style Modules and AAP - Architectural Adapter Plates, finished in white

For pricing and configuration options please call or email us.

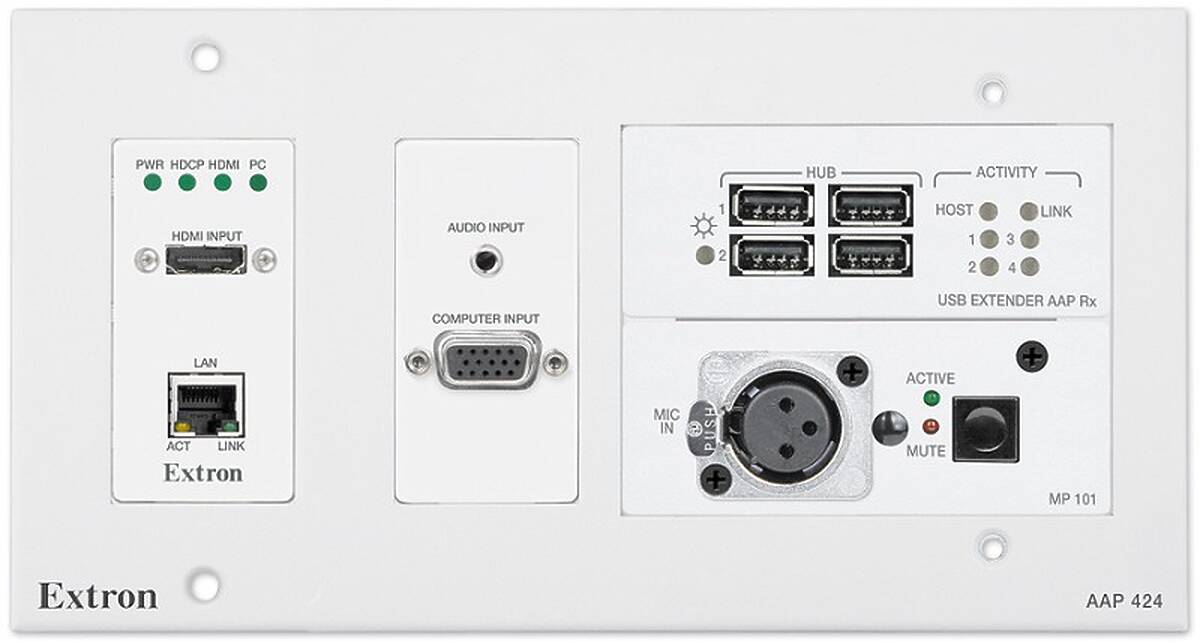

The Extron AAP 424 is a four-gang size AV connectivity mounting frame with openings to accommodate two decorator-style modules or one dual decorator-style module, such as the Extron DTP HDMI 230 D, and up to four single-space AAP™ AV Connectivity Modules. The AAP 424 mounts directly to the wall, lectern, or other flat surface for convenient access to connectivity. It is also compatible with four-gang wall or surface mount boxes, such as the SMB 104 or EWB 104. Decorator-style and AAP modules are sold separately. Dimensions: 4.5" x 8.3" x 0.25" (11.43 x 21.08 x 0.64 cm).

Extron AAP 424 Key Features

Opening for two decorator-style modules - Compatible with Extron WPD 100 Series, PVT CV D, DTP HDMI 230 D, or other decorator-style modules. Extron decorator-style modules are sold separately.
Opening for up to four single-space AAP™ AV Connectivity Modules; AAP modules sold separately - Extron AAP modules are designed for easy installation in a wall, lectern, desk, or rack to maintain a clean and efficient AV system design.
Mounts directly to the wall, lectern, or other flat surface
Also compatible with the SMB 104 surface mount box and EWB 104 external wall box
Available in white
Mud ring included
Dimensions: 4.5" × 8.3" × 0.25" (11.43 × 21.08 × 0.64 cm)
