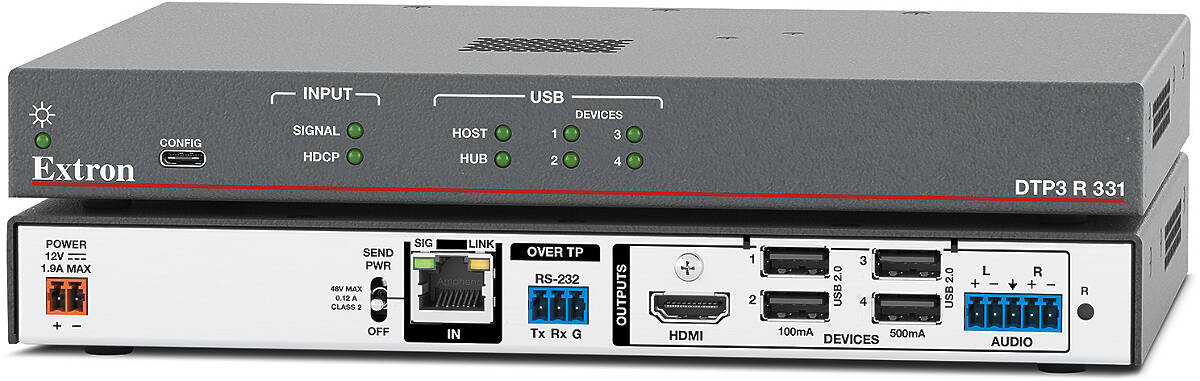

Extron DTP3 R 331 (60-2092-53)
DTP3 Receiver for 4K/60 HDMI 2.0 and USB Data
1 × DTP3 TP Input; 1 × HDMI Output; Max 100m @ 4K/60 4:4:4 and 5K transmission, 18Gbps
Availability: In stock
The DTP3 R 331 is a long-distance, digital twisted pair receiver for extending HDMI, USB 2 data, audio, and bidirectional RS‑232 signals up to 330 feet (100 meters) over a shielded CAT 6A cable. It supports video resolutions up to 4K/60 at 4:4:4 color sampling and complies with HDCP 2.3. For maximum image quality and minimal latency, all supported video resolutions are transported without compression. The DTP3 R 331 features a four-port USB hub and stereo audio de-embedding for convenient installation in professional environments. The low-profile enclosure makes the DTP3 R 331 ideal for discreet placement behind displays, in equipment racks, or wherever needed to meet application requirements.

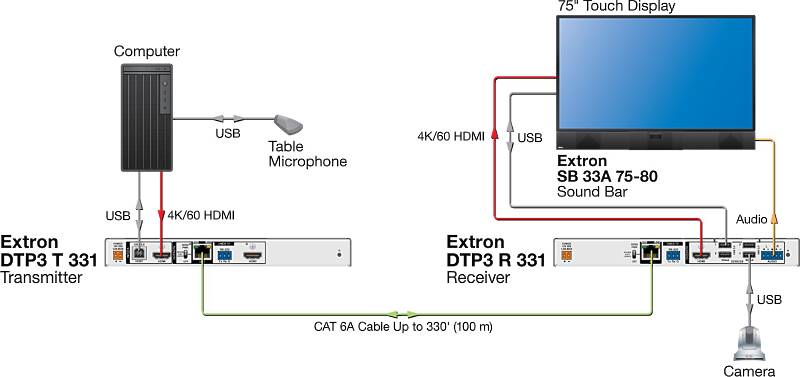

The DTP3 R 331 receiver enables the reliable, long-distance transmission of HDMI 2.0b signals at data rates up to 18 Gbps, supporting HDR, Deep Color up to 12‑bit, 3D, and embedded HD lossless audio formats. DDC communication of EDID and HDCP is continuously maintained between source and display, which ensures optimal signal transmission between devices. The DTP3 R 331 receiver can be used with a DTP3 T 331 transmitter in point‑to‑point USB extension applications and is compatible with other DTP3-enabled products.
USB Signal Extension
The DTP3 R 331 supports High-Speed USB 2 data. It is compatible with USB 3 devices that can operate at USB 2 data rates. Integrated USB signal extension enables connection to peripheral devices over the same twisted pair cable as HDMI signals. The four-port USB hub allows the connection of several USB devices such as interactive whiteboards, keyboards, mice, mass storage devices, and webcams on a single host port.
Features that Streamline Integration
To simplify integration with digital sources and displays, the DTP3 R 331 includes many integrator-friendly features that streamline installation. When HDCP-encrypted content is transmitted to a non-HDCP compliant display, a full-screen green signal is sent to the display for immediate visual confirmation that protected content cannot be viewed on that display.

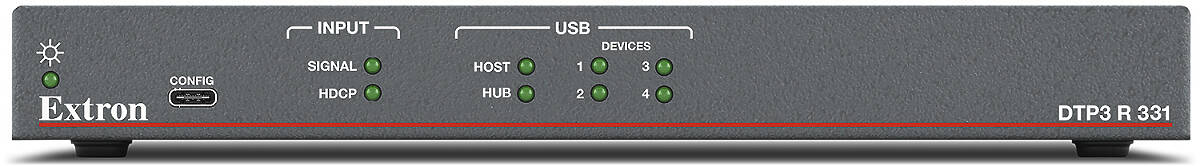

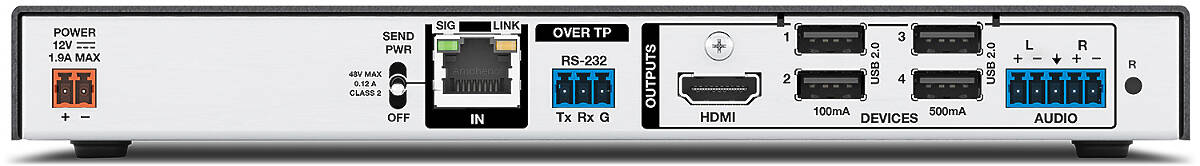

Front panel LED indicators provide immediate visual confirmation of signal presence for the HDMI output, each USB connector, HDCP status, and power. In addition to an indicator for the USB host, the DTP3 R 331 receiver provides two stacked green LEDs for USB Device status, one for each port. The rear panel includes a recessed reset button to return the unit to the factory default settings.
Convenient Control and Power
The DTP3 R 331 provides many other integrator-friendly features designed to help simplify installation. The receiver supports transmission of bidirectional RS-232 from a control system for AV device control. The control signals can be transmitted alongside the AV signal, facilitating remote operation of AV devices without the need for additional cabling. For added convenience, a USB-C® configuration port on the front panel offers ready access to information and easy updating of firmware. Configuration of the DTP3 R 331 is made simple with Extron’s PCS - Product Configuration Software. The user-friendly GUI is amazingly easy to navigate. This software application allows for expedited setup, commissioning, and real-time operation and monitoring.
The receiver can be remotely powered by the DTP3 T 331 transmitter or another DTP3-enabled device over the shielded twisted pair cable. In addition, it can be configured to provide power to a connected transmitter, enabling both devices to share one power supply. Housed in a 1" (2.5 cm) high, half rack width metal enclosure, the low-profile design allows for discreet placement in tight spaces.
To ensure optimal performance, Extron recommends XTP DTP 22 cables and accessories. These 22-gauge shielded twisted pair cables, shielded RJ‑45 plugs, jacks, and couplers have been engineered for optimum performance for DTP3 products running at 18 Gbps. Extron XTP DTP 22 cable bandwidth is verified to 500 MHz and utilizes a S/FTP design with four shielded 22 AWG twisted pair conductors inside an overall braided shield for superior performance and noise immunity.
The DTP3 R 331 is ideal for a wide variety of environments requiring extension of HDMI, audio, High-Speed USB data, and control signals, including courtrooms, conference and meeting spaces, classrooms, lecture halls, and houses of worship.
See also: Extron DTP3 T 331Extron DTP3 R 331 Key Features
- Receives HDMI, USB data, control, and audio up to 330 feet (100 meters) over a shielded CAT 6A cable - The DTP3 R 331 provides high reliability and maximum performance on an economical and easily installed cable infrastructure.
- Supports computer and video resolutions up to 4K/60 @ 4:4:4, including 5K - Support of 4K/60 at 4:4:4 Colour sampling requires connection to matching DTP3 products.
- USB 2 extension - Built-in USB 2 extension facilitates connection to peripheral USB devices over the same cable as video and audio. Ideal for remote connectivity for USB cameras or storage devices.
- Integrated four-port USB hub - Allows simultaneous connection to multiple peripheral devices such as interactive whiteboards, keyboards, mice, mass storage devices, and webcams.
- Supports ultra-wide aspect ratios, including 21:9 and 5K
- Stereo audio de-embedding
- HDCP 2.3 compliant - Ensures display of content-protected 4K video media and maintains interoperability with earlier versions of HDCP.
- Supported HDMI 2.0b specification features include data rates up to 18 Gbps, HDR, Deep Colour up to 12-bit, 3D, and HD lossless audio formats
- Remote power capability with DTP3 products - For simplified installation, the receiver can be remotely powered by a DTP3-enabled product over the twisted pair connection. It can also be configured to provide power to a connected DTP3 transmitter.
- Extron XTP DTP 22 shielded twisted pair cable is strongly recommended for optimal performance
- Compatible with CAT 6A shielded twisted pair cable - CAT 6A Shielded twisted pair cabling is recommended for optimal performance.
- Support for HDR - High Dynamic Range video - The DTP3 R 331 enables greater contrast range and wider Colour gamut by providing the necessary video bandwidth, Colour depth, and metadata interchange capability for HDR video.
- Bidirectional RS-232 pass-through for AV device control - Bidirectional RS-232 control signals can be transmitted alongside the video signal, allowing remote AV devices to be controlled without the need for additional cabling.
- Supports multiple embedded audio formats - The DTP3 R 331 is compatible with a broad range of multi-channel audio signals, providing reliable operation with HDMI sources.
- Supports USB 2 devices and USB 3 devices that can operate at USB 2 data rates up to High-Speed - Provides USB extension, allowing connection to peripheral devices over the same CAT 6A cable as video and audio.
- Supports EDID and HDCP transmission - DDC channels are actively buffered, allowing continuous communication between source and display.
- HDCP Visual Confirmation - A full-screen green signal is sent when HDCP-encrypted content is transmitted to a non HDCP compliant display, providing immediate visual confirmation that protected content cannot be viewed on the display.
- Front panel USB-C® configuration port - Provides convenient access for information and firmware updates.
- LED indicators for signal presence, power, and link status - Provide visual indication of system status for real-time feedback and monitoring of key performance parameters.
- RJ-45 signal and link LED indicators for DTP port - Provide a means for validating signal flow and operation, allowing quick identification of connectivity issues.
- Easy setup and commissioning with Extron's PCS - Product Configuration Software - Conveniently configure multiple products using a single software application.
- 1" (2.50 cm) high, half rack width metal enclosure - With a low profile enclosure, the device can be installed discreetly wherever needed.
- Patented ZipClip® 400 mounting kit included - Enables easy and secure mounting on a variety of surfaces.
- Includes LockIt® Plus cable lacing brackets - Securely fastens HDMI or USB C® cables to a device, eliminating risk of disconnection.
- Optional, external Extron Everlast® power supply available, part # 70-1259-01 - Provides worldwide power compatibility with high demonstrated reliability and low power consumption.
- Extron Everlast Power Supply is covered by a 7-year parts and Labour warranty
