Extron FOX3 T 211 SM (60-2090-12)

1:1 Fibre Optic Transmitter for DisplayPort, Audio, Control, and 3D Sync

1 × DisplayPort input with loop through; 1 × Singlemode FO output; Max bandwidth 21.6Gbps, 4K 4096×2160/60Hz/4:4:4

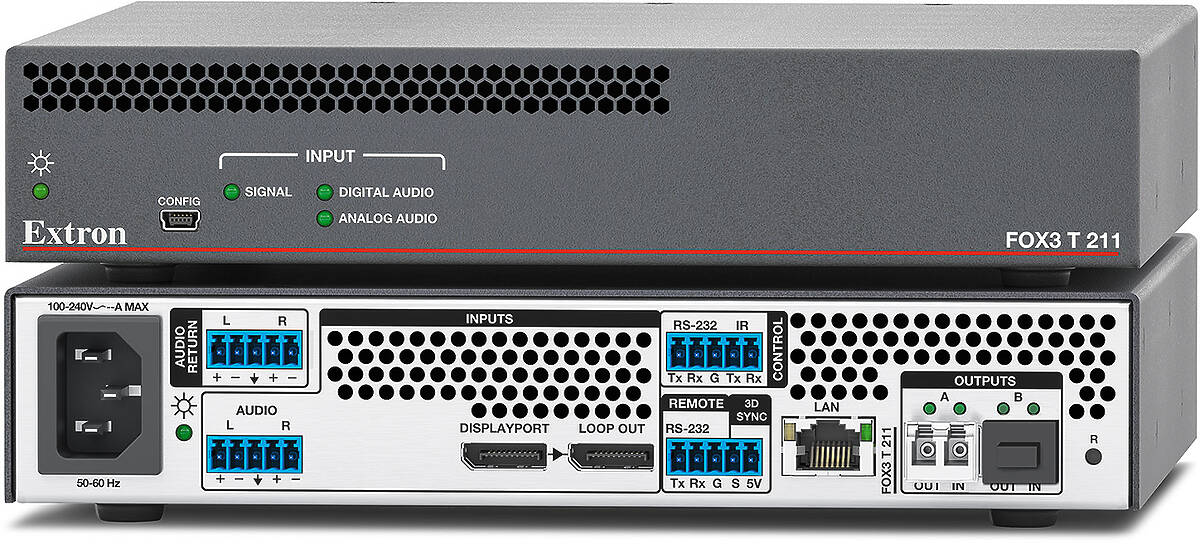

Extron FOX3 T 211 SM 60-2090-12 product image

£4138 (£4965.60 inc. VAT)
Availability: In stock

The Extron FOX3 T 211 Fiber Optic Transmitter provides long haul transmission of DisplayPort video, stereo audio, RS-232 control, IR control, and 3D sync signals over fiber optic cabling. Engineered for exceptional high resolution image performance, the transmitter uses Extron all‑digital technology to deliver mathematically lossless transmission of images up to 4K/60 @ 4:4:4 over a fiber optic cable. Designed specifically for AV systems, the FOX3 T 211 also includes many integrator-friendly features such as EDID Minder®, audio embedding, Ethernet monitoring and control, audio gain and attenuation, and real-time system monitoring.

Uncompromised Image Quality

Supporting data rates up to 21.6 Gbps, the FOX3 T 211 is designed to extend mathematically lossless video images up to 4096x2160 at 60 Hz with 4:4:4 chroma sampling over a fiber optic cable, making it ideal for mission-critical applications or any environment that requires the transmission of very high-resolution imagery. Maintaining a 60 Hz frame rate with a 4:4:4 Colour space provides smooth frame transitions in full-motion video and ensures the details of high-quality computer images, such as CAD drawings, are preserved.

Engineered to Streamline Integration

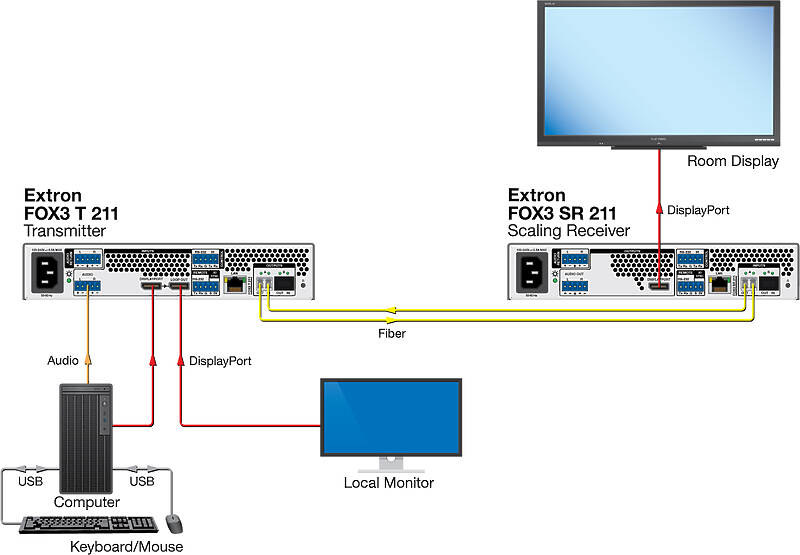

The FOX3 T 211 transmitter can be used with a FOX3 SR 211 receiver in point‑to‑point applications or in combination with a FOX3 Series matrix switcher for an enterprise‑wide 4K/60 4:4:4 distribution system using ####DisplayPort, audio, control, and 3D sync signals.

To simplify integration with digital sources and displays, the FOX3 T 211 features EDID Minder to automatically manage EDID by maintaining continuous EDID communication between connected devices, ensuring that the source powers up properly and maintains optimal video output for display. In addition, an input loop-out provides an output signal to drive a local monitor, while the built-in internal test patterns aid system setup and configuration.

Control Signal Extension and Device Management

The FOX3 T 211 offers convenient local and remote system access for configuration, operation, and monitoring. The front panel USB configuration port enables system configuration without having to access the rear panel. The direct RS-232 and IR insertion ports extend control signals to remote devices over the fiber optic cable. Sources and displays can be controlled from either the transmitter or receiver end using either RS‑232 or IR signals. When used with a FOX3 Series matrix switcher, the remote RS-232 port can receive inserted control data from the matrix switcher over the fiber optic cable for control of the connected device. The transmitter also features a LAN port, enabling the transmitter to be proactively monitored and managed over the network using standard TCP/IP protocols.

Multimode and Singlemode Models for Design Flexibility

The FOX3 T 211 is available in multimode and singlemode models. The FOX3 T 211 MM model supports multimode fiber at 850 nm, which is typically used within buildings or facilities with moderate‑range transmission distances. The FOX3 T 211 SM supports singlemode at 1310 nm, offering long‑range transmission capability over extreme distances. It can be used in very large facilities such as airports and stadiums, and for connecting over very long distances between facilities such as university campuses. Because transmission of content is inherently secure and immune to outside interference, fiber applications are particularly favored in government, military, and medical environments. The transmitter features industry-standard LC‑type connectivity. The 1U, half-rack width metal enclosure is designed for installation in professional AV environments.

Extron FOX3 T 211 SM Key Features

Transmits DisplayPort video, stereo audio, RS-232 control, IR control, and 3D sync signals over fibre optic cabling
Supports mathematically lossless 4K video up to 4096x2160 at 60 Hz with 4:4:4 chroma sampling over one fibre
Supported DisplayPort specification features include data rates up to 21.6 Gbps, Deep Colour up to 10-bit, and 4:4:4 chroma sampling
DisplayPort input loop-out - Local DisplayPort output provides signals for a local display, enabling monitoring or sharing of content without the need for a separate distribution amplifier.
Audio embedding - Analogue stereo audio signals are converted to digital DisplayPort audio, reducing cable infrastructure at the display device.
EDID Minder® automatically manages EDID communication between connected devices - Ensures that all sources power up properly and reliably output content for display.
Audio gain and attenuation adjustment capability - Sets gain or attenuation levels to eliminate noticeable volume differences when switching between sources.
Analogue audio return channel - Provides balanced return Analogue stereo audio output to support a remote audio source at the receiver.
Bidirectional RS-232 and IR signal transmission over fibre optic cabling for AV device control - Bidirectional RS-232 and IR control pass-through enables a remote device to be controlled without the need for additional cabling. Two fibres are required for bidirectional communications.
Front panel USB configuration port - Enables easy system configuration without having to access the rear panel.
Ethernet monitoring and control - Enables control and proactive monitoring over a LAN, WAN, or the Internet.
RS-232 control - Features an RS-232 serial port for control and configuration.
Real-time status LED indicators for troubleshooting and monitoring - Front and rear panel LEDs verify signal presence, fibre link status, and power.
Easy setup and commissioning with Extron's PCS - Product Configuration Software - Conveniently configures multiple products using a single software application.
Internal test patterns for calibration and setup - Simplifies setup and installation by providing a video signal when a source is unavailable.
Compatible with Extron FOX3 Series matrix switchers - Creates enterprise-wide fibre optic signal distribution systems.
Compatible with Quantum FOX3 series fibre optic input cards - Streamlines Quantum Ultra II videowall integration into FOX3 fibre optic systems.
Industry standard LC connectors provide reliable physical connectivity and precise fibre core alignment
Available as an 850 nm multimode model for moderate-range transmissions up to 500 m (1640 feet) and a 1310 nm singlemode model for extreme distances up to 20 km (12.4 miles)
1U high, half rack width metal enclosure
Internal Extron Everlast® power supply - Provides worldwide power compatibility, with high-demonstrated reliability and low power consumption for reduced operating cost.
Extron Everlast Power Supply is covered by a 7-year parts and Labour warranty

Extron FOX3 T 211 SM Optional Cables

Description	Length	Price	Inc. VAT
Extron 2LC OM4 MM P/1 LC to LC Laser-Optimized Multimode Fiber Optic Cable Assembly	1.0m	£64	£76.80
Extron 2LC OM4 MM P/10 LC to LC Laser-Optimized Multimode Fiber Optic Cable Assembly	10.0m	£102	£122.40
Extron 2LC OM4 MM P/2 LC to LC Laser-Optimized Multimode Fiber Optic Cable Assembly	2.0m	£66	£79.20
Extron 2LC OM4 MM P/3 LC to LC Laser-Optimized Multimode Fiber Optic Cable Assembly	3.0m	£78	£93.60
Extron 2LC OM4 MM P/30 LC to LC Laser-Optimized Multimode Fiber Optic Cable Assembly	30.0m	£194	£232.80
Extron 2LC OM4 MM P/5 LC to LC Laser-Optimized Multimode Fiber Optic Cable Assembly	5.0m	£82	£98.40
