Extron DTP3 T 321 (60-2017-52)

1:1 DTP3 / HDBaseT Transmitter for 4K/60 HDMI 2.0b, USB-C DP Alt, Control and power

1 × USB-C, 1 × RS-232 Input; 1 × DTP3, 1 × HDMI Output; Max 100m @ 4K/60 4:4:4, 18Gbps

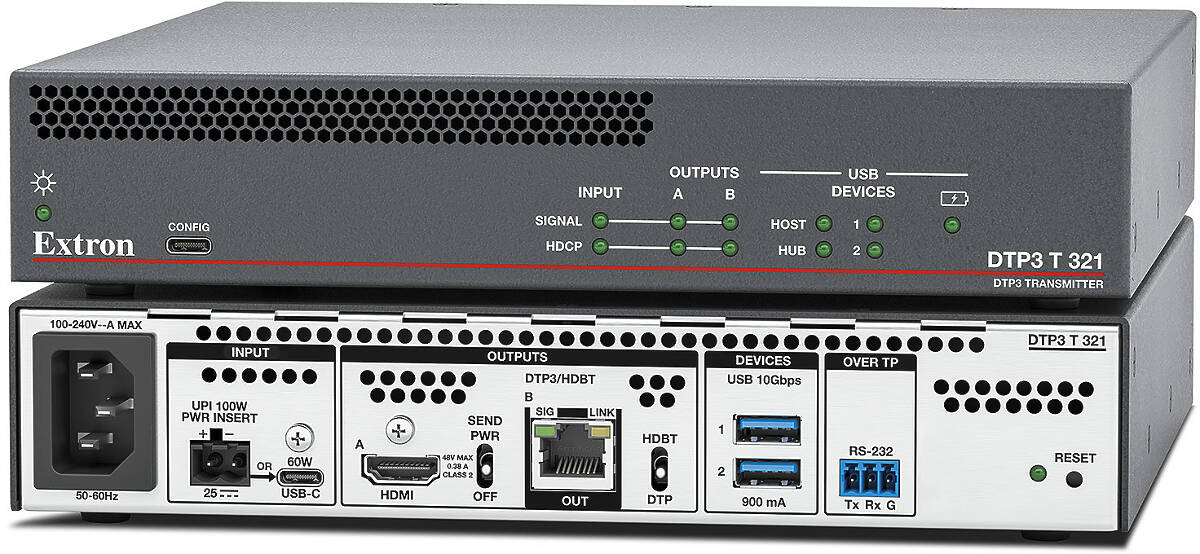

Extron DTP3 T 321 60-2017-52 product image

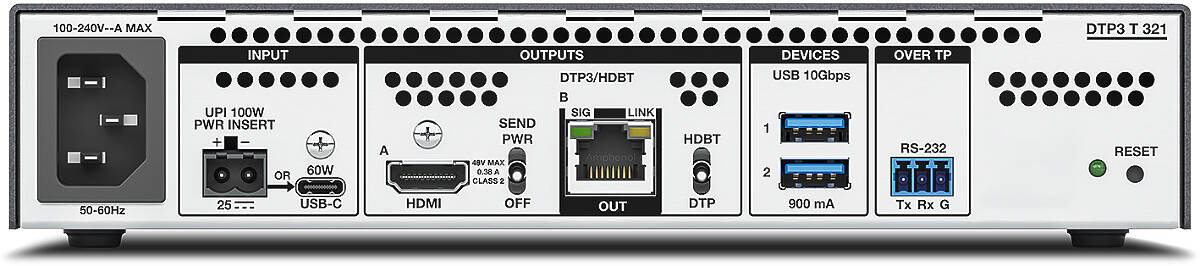

Extron DTP3 T 321 60-2017-52 connectivity (terminals)

£1520 (£1824.00 inc. VAT)
Availability: In stock

The Extron DTP3 T 321 is a long-distance, digital twisted pair transmitter for sending USB‑C video, embedded audio, USB data, power, and bidirectional RS‑232 signals up to 330 feet (100 meters) over a shielded CAT 6A cable. It provides one USB‑C input, a local HDMI output, and two USB device ports. The transmitter supports video resolutions up to 4K/60 at 4:4:4 Colour sampling, EDID Minder®, and HDCP 2.3. For maximum image quality and minimal latency, all supported video resolutions are transported without compression. The DTP3 T 321 features built-in 60 watt USB-C device charging and supports up to 100 watt power delivery when deployed with the Extron UPI 100 power inserter. Local host and device connections supporting USB 10Gbps data and remote power for DTP3 receivers facilitate integration in demanding professional environments.

Full Support for USB‑C Video, Data, Power Delivery, and Extension

The DTP3 T 321 enables the reliable, long distance transmission of USB‑C DisplayPort alt-mode video supporting Deep Color, 3D, and embedded HD lossless audio formats. The USB‑C input supports the three functions of video/audio, USB data, and device charging over a single cable. This all-in-one connection eliminates the need for laptops to have a separate power or USB data connection and streamlines the user experience with a single cable. The DTP3 T 321 provides 60 watts of standard device charging power, and up to 100 watts with the addition of the UPI 100 power inserter.

The DTP3 T 321 incorporates extensive USB data capabilities to support UC collaboration environments. The USB‑C input and the two device ports support up to USB 10Gbps. The transmitter can also access remote USB 2 devices connected to a DTP3 R 331 receiver. This enables cameras, microphones, mice, and keyboards installed in the room to be available to the connected USB host.

BYOM Convenience

Bring Your Own Meeting (BYOM) spaces offer collaborative spaces for local and remote users without the need for more complicated room setups that use dedicated computers, switching and control equipment. BYOM spaces can use USB cameras and microphones in conjunction with portable laptops brought by the users. The DTP3 T 321 allows users to operate USB-connected equipment in the room. These spaces are more convenient for users, less expensive to set up and maintain, and offer more flexibility. They also serve a dual function by operating as traditional presentation spaces when users want to present content locally and don't need to run a UC meeting. BYOM spaces feature powerful and effective local and remote collaboration capabilities for today's meeting and collaboration rooms.

Features that Steamline Integration

To enhance and simplify integration of devices and to help ensure optimal system performance, the DTP3 T 321 features Extron EDID Minder, which automatically manages EDID by maintaining continuous EDID communication with each source. The technology ensures that the sources power up properly and reliably output content for display.

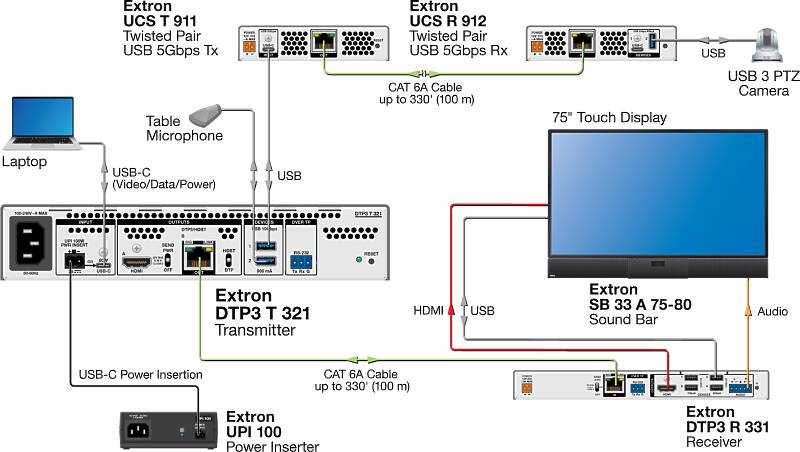

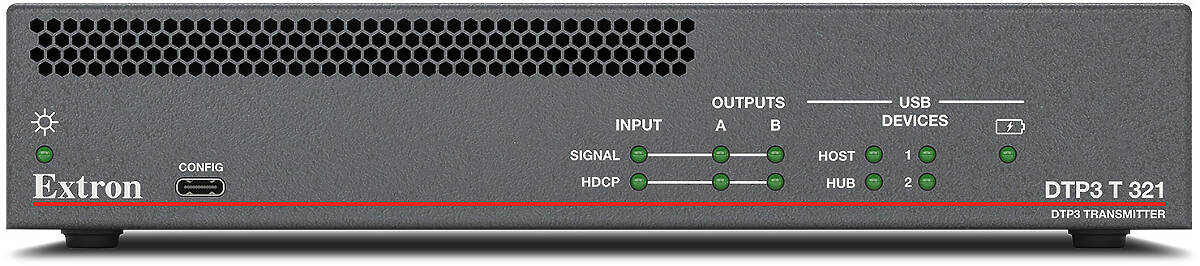

Front panel LED indicators provide immediate visual confirmation of signal presence for the input, as well as HDCP status and power. On the back panel, LEDs indicate signal presence and link status for the output. An HDMI input loop-out provides an output signal to drive a local monitor.

Convenient Control and Power

The DTP3 T 321 provides many other integrator-friendly features designed to help simplify installation. It supports simultaneous transmission of bidirectional RS‑232 from a control system for AV device control. The transmitter can be configured to provide power to the connected DTP3 receiver, simplifying installation. In addition, the DTP3 output can be configured to send video and embedded audio, plus bidirectional RS‑232 signals to an HDBaseT-enabled display. It is backward compatible with first-generation DTP-enabled products.

For added convenience, a USB‑C configuration port on the front panel offers ready access to information and easy updating of firmware. Configuration of the DTP3 T 321 is made simple with Extron's PCS - Product Configuration Software and its user-friendly GUI that is very easy to navigate. This software application allows for expedited setup, commissioning, real-time operation and monitoring.

The DTP3 T 321 transmitter is housed in a standard half rack width metal enclosure. To ensure optimal performance with DTP3 systems, Extron recommends XTP DTP 22 cables and accessories. These 22-gauge shielded twisted pair cables, shielded RJ‑45 plugs, jacks, and couplers have been engineered for optimum performance for DTP3 products running at 18 Gbps. Extron XTP DTP 22 cable bandwidth is verified to 500 MHz and utilizes a S/FTP design with four shielded 22 AWG twisted pair conductors inside an overall braided shield for superior performance and noise immunity.

Extron DTP3 T 321 Key Features

Transmits video with embedded audio, USB data, control, and power up to 330' (100 m) over a shielded CAT 6A cable - The DTP3 T 321 provides high reliability and maximum performance on an economical and easily installed cable infrastructure.
Supports video resolutions up to 4K/60, including 5K - Support of 4K/60 at 4:4:4 Colour sampling requires connection to matching DTP3 products.
Connects USB-C® sources that support DisplayPort Alt Mode
Provides power to charge the USB-C source - Supports USB Power Delivery to negotiate power to the USB-C device, providing convenient mobile device charging. Built-in power delivery is 60 watts, with up to 100 watts available using the optional UPI 100 power inserter.
USB-C host connection - Available to connect hosts at data rates up to USB 10Gbps.
Two local USB device connections - Available to connect devices at data rates up to USB 10Gbps.
USB 2 extension - Connect a DTP3 R 331 receiver to access remotely located USB peripheral devices over the same cable as video and audio.
HDMI input loop-out - Features an active HDMI loop-out for local monitor support or system expansion.
Remote power capability with DTP3 products - For simplified installation, the DTP3 output can provide power to select DTP3-enabled receivers over the twisted pair connection.
Supports ultra-wide aspect ratios, including 21:9 and 5K
Comprehensive EDID management - Use PCS software to access EDID Minder for setting video input EDID, capturing EDID from connected displays, or uploading custom EDID files. Proper EDID management ensures that sources and displays are easily integrated into a system resulting in optimized system operation. Freely downloadable EDID Manager software is available for advanced EDID editing and creating custom EDID files.
HDCP 2.3 compliant - Ensures display of content-protected 4K video media and maintains interoperability with earlier versions of HDCP.
Supported HDMI 2.0b specification features include data rates up to 18 Gbps, Deep Colour up to 12-bit, and HD lossless audio formats
Compatible with DTP3 and DTP-enabled products - Enables mixing and matching with desktop and wallplate receivers, as well as other DTP-enabled products to meet application requirements. Not compatible with DTP2 products.
Extron XTP DTP 22 shielded twisted pair cable is strongly recommended for optimal performance
Compatible with CAT 6A shielded twisted pair cable
DTP3 output is compatible with HDBaseT-enabled devices - The DTP3 output can be configured to send video and embedded audio, plus bidirectional RS-232 signals to an HDBaseT-enabled display.
Bidirectional RS-232 pass-through for AV device control - Bidirectional RS-232 control signals can be transmitted alongside the video signal, allowing remote AV devices to be controlled without the need for additional cabling.
User-selectable HDCP authorisation - Allows the unit to appear HDCP compliant or non-HDCP compliant to the connected source, which is beneficial if the source automatically encrypts all content when connected to an HDCP-compliant device. Protected material is not passed in non-HDCP mode.
Supports multiple embedded audio formats - Compatible with a broad range of multi-channel audio signals, providing reliable operation with HDMI sources.
EDID Minder® automatically manages EDID communication between connected devices - EDID Minder ensures that the source powers up properly and reliably outputs content for display.
Supports EDID and HDCP transmission - DDC channels are actively buffered, allowing continuous communication between source and display.
Output muting control - Provides the capability to mute the video or audio output at any time.
Front panel USB-C configuration port - Provides convenient access for information and firmware updates.
LED indicators for signal presence, HDCP, and USB-C charging - Provide visual indication of system status for real-time feedback and monitoring of key performance parameters.
RJ-45 signal and link LED indicators for DTP3 port - Provide a means for validating signal flow and operation, allowing quick identification of connectivity issues.
Easy setup and commissioning with Extron's PCS - Product Configuration Software - Conveniently configure multiple products using a single software application.
Compact 1U, half rack width metal enclosure
Includes LockIt® Plus cable lacing brackets - Securely fastens HDMI or USB-C® cables to a device, eliminating risk of disconnection.
Internal Extron Everlast® power supply - Provides worldwide power compatibility, with high demonstrated reliability and low power consumption for reduced operating cost.
Extron Everlast Power Supply is covered by a 7-year parts and Labour warranty
