Extron SW2 HD 8K (60-1985-01)

2:1 8K HDMI Switcher with Audio De-embedding

2 × HDMI 2.1 Inputs; 1 × HDMI 2.1 Output; Max Bandwidth 48Gbps

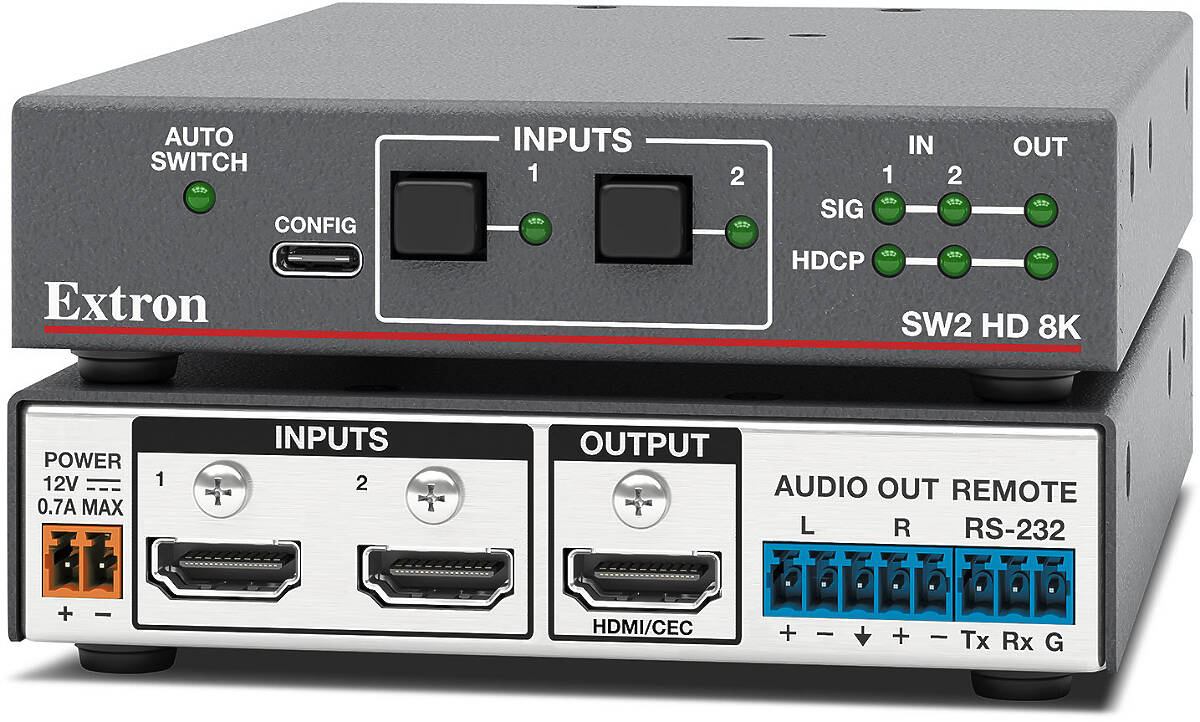

Extron SW2 HD 8K 60-1985-01 product image

£780 (£936.00 inc. VAT)
Availability: In stock

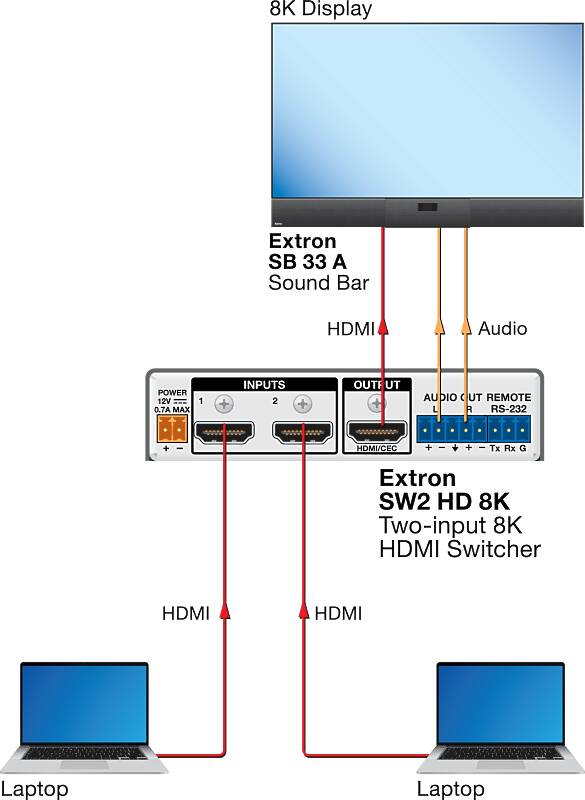

The Extron SW2 HD 8K is a two-input HDMI switcher with analogue audio de-embedding. It supports resolutions up to 8K/60 with data rates up to 48 Gbps, including 5K for Microsoft® Teams Front Row, Dynamic HDR, Deep Color up to 12-bit, 3D, and HD lossless audio formats. In addition to the HDMI output, an analogue audio output enables extracted stereo HDMI signals to be sent to a sound system or other audio equipment. The HDCP 2.3-compliant switcher features Extron EDID Minder® Plus for continuous EDID communication and Key Minder® for quick, reliable switching of HDCP-encrypted content. Remote and local control options are provided, including RS-232, front panel, and auto-input switching. The SW2 HD 8K switcher is ideal for environments that require routing two HDMI sources to a single display.

To enhance and simplify integration, the SW2 HD 8K provides integrator-friendly features, including automatic input cable equalization, indicators for monitoring and troubleshooting, as well as peripheral device power on the output. Automatic input cable equalization corrects for signal loss due to lengthy input cables, ensuring signal integrity. Front panel LED indicators provide immediate visual confirmation of HDCP authentication and signal presence for each input and output. If HDCP‑encrypted content is transmitted to a non‑compliant display, a full-screen green signal provides immediate visual confirmation that protected content cannot be viewed on that display. The switcher also provides +5 VDC, 250 mA on the HDMI output for powering external peripheral devices, such as active HDMI cables for transmission of video and audio signals over longer cable runs.

Housed in 1″ (2.5 cm) high, quarter-rack width enclosure, the switcher allows for discreet mounting in a rack or under a table.

Extron SW2 HD 8K Key Features

Inputs: Two HDMI type-A connectors
Output: One HDMI type-A connector and one 5-pole captive screw audio connector
Supports video resolutions up to 8K/60
Supports ultra-wide aspect ratios, including 21:9 and 5K
De-embeds two-channel Analogue audio from an HDMI signal - The SW2 HD 8K offers design flexibility, enabling separate two-channel Analogue audio or dual mono audio output while maintaining the embedded HDMI audio.
Supported HDMI 2.1 specification features include data rates up to 48 Gbps, HDR, Deep Colour up to 12-bit, 3D, and HD lossless audio formats
Support for HDR - High Dynamic Range video - Enables greater contrast range and wider Colour gamut by providing the necessary video bandwidth, Colour depth, and metadata interchange capability for HDR video.
HDCP 2.3 compliant - Ensures display of content-protected media and interoperability with other HDCP-compliant devices.
Comprehensive EDID management - Use PCS software to access EDID Minder Plus for setting video input EDID, capturing EDID from connected displays, or uploading custom EDID files. Proper EDID management ensures that sources and displays are easily integrated into a system resulting in optimized system operation. Freely downloadable EDID Manager 3.0 software is available for advanced EDID editing and creating custom EDID files.
EDID Minder® Plus automatically manages EDID communication between connected devices - EDID Minder Plus supports additional memory blocks for displays that convey advanced features via both EDID and DisplayID for proper management of the extended EDID information required to reliably display and distribute 5K and 21:9 aspect ratio content.
Key Minder® continuously verifies HDCP compliance for quick, reliable switching - Key Minder authenticates and maintains continuous HDCP encryption between input and output devices to ensure quick and reliable switching in professional AV environments, while enabling simultaneous distribution of a single source signal to one or more displays.
Automatic input cable equalisation - Actively conditions incoming HDMI signals to compensate for signal loss when using long cables, low-quality cables, or source devices with poor signal output.
Selectable output muting - Provides the capability to mute any combination of video and audio at any time. Both embedded audio and Analogue audio can be independently muted.
User-selectable HDCP authorisation - Allows individual inputs to appear HDCP compliant or non HDCP compliant to the connected source, which is beneficial if the source automatically encrypts all content when connected to an HDCP-compliant device. Protected material is not passed in non HDCP mode.
HDCP Visual Confirmation provides a green signal when encrypted content is sent to a non-compliant display - A full screen green signal is sent when HDCP encrypted content is transmitted to a non HDCP compliant display, providing immediate visual confirmation that protected content cannot be viewed on the display.
Front panel LED indicators for signal presence, HDCP status, and power - Provides visual indication of system status for real-time feedback and monitoring of key performance parameters.
Provides +5 VDC, 250 mA power on the output for external peripheral devices
Multiple control options including RS-232, front panel, and auto-input switching
Auto-input switching - Automatically switches to the highest-numbered input with an active video signal or to an active input based on a configured priority.
RS-232 control port - RS-232 control port enables the use of serial commands. Extron products use the SIS™ - Simple Instruction Set command protocol, a set of basic ASCII code commands that allow for quick and easy programming.
Easy to operate front panel controls - Back-lit buttons for input source selection simplifies operation in live presentation environments.
Front panel security lockout - Prevents unauthorised use in non-secure environments. All functions remain available through RS-232 and USB when lockout mode is active.
Front panel USB-C® configuration port - Provides convenient access for information and firmware updates.
Easy setup and commissioning with Extron’s PCS - Product Configuration Software - Conveniently configure multiple products using a single software application.
1" (2.5 cm) high, quarter rack width enclosure - Compact, low-profile enclosure for discreet placement and concealment. This allows for 4 units on a 1U shelf for high density mounting.
Includes LockIt® Plus cable lacing brackets - Securely fastens HDMI or USB-C® cables to a device, eliminating risk of disconnection.
External power supply included replacement part # (70-1174-01) - Provides worldwide power compatibility, with high demonstrated reliability and low power consumption for reduced operating costs.
Extron Everlast Power Supply is covered by a 7-year parts and Labour warranty
