Extron IPL EXP PDU8L (60-1928-01)

12 VDC, 60W Control System Power Expansion Interface

8×12v outputs; Max 60 watts total output

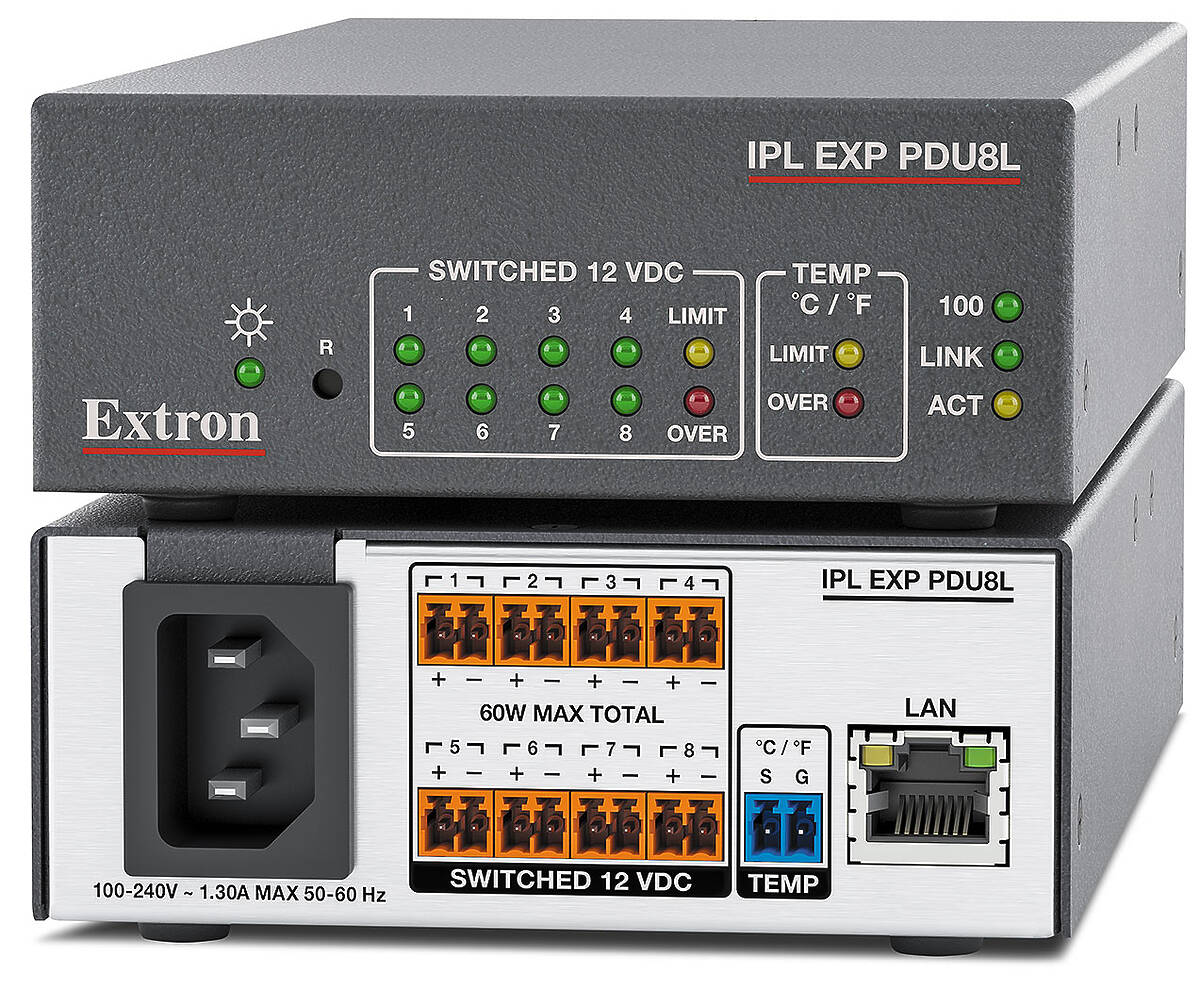

Extron IPL EXP PDU8L 60-1928-01 product image

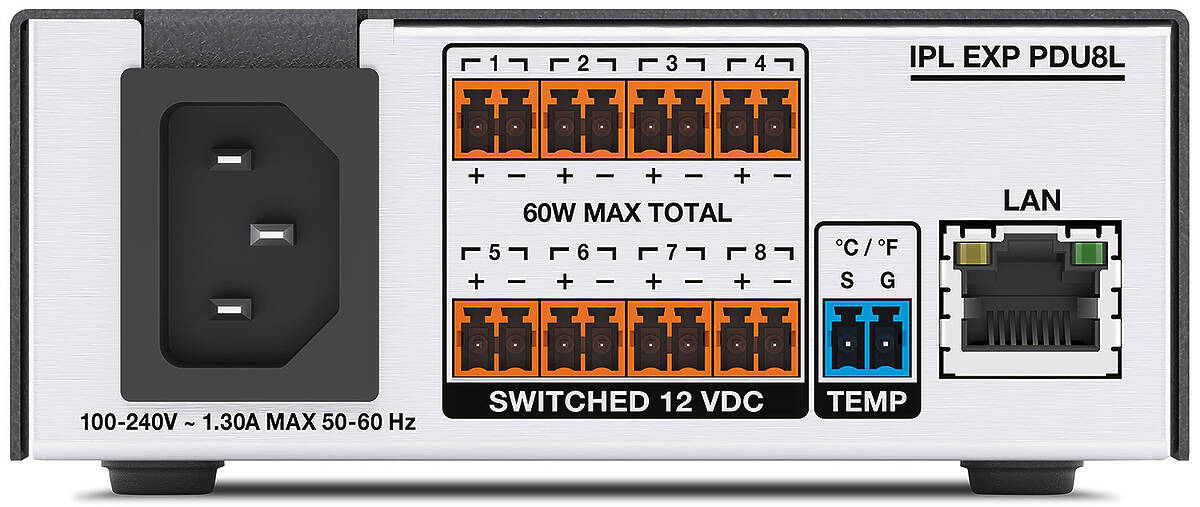

Extron IPL EXP PDU8L 60-1928-01 connectivity (terminals) product image

For pricing and configuration options please call or email us.

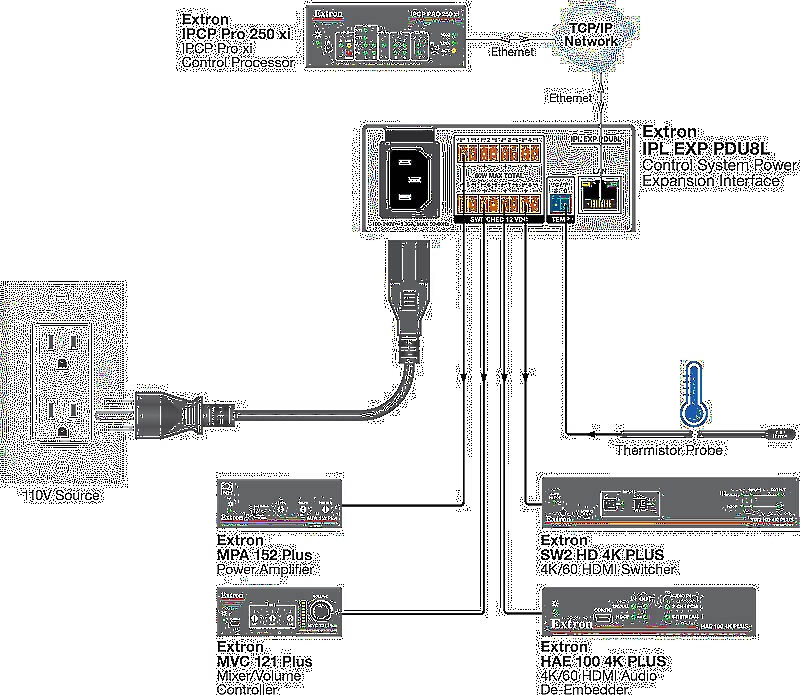

The Extron IPL EXP PDU8L is a control system power expansion interface that provides centralised 12VDC power management, monitoring, and temperature sensing. It delivers 60W across eight individually controllable outputs. The IPL EXP PDU8L is Ethernet-enabled and features the ability to monitor power consumption while providing a temperature port and thermistor probe for tracking temperature conditions of any ambient air space or device. It is designed to be used with an IPCP Pro xi Series control processor for secure, encrypted power control of attached devices. It can also operate independently using a secure Extron API, enabling seamless integration for specialised applications or direct control via the built-in web page. The IPL EXP PDU8L is housed in a compact 1U, quarter-rack enclosure that offers a variety of mounting options.

Extron IPL EXP PDU8L Key Features

Provides remote power management for AV devices - Allows for remote control of connected AV devices.
Eight independently switched 12VDC outputs with 60 watts, total
Remote on/off control of individual DC power outlets
Total wattage monitoring - Easily measure combined wattage consumption across all ports.

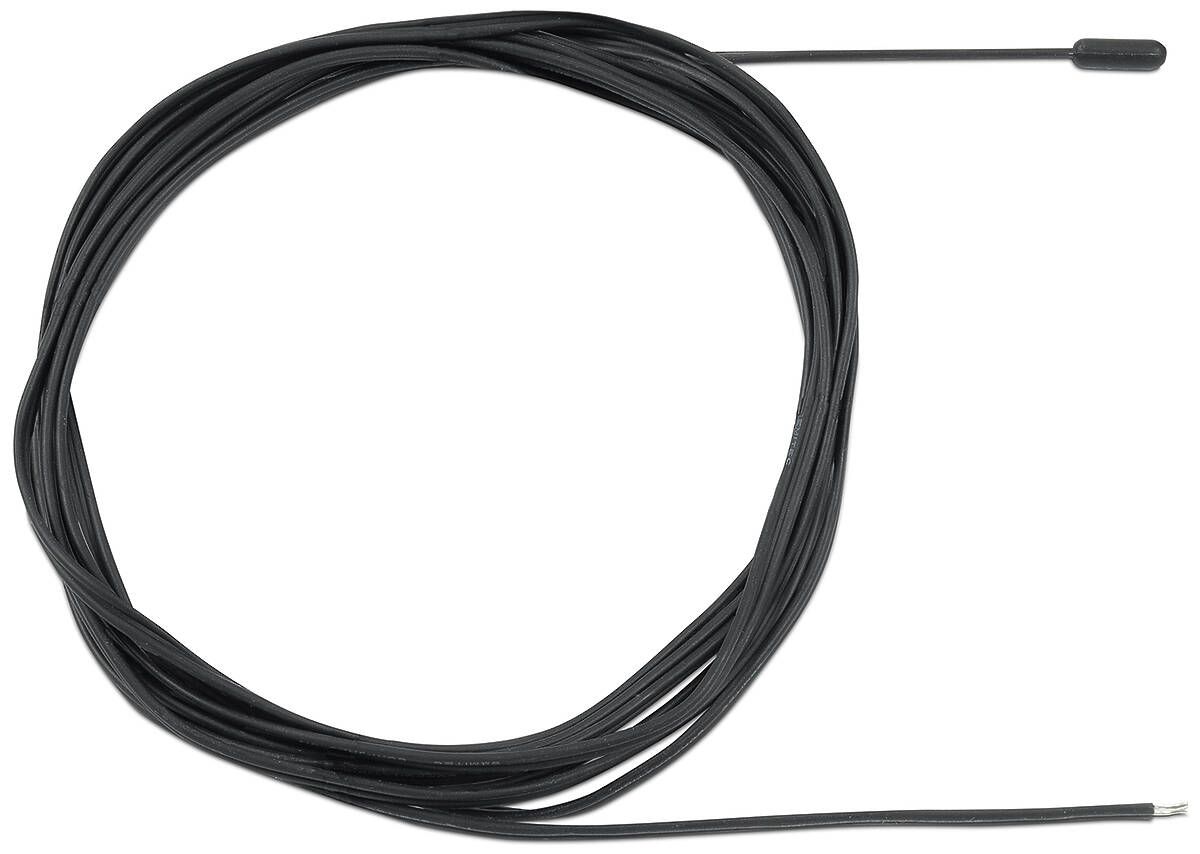

Temperature monitoring port with included thermistor probe - Allows for monitoring temperature conditions of any ambient air space or device.
Secure Platform Device - Secure, encrypted AV control interface for management from all Extron IPCP Pro xi Series control processors.
Independent operation using a secure Extron API - Allows for compatibility with control systems within a secure Ethernet environment.
Embedded default webpage - Allows for simple standalone control.
Supports 802.1X Authentication - Provides support for IEEE 802.1X authentication standard for port-based Network Access Control allowing only authorised devices to connect securely to the enterprise network.
Supports secure industry standard communications protocols - All IP Link Pro expansion processors use industry standard communication protocols, including DHCP, DNS, HTTP, HTTPS, ICMP (ping), IEEE 802.1X, NTP, SFTP, SNMP, SSH, TCP/IP, UDP/IP.
Supports control system synchronisation - Synchronisation will allow users to retain and recover the state of their configured endpoints in case of network or power failure.

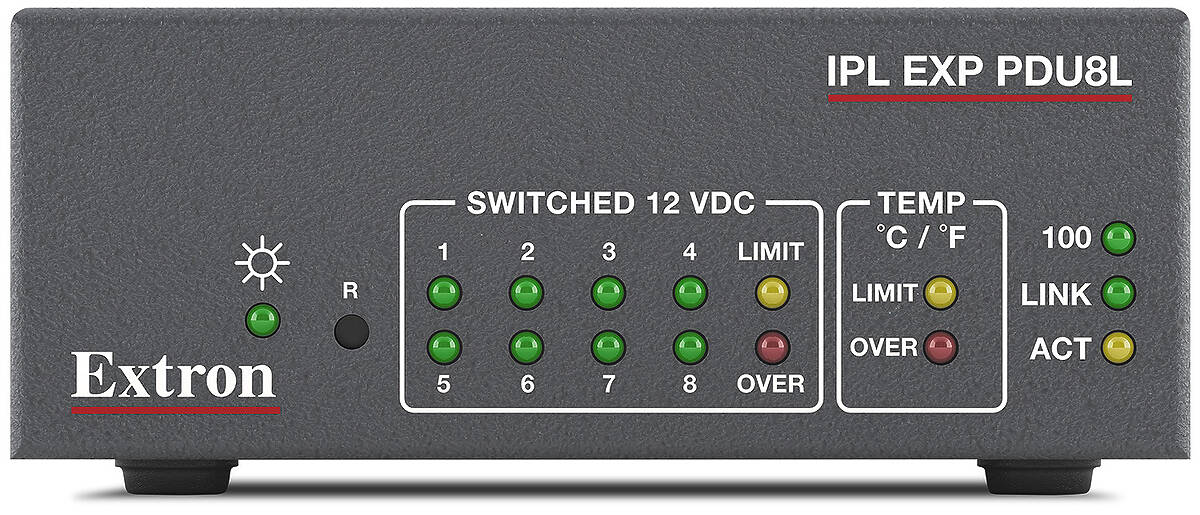

Front panel LED status indicators - Provides visual status for power, DC port status, temperature status and LAN connection.
Internal Everlast power supply - Provides worldwide power compatibility, with high demonstrated reliability while providing low power consumption for reduced operating cost.
1U, quarter-rack width metal enclosure - Allows for the IPL EXP PDU8L to mount directly to Extron basic, universal rack shelf products or behind a display.
