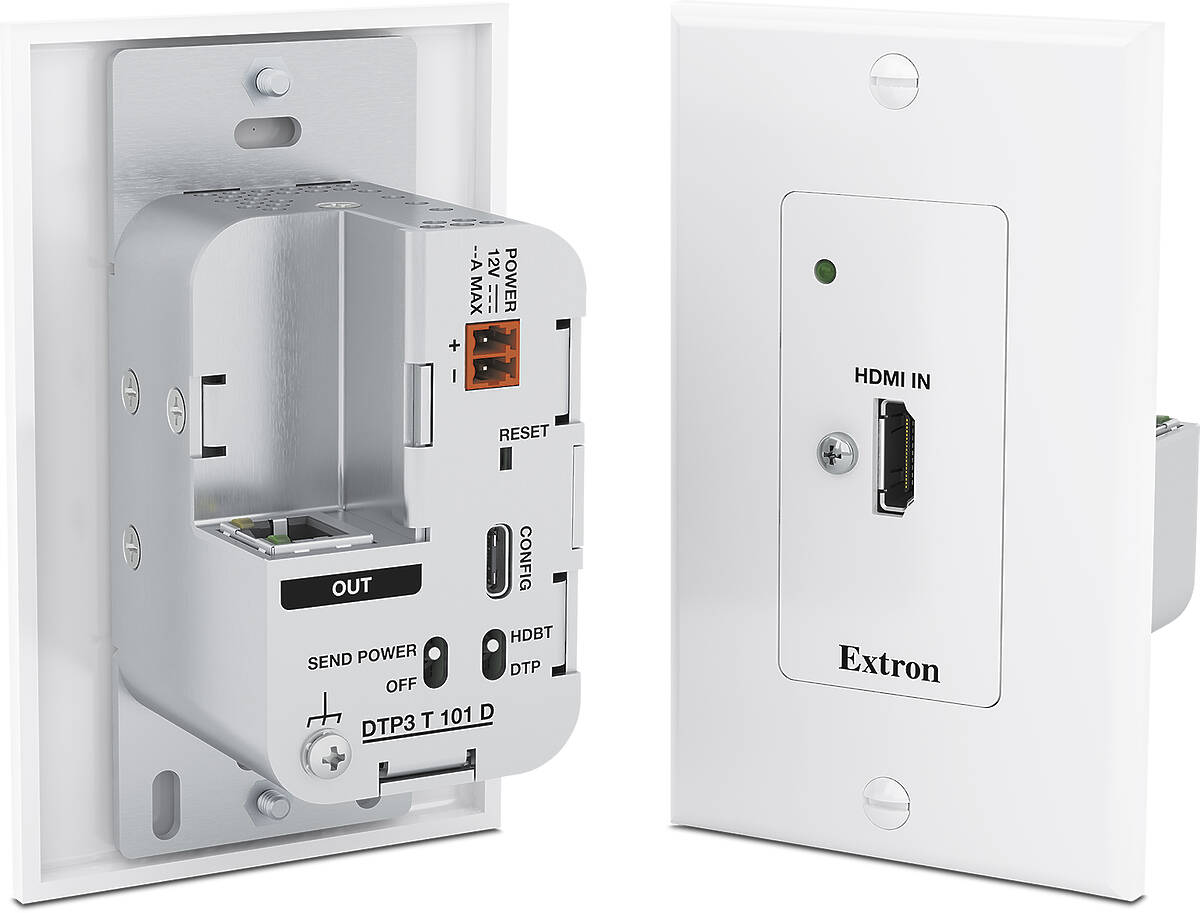

Extron DTP3 T 101 D (60-1902-53)
1:1 4K/60 HDMI2.0b over DTP3 / HDBaseT Wall plate Transmitter
1 × HDMI input; 1 × RJ-45 output; Max 100m @ 4K/60 4:4:4
The Extron DTP3 T 101 D is a one-gang decorator-style transmitter for sending HDMI up to 330 feet (100 meters) over a shielded CAT 6A cable. It supports video resolutions up to 4K/60 @ 4:4:4 and complies with HDCP 2.3. For maximum image quality and minimal latency, all supported video resolutions are transported without compression. The wallplate transmitter includes many Extron technologies, such as EDID Minder® that ensures the source powers up properly and reliably outputs content for display. Also, it can be remotely powered by a DTP3‑enabled product over the twisted pair connection, streamlining installation. The compact wall-mountable design of the DTP3 T 101 D provides the convenience of placing an HDMI input connection precisely where it is needed.
The HDCP 2.3-compliant DTP3 T 101 D enables the reliable transmission of HDMI signals, supporting CEC pass‑through and embedded HD lossless audio formats. In addition, DDC communication of EDID is continuously maintained between a source and display, ensuring direct compatibility and optimal signal transmission between devices. The transmitter is also compatible with a broad range of multi-channel audio signals, providing reliable operation with HDMI sources.
Features that Streamline Integration
The twisted pair transmitter provides other convenient, integrator-friendly features designed to help simplify installation. In addition to the capability of being remotely powered over the shielded CAT 6A cable, the DTP3 T 101 D can be configured to provide power to a connected DTP3 receiver, allowing both devices to share one power supply. The DTP3 output can be configured for compatibility with HDBaseT‑enabled displays to send HDMI signals up to 330 feet (100 meters) over the same twisted pair cable.
The DTP3 T 101 D mounts in an included one-gang decorator-style wallplate that fits a standard US one‑gang size junction box. The wall‑mountable form factor of the DTP3 T 101 D allows for discreet placement in walls, lecterns, and floor boxes. Extron recommends Extron-certified XTP DTP 22 shielded twisted pair cable, shielded RJ‑45 plugs, jacks, and couplers engineered for optimum signal transmission with Extron DTP Series products. The cable is certified to 475 MHz and utilizes an SF/UTP design with four unshielded 22 AWG twisted pair conductors inside an overall braid and foil shield for superior performance and noise immunity.
Extron DTP3 T 101 D Key Features
- Transmits HDMI up to 330' (100 m) over a shielded CAT 6A cable - The DTP3 T 101 D provides high reliability and maximum performance on an economical and easily installed cable infrastructure.
- Supports computer and video resolutions up to 4K/60 @ 4:4:4 - Support of 4K/60 at 4:4:4 Colour sampling requires connection to matching DTP3 products.
- Comprehensive EDID management - Use PCS software to access EDID Minder for setting video input EDID, capturing EDID from connected displays, or uploading custom EDID files. Proper EDID management ensures that sources and displays are easily integrated into a system resulting in optimised system operation. Freely downloadable EDID Manager software is available for advanced EDID editing and creating custom EDID files.
- EDID Minder® automatically manages EDID communication between connected devices - EDID Minder ensures that the source powers up properly and reliably outputs content for display.
- HDCP 2.3 compliant - Ensures display of content-protected 4K video media and maintains interoperability with earlier versions of HDCP.
- Supported HDMI 2.0b specification features include data rates up to 18Gbps, HDR, Deep Colour up to 12‑bit, 3D, HD lossless audio formats, and CEC pass-through
- Remote power capability with DTP3 products - For simplified installation, the transmitter can be remotely powered by a DTP3‑enabled product over the twisted pair connection. It can also be configured to provide power to a connected DTP3 receiver.
- Extron XTP DTP 22 shielded twisted pair cable is strongly recommended for optimal performance
- Compatible with CAT 6A shielded twisted pair cable
- Support for HDR – High Dynamic Range Video - Enables greater contrast range and wider Colour gamut by providing the necessary video bandwidth, Colour depth, and metadata interchange capability for HDR video.
- DTP3 output is compatible with HDBaseT-enabled devices - The DTP3 output can be configured to send video to an HDBaseT-enabled display.
- User-selectable HDCP authorisation - Allows the unit to appear HDCP compliant or non-HDCP compliant to the connected source, which is beneficial if the source automatically encrypts all content when connected to an HDCP-compliant device. Protected material is not passed in non-HDCP mode.
- Supports multiple embedded audio formats - The DPT3 T 101 D is compatible with a broad range of multi-channel audio signals, providing reliable operation with HDMI sources.
- Supports EDID and HDCP transmission - DDC channels are actively buffered, allowing continuous communication between source and display.
- Output muting control - Provides the capability to mute the video or audio output at any time.
- Rear panel USB-C configuration port - Provides convenient access for information and firmware updates.
- LED indicator for signal presence - Provides visual indication of system status for real-time feedback and monitoring.
- RJ-45 signal and link LED indicators for DTP3 port - Provide a means for validating signal flow and operation, allowing quick identification of connectivity issues.
- Easy setup and commissioning with Extron's PCS - Product Configuration Software - Conveniently configure multiple products using a single software application.
- Mounts in an included one‑gang decorator-style wallplate - The one‑gang decorator-style wallplate is available in black or white to blend with a wide range of environments.
- Includes LockIt® cable lacing brackets - Securely fastens HDMI or USB C® cables to a device, eliminating risk of disconnection.
- External Extron Everlast™ power supply included, replacement part # (70-1259-01) - Provides worldwide power compatibility with high‑demonstrated reliability and low power consumption.
- Extron Everlast Power Supply is covered by a 7‑year parts and Labour warranty

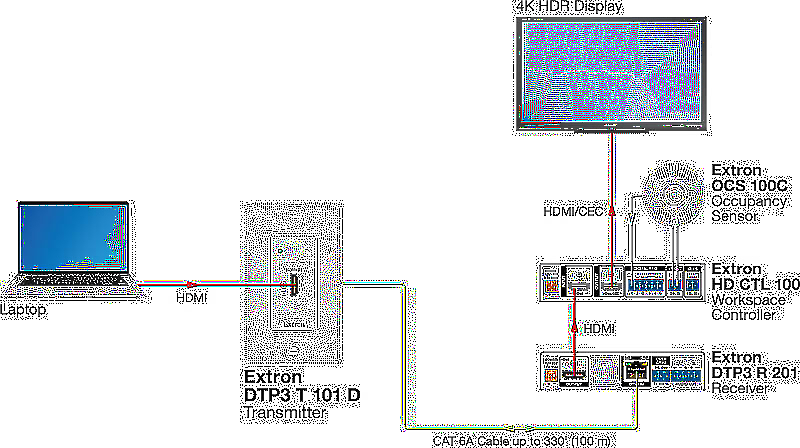

![Extron DTP3 T 101 D Usage Diagram](images/diagrams/extron/extron-dtp3-t-101-d-60-1902-53-diagram.jpg)
