Extron DTP3 T 203 (60-1885-52)

3:1 Input 4K/60 Switcher with Integrated DTP3 / HDBaseT Transmitter

2 × HDMI 2.0b, 1 × USB-C, 1 × RS-232 input; 1 × DTP3 / HDBaseT output; Max 100m 4K/60 @ 4:4:4

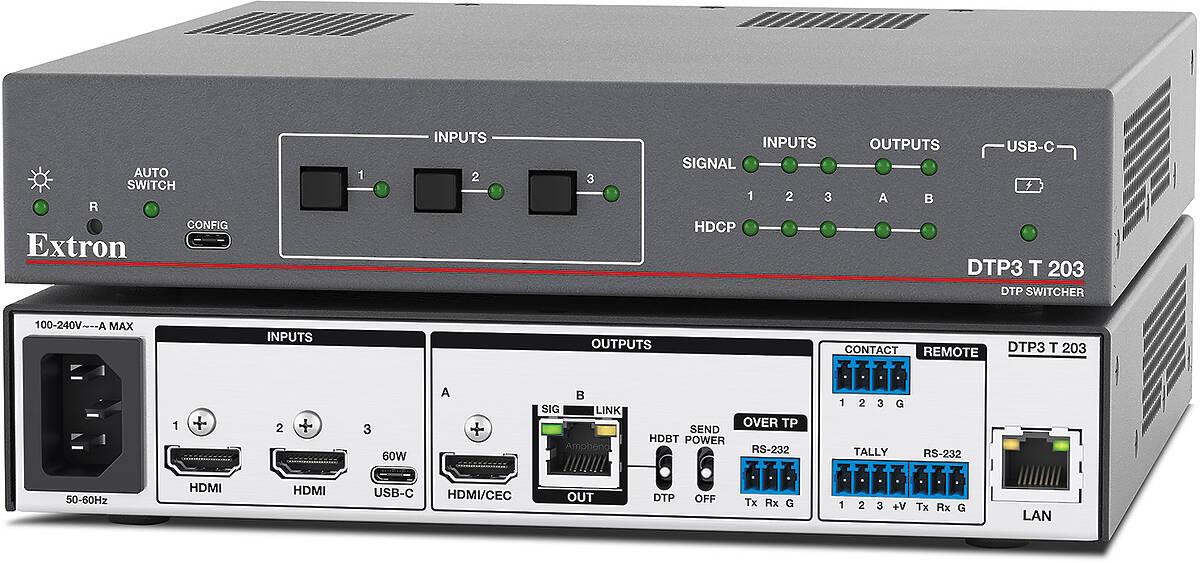

Extron DTP3 T 203 60-1885-52 product image

For pricing and configuration options please call or email us.

The Extron DTP3 T 203 is a three-input transmitter for sending USB‑C® video, HDMI, and control up to 330 feet (100 meters) over a shielded CAT 6A cable. It supports video resolutions up to 4K/60 @ 4:4:4 and complies with HDCP 2.3. For maximum image quality and minimal latency, all supported video resolutions are transported without compression. Dual buffered HDMI and DTP outputs, 60 W of USB‑C charging, and Ethernet remote control facilitate integration in professional environments. Integrator-friendly features include EDID Minder®, auto-switching between inputs, and bidirectional RS‑232 pass-through for remote AV device control. The standard half rack width enclosure of the DTP3 T 203 transmitter enables discreet placement within lecterns, beneath tables, or wherever needed to meet application requirements.

The DTP3 T 203 provides reliable switching and transmission of USB‑C and HDMI video at data rates up to 18 Gbps. For simplified operation, it can automatically switch between the sources. The DTP3 output can be configured to send video and embedded audio, plus bidirectional RS‑232 signals, to an HDBaseT™‑enabled display.

Comprehensive EDID Management

To ensure professional AV systems perform as designed, it is crucial that EDID communication between video sources and sink devices is managed correctly. Correct management of EDID allows source equipment to send video and audio signals in formats and parameters that best match display device capabilities. Mishandling of EDID could result in suboptimal image quality, no image, and/or poor sound. The DTP3 T 203 offers a suite of Extron-exclusive tools and capabilities for complete control over EDID management. The EDID Minder technology offers a library of EDID files that can be applied to any video input. Additional EDID can be captured from connected displays or uploaded by the user. EDID Manager 2.1 is a freely downloadable Windows® utility for viewing and editing EDID files. This software enables video format optimization, Colour sampling and bit depth manipulation, and adjustment to audio capabilities. Edited files may be saved, added to the library, and easily applied to devices within the system.

Features that Streamline Integration

The DTP3 T 203 automatically adjusts Colour bit depth based on the display EDID to prevent Colour compatibility conflicts between a source and the display. Front panel LED indicators provide immediate visual confirmation of HDCP authentication and signal presence for each input and the output. If HDCP-encrypted content is transmitted to a non‑compliant display, a full-screen green signal indicates that protected content cannot be viewed on that display.

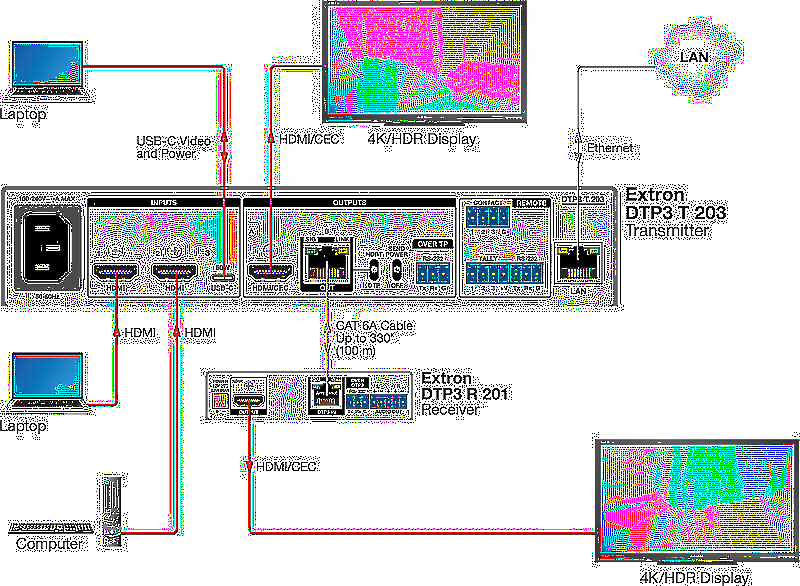

The DTP3 transmitter provides other convenient, integrator-friendly features designed to help simplify installation. It can be set to pass embedded digital audio and supports simultaneous transmission of bidirectional RS‑232 signals from a control system for AV device control. The mirrored HDMI output supports dual display applications, enabling signal distribution to a local monitor and a remote endpoint. The unit can deliver up to 60 W of power over USB‑C to charge a laptop or other personal device. Alternatively, it can be configured to send power to the connected DTP3 receiver and simultaneously provide 45 W for USB‑C charging.

Convenient control options include front panel control, RS‑232, Ethernet, and contact closure with tally output. Configuration of the DTP3 T 203 is easy with Extron's PCS - Product Configuration Software, which provides a user-friendly GUI that is straightforward to navigate. This software application enables expedited setup and commissioning, real-time operation and monitoring, plus the ability to configure several units in the same session. In addition, internal Web pages provide system status and setting pages for device monitoring and troubleshooting using a standard browser.

Extron recommends Extron-certified XTP DTP 22 shielded twisted pair cable, shielded RJ‑45 plugs, jacks, and couplers engineered for optimum signal transmission with Extron DTP Series products. The cable is certified to 475 MHz and utilizes an SF/UTP design with four unshielded 22 AWG twisted pair conductors inside an overall braid and foil shield for superior performance and noise immunity.

Extron DTP3 T 203 Key Features

Transmits USB-C® video, HDMI, and control up to 330' (100 m) over a shielded CAT 6A cable - The DTP3 T 203 provides high reliability and maximum performance on an economical and easily installed cable infrastructure.
Inputs: One USB-C, two HDMI
Output: One DTP3 twisted pair output on RJ‑45, one mirrored HDMI
Supports computer and video resolutions up to 4K/60 @ 4:4:4 - Support of 4K/60 at 4:4:4 Colour sampling requires connection to matching DTP3 products.
Provides up to 60 watts of power to the USB‑C source - Supports USB Power Delivery to negotiate power to the USB‑C device. When configured for DTP3 remote power, USB‑C power delivery is 45 watts.
Auto-switching between inputs - Auto‑switching allows for intuitive operation in collaboration spaces. Multiple switching priority modes are available, including last-connected input and user-selectable priority.
Supported HDMI 2.0b specification features include data rates up to 18 Gbps, HDR, Deep Colour up to 12‑bit, 3D, HD lossless audio formats, and CEC
Remote power capability - For simplified installation, the transmitter can be configured to provide power to a connected DTP3 receiver.
Connects USB‑C sources that support DisplayPort Alt Mode
DTP3 output is compatible with HDBaseT-enabled devices - The DTP3 output can be configured to send video and bidirectional RS‑232 signals to an HDBaseT-enabled display.
HDCP 2.3 compliant - Ensures display of content-protected 4K video and maintains interoperability with earlier versions of HDCP.
Extron XTP DTP 22 shielded twisted pair cable is strongly recommended for optimal performance
Compatible with CAT 6A shielded twisted pair cable
Support for HDR – High Dynamic Range Video - The DTP3 T 203 enables greater contrast range and wider Colour gamut by providing the necessary video bandwidth, Colour depth, and metadata interchange capability for HDR video.
Bidirectional RS‑232 pass‑through for AV device control - Bidirectional RS‑232 control signals can be transmitted alongside the video signal, allowing remote AV devices to be controlled without the need for additional cabling.
RS‑232 insertion from the Ethernet control port - Saves system resources and simplifies installation by enabling a control processor to access remote RS‑232 devices over Ethernet.
CEC insertion - A control processor can insert CEC commands via SIS - Simple Instruction Set, to control devices connected at the HDMI output.
Supports multiple embedded audio formats - The DTP3 T 203 is compatible with a broad range of multi-channel audio signals, providing reliable operation with HDMI sources.
Supports EDID and HDCP transmission - DDC channels are actively buffered, allowing continuous communication between source and display.
User-selectable HDCP authorization - Allows the unit to appear HDCP compliant or non‑HDCP compliant to the connected source, which is beneficial if the source automatically encrypts all content when connected to an HDCP‑compliant device. Protected material is not passed in non-HDCP mode.
Comprehensive EDID management - Use PCS software to access EDID Minder for setting video input EDID, capturing EDID from connected displays, or uploading custom EDID files. Proper EDID management ensures that sources and displays are easily integrated into a system resulting in optimized system operation. Freely downloadable EDID Manager 2.1 software is available for advanced EDID editing and creating custom EDID files.
EDID Minder® automatically manages EDID communication between connected devices - EDID Minder ensures that the source powers up properly and reliably outputs content for display.
HDCP authentication and signal presence confirmation - Provides real-time verification of HDCP status for each digital video input and output. This allows for simple, quick, and easy signal and HDCP verification through front panel LEDs, USB, or Ethernet, providing valuable feedback to a system operator or helpdesk support staff.
HDCP Visual Confirmation provides a green signal when encrypted content is sent to a non‑compliant display - A full‑screen green signal is sent when HDCP‑encrypted content is transmitted to a non‑HDCP compliant display, providing immediate visual confirmation that protected content cannot be viewed on the display.
HDMI to DVI Interface Format Correction - Automatically enables or disables embedded audio and InfoFrames and sets the correct Colour space for proper connection to HDMI and DVI displays.
Automatic Colour bit depth management - Automatically adjusts Colour bit depth based on the display EDID, preventing Colour compatibility conflicts between source and displays.
Output muting control - Provides the capability to mute the video and/or audio output at any time.
Front panel security lockout - This feature locks out all front panel functions; all settings however, are available through USB or Ethernet.
Ethernet monitoring and control - Enables control and proactive monitoring over a network.
Built‑in Web pages - Enables the use of a standard browser for device monitoring over a Web interface.
Contact closure remote control with tally output - Allows for remote selection of an input channel, while a tally output provides +5 VDC to light an LED to indicate the currently selected input.
Compatible with TeamWork® Show Me® Cables - Show Me cables provide convenient connectivity and user input selection and control for TeamWork Collaboration Systems. Visit the TeamWork System Builder to create a customized system for your collaboration environment.
Front panel USB-C configuration port - Provides convenient access for information and firmware updates.
LED indicators for HDCP, signal presence, and USB‑C charging - Provide visual indication of system status for real-time feedback and monitoring of key performance parameters.
RJ-45 signal and link LED indicators for DTP3 port - Provide a means for validating signal flow and operation, allowing quick identification of connectivity issues.
Easy setup and commissioning with Extron's PCS - Product Configuration Software - Conveniently configure multiple products using a single software application.
Half rack width metal enclosure - With a compact enclosure, the device can be installed discreetly wherever needed.
Includes LockIt® cable lacing brackets - Securely fastens HDMI cables to a device, eliminating risk of disconnection.
Internal Extron Everlast™ power supply - Provides worldwide power compatibility with high‑demonstrated reliability and low power consumption
Extron Everlast Power Supply is covered by a 7‑year parts and Labour warranty
