Extron DTP3 T 202 (60-1869-62)
1:1 4K/60 HDMI 2.0 / PoC /RS-232 / DTP3 / HDBaseT Transmitter with Input Loop-Through and Audio Embedding
1 × HDMI input; 1 × DTP/HDBaseT output; Max 18Gbps, 100m @ 4K/60/4:4:4

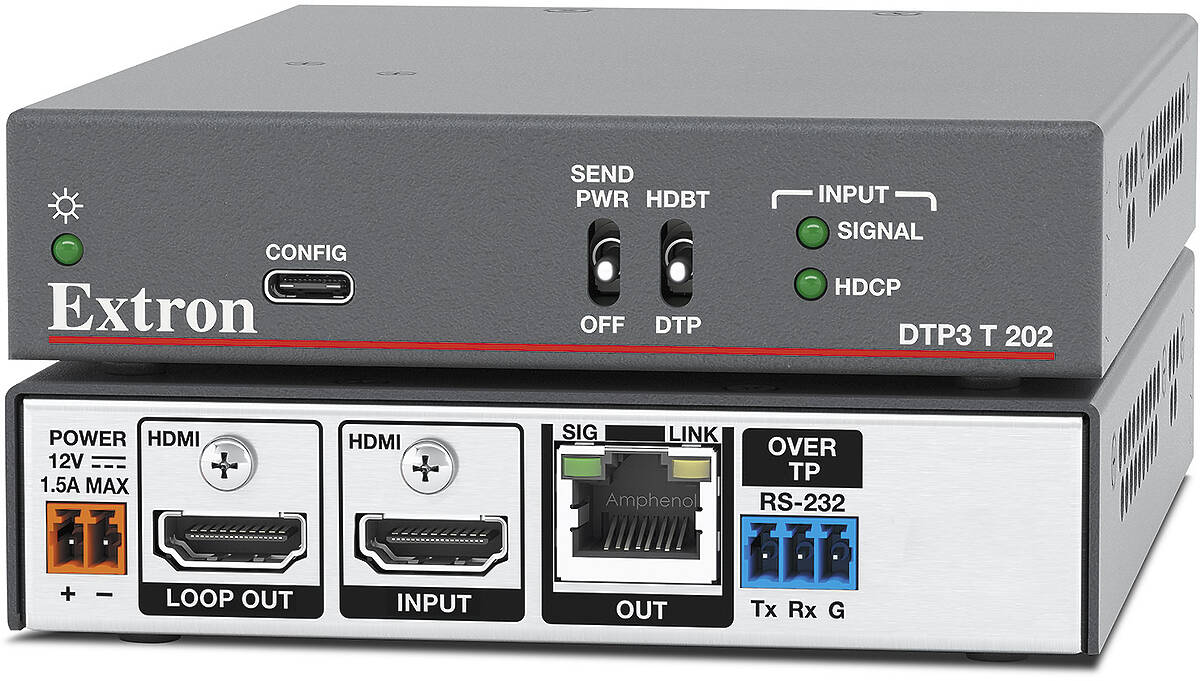

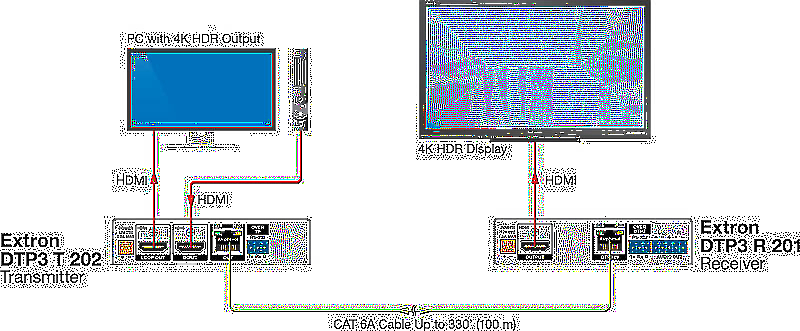

The Extron DTP3 T 202 is a long distance, digital twisted pair transmitter for sending HDMI, audio, and bidirectional RS‑232 signals up to 330 feet (100 meters) over a shielded CAT 6A cable to Extron DTP3‑enabled products. It provides one HDMI input with loop-through for local monitoring. The transmitter supports video resolutions up to 4K/60 at 4:4:4 color sampling, complies with HDCP 2.3, and features EDID Minder®. For maximum image quality and minimal latency, all supported video resolutions are transported without compression. The compact enclosure size and flexible remote power capability, from either the transmitter or receiver, make the DTP3 T 202 ideal for discreet placement in lecterns, beneath tables, or wherever needed to meet application requirements.
The DTP3 T 202 enables the reliable, long distance transmission of HDMI 2.0b signals at data rates up to 18 Gbps supporting HDR, Deep Color up to 12‑bit, 3D, and embedded HD lossless audio formats. In addition, the DTP3 output can be configured to send video and embedded audio, plus bidirectional RS‑232 signals to an HDBaseT-enabled display. DDC communication of EDID and HDCP is continuously maintained between source and display, ensuring direct compatibility and optimal signal transmission between devices.
Features that Streamline Integration
To enhance and simplify integration of devices and to help ensure optimal system performance, the DTP3 T 202 features Extron EDID Minder, which automatically manages EDID by maintaining continuous EDID communication with each source. The technology ensures that the sources power up properly and reliably output content for display.

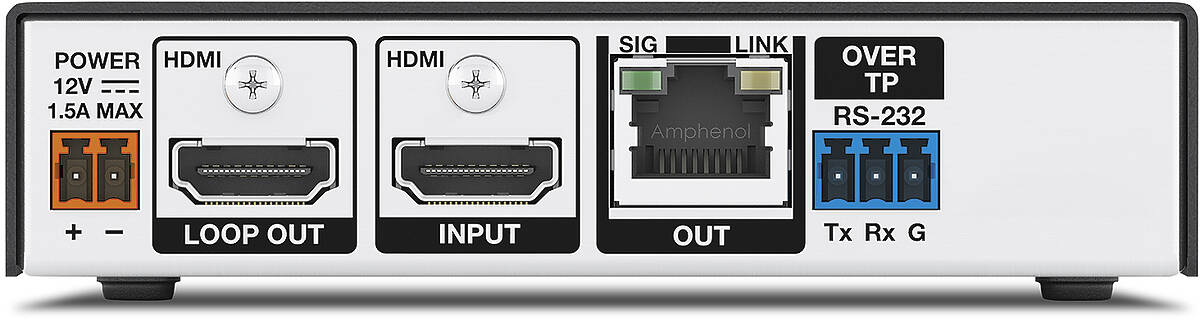

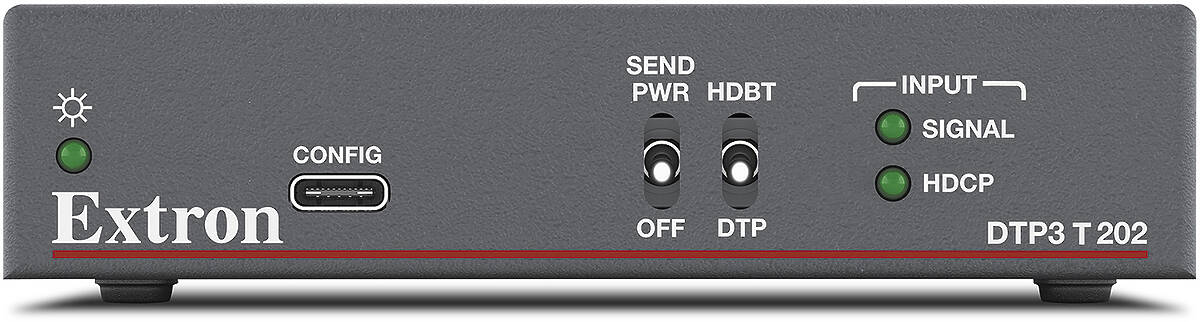

Front panel LED indicators provide immediate visual confirmation of signal presence for the input, as well as HDCP status and power. On the back panel, LEDs indicate signal presence and link status for the output. A buffered HDMI input loop-through provides an output signal to drive a local monitor.
Convenient Control and Power
The DTP3 T 202 provides many other integrator-friendly features designed to help simplify installation. It supports simultaneous transmission of bidirectional RS‑232 from a control system for AV device control. The transmitter can be remotely powered over the shielded twisted pair cable by a DTP3-enabled product. In addition, it can be configured to provide power to the connected receiver, allowing both devices to share one power supply.
Bidirectional RS-232 control signals can be transmitted alongside the video signal, facilitating remote operation of AV devices without the need for additional cabling. For added convenience, a USB-C configuration port on the front panel offers ready access to information and easy updating of firmware. Configuration of the DTP3 T 202 is made simple with Extron’s PCS - Product Configuration Software and its user-friendly GUI that is very easy to navigate. This software application allows for expedited setup, commissioning, real-time operation and monitoring.
The DTP3 T 202 transmitter is housed in a 1" (2.5 cm) high, quarter rack width metal enclosure. The low-profile design allows for discreet placement in tight spaces. To ensure optimal performance with DTP3 systems, Extron recommends XTP DTP 22 cables and accessories. These 22-gauge shielded twisted pair cables, shielded RJ‑45 plugs, jacks, and couplers have been engineered for optimum performance for DTP3 products running at 18 Gbps. Extron XTP DTP 22 cable bandwidth is verified to 500 MHz and utilizes a S/FTP design with four shielded 22 AWG twisted pair conductors inside an overall braided shield for superior performance and noise immunity.
Extron DTP3 T 202 Key Features
- Transmits HDMI plus control up to 330' (100 m) over a shielded CAT 6A cable - The DTP3 T 202 provides high reliability and maximum performance on an economical and easily installed cable infrastructure.
- Supports computer and video resolutions up to 4K/60 @ 4:4:4 - Support of 4K/60 at 4:4:4 Colour sampling requires connection to matching DTP3 products.
- Buffered HDMI input loop-through - Features an active HDMI loop-through for local monitor support or system expansion.
- Comprehensive EDID management - Use PCS software to access EDID Minder for setting video input EDID, capturing EDID from connected displays, or uploading custom EDID files. Proper EDID management ensures that sources and displays are easily integrated into a system resulting in optimized system operation. Freely downloadable EDID Manager software is available for advanced EDID editing and creating custom EDID files.
- HDCP 2.3 compliant - Ensures display of content-protected 4K video media and maintains interoperability with earlier versions of HDCP.
- Supported HDMI 2.0b specification features include data rates up to 18 Gbps, HDR, Deep Colour up to 12‑bit, 3D, and HD lossless audio formats
- Remote power capability with DTP3 products - For simplified installation, the transmitter can be remotely powered by a DTP3‑enabled product over the twisted pair connection. It can also be configured to provide power to a connected DTP3 receiver.
- Extron XTP DTP 22 shielded twisted pair cable is strongly recommended for optimal performance
- Compatible with CAT 6A shielded twisted pair cable
- Support for HDR – High Dynamic Range Video - Enables greater contrast range and wider Colour gamut by providing the necessary video bandwidth, Colour depth, and metadata interchange capability for HDR video.
- DTP3 output is compatible with HDBaseT-enabled devices - The DTP3 output can be configured to send video and embedded audio, plus bidirectional RS‑232 signals to an HDBaseT-enabled display.
- Bidirectional RS‑232 pass-through for AV device control - Bidirectional RS‑232 control signals can be transmitted alongside the video signal, allowing remote AV devices to be controlled without the need for additional cabling.
- User-selectable HDCP authorization - Allows the unit to appear HDCP compliant or non-HDCP compliant to the connected source, which is beneficial if the source automatically encrypts all content when connected to an HDCP-compliant device. Protected material is not passed in non-HDCP mode.
- Supports multiple embedded audio formats - The DTP3 T 202 is compatible with a broad range of multi‑channel audio signals, providing reliable operation with HDMI sources.
- Supports EDID and HDCP transmission - DDC channels are actively buffered, allowing continuous communication between source and display.
- Front panel USB‑C® configuration port - Provides convenient access for information and firmware updates.
- LED indicators for signal presence, power, and link status - Provide visual indication of system status for real-time feedback and monitoring of key performance parameters.
- RJ-45 signal and link LED indicators for DTP port - Provide a means for validating signal flow and operation, allowing quick identification of connectivity issues.
- Easy setup and commissioning with Extron's PCS - Product Configuration Software - Conveniently configure multiple products using a single software application.
- 1" (2.5 cm) high, quarter rack width metal enclosure - With a low profile enclosure, the device can be installed discreetly wherever needed.
- JITC Certified - Successfully completed interoperability and information assurance testing for use in government applications and other mission-critical environments.
- Includes LockIt® cable lacing brackets - Securely fastens HDMI or USB C® cables to a device, eliminating risk of disconnection.
- External Extron Everlast™ power supply included, replacement part # (70-1259-01) - Provides worldwide power compatibility, with high demonstrated reliability and low power consumption for reduced operating costs.
- Extron Everlast Power Supply is covered by a 7‑year parts and Labour warranty
