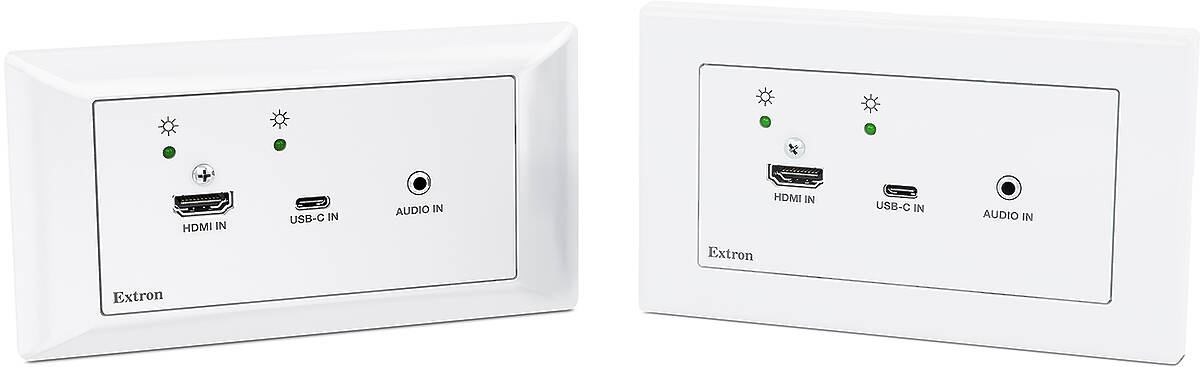

Extron DTP3 T 202 EU/MK (60-1829-52)
2:1 DTP3 / HDBaseT EU/MK Wall plate Transmitter for 4K/60 HDMI 2.0b, USB-C Video, Control and Audio finished in white
1 × HDMI, 1 × USB-C, 1 × 3.5mm Stereo Audio Input; 1 × DTP3 Output; Max 100m @ 4K/60 4:4:4, 18Gbps
The Extron DTP3 T 202 EU/MK is a two‑input wallplate transmitter for sending USB‑C® video, HDMI, audio, and control up to 330 feet (100 meters) over shielded CAT 6A cable. It is compatible with standard two‑gang EU and MK‑type junction boxes, supports video resolutions up to 4K/60 @ 4:4:4, and complies with HDCP 2.3. For maximum image quality and minimal latency, all supported video resolutions are transported without compression. Analogue stereo audio embedding and RS‑232 remote control facilitate integration in demanding professional environments. This transmitter offers many integrator-friendly features such as EDID Minder®, auto-switching, remote power, and bidirectional RS‑232 extension for remote device control. The wall-mountable design provides the convenience of placing input connections precisely where they are needed.
The DTP3 T 202 EU/MK enables the reliable, long distance transmission of digital signals. The USB-C input provides video via DisplayPort Alt Mode. It also supports HDMI 2.0b signals at data rates up to 18 Gbps, HDR, Deep Colour up to 12‑bit, 3D, and embedded HD lossless audio formats. In addition, the DTP3 output can be configured to send video and embedded audio, plus bidirectional RS‑232 signals, to an HDBaseT™-enabled display. DDC communication of EDID and HDCP is continuously maintained between source and display, ensuring direct compatibility and optimal signal transmission between devices.
This transmitter is mountable within an EU or MK two-gang junction box or a Flex55 enclosure, depending on the mounting brackets.
Features that Streamline Integration
To enhance device integration and to help ensure optimal system performance, the transmitter features EDID Minder. This Extron technology automatically manages EDID by maintaining continuous EDID communication with each source, ensuring the sources power up properly and reliably output content for display.
Front panel LED indicators provide immediate visual confirmation of signal presence for the inputs, as well as power. On the back panel, LEDs indicate signal presence and link status for the output and HDCP status by input.
Convenient Control and Power
The DTP3 T 202 EU/MK transmitter provides many other integrator-friendly features designed to help streamline installation. It supports simultaneous transmission of bidirectional RS‑232 from a control system for AV device control. The transmitter can be remotely powered over the shielded twisted pair cable by a DTP3-enabled product. In addition, it can be configured to provide power to the connected receiver, allowing both devices to share one power supply.

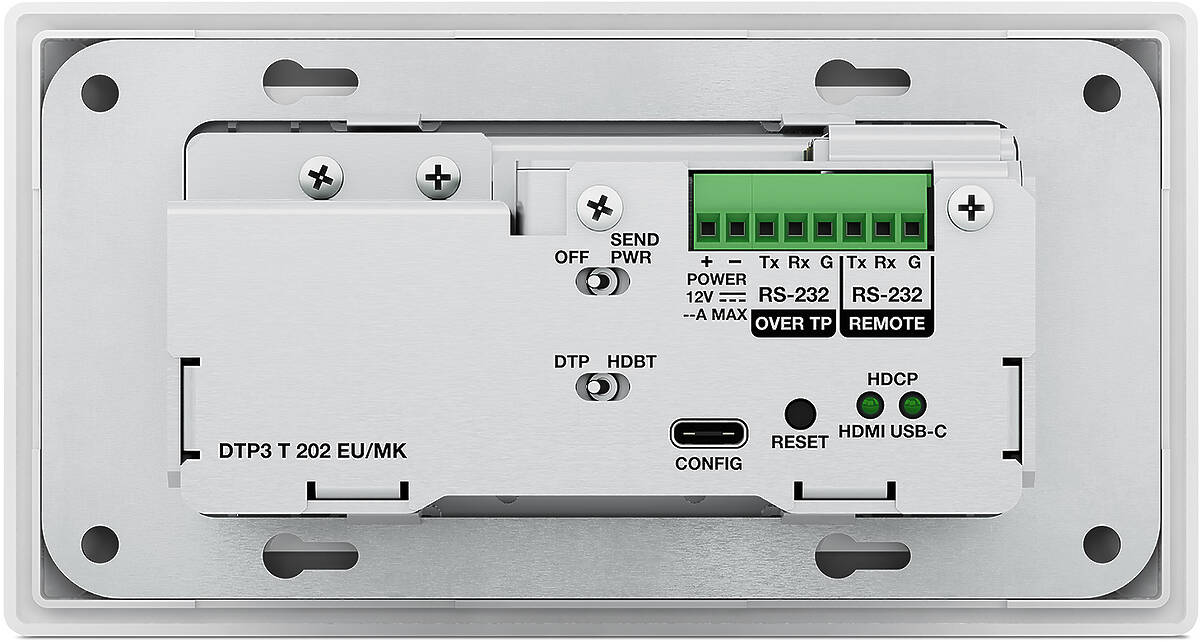

Bidirectional RS-232 control signals can be transmitted alongside the video signal, facilitating remote operation of AV devices without the need for additional cabling. For added convenience, a USB-C configuration port on the back panel offers ready access to information and easy updating of firmware. Configuration of the DTP3 T 202 EU/MK is made straightforward with Extron's PCS - Product Configuration Software and its user-friendly GUI that is very easy to navigate. This software application allows for expedited setup, commissioning, and real-time operation and monitoring.
To ensure optimal performance with DTP3 systems, Extron recommends XTP DTP 22 cables and accessories. These 22-gauge shielded twisted pair cables, shielded RJ‑45 plugs, jacks, and couplers have been engineered for optimum performance for DTP3 products running at 18 Gbps. Extron XTP DTP 22 cable bandwidth is verified to 500 MHz and utilizes a S/FTP design with four shielded 22 AWG twisted pair conductors inside an overall braided shield for superior performance and noise immunity.
See also: Extron DTP3 R 201.Extron DTP3 T 202 EU/MK Key Features
- Designed to mount in two‑gang EU and MK‑type electrical junction boxes - Compact design and shallow depth allow for easy installation into many different boxes.
- Compatible with Flex55 enclosures - Designed to be installed in Extron Flex55 enclosures including SMB, EWB, and Cable Cubby F55 products.
- Transmits USB-C® video, HDMI, audio, and control up to 330 feet (100 meters) over a shielded CAT 6A cable - Provides high reliability and maximum performance on an economical and easily installed cable infrastructure.
- Supports computer and video resolutions up to 4K/60 @ 4:4:4 - Support of 4K/60 at 4:4:4 Colour sampling requires connection to matching DTP3 products.
- Analogue stereo audio embedding - Analogue stereo audio signals can be selectively embedded onto the digital video output signal.
- Auto-switching between inputs - Auto‑switching allows for intuitive operation in collaboration spaces. Multiple switching priority modes are available.
- Supported HDMI 2.0b specification features include data rates up to 18 Gbps, HDR, Deep Colour up to 12‑bit, 3D, and HD lossless audio formats
- Remote power capability with DTP3-enabled products - For simplified installation, the transmitter can be remotely powered by a DTP3‑enabled product over the twisted pair connection. It can also be configured to provide power to the connected DTP3 receiver product.
- Connects USB‑C sources that support DisplayPort Alt Mode
- DTP3 output is compatible with HDBaseT‑enabled devices - The DTP3 output can be configured to send video and bidirectional RS‑232 signals to an HDBaseT-enabled display.
- HDCP 2.3 compliant - Ensures display of content-protected 4K video media and maintains interoperability with earlier versions of HDCP.
- Extron XTP DTP 22 shielded twisted pair cable is strongly recommended for optimal performance
- Compatible with CAT 6A shielded twisted pair cable
- Support for HDR – High Dynamic Range video - The DTP3 T 202 EU/MK enables greater contrast range and wider Colour gamut by providing the necessary video bandwidth, Colour depth, and metadata interchange capability for HDR video.
- Bidirectional RS‑232 pass‑through for AV device control - Bidirectional RS‑232 control signals can be transmitted alongside the video signal, allowing remote AV devices to be controlled without the need for additional cabling.
- Supports multiple embedded audio formats - Compatible with a broad range of multi-channel audio signals, providing reliable operation with HDMI sources.
- Supports EDID and HDCP transmission - DDC channels are actively buffered, allowing continuous communication between source and display.
- User-selectable HDCP authorization - Allows the unit to appear HDCP compliant or non‑HDCP compliant to the connected source, which is beneficial if the source automatically encrypts all content when connected to an HDCP‑compliant device. Protected material is not passed in non-HDCP mode.
- Comprehensive EDID management - Use PCS software to access EDID Minder for setting video input EDID, capturing EDID from connected displays, or uploading custom EDID files. Proper EDID management ensures that sources and displays are easily integrated into a system resulting in optimized system operation. Freely downloadable EDID Manager® software is available for advanced EDID editing and creating custom EDID files.
- EDID Minder® automatically manages EDID communication between connected devices - EDID Minder ensures that the source powers up properly and reliably outputs content for display.
- HDCP authentication and signal presence confirmation - Provides real‑time verification of HDCP status for each digital video input and output. This allows for simple, quick, and easy signal and HDCP verification through front panel LEDs or USB, providing valuable feedback to a system operator or helpdesk support staff.
- HDMI to DVI Interface Format Correction - Automatically enables or disables embedded audio and InfoFrames, and sets the correct Colour space for proper connection to HDMI and DVI displays.
- Output muting control - Provides the capability to mute the video or audio output at any time.
- Rear panel USB‑C configuration port - Provides convenient access for information and firmware updates.
- LED indicators for HDCP and signal presence - Provide visual indication of system status for real-time feedback and monitoring of key performance parameters.
- RJ-45 signal and link LED indicators for DTP3 port - Provide a means for validating signal flow and operation, allowing quick identification of connectivity issues.
- Easy setup and commissioning with Extron's PCS - Product Configuration Software - Conveniently configure multiple products using a single software application.
- Mounts in included two‑gang EU or MK-style frame - Both EU and MK-style frames are included to blend with a wide range of environments.
- Includes LockIt® cable lacing brackets - Securely fastens HDMI cables to a device, eliminating risk of disconnection.
- External Extron Everlast™ power supply included, replacement part # 70‑1259‑01 - Provides worldwide power compatibility with high‑demonstrated reliability and low power consumption
- Extron Everlast Power Supply is covered by a 7‑year parts and Labour warranty

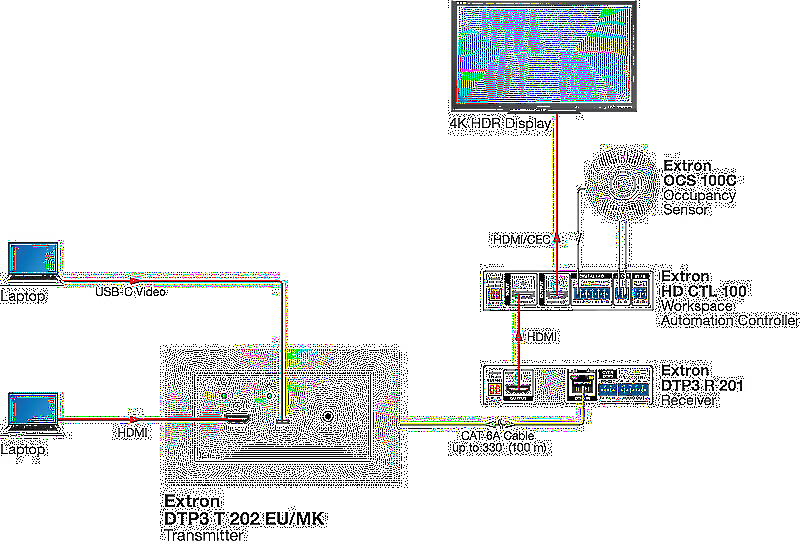

![Extron DTP3 T 202 EU/MK Usage Diagram](images/diagrams/extron/extron-dtp3-t-202-eu-mk-60-1829-52-diagram.jpg)
