Extron DTP3 T 212 D (60-1714-53)

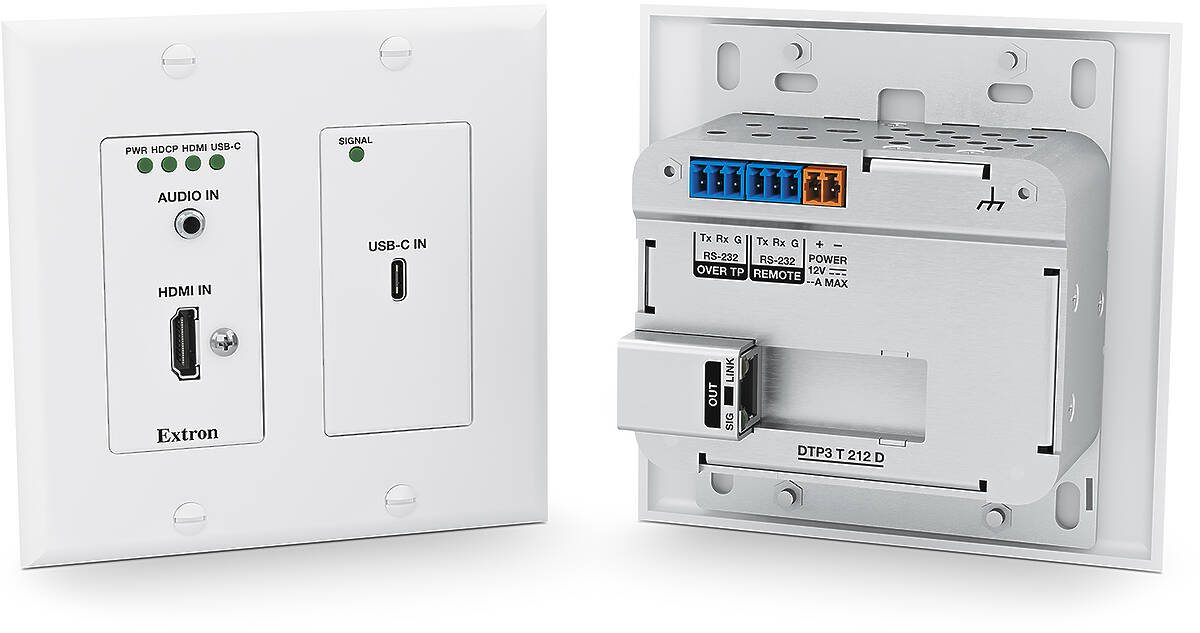

2:1 DTP3 / HDBaseT Wallplate Transmitter for 4K/60 HDMI 2.0b, USB-C Video, Control and Audio finished in white
1 × HDMI, 1 × USB-C, 1 × 3.5mm Stereo Audio Input; 1 × DTP3 Output; Max 100m @ 4K/60 4:4:4, 18Gbps
The Extron DTP3 T 212 D is a two-input decorator-style transmitter for sending USB‑C® video, HDMI, audio, and control up to 330 feet (100 meters) over a shielded CAT 6A cable. It supports video resolutions up to 4K/60 @ 4:4:4 and complies with HDCP 2.3. For maximum image quality and minimal latency, the DTP3 T 212 D transmits all supported resolutions uncompressed. It offers many integration-friendly features such as EDID Minder®, auto-switching between inputs, Analogue stereo audio embedding, and bidirectional RS‑232 extension for remote AV device control. Also, remote power over the same twisted pair cable streamlines installation. Available in black or white, the DTP3 T 212 D provides discreet placement of HDMI and USB‑C input connections at lecterns, beneath tables, or wherever needed in demanding professional environments.
The DTP3 T 212 D enables the reliable, long distance transmission of HDMI 2.0b signals at data rates up to 18 Gbps. This twisted pair wallplate transmitter supports HDR, Deep Colour up to 12-bit, 3D, and embedded HD lossless audio formats. In addition, the DTP3 output can be configured to send video and embedded audio, plus bidirectional RS-232 signals to an HDBaseT-enabled display. DDC communication of EDID and HDCP is continuously maintained between source and display for direct compatibility and optimal signal transmission between devices. The two-gang wallplate form factor enables discreet placement of HDMI and USB-C input connections in walls, tables, credenzas, lecterns, and floor boxes.
Features that Streamline Integration
To enhance and simplify integration of devices and contribute to optimal system performance, the DTP3 T 212 D includes Extron EDID Minder, which automatically manages EDID by maintaining continuous EDID communication with each source. The technology ensures that the sources power up properly and reliably send content for display.
Front panel LED indicators provide immediate visual confirmation of signal presence for each input, HDCP status, and power, as well as link status for the output. A separate LED indicates if the DTP3 T 212 D is configured to automatically switch the active input.
The DTP3 output can be configured for compatibility with HDBaseT‑enabled displays to send HDMI source signals up to 330 feet (100 meters) over the same CAT 6A twisted pair cable. The transmitter is also compatible with a broad range of multi-channel audio signals, providing reliable operation with independent audio sources.
Convenient Control and Power
The DTP3 T 212 D provides many other integrator-friendly features designed to help streamline installation. It supports simultaneous transmission of bidirectional RS‑232 from a control system. The control signals can be transmitted alongside the video signal, facilitating remote operation of AV devices without the need for additional cabling.
This DTP3 wallplate transmitter can be remotely powered over the shielded CAT 6A cable by a DTP3-enabled product. In addition, it can be configured to provide power to the connected receiver, allowing both devices to share one power supply.
For added convenience, a USB-C configuration port on the front panel offers ready access to information and direct updating of firmware. Configuration of the DTP3 T 212 D is easy with Extron's PCS - Product Configuration Software. Its user-friendly GUI is very intuitive and easy to navigate. This software application allows for expedited setup and commissioning, along with real-time operation and monitoring. The DTP3 T 212 D mounts in an included two-gang decorator-style wallplate that fits a standard US two‑gang size junction box.
To ensure optimal performance with DTP3 systems, Extron recommends XTP DTP 22 cables and accessories. These 22-gauge shielded twisted pair cables and the shielded RJ‑45 plugs, jacks, and couplers have been engineered for optimum performance for DTP3 products running at 18Gbps. Extron XTP DTP 22 cable bandwidth is verified to 500 MHz and utilises an S/FTP design with four shielded 22AWG twisted pair conductors inside an overall braided shield. This engineering ensures superior performance and noise immunity.
Extron DTP3 T 212 D Key Features
- Transmits USB‑C® video, HDMI, audio, and control up to 330' (100 m) over a shielded CAT 6A cable - The DTP3 T 212 D provides high reliability and maximum performance on an economical and easily installed cable infrastructure.
- Supports computer and video resolutions up to 4K/60 @ 4:4:4 - Support of 4096x2160 at 60 Hz with 4:4:4 Colour sampling requires connection to matching DTP3 products.
- Analogue stereo audio embedding - Analogue stereo audio signals can be selectively embedded onto the digital video output signal and transported over DTP.
- Auto-switching between inputs - Allows for easy, unmanaged installation in locations such as in a lectern or floor box.
- Supported HDMI 2.0b specification features include data rates up to 18 Gbps, HDR, Deep Colour up to 12‑bit, 3D, and HD lossless audio formats
- Remote power capability with DTP3-enabled products - For streamlined installation, the transmitter can be remotely powered by a DTP3‑enabled product over the twisted pair connection. It can also be configured to provide power to a connected DTP3 receiver.
- Connects USB‑C sources that support DisplayPort Alt Mode
- Extron XTP DTP 22 shielded twisted pair cable is strongly recommended for optimal performance
- Compatible with CAT 6A shielded twisted pair cable
- DTP3 output is compatible with HDBaseT™-enabled devices - The DTP3 output can be configured to send video to an HDBaseT‑enabled display.
- HDCP 2.3 compliant - Ensures display of content-protected 4K video media and maintains interoperability with earlier versions of HDCP.
- Support for HDR – High Dynamic Range Video - Enables greater contrast range and wider Colour gamut by providing the necessary video bandwidth, Colour depth, and metadata interchange capability for HDR video.
- Bidirectional RS-232 pass-through for AV device control - Bidirectional RS 232 control signals can be transmitted alongside the video signal, allowing remote AV devices to be controlled without the need for additional cabling.
- Supports multiple embedded audio formats - The DTP3 T 212 D is compatible with a broad range of multi-channel audio signals, providing reliable operation with connected sources.
- Supports EDID and HDCP transmission - DDC channels are actively buffered, allowing continuous communication between devices.
- User-selectable HDCP authorization - Allows the unit to appear HDCP compliant or non‑HDCP compliant to the connected source, which is beneficial if the source automatically encrypts all content when connected to an HDCP‑compliant device. Protected material is not passed in non‑HDCP mode.
- Comprehensive EDID management - Use PCS software to access EDID Minder for setting video input EDID, capturing EDID from connected displays, or uploading custom EDID files. Proper EDID management ensures that sources and displays are easily integrated into a system resulting in optimized system operation. Freely downloadable EDID Manager 2.1 software is available for advanced EDID editing and creating custom EDID files.
- EDID Minder® automatically manages EDID communication between connected devices - EDID Minder ensures that sources power up properly and reliably send content for display.
- HDCP authentication and signal presence confirmation - Provides real-time verification of HDCP status for each digital video input and output. This allows for simple, quick, and easy signal and HDCP verification through front-panel LEDs or USB, providing valuable feedback to a system operator or member of the helpdesk support staff.
- HDMI to DVI Interface Format Correction - Automatically enables or disables embedded audio and InfoFrames, and sets the correct Colour space for proper connection to HDMI and DVI displays.
- Output muting control - Provides the capability to mute the video or audio output at any time.
- Front panel USB-C configuration port - Offers convenient access for information and firmware updates.
- RJ-45 signal and link LED indicators for DTP3 port - Validate signal flow and operation, allowing quick identification of connectivity issues.
- LED indicators for HDCP, signal type, signal presence, and power - LEDs provide visual indication of system status for real-time feedback and monitoring of key performance parameters.
- Easy setup and commissioning with Extron's PCS - Product Configuration Software - Conveniently configure multiple products using a single software application.
- Mounts in an included two‑gang decorator-style wallplate - The two‑gang decorator-style wallplate is available in black or white to blend with a wide range of environments.
- Includes LockIt® cable lacing brackets - Securely fastens HDMI cables to a device, eliminating risk of disconnection.
- External Extron Everlast™ power supply included, replacement part # 70‑1259‑01 - Provides worldwide power compatibility with high demonstrated reliability and low power consumption.
- Extron Everlast Power Supply is covered by a 7‑year parts and Labour warranty

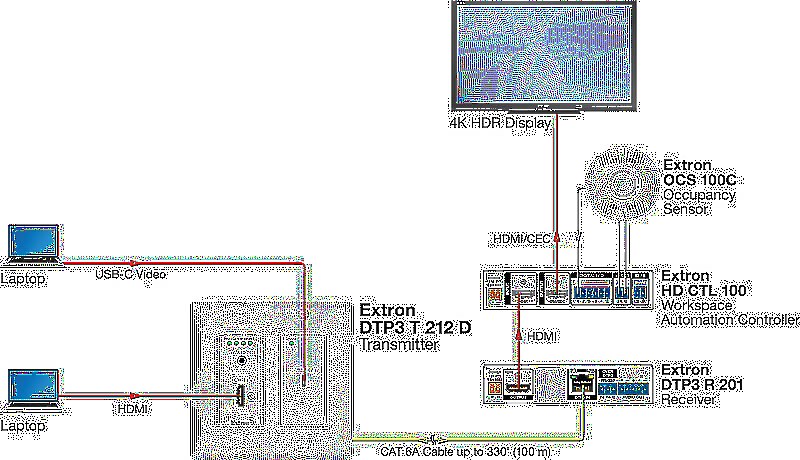

![Extron DTP3 T 212 D Usage Diagram](images/diagrams/extron/extron-dtp3-t-212-d-60-1714-53-diagram.jpg)
