Extron RCP 101 MK (60-1598-22)
SMP Series Remote Control Panel - MK Mount

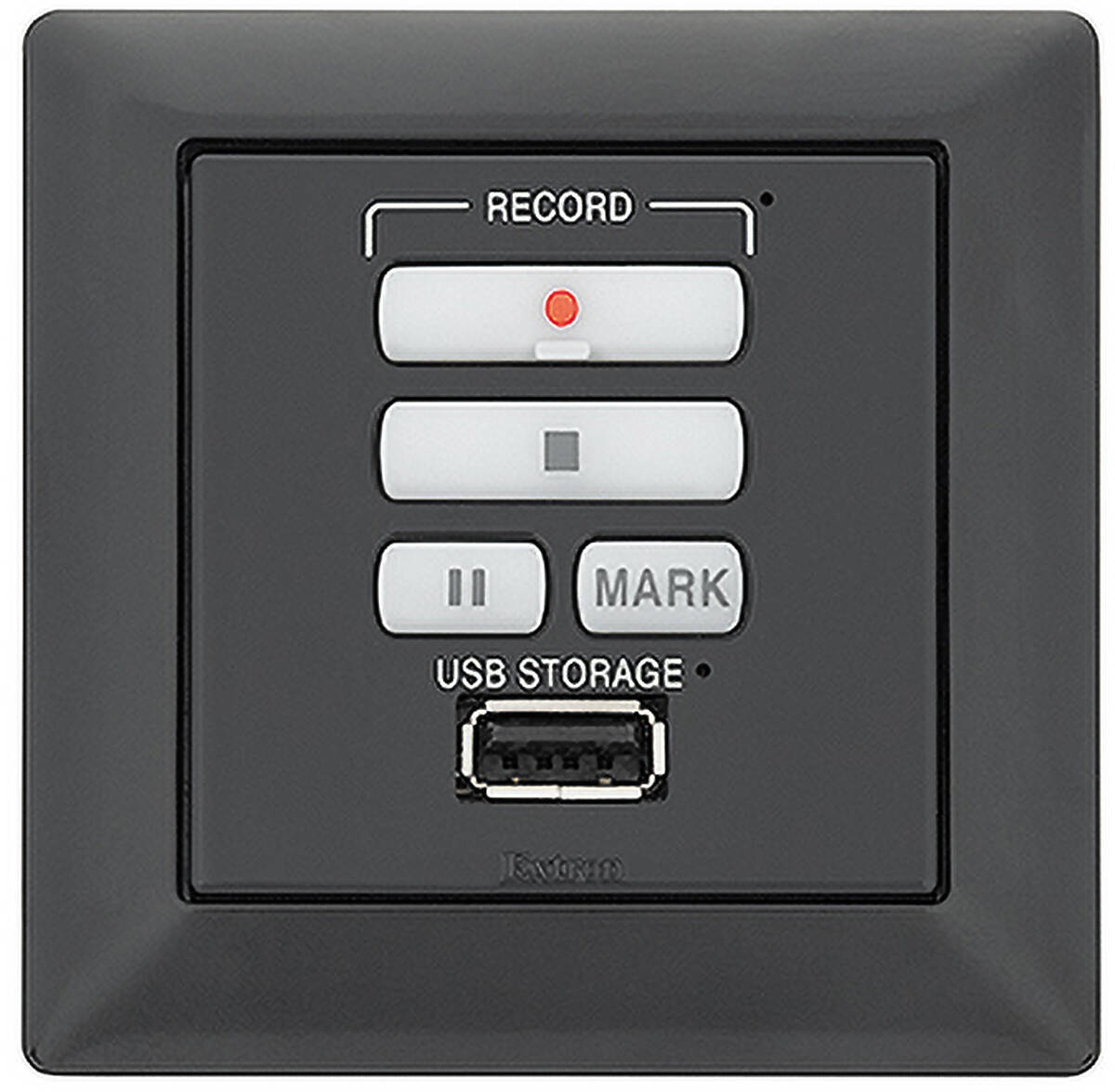

Extron RCP 101 Series remote control panels feature backlit transport controls for remote operation of Extron SMP Series products. A USB port provides convenient access to a thumb drive or external portable storage. RCP 101 panels have status and alarm indicator lights with an audible buzzer. A 15 foot (4.6 meter) USB cable is included. The RCP 101 panels may be used with Extron USB Extender Plus Series twisted pair extenders to support distances up to 330 feet (100 meters). Available in decorator-style, MK, and EU versions; the EU version is compatible with Flex55 enclosures or EU junction boxes. RCP 101 Series panels include black and a white faceplates to compliment a wide range of environments. MK model is available in white only.
Extron RCP 101 MK Key Features
- Backlit transport controls for SMP Series products
- USB port supports thumb drives and external portable drives
- Available versions include decorator-style, MK, and EU
- Compatible with Flex55 mounting kits and enclosures - RCP 101 EU
- Compatible with SMB 110 Series Surface Mount Box – RCP 101 D
- Status and alarm indicators with buzzer
- Standard USB 15' (4.6 m) cable included - Includes USB cable for up to 15' (4.6 m) extension.
- Compatible with Extron USB Extender Plus Series - Extends USB products up to 330' (100 m).
- Includes black and white faceplates; MK model available in white only - US version includes mud ring and cover plate; EU version includes adapter plate, spacer, and cover plate.
- Flex55 model mounting options - Mounts into a Flex55 enclosure, EU junction box, or directly into a lectern, table, or wall surface.
- Executive Mode lockout - Provides restriction to access of controls.
- Right Angle USB connection - Provides USB connectivity within an electrical box without a tight bend radius.
- Section 508 Compliant - Meets or exceeds accessibility standards for Electronic Information Technology. For more information about Extron's Commitment to Accessibility please see our Accessibility Page.

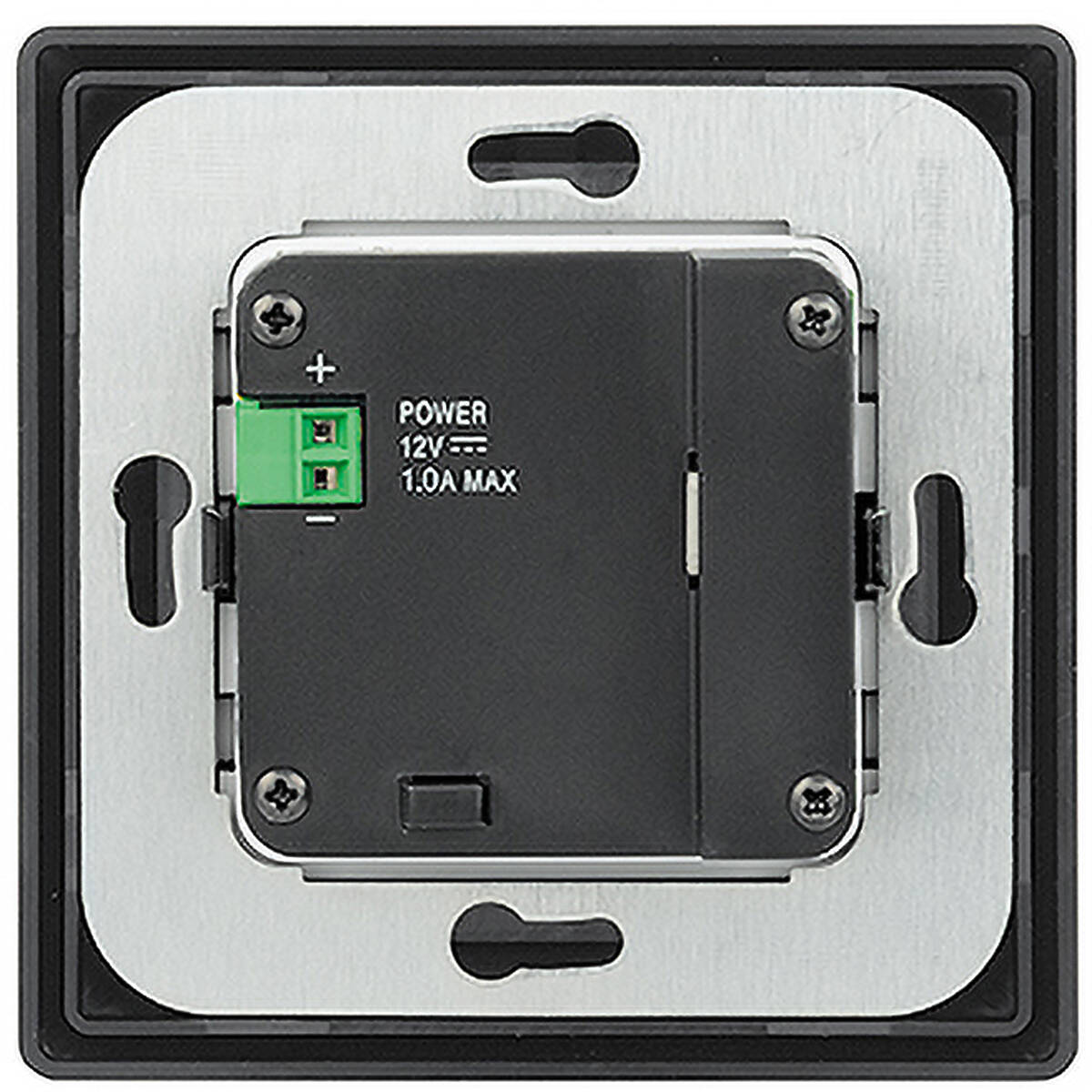

- External Extron Everlast™ power supply included - Provides worldwide power compatibility with high-demonstrated reliability and low power consumption
- Extron Everlast Power Supply is covered by a 7‑year parts and Labour warranty

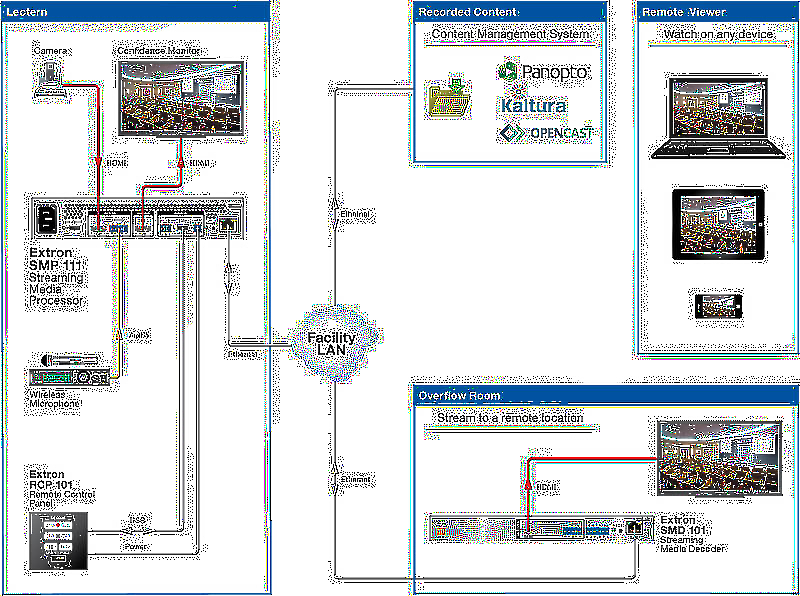

![Extron RCP 101 MK Usage Diagram](images/diagrams/extron/extron-rcp-101-mk-60-1598-22-diagram.jpg)
