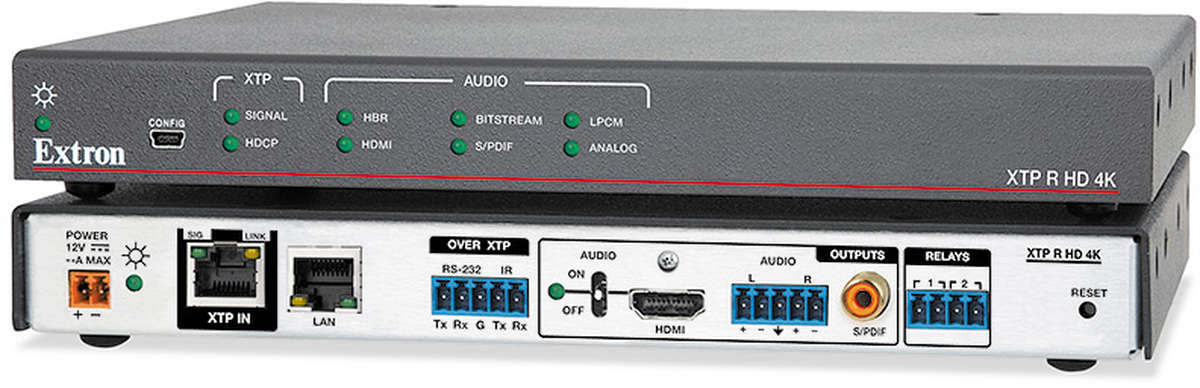

Extron XTP R HD 4K (60-1524-13)
1:1 4K HDMI / IR / RS-232 / Ethernet over XTP Receiver
Max 100m at 1080p or 4K using Cat5e or better shielded cable
The Extron XTP R HD 4K is a receiver for extending video, audio, bidirectional control, and Ethernet over a shielded CATx cable. This HDCP 2.3-compliant receiver supports video signals at resolutions up to 4K. For streamlined integration, it provides selectable HDMI audio pass‑through, audio de‑embedding to digital S/PDIF or Analogue stereo audio outputs, and relays for room control. Ethernet extension and insertion of bidirectional RS‑232 and IR provide LAN access and remote AV device control. Signals can be delivered up to 330 feet (100 meters) over shielded twisted pair cable. The XTP R HD 4K supports remote power and is ideal for XTP Systems® that require long-distance transmission to displays and other output devices.
The XTP R HD 4K receiver uses Extron all-digital technology to deliver pixel-perfect video signals at resolutions up to 4K. It supports HDMI 1.4 specifications that include data rates up to 10.2 Gbps, Deep Colour up to 12-bit, 3D, and HD lossless audio formats. To ensure device compatibility and optimal signal transmission between devices, DDC channels are actively buffered, maintaining continuous EDID and HDCP communication with the source and display.
Built for Professional Integration
To enhance and simplify integration of digital and Analogue AV devices, XTP endpoints utilize two Extron technologies: EDID Minder and Key Minder. EDID Minder automatically manages EDID communication between input sources and display devices, to ensure that sources power up properly and reliably send content for display. For HDMI and DisplayPort signals with protected content, Key Minder authenticates and maintains continuous HDCP encryption between input and output devices to ensure quick and reliable switching. If HDCP-encrypted content is sent to a non‑compliant display, a full-screen green signal is transmitted to the destination, providing immediate visual confirmation that protected content cannot be viewed on the selected display.In addition to high performance video, the XTP R HD 4K accepts audio signals over the shielded CATx cable. It provides signal distribution for HDMI embedded audio or audio de-embedding with multi-channel S/PDIF or two-channel balanced/unbalanced Analogue stereo and PCM audio. To precisely control audio, the XTP R HD 4K includes volume adjustment and muting capabilities.
The XTP R HD 4K includes an RS‑232 and IR insertion port, allowing bidirectional control of an AV device over the one CATx cable. This feature simplifies integration with a control system for managing a remote display. Additionally, centralized 10/100 Ethernet communication can be implemented via the Ethernet extension port to reduce the number of independent network drops required within a system and two built-in relays allow operation of a projector lift, screen, or similar device at the remote location..
To further simplify system design, the receiver can be powered by the matrix switcher over the same twisted pair cable that carries the AV and control signals. This capability streamlines installation of remote endpoints by eliminating the need to provide AC power to the device. Housed in a 1" (2.5 cm) high, half rack width metal enclosure, the remote powering capabilities and low-profile design of the XTP R HD 4K receiver allow for discreet placement in space-challenged environments.
Extron recommends Extron-certified XTP DTP 24 shielded twisted pair cable, shielded RJ-45 plugs, jacks, and couplers engineered for optimum signal transmission with Extron XTP Systems. The XTP DTP 24 cable is certified to 475 MHz, and utilizes a SF/UTP design with four unshielded 24 AWG twisted pair conductors inside an overall braid and foil shield for superior performance and noise immunity.
Extron XTP Systems
Extron XTP Systems provide a completely integrated switching and distribution solution for multiple digital and Analogue formats. They support local connectivity as well as extended transmission capability for sending high resolution video, audio, RS‑232, and Ethernet up to 330 feet (100 meters) over a shielded CATx cable and up to 10 km (6.21 miles) over fiber optic cable. Each system is HDCP compliant and delivers ultra-fast, highly reliable digital switching with Extron's SpeedSwitch® Technology.At the heart of a system is an XTP CrossPoint matrix switcher. The modular matrix switchers are expandable from 4x4 to 64x64, depending on frame size, and can be populated with a wide variety of XTP I/O matrix boards. Input and output boards provide direct HDMI, SDI, DVI, VGA, video, and audio connections to local sources and displays, and signal extension to remote endpoints when using XTP transmitters and receivers. The matrix switcher can also provide power to a remote XTP device over CATx cabling, depending on transmitter model.
The online XTP System Builder gives convenient access for complete system design. The tool also features a printable bill of materials, pricing, and quote submittal. Once the order is confirmed and received, the included XTP System Configuration Software enables easy setup and configuration right out of the box.
To configure, operate, and monitor the system in real time, user-friendly control software offers a complete view of all XTP devices from a computer. With hot‑swappable modular components, a wide selection of XTP transmitters and receivers, and advanced 24/7 system monitoring, XTP Systems are designed to provide continuous, trouble-free operation in the most critical applications.
See also: Extron XTP T HD 4K.Extron XTP R HD 4K Key Features
- Receives video with embedded audio, bidirectional RS‑232 and IR, and Ethernet up to 330 feet (100 meters) over a shielded CATx cable - The XTP R HD 4K provides high reliability and maximum performance on an economical and easily installed cable infrastructure.
- Supports computer and video resolutions up to 4K - Supports 4K/60 4:2:0 and 4K/30 4:4:4, maintaining superior image quality at the highest resolutions.
- Bidirectional RS‑232 and IR insertion for AV device control - Bidirectional RS‑232 control and IR signals can be transmitted alongside the video signal, allowing a remote device to be controlled without the need for additional cabling.
- HDCP 2.3 compliant - Ensures display of content-protected media and interoperability with other HDCP-compliant devices. Requires an HDCP-compliant transmitter to pass HDCP content with this receiver.
- Remote power capability - For simplified installation, the receiver can be remotely powered by the XTP matrix switcher over the twisted pair connection.
- Extron XTP DTP 24 shielded twisted pair cable is strongly recommended for optimal performance
- Compatible with CATx shielded twisted pair cable - The XTP R HD 4K supports a maximum transmission distance of 330 feet (100 meters) for all compatible resolutions when used with CATx shielded twisted pair cable. Shielded twisted pair cabling with solid centre conductor sizes of 24 AWG or better is recommended for optimal performance.
- Supported HDMI 1.4 specification features include data rates up to 10.2 Gbps, Deep Colour up to 12‑bit, 3D, and HD lossless audio formats
- Comprehensive EDID management - Use XTP System Configuration Software to access EDID Minder for setting video input EDID, capturing EDID from connected displays, or uploading custom EDID files. Proper EDID management ensures that sources and displays are easily integrated into a system resulting in optimized system operation. Freely downloadable EDID Manager 2.0 software is available for advanced EDID editing and creating custom EDID files.
- EDID Minder® automatically manages EDID communication between connected devices - EDID Minder ensures that all sources power up properly and reliably output content for display.
- Key Minder® continuously verifies HDCP compliance for quick, reliable switching - Key Minder authenticates and maintains continuous HDCP encryption between input and output devices to ensure quick and reliable switching in professional AV environments, while enabling simultaneous distribution of a single source to multiple displays.
- HDCP Visual Confirmation - When HDCP‑encrypted content is transmitted to a non‑HDCP compliant display, a full‑screen green signal is sent to the display for immediate visual confirmation that protected content cannot be viewed on that display.
- Ethernet extension - Centralized 10/100 Ethernet communication can be implemented via an Ethernet pass-through port to reduce the amount of independent network drops required within a system.
- HDMI audio de-embedding with Analogue stereo and digital S/PDIF audio outputs - Digital HDMI audio is made available as a balanced or unbalanced Analogue stereo signal on captive screw connectors.
- Audio output volume adjustment and muting capabilities
- Supports multiple embedded audio formats
- Supports EDID and HDCP transmission - DDC channels are actively buffered, allowing continuous communication between source and display.
- Selectable HDMI audio pass-through - A rear panel toggle switch enables or disables audio signal pass-through on the HDMI output.
- HDMI to DVI Interface Format Correction - Automatically reformats HDMI source signals for output to a connected DVI display.
- Two relays for controlling room functions - Enables control of lighting, screen settings, and other device functions.
- LED indicators for signal presence, HDCP, and power - Provides visual indication of signal presence, HDCP, and power for real-time feedback and monitoring of key performance parameters.
- RJ-45 signal and link status LED indicator for XTP port - Provides a means for validating signal flow and operation from transmitter to receiver, allowing quick identification of connectivity issues.
- Compatible with all XTP products - XTP Systems provide a flexible signal switching and distribution solution that is completely integrated, ensuring reliable routing of multiple digital and Analogue formats.
- Front panel USB configuration port - Provides convenient access for setup, configuration, and firmware updates.
- Easy setup and commissioning with Extron XTP System Configuration Software
- New JITC Certified - Successfully completed interoperability and information assurance testing for use in government applications and other mission-critical environments.
- 1" (2.5 cm) high, half rack width metal enclosure - The low profile enclosure allows the unit to be installed discreetly such as mounted with a projector or placed behind a flat panel display.
- Includes LockIt® HDMI cable lacing brackets
- External Extron Everlast™ power supply included, replacement part #70-1174-01 - Provides worldwide power compatibility with high‑demonstrated reliability and low power consumption
- Extron Everlast Power Supply is covered by a 7‑year parts and Labour warranty

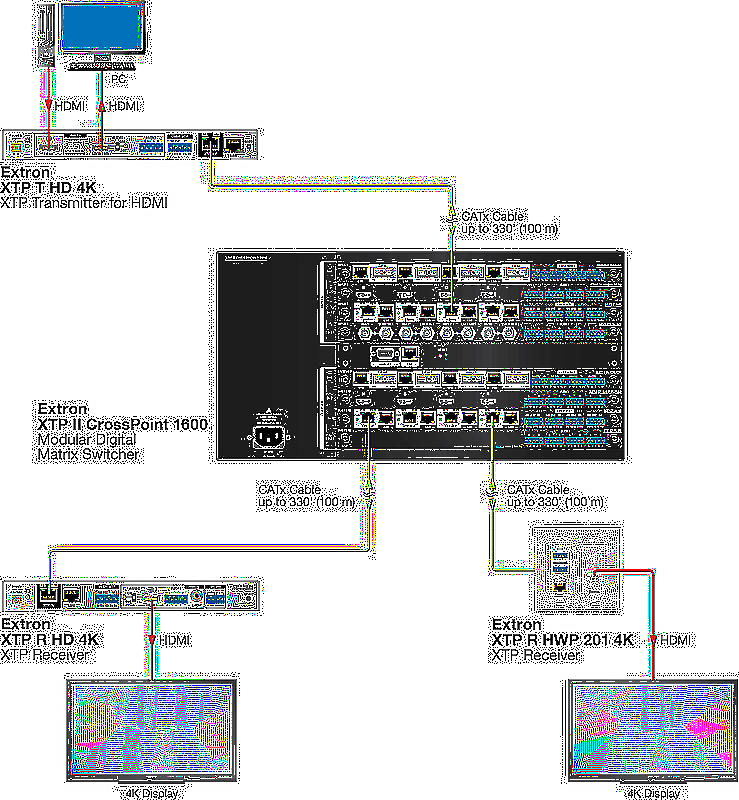

![Extron XTP R HD 4K Usage Diagram](images/diagrams/extron/extron-xtp-r-hd-4k-60-1524-13-diagram.jpg)
