Extron XTP SR HD 4K (60-1524-02)

1:1 XTP 4K HDMI / RS-232 / IR / Ethernet Scaling Receiver for HDMI

1 × XTP CAT Input; 1 × HDMI output; Max 100m @ UHD

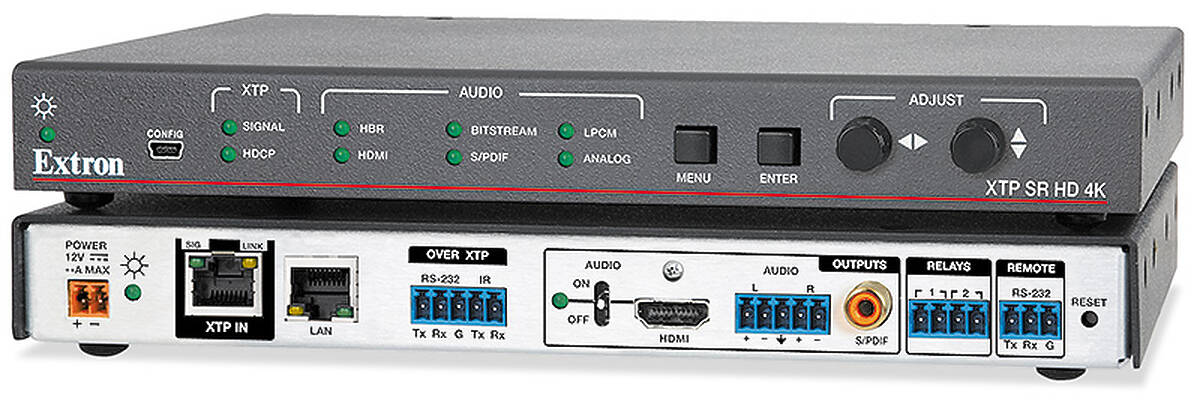

Extron XTP SR HD 4K 60-1524-02 product image

For pricing and configuration options please call or email us.

The Extron XTP SR HD 4K is a scaling receiver for extending video, audio, bidirectional RS‑232 and IR control, and Ethernet over a shielded CATx cable. It incorporates Extron Vector™ 4K scaling technology to deliver HDMI video resolutions up to 4K with uncompromised image quality. It is HDCP 2.3 compliant, and features on‑screen menus, audio de‑embedding to digital S/PDIF or Analogue stereo audio outputs, and relays for room control. As part of XTP WindoWall®, scaling receivers can be used to enable a mix of full screen and image magnification across multiple displays in videowall environments. Signals can be delivered up to 330 feet (100 meters) over one shielded twisted pair cable. The XTP SR HD 4K supports remote power and is ideal for XTP Systems® that require long-distance transmission to displays and high quality video scaling.

The XTP SR HD 4K scaling receiver accepts signals from XTP twisted pair transmission products and uses Extron all-digital technology to provide pixel-perfect video signal at resolutions up to 4K. It supports HDMI 1.4 specifications that include data rates up to 10.2 Gbps, Deep Colour up to 12-bit, 3D, and HD lossless audio formats. To ensure device compatibility and optimal signal transmission between devices, DDC channels are actively buffered, maintaining continuous EDID and HDCP communication with the source and display.

Exclusive Vector 4K Scaling Technology

The XTP SR HD 4K delivers computer and video resolutions at selectable output rates from 640x480 up to UHD 3840x2160. The integrated Extron Vector 4K scaling technology delivers best-in-class image upscaling and downscaling using exclusive, high-precision processing algorithms for exceptional scaling performance. Selectable FILL and FOLLOW modes are available to ensure the proper aspect ratio of the output. FILL mode provides full screen output, while FOLLOW mode preserves the original aspect ratio of the input signal. Additionally, the Colour space and chroma sampling of the HDMI output can be automatically set to ensure compatibility with a connected DVI or HDMI display. The XTP SR HD 4K scaling receiver enhances the video performance of XTP Systems by providing the optimal output resolution to match the display, and maximizes system compatibility by supporting a wide range of input video resolutions.

XTP WindoWall supports Videowalls of any aspect ratio

WindoWall mode enables videowall support within XTP Systems, further expanding capabilities and enabling broader use in applications, such as command and control and emergency operations centers. Images can be shown full screen, spread across multiple displays or a combination of both. Up to eight videowalls can be supported within an XTP system, and up to eight assignable presets are available per wall for quick and easy viewing between different image arrangements. Convenient software features such as drag and size layout configuration, mullion compensation, and the ability to create multiple presets expedite the setup process without need for expensive custom programming.

Built for Professional Integration

To enhance and simplify integration of digital and Analogue AV devices, XTP endpoints utilize two Extron technologies: EDID Minder® and Key Minder®. EDID Minder automatically manages EDID communication between input sources and display devices, to ensure that sources power up properly and reliably send content for display. For HDMI and DisplayPort signals with protected content, Key Minder authenticates and maintains continuous HDCP encryption between input and output devices to ensure quick and reliable switching. If HDCP-encrypted content is sent to a non‑compliant display, a full-screen green signal is transmitted to the destination, providing immediate visual confirmation that protected content cannot be viewed on the selected display.

In addition to high performance video, the XTP SR HD 4K accepts audio signals over the shielded CATx cable. It provides signal distribution for HDMI embedded audio or audio de-embedding with multi-channel S/PDIF or two‑channel balanced/unbalanced Analogue stereo and PCM audio. To precisely control audio, the scaling receiver includes volume adjustment and muting capabilities. The wide variety of audio transmission and control features helps to simplify system design and reduce the number of cable runs between endpoints.

The XTP SR HD 4K includes an RS‑232 and IR insertion port, allowing bidirectional control of an AV device over the one CATx cable. This feature simplifies integration with a control system for managing a remote display. Additionally, centralized 10/100 Ethernet communication can be implemented via the Ethernet extension port to reduce the number of independent network drops required within a system and two built‑in relays allow operation of a projector lift, screen, or similar device at the remote location.

To further simplify system design, the receiver can be powered by the matrix switcher over the same twisted pair cable that carries the AV and control signals. This capability streamlines installation of remote endpoints by eliminating the need to provide AC power to the device. Housed in a 1" (2.5 cm) high, half rack width metal enclosure, the remote powering capabilities and low profile design of the XTP SR HD 4K receiver allow for discreet placement in space-challenged environments.

Extron recommends Extron-certified XTP DTP 24 shielded twisted pair cable, shielded RJ-45 plugs, jacks, and couplers engineered for optimum signal transmission with Extron XTP Systems. The XTP DTP 24 cable is certified to 475 MHz, and utilizes a SF/UTP design with four unshielded 24 AWG twisted pair conductors inside an overall braid and foil shield for superior performance and noise immunity.

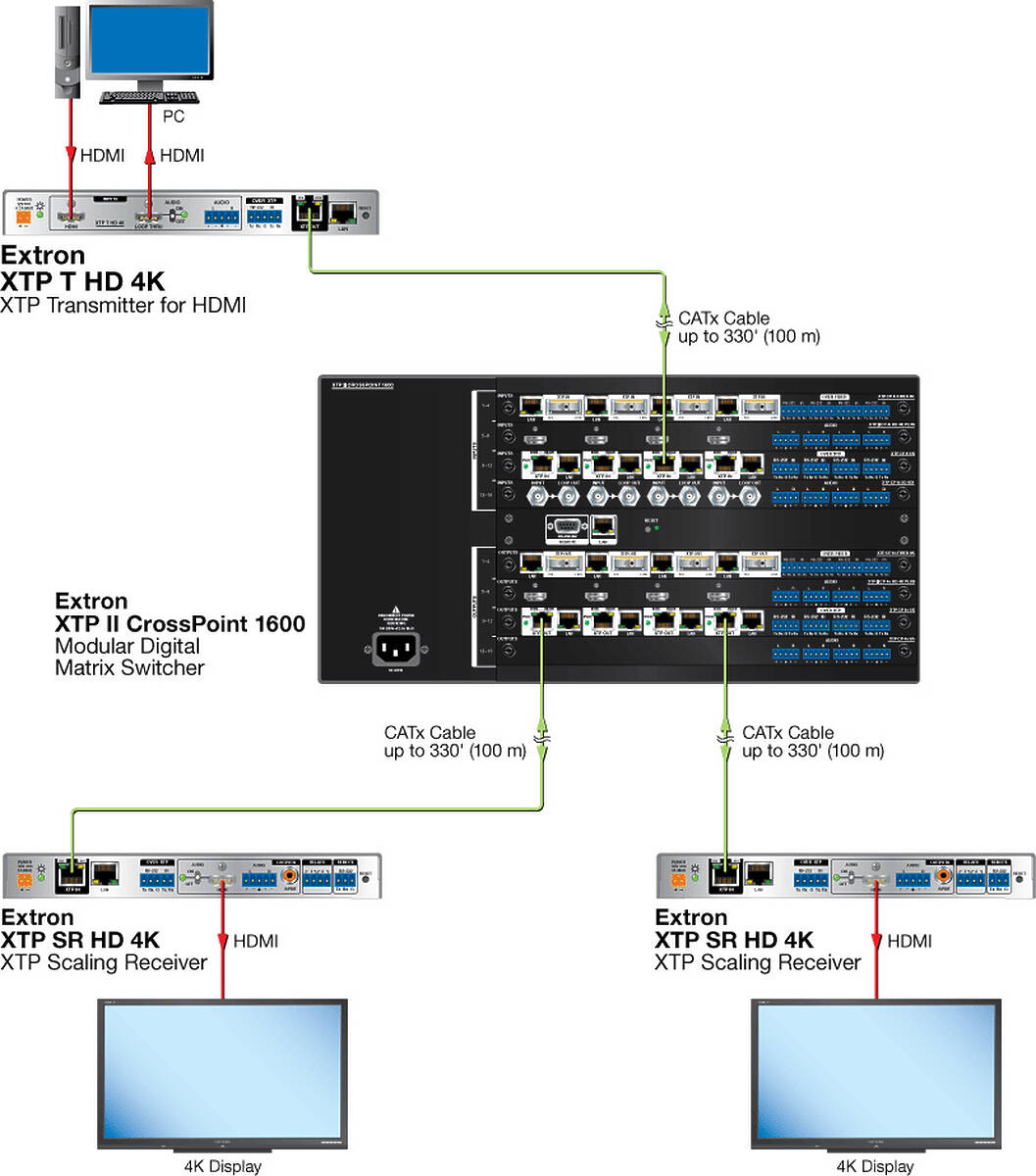

Extron XTP Systems

Extron XTP Systems provide a completely integrated switching and distribution solution for multiple digital and Analogue formats. They support local connectivity as well as extended transmission capability for sending high resolution video, audio, RS‑232, and Ethernet up to 330 feet (100 meters) over a shielded CATx cable and up to 10 km (6.21 miles) over fiber optic cable. Each system is HDCP compliant and delivers ultra-fast, highly reliable digital switching with Extron's SpeedSwitch® Technology.

At the heart of a system is an XTP CrossPoint matrix switcher. The modular matrix switchers are expandable from 4x4 to 64x64, depending on frame size, and can be populated with a wide variety of XTP I/O matrix boards. Input and output boards provide direct HDMI, SDI, DVI, VGA, video, and audio connections to local sources and displays, and signal extension to remote endpoints when using XTP transmitters and receivers. The matrix switcher can also provide power to a remote XTP device over CATx cabling, depending on transmitter model.

The online XTP System Builder gives convenient access for complete system design. The tool also features a printable bill of materials, pricing, and quote submittal. Once the order is confirmed and received, the included XTP System Configuration Software enables easy setup and configuration right out of the box.

To configure, operate, and monitor the system in real time, user-friendly control software offers a complete view of all XTP devices from a computer. With hot‑swappable modular components, a wide selection of XTP transmitters and receivers, and advanced 24/7 system monitoring, XTP Systems are designed to provide continuous, trouble-free operation in the most critical applications.

Extron XTP SR HD 4K Key Features

Receives video with embedded audio, bidirectional RS‑232 and IR, and Ethernet up to 330 feet (100 meters) over a shielded CATx cable - The XTP SR HD 4K provides high reliability and maximum performance on an economical and easily installed cable infrastructure.
Advanced Extron Vector™ 4K scaling technology - Vector 4K scaling technology ensures critical-quality 4K imagery, with best‑in‑class image upscaling and downscaling, enhanced Colour accuracy, and picture detail.
Selectable output rates from 640x480 to 3840x2160 - Supports digital signal extension up to 330 feet over a shielded twisted pair cable, maintaining superior image quality at the highest resolutions.
WindoWall® Mode supports videowall applications - Enables a mix of full screen and image magnification across multiple displays. WindoWall presets provide a quick and easy way to manipulate the videowall content between different image arrangements. Videowalls of any aspect ratio are supported up to an 8x8 configuration.
HDCP 2.3 compliant - Ensures display of content-protected media and interoperability with other HDCP-compliant devices. Requires an HDCP-compliant transmitter to pass HDCP content with this receiver.
Remote power capability - For simplified installation, the receiver can be remotely powered by the XTP matrix switcher over the twisted pair connection.
Extron XTP DTP 24 shielded twisted pair cable is strongly recommended for optimal performance
Scales HDMI, DVI, RGB, HD component video, and standard definition video received from XTP devices
Compatible with CATx shielded twisted pair cable - The XTP SR HD 4K supports a maximum transmission distance of 330 feet (100 meters) for all compatible resolutions when used with CATx shielded twisted pair cable. Shielded twisted pair cabling with solid centre conductor sizes of 24 AWG or better is recommended for optimal performance.
Bidirectional RS-232 and IR insertion for AV device control - Bidirectional RS‑232 control and IR signals can be transmitted alongside the video signal, allowing a remote device to be controlled without the need for additional cabling.
Supported HDMI 1.4 specification features include data rates up to 10.2 Gbps, Deep Colour up to 12‑bit, 3D, and HD lossless audio formats
Comprehensive EDID management - Use XTP System Configuration Software to access EDID Minder for setting video input EDID, capturing EDID from connected displays, or uploading custom EDID files. Proper EDID management ensures that sources and displays are easily integrated into a system resulting in optimized system operation. Freely downloadable EDID Manager 2.1 software is available for advanced EDID editing and creating custom EDID files.
EDID Minder® automatically manages EDID communication between connected devices - EDID Minder ensures that all sources power up properly and reliably output content for display.
Key Minder® continuously verifies HDCP compliance for quick, reliable switching - Key Minder authenticates and maintains continuous HDCP encryption between input and output devices to ensure quick and reliable switching in professional AV environments, while enabling simultaneous distribution of a single source to multiple displays.
HDCP Visual Confirmation - When HDCP‑encrypted content is transmitted to a non‑HDCP compliant display, a full‑screen green signal is sent to the display for immediate visual confirmation that protected content cannot be viewed on that display.
Ethernet extension - Centralized 10/100 Ethernet communication can be implemented via an Ethernet pass-through port to reduce the amount of independent network drops required within a system.
HDMI audio de-embedding with Analogue stereo and S/PDIF audio outputs - Digital HDMI audio is made available as a balanced or unbalanced Analogue stereo signal on captive screw connectors.
Audio output volume adjustment and muting capabilities
Supports multiple embedded audio formats
Supports EDID and HDCP transmission - DDC channels are actively buffered, allowing continuous communication between source and display.
Scaler bypass mode - Allows scaling to be bypassed to support unprocessed transmission of 3D, UHD 3840x2160/60 4:2:0, 4096x2160/60 4:2:0, and other formats.
Selectable HDMI audio pass-through - A rear panel toggle switch enables or disables audio signal pass-through on the HDMI output.
HDMI to DVI Interface Format Correction - Automatically reformats HDMI source signals for output to a connected DVI display.
Two relays for controlling room functions - Enables control of lighting, screen settings, and other device functions.
Aspect ratio control - The aspect ratio of the video output can be controlled by selecting a FILL mode, which provides a full screen output, or a FOLLOW mode, which preserves the original aspect ratio of the input signal.
Image freeze control - A live image can be frozen through RS‑232.
On-screen menus - Intuitive on‑screen menus allow for easy system setup using the front panel controls.
Output Standby Mode - The unit can be set to automatically mute video and sync output to the display device when no active input signal is detected. This allows the projector or flat-panel display to automatically enter into standby mode to save energy and enhance lamp or panel life.
Internal test patterns for setup and calibration - Five test patterns are available, including crop, alternating pixels, crosshatch, Colour bars, and, grayscale.
RS-232 control - Enables the use of serial commands for integration into a control system. Extron products use the SIS™ - Simple Instruction Set command protocol, a set of basic ASCII commands that allow for quick and easy programming.
LED indicators for signal presence, HDCP, and power - Provides visual indication of signal presence, HDCP, and power for real-time feedback and monitoring of key performance parameters.
RJ-45 signal and link status LED indicator for XTP port - Provides a means for validating signal flow and operation from transmitter to receiver, allowing quick identification of connectivity issues.
Compatible with all XTP products - XTP Systems provide a flexible signal switching and distribution solution that is completely integrated, ensuring reliable routing of multiple digital and Analogue formats.
Front panel security lockout - Allows security lockout of front panel buttons except for input selection and volume adjustment.
Front panel USB configuration port - Provides convenient access for setup, configuration, and firmware updates.
Easy setup and commissioning with Extron XTP System Configuration Software
JITC Certified - Successfully completed interoperability and information assurance testing for use in government applications and other mission-critical environments.
1" (2.5 cm) high, half rack width metal enclosure - The low‑profile enclosure allows the unit to be installed discreetly such as mounted with a projector or placed behind a flat panel display.
Includes LockIt® cable lacing brackets - Securely fastens HDMI or USB C® cables to a device, eliminating risk of disconnection.
External Extron Everlast™ power supply included, replacement part #70-1174-01 - Provides worldwide power compatibility with high‑demonstrated reliability and low power consumption
Extron Everlast Power Supply is covered by a 7‑year parts and Labour warranty
