Extron BUC 202 (60-1370-01)

Two Channel Audio BUC - Balanced and Unbalanced Converter

Balanced-Unbalanced Audio Converter

For pricing and configuration options please call or email us.

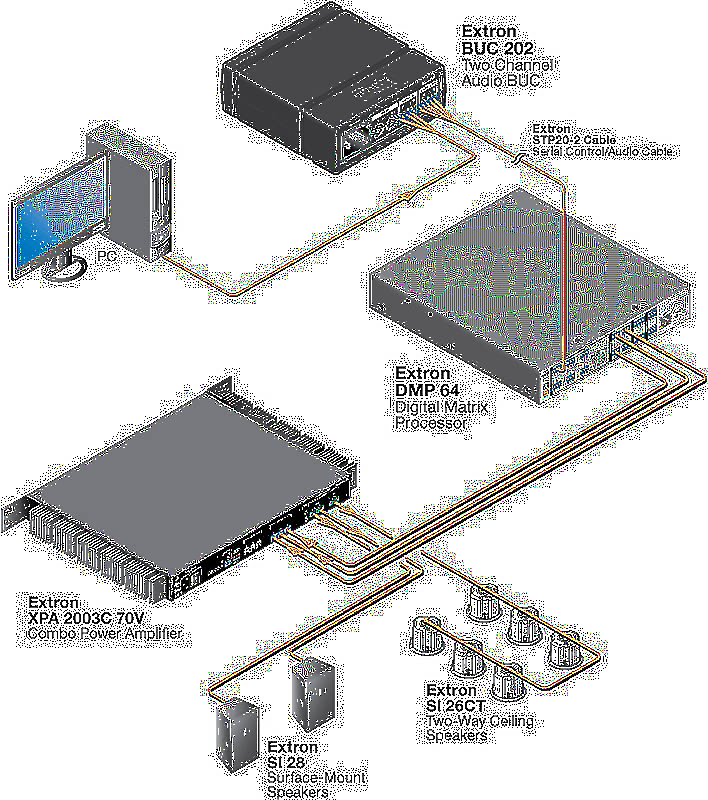

The Extron BUC 202 is a two channel balanced and unbalanced audio converter, and audio line driver. It features two balanced or unbalanced inputs and outputs, both on captive screw connectors. The BUC 202 provides two independent channels of signal matching between unbalanced and balanced audio equipment. Two rotary switches provide precise trim adjustment from -21 to +21 dB in clearly-labeled 3 dB steps. In addition to serving as an interface from consumer products to professional AV systems, the BUC 202 is a high-quality line driver for sending and receiving audio signals up to 1,000 feet (300 m). The unique 1U, quarter rack width enclosure, together with the included patented ZipClip™ 200 mounting bracket, offers the versatility to install the BUC 202 in a discreet location, such as on a rack rail, beneath a table, or within a lectern.

Extron BUC 202 Key Features

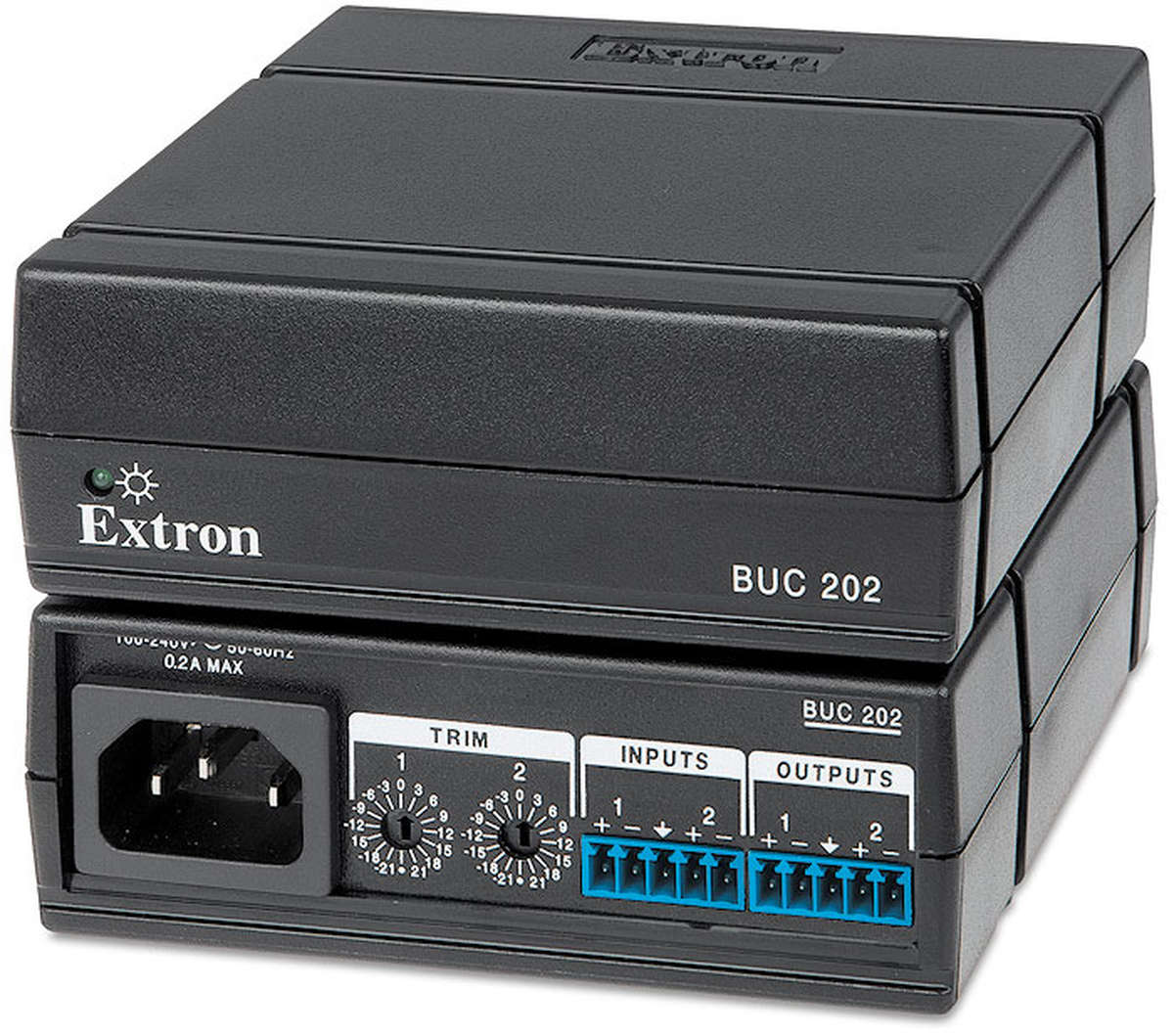

Inputs: Two balanced or unbalanced on 5-pole captive screw connector
Outputs: Two balanced or unbalanced on 5-pole captive screw connector
Converts unbalanced audio signals to balanced signals and balanced signals to unbalanced signals - The BUC 202 enables interfacing of consumer and professional equipment with proper audio gain structure.
Active balancing circuitry - Active circuitry provides wide frequency response, low noise, and immunity to interference.
Audio line driver for long distance audio signal transmission - Transmits balanced audio signals up to 1,000 feet (300 m) through Extron STP20 cable.
Independent, variable trim control on each channel with wide, 42 dB adjustment range - Two detented, precision rotary switches labelled in 3 dB increments from -21 to +21 dB enable precise signal level adjustment.
Versatile 1U, quarter rack width enclosure allows installation on a rack rail, beneath a table, or within a lectern

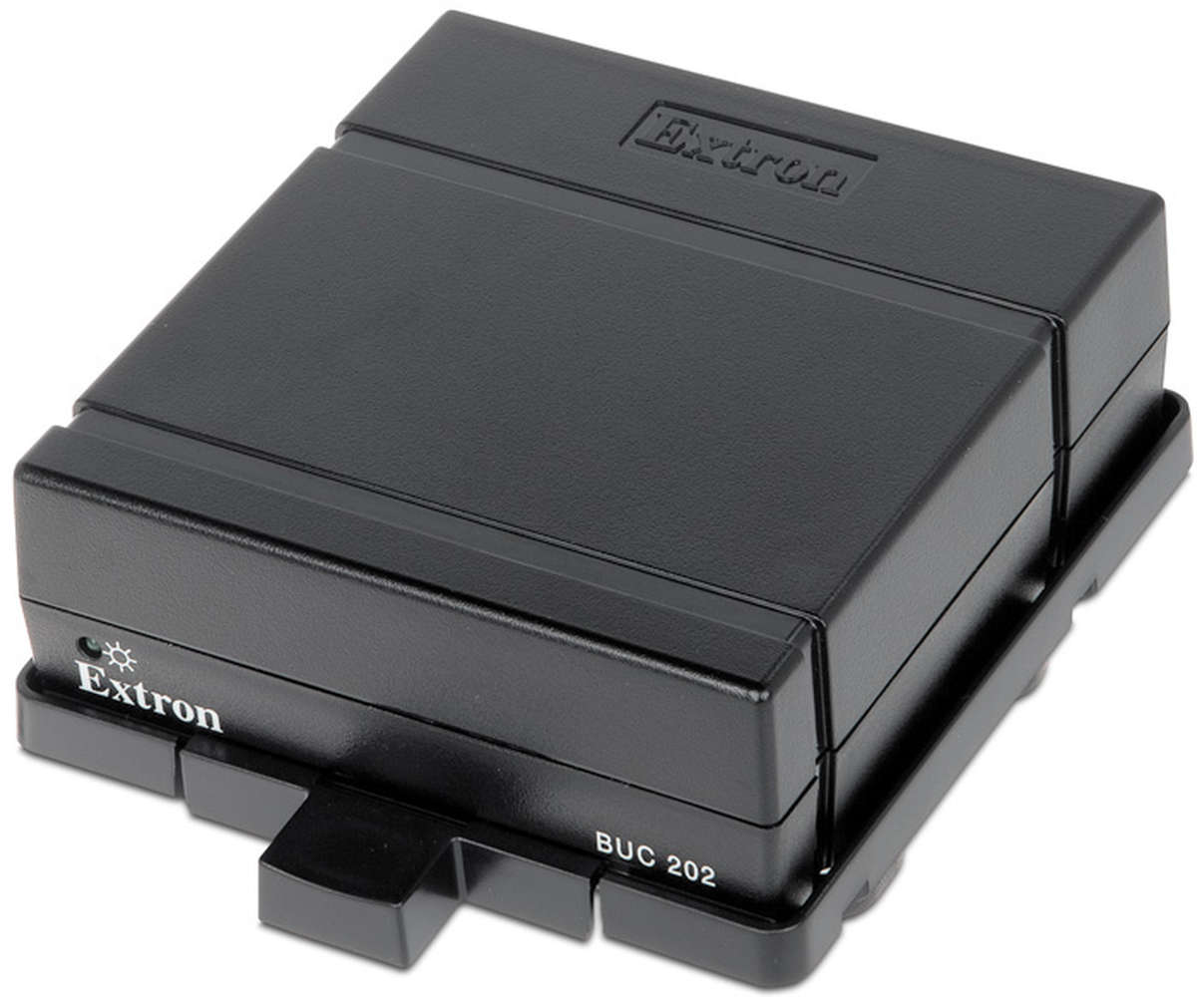

Patented ZipClip™ 200 mounting kit included:
- Mounts securely on a variety of surfaces, including rack rails, tables, lecterns, and table legs
- Wire tie slots for proper strain relief and dressing of excess cable
- Quick release tab allows for easy installation and removal
UL/c-UL listed and CE compliant
Internal Extron Everlast™ power supply - Provides worldwide power compatibility, with high-demonstrated reliability and low power consumption for reduced operating cost
Extron Everlast Power Supply is covered by a 7‑year parts and labour warranty
