Optoma EH320USTip Projector

No Longer Available

Click for Current Optoma range

Optoma EH320USTip Key Features

• DLP Display Technology
• 4,000 Lumens
• 1080P 1920*1080 Native Resolution
• 3,000 hour lamp life (typical)
• 20,000:1 Contrast Ratio
• 4.78kg (10.5lb.)
• Ultra Short Throw (0.25:1)
• Native Widescreen
• 12v Trigger
• Interactive (Pen)
• Mouse Emulation Remote
• Interactive (Finger)
• 3D Projection Ready
• Monitor Out
• Network Control

Optoma EH320USTip
Brochure

Instruction Manual

• Boardroom Projectors
• Conference rooms (20 - 50 people)
• Home cinema and business dual use
• Ultra short throw

Optoma EH320USTip Specifications

Categories	Ultra Short Throw HD
Manufacturer	Optoma (Click for rest of range)
Optoma EH320USTip Optical Features
System	1 * 0.65" DarkChip3 DMD
Resolution	1080P (1920*1080)
Aspect Ratio	16:9
Lumens	4,000
Contrast	20,000:1
Lamp	260W
Lamp Life	3,000hrs. (6,500hrs. ECO mode)
Interchangeable	No
Zoom Range	Fixed
Throw Ratio	0.25 - 0.25:1
Image Size	80"-100" diagonal
Throw Distance	0.45-0.59m
Throw distance for 100" image	0.55 - 0.55m
Lens Shift	No
KeystoneCorrection	±20° (Vertical)
Optoma EH320USTip Compatibility
Computer Resolutions	VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA
Video Resolutions	PAL, SECAM, NTSC, 1080i, 720p
Horizontal Freq.	15.3-91kHz
Vertical Freq.	24-85Hz

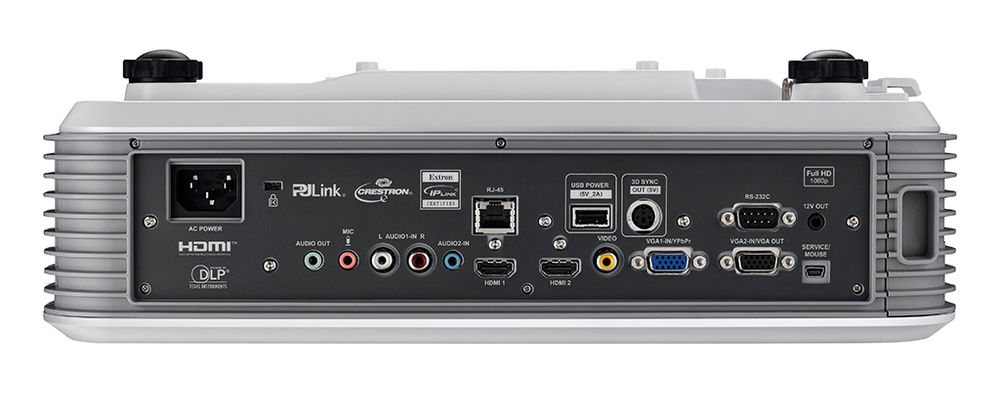

Optoma EH320USTip Terminals
HDMI	2
RGBHV (15-pin HD)	2
S-Video	1
Composite	1
Monitor Out	Yes
Audio In	2
Audio Out	1
USB	2
RS-232	1
12v Trigger	Yes
Network Ready	Yes
Optoma EH320USTip General
Speakers	16w mono

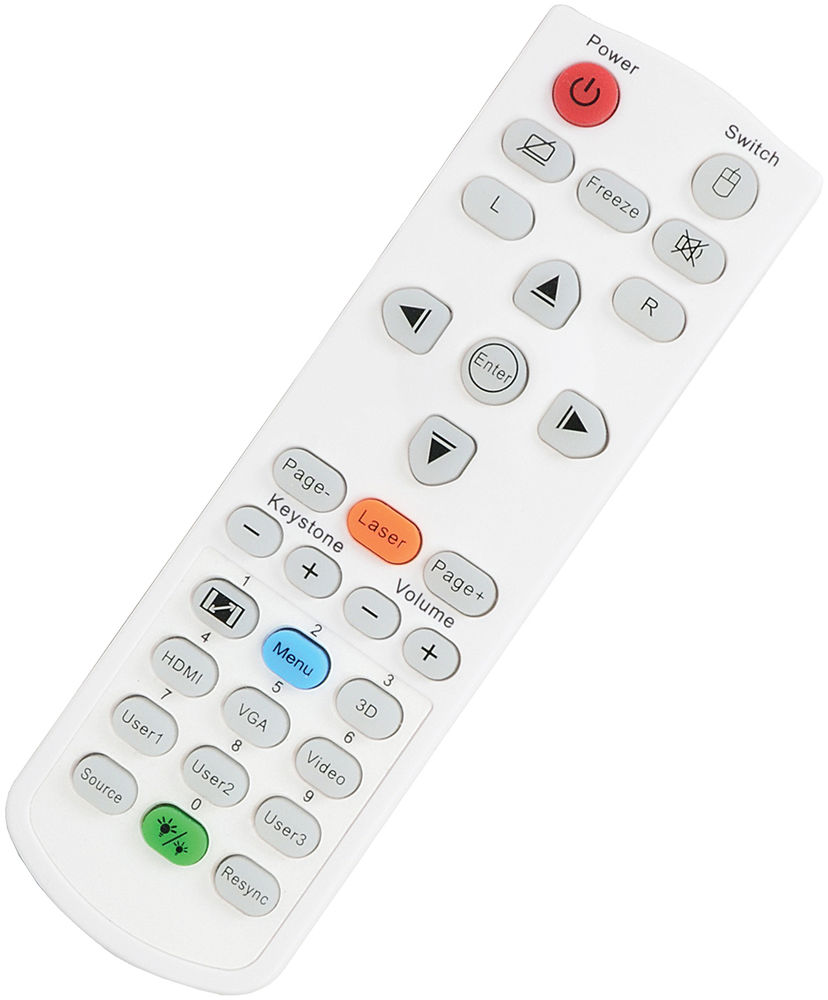

Remote Control	Optoma EH320USTip + Mouse Emulation
Noise	(28db ECO mode)
Dimensions	385*99*310mm (W*H*D)
Weight	4.78kg
Power Supply	100-240V AC; 50-60Hz
Power Consumption	310Watts
Manufacturers Warranty	3 year return to base
Light Source Warranty	6 months/1000 hours (whichever first)
Optoma EH320USTip Package Contents
Accessories	AC power cord VGA cable USB cable remote control batteries quick start card CD user manual TouchBeam interactive module 2 x interactive passive pens

Ivojo Multimedia are approved Optoma dealers and supply only UK products with full UK warranties.

Optoma EH320USTip Accessories

Projector ceiling mounts and brackets

Projection Screens

Twisted pair extenders, distribution and switching

HDMI, DVI, DisplayPort, SDI, Twisted Pair and analogue AV cables

Scalers, EDID emulators, multi-windows processors and capture hardware
