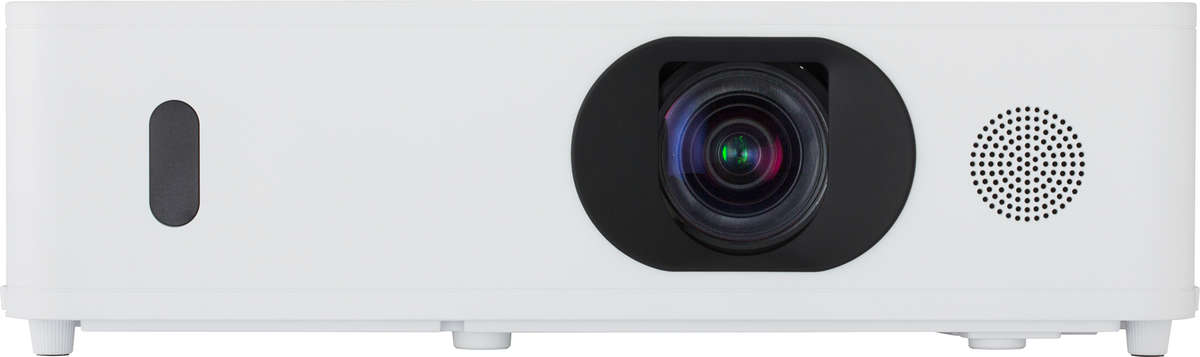

Maxell MC-WU5505 Projector

No Longer Available

Click for Current Projector range

Maxell MC-WU5505 Key Features

• LCD Display Technology
• 5200 Lumens Colour Light Output
• WUXGA 1920*1200 Native Resolution
• 4,000 hour lamp life (typical)
• 16,000:1 Contrast Ratio
• 6.8kg (15.0lb.)
• Wide zoom range for flexible placement
• Native Widescreen
• Lens Shift
• HDBaseT
• DICOM Simulation Mode
• Monitor Out
• Network Control

Instruction Manual

• Boardroom Projectors
• CAD, engineering and precision presentations
• Conference rooms (20 - 50 people)
• Medical Imaging

Maxell MC-WU5505 Specifications

Categories	HDBaseT Lens Shift
Manufacturer	Maxell (Click for rest of range)
Maxell MC-WU5505 Optical Features
System	3 * 0.67" LCD
Resolution	WUXGA (1920*1200)
Aspect Ratio	16:10
Lumens	5,200
ECO Mode Lumens	3,640
Colour Light Output	5200 Lumens
Eco Mode CLO	3640 Lumens
Contrast	16,000:1
Lamp	300W
Lamp Life	4,000hrs. (6,000hrs. ECO mode)
Interchangeable	No
Zoom Range	1.6x
Throw Ratio	1.4 - 2.3:1
Image Size	30"-300" diagonal
Throw Distance	0.80-15.20m
Throw distance for 100" image	3.02 - 4.95m
Lens Shift	Vertical: 0-50% Horizontal: 4.4%
KeystoneCorrection	±30° (Vertical)
	±30° (Horizontal)
Maxell MC-WU5505 Compatibility
Computer Resolutions	VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA, WUXGA
Video Resolutions	PAL, SECAM, NTSC, 1080p, 1080i, 720p

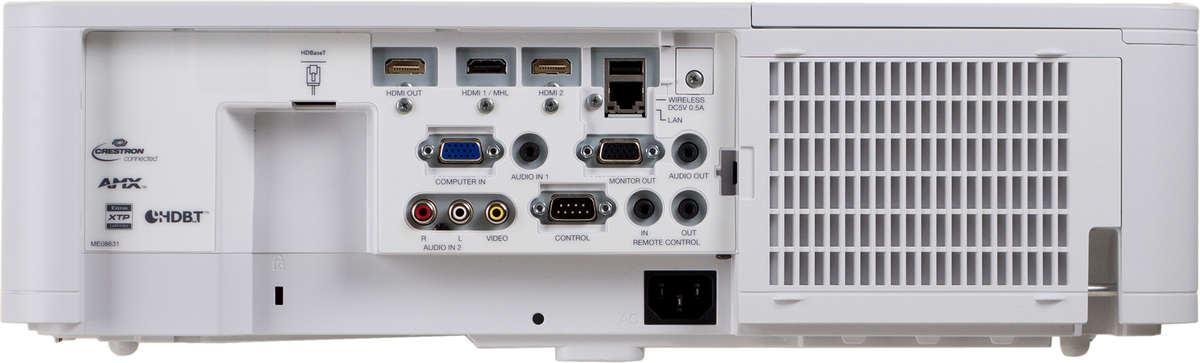

Maxell MC-WU5505 Terminals
HDMI	2
RGBHV (15-pin HD)	1
Composite	1
Monitor Out	Yes
USB	1
RS-232	1
HDBaseT	1
Network Ready	Yes
Maxell MC-WU5505 General
Speakers	16w mono
Remote Control	Maxell MC-WU5505 only
Noise	38db (29db ECO mode)
Dimensions	460*138*334mm (W*H*D)
Weight	6.80kg
Power Supply	AC 100V-120V (50/60Hz) 4.4A, AC 220V-240V (50/60Hz
Power Consumption	420Watts
Manufacturers Warranty	3 year return to base
Light Source Warranty	6 months/1000 hours (whichever first)
Maxell MC-WU5505 Package Contents
Accessories	Power Cable (1.8m) Computer Cable (1.8m) IR Remote Control Unit AA Batteries Application CD (for network etc.) CD User Manual Concise User Manual Security Label Lens Cover Adapter Cover Terminal Cover HDMI Cable Holder x3 Cable Tie (large x1 medium x3) Hook Metal Screw

Ivojo Multimedia are approved Maxell dealers and supply only UK products with full UK warranties.

Maxell MC-WU5505 Accessories

Projector ceiling mounts and brackets

Projection Screens

Twisted pair extenders, distribution and switching

HDMI, DVI, DisplayPort, SDI, Twisted Pair and analogue AV cables

Scalers, EDID emulators, multi-windows processors and capture hardware
