Vivitek DU9900Z Projector &
Vivitek D98-4070 Projector Lens

Vivitek DU9900Z

  • 22000 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 10000:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 52.3kg (115.3lb.)
  • 5 year Return to base warranty
  • Vivitek DU9900Z
Vivitek DU9900Z & Vivitek D98-4070
£25396 (£30475.20 inc. VAT)
Availability: Please Call

Vivitek D98-4070
Suitable For

Vivitek D98-4070 Lens Only
£2813 (£3375.60 inc. VAT)
Availability: Please Call

Select a Screen

Min. Throw Max Throw Foot Lamberts
8.00m 14.00m 817.55

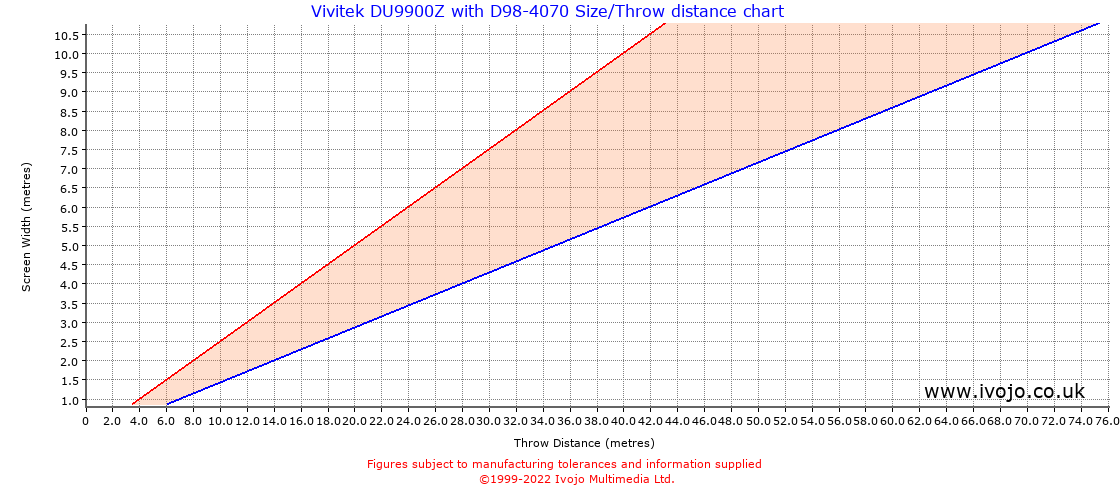

Throw Chard for Vivitek DU9900Z fitted with Vivitek D98-4070

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 2.00 3.50 0.14 sq.m. 14534.16
1.00 0.56 1.15 4.00 7.00 0.56 sq.m. 3633.54
1.50 0.84 1.72 6.00 10.50 1.27 sq.m. 1614.91
2.00 1.12 2.29 8.00 14.00 2.25 sq.m. 908.39
2.50 1.41 2.87 10.00 17.50 3.52 sq.m. 581.37
3.00 1.69 3.44 12.00 21.00 5.06 sq.m. 403.73
4.00 2.25 4.59 16.00 28.00 9.00 sq.m. 227.10
5.00 2.81 5.74 20.00 35.00 14.06 sq.m. 145.34

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.14 0.25
2 0.29 0.50
3 0.43 0.75
4 0.57 1.00
5 0.71 1.25
6 0.86 1.50
7 1.00 1.75
8 1.14 2.00

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
