Vivitek DU9900Z Projector &
Vivitek D98-0810 Projector Lens

Vivitek DU9900Z

  • 22000 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 10000:1 Contrast Ratio
  • 20000 hour lamp life (typical)
  • Lens Shift function
  • 52.3kg (115.3lb.)
  • 5 year Return to base warranty
  • Vivitek DU9900Z
Vivitek DU9900Z & Vivitek D98-0810
£25396 (£30475.20 inc. VAT)
Availability: Please Call

Vivitek D98-0810
Suitable For

Vivitek D98-0810 Lens Only
£2813 (£3375.60 inc. VAT)
Availability: Please Call

Select a Screen

Min. Throw Max Throw Foot Lamberts
1.68m 2.06m 817.55

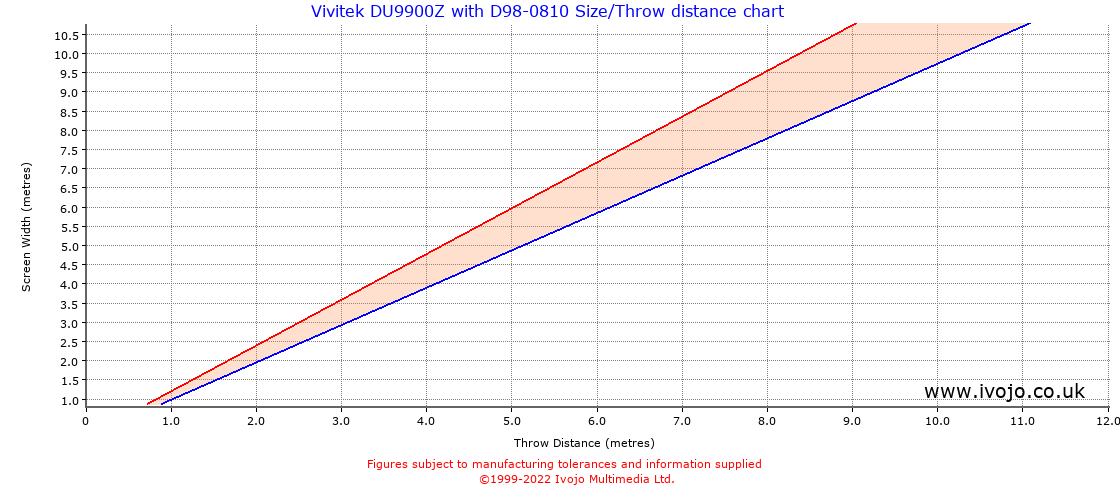

Throw Chard for Vivitek DU9900Z fitted with Vivitek D98-0810

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 0.42 0.52 0.14 sq.m. 14534.16
1.00 0.56 1.15 0.84 1.03 0.56 sq.m. 3633.54
1.50 0.84 1.72 1.26 1.54 1.27 sq.m. 1614.91
2.00 1.12 2.29 1.68 2.06 2.25 sq.m. 908.39
2.50 1.41 2.87 2.10 2.58 3.52 sq.m. 581.37
3.00 1.69 3.44 2.52 3.09 5.06 sq.m. 403.73
4.00 2.25 4.59 3.36 4.12 9.00 sq.m. 227.10
5.00 2.81 5.74 4.20 5.15 14.06 sq.m. 145.34

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 0.97 1.19
2 1.94 2.38
3 2.91 3.57
4 3.88 4.76
5 4.85 5.95
6 5.83 7.14
7 6.80 8.33
8 7.77 9.52

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
