Optoma ZU1700 Projector &
Optoma BX-CTA11 Projector Lens

Optoma ZU1700

  • 14500 ANSI Lumens
  • WUXGA 1920*1200 Native Resolution
  • 2000000:1 Contrast Ratio
  • 30000 hour lamp life (typical)
  • Lens Shift function
  • 50kg (110.2lb.)
  • 3 year Return To Base warranty
  • Optoma ZU1700
Optoma ZU1700 & Optoma BX-CTA11
£27286 (£32743.20 inc. VAT)
Availability: Please Call
Optoma BX-CTA11 Lens Only
£4840 (£5808.00 inc. VAT)
Availability: Please Call

Select a Screen

Min. Throw Max Throw Foot Lamberts
1.30m 1.50m 538.84

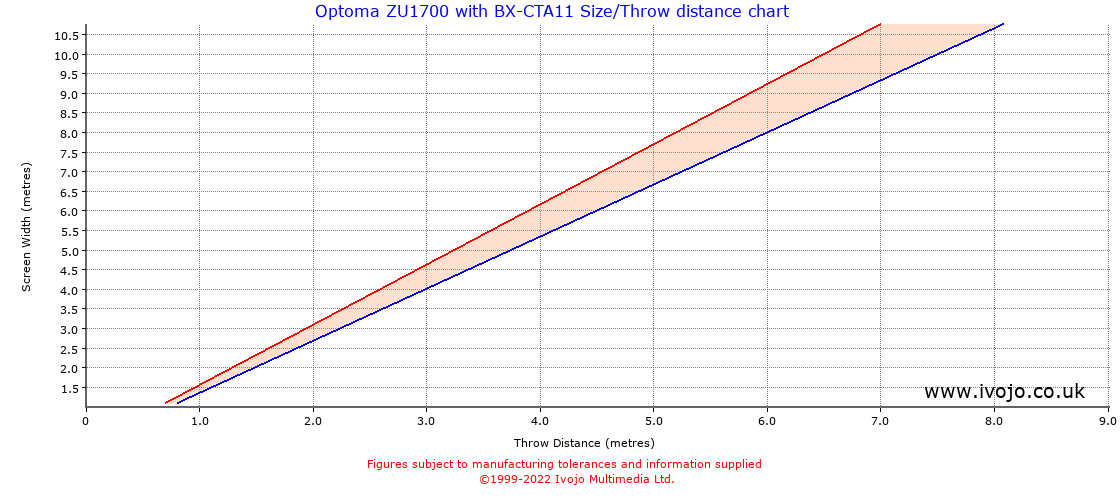

Throw Chard for Optoma ZU1700 fitted with Optoma BX-CTA11

Screen Size Table (Figures in metres)

Width Height Diagonal Min. Throw Max Throw Area Foot Lamberts*
0.50 0.28 0.57 0.33 0.38 0.14 sq.m. 9579.34
1.00 0.56 1.15 0.65 0.75 0.56 sq.m. 2394.83
1.50 0.84 1.72 0.98 1.12 1.27 sq.m. 1064.37
2.00 1.12 2.29 1.30 1.50 2.25 sq.m. 598.71
2.50 1.41 2.87 1.62 1.88 3.52 sq.m. 383.17
3.00 1.69 3.44 1.95 2.25 5.06 sq.m. 266.09
4.00 2.25 4.59 2.60 3.00 9.00 sq.m. 149.68
5.00 2.81 5.74 3.25 3.75 14.06 sq.m. 95.79

*Foot lamberts are a measure of the brightness of the final image. Multiply the figure in the foot lamberts column by the gain of your screen to obtain a true figure.

Throw Distance Table (Figures in metres)

Distance Minimum Width Maximum Width
1 1.33 1.54
2 2.67 3.08
3 4.00 4.62
4 5.33 6.15
5 6.67 7.69
6 8.00 9.23
7 9.33 10.77
8 10.67 12.31

Please note that these tables are based on figures supplied by the manufacturer and Ivojo cannot vouch for their accuracy. If in doubt please call us.
