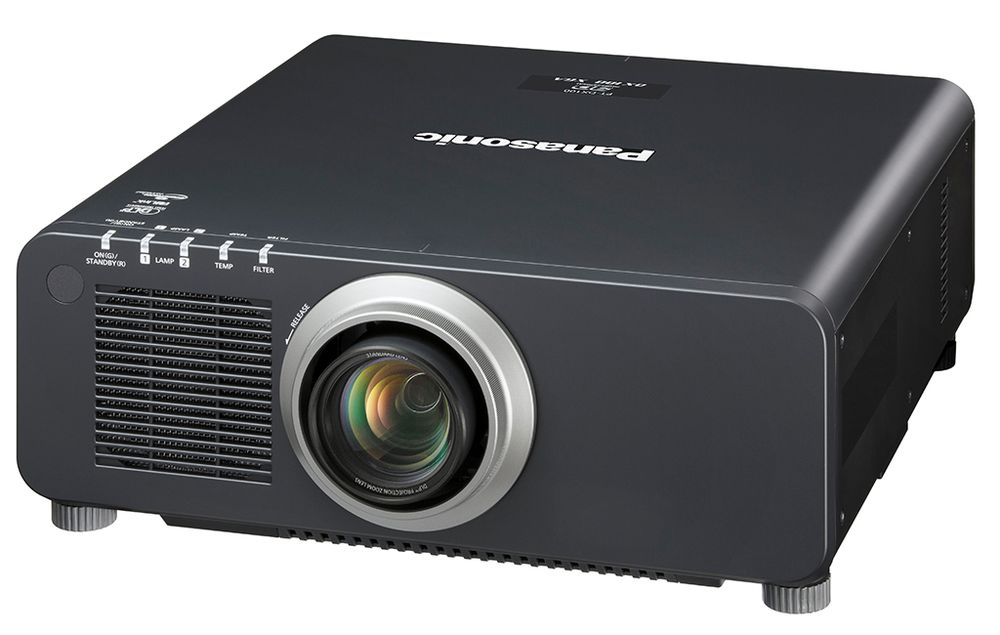

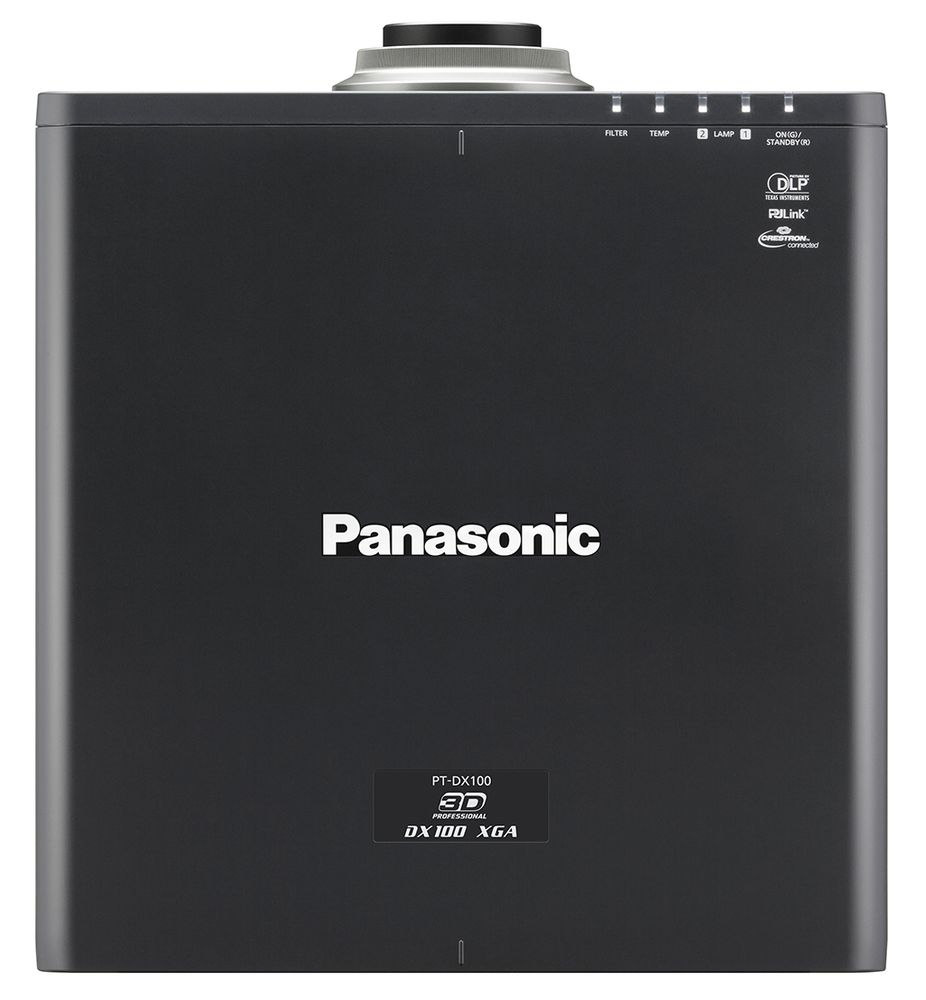

Panasonic PT-DX100EK Projector
Panasonic PT-DX100EK Key Features
- FREE Delivery on this item
- DLP Display Technology
- 10,000 Lumens
- 0 Optional Lenses (Click Here)
- XGA 1024*768 Native Resolution
- 4,000 hour lamp life (typical)
- 10,000:1 Contrast Ratio
- 18.3kg (40.3lb.)
- Wide zoom range for flexible placement
- HDCP Compliant DVI
- Lens Shift
- Direct Power Off
- Picture-In-Picture
- Interchangeable Lens System
- Can Be Installed Vertically
- Lens-centred Design
- Mechanical Shutter
- Logo capture and display
- PIN Code Security
- Warrantied for 24/7 use
- Edge Blending
- DICOM Simulation Mode
- 3D Projection Ready
- Motorised Zoom and Focus
- sRGB Colour Mode
- Monitor Out
- Network Control
Panasonic PT-DX100EK Specifications
| Categories | Conference / Large Venue Interchangeable Lens Lens Shift |
| Manufacturer | Panasonic (Click for rest of range) |
Panasonic PT-DX100EK Optical Features |
|
| System | 1 * 0.7" DMD |
| Resolution | XGA (1024*768) |
| Aspect Ratio | 4:3 |
| Lumens | 10,000 |
| Contrast | 10,000:1 |
| Lamp | 2 * 420 W UHM lamp |
| Lamp Life | 4,000hrs. |
| Interchangeable | Yes |
| Throw Ratio | 1.81 - 2.53:1 |
| Image Size | 50"-600" diagonal |
| Throw Distance | 1.78-30.94m |
| Throw distance for 100" image | 3.67 - 5.13m |
| Lens Shift | Vertical: 50% Horizontal: 10 |
| Keystone |
±40° (Vertical) |
Panasonic PT-DX100EK Compatibility |
|
| Computer Resolutions | VGA, SVGA, XGA, SXGA, SXGA+ |
| Video Resolutions | PAL, SECAM, NTSC, 720p, 1080i, 1080p |
| Horizontal Freq. | 15-100kHz |
| Vertical Freq. | 24-120Hz |

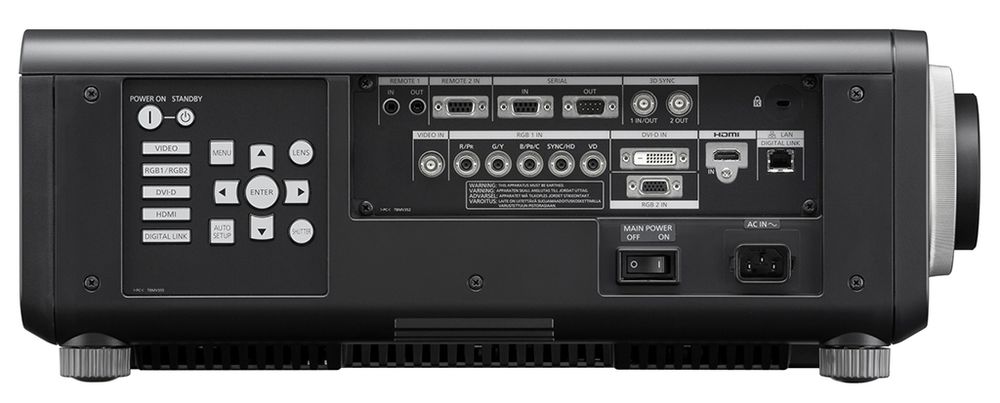

Panasonic PT-DX100EK Terminals |
|
| DVI | 1 (HDCP Compliant) |
| HDMI | 1 |
| RGBHV (15-pin HD) | 1 |
| RGBHV (BNC/RCA) | 1 |
| Composite | 1 |
| Monitor Out | Yes |
| RS-232 | 2 |
| Network Ready | Yes |
Panasonic PT-DX100EK General |
|
| Speakers | No |

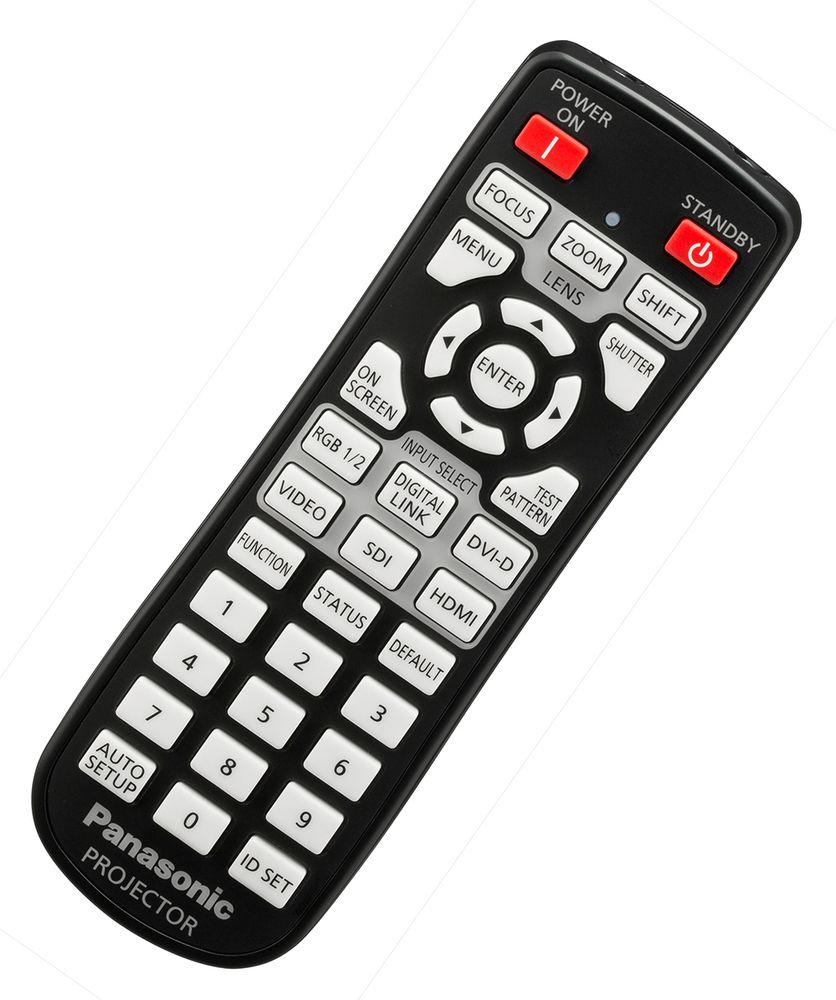

| Remote Control | Panasonic PT-DX100EK only |
| Noise | 40db (35db ECO mode) |
| Dimensions | 498*200*556mm (W*H*D) |
| Weight | 18.30kg |
| Power Supply | 120-240 V AC, 10-5.2 A, 50/60 Hz |
| Power Consumption | 1030Watts |
| Manufacturers Warranty | 3 year with loan support (if available) |
| Light Source Warranty | 90 days/1000 hours (whichever first) |
Panasonic PT-DX100EK Package Contents |
|
| Accessories | Power cord with secure lock wireless/wired remote control unit batteries (R03/AAA type x 2) software CD-ROM (Logo Transfer Software Multi Projector Monitoring & Control Software) |
Ivojo Multimedia are approved Panasonic dealers and supply only UK products with full UK warranties.
Panasonic PT-DX100EK Optional Lenses
| Description | Price | Inc. VAT |
| Panasonic ET-DLE085 Ultra short throw zoom Lens | £3709 | £4450.80 |
| Panasonic ET-DLE055 Ultra short throw fixed Lens | £3019 | £3622.80 |
| Panasonic ET-DLE150 Short throw zoom Lens | £2390 | £2868.00 |
| Panasonic ET-DLE250 Mid-range zoom Lens | £2499 | £2998.80 |
| Panasonic ET-DLE350 Semi-long throw zoom Lens | £2499 | £2998.80 |
| Panasonic ET-DLE450 Long throw zoom Lens | £2499 | £2998.80 |
Panasonic PT-DX100EK Accessories
| Description | Price | Inc. VAT |
| Seddon Flight Case 25 Hard case for projectors weighing 10-25kg | £167.00 | £200.40 |
